TROUBLESHOOTING
ANTI-SKID BRAKING SYSTEM (ABS)
35B-27
NOTE: Do not connect special tool ABS Check
Harness (MB991974) to the ABS-ECU.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between the relevant signal
and earth terminals in the wheel speed sensor
circuit and body earth.
OK: Less than 1V
• Code No.C1201 is set: Between signal
terminal 5 and body earth, and between earth
terminal 6 and body earth
• Code No.C1206 is set: Between signal
terminal 8 and body earth, and between earth
terminal 9 and body earth
• Code No.C1211 is set: Between signal
terminal 11 and body earth, and between
earth terminal 12 and body earth
• Code No.C1216 is set: Between signal
terminal 2 and body earth, and between earth
terminal 3 and body earth
Q: Is the check result normal?
YES :
Go to Step 9.
NO (When the voltage between terminal 5 or 6
−
and body earth measures more than 1 V) :
Go to
Step 10.
NO (When the voltage between terminal 8 or 9
−
and body earth measures more than 1 V) :
Go to
Step 11.
NO (When the voltage between terminal 11 or 12
−
and body earth measures more than 1 V) :
Go to
Step 12.
NO (When the voltage between terminal 2 or 3
−
and body earth measures more than 1 V) :
Go to
Step 13.

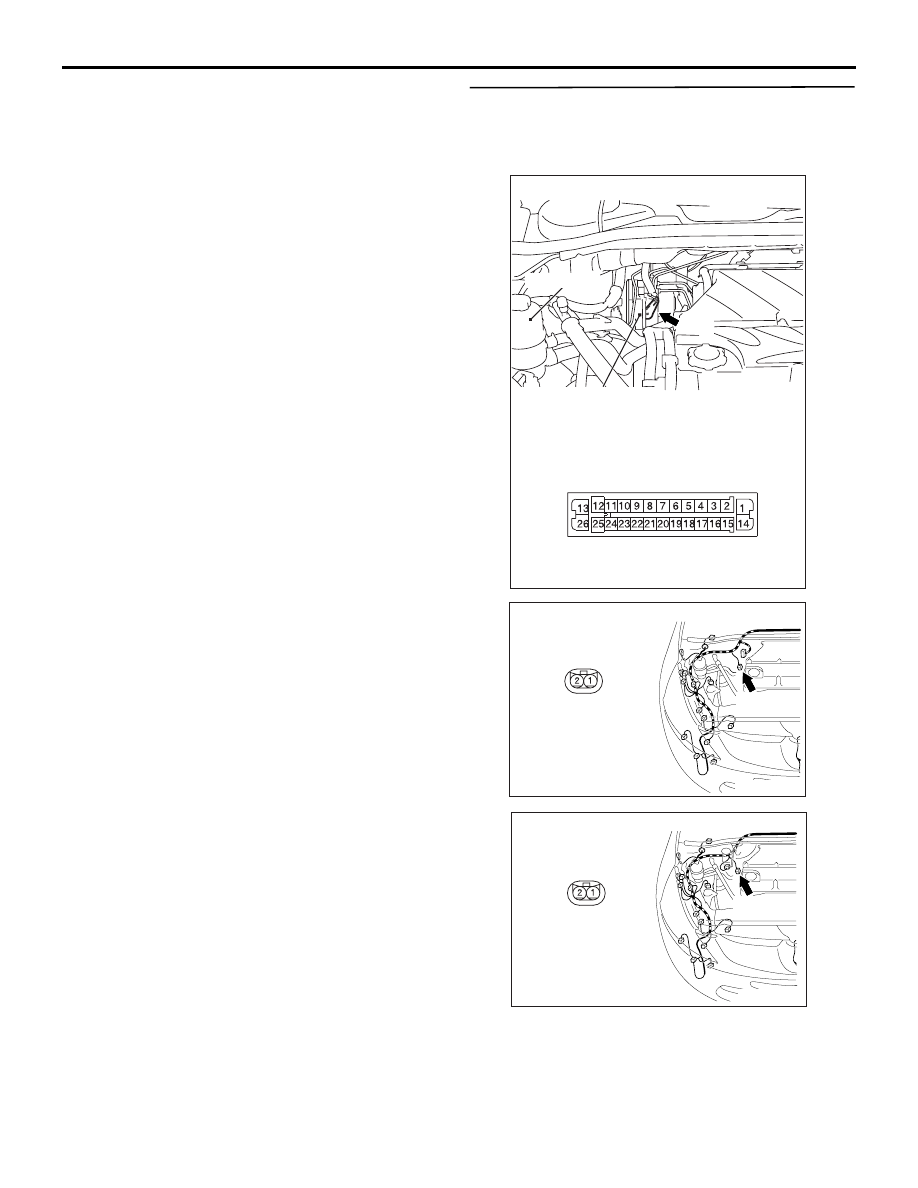

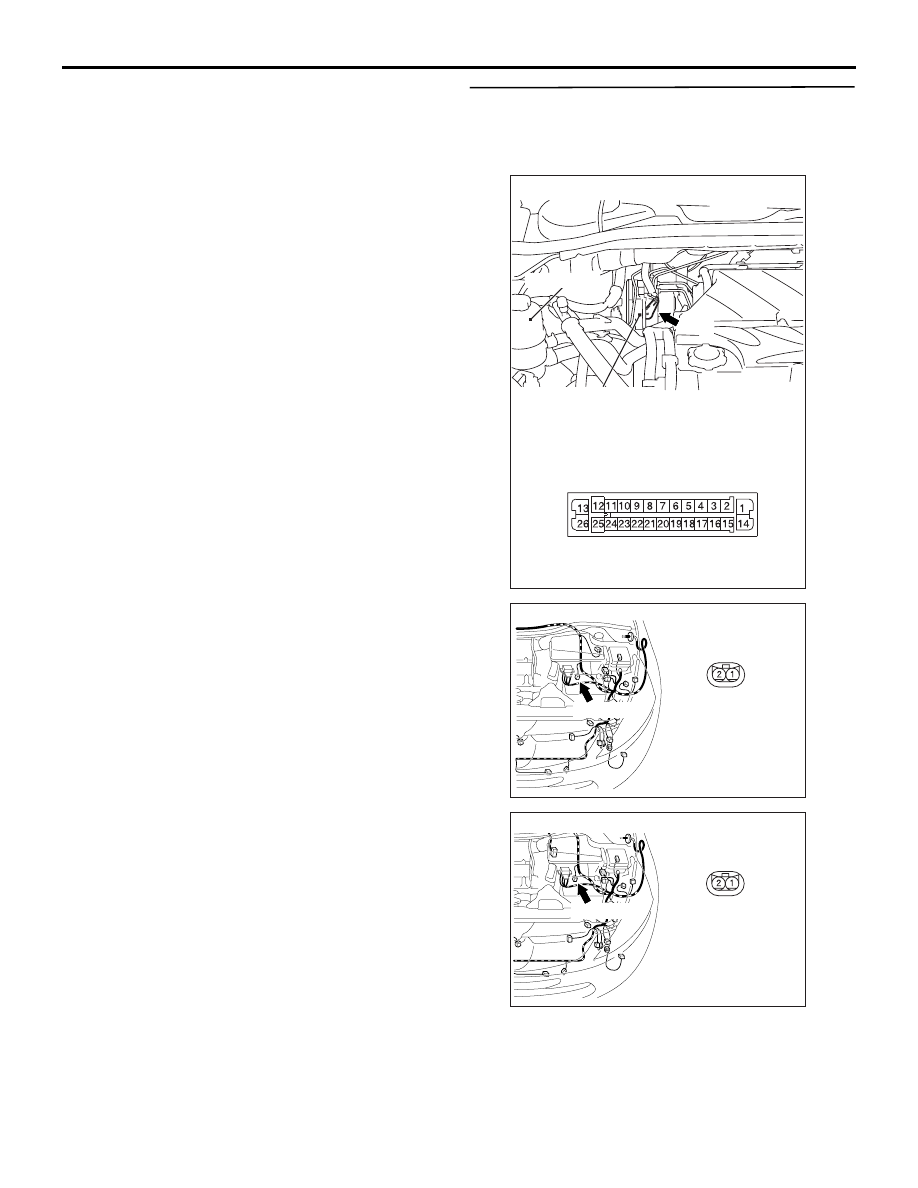

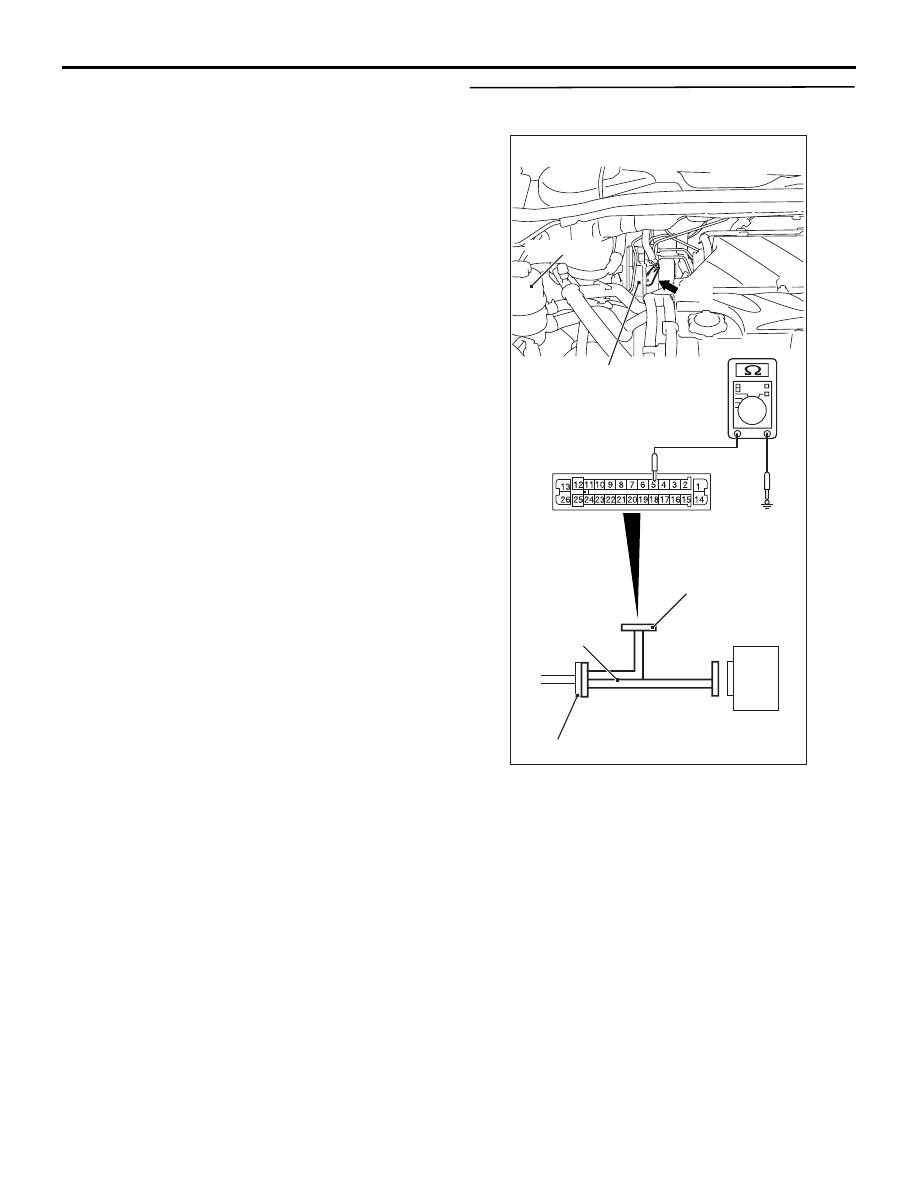

STEP 9. Resistance measurement at ABS-ECU
connector A-03.
(1) Disconnect the connector A-03, and connect
special tool ABS Check Harness (MB991974) to
the wiring harness-side connector.
NOTE: Do not connect special tool ABS Check
Harness (MB991974) to the ABS-ECU.
(2) Measure the resistance between the relevant
signal and earth terminals in the wheel speed
AC312620AS
Oil reservoir
Connector: A-03
ABS-ECU
MB991974
Check connector
A-03 Harness connector
A-03
Hydraulic unit
(with built-in ABS-ECU)
