Mitsubishi Grandis. Manual - part 902





TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-23

Code No.C1201: Front Right Wheel Speed Sensor
Code No.C1206: Front Left wheel Speed Sensor
Code No.C1211: Rear Right wheel Speed Sensor
Code No.C1216: Rear Left wheel Speed Sensor

CAUTION

If there is any problem in the CAN bus lines, an
incorrect diagnosis code may be set. Diagnose
the CAN bus lines before the Diagnosis codes
(Refer to GROUP 54D, CAN bus-line diagnostic
flow

P.54D-9

).

OPERATION

• Wheel speed sensor is a kind of a pulse

alternator. It consists of encoders (a plate on
which north and south pole sides of the magnets
are arranged alternately) for detecting wheel

speed which rotates at the same speed of the
wheels and wheel speed sensors. This sensor
outputs frequency pulse signals in proportion to
wheel speed.

• The wheel speed sensors transmit the frequency

of the voltage pulses and the amount of voltage
generated by each pulse to the ABS-ECU.

(FRONT: LH)

(FRONT: RH)

(REAR: LH)

(REAR: RH)

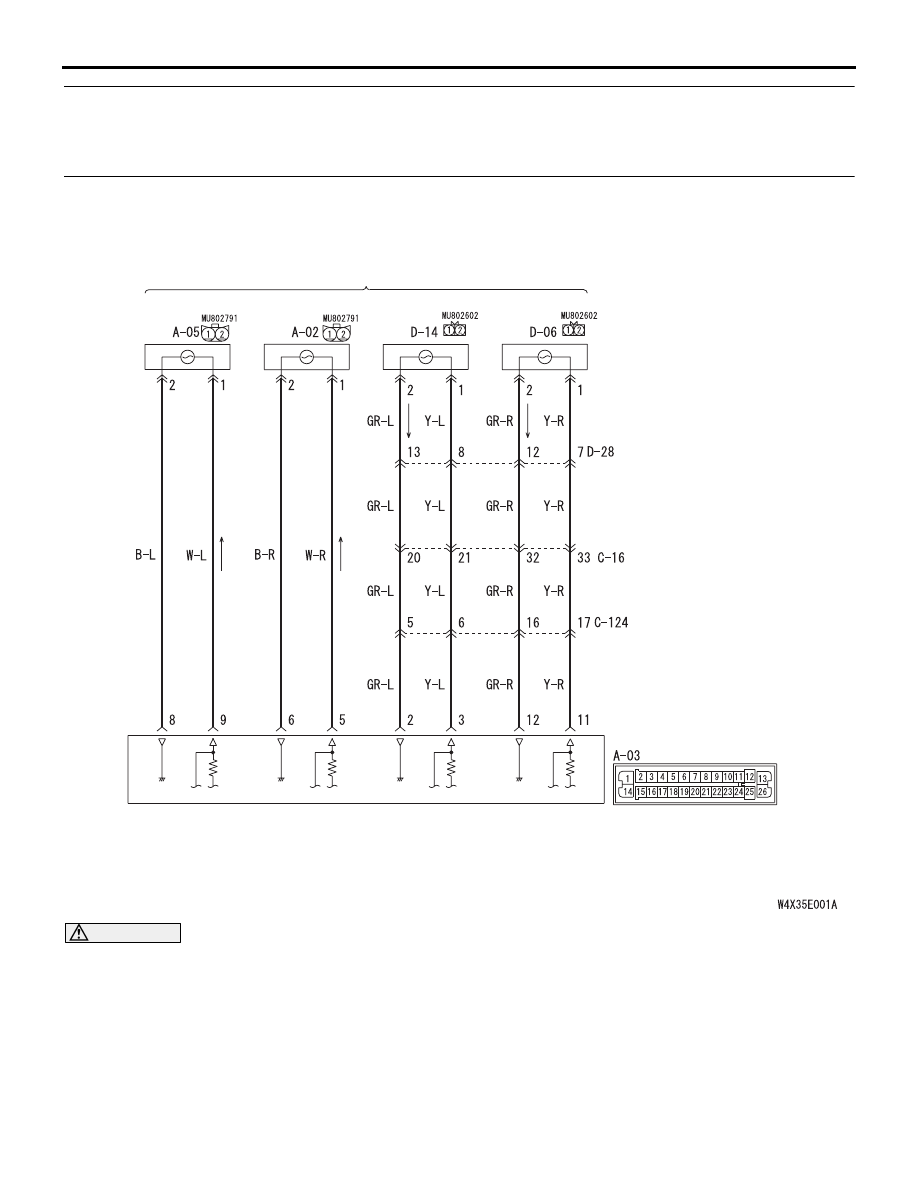

WHEEL SPEED SENSOR

ABS-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

Wheel Speed Sensor Circuit

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-24

DIAGNOSIS CODE SET CONDITIONS

The ABS-ECU monitors the signals from each wheel
speed sensor while the vehicle is being driven. If any
faults below are found in these sensor signals, the
ECU will set the relevant diagnosis code.

• Missing sensor signal

• Sensor signal, which will not be created under

normal operation

• Significant difference among the wheel speed

sensor signals

PROBABLE CAUSES

The most likely causes for these diagnosis codes to
set are:

• Malfunction of the wheel speed sensor

• Damaged wiring harness or connector

• Malfunction of the hydraulic unit (integrated with

ABS-ECU)

DIAGNOSIS

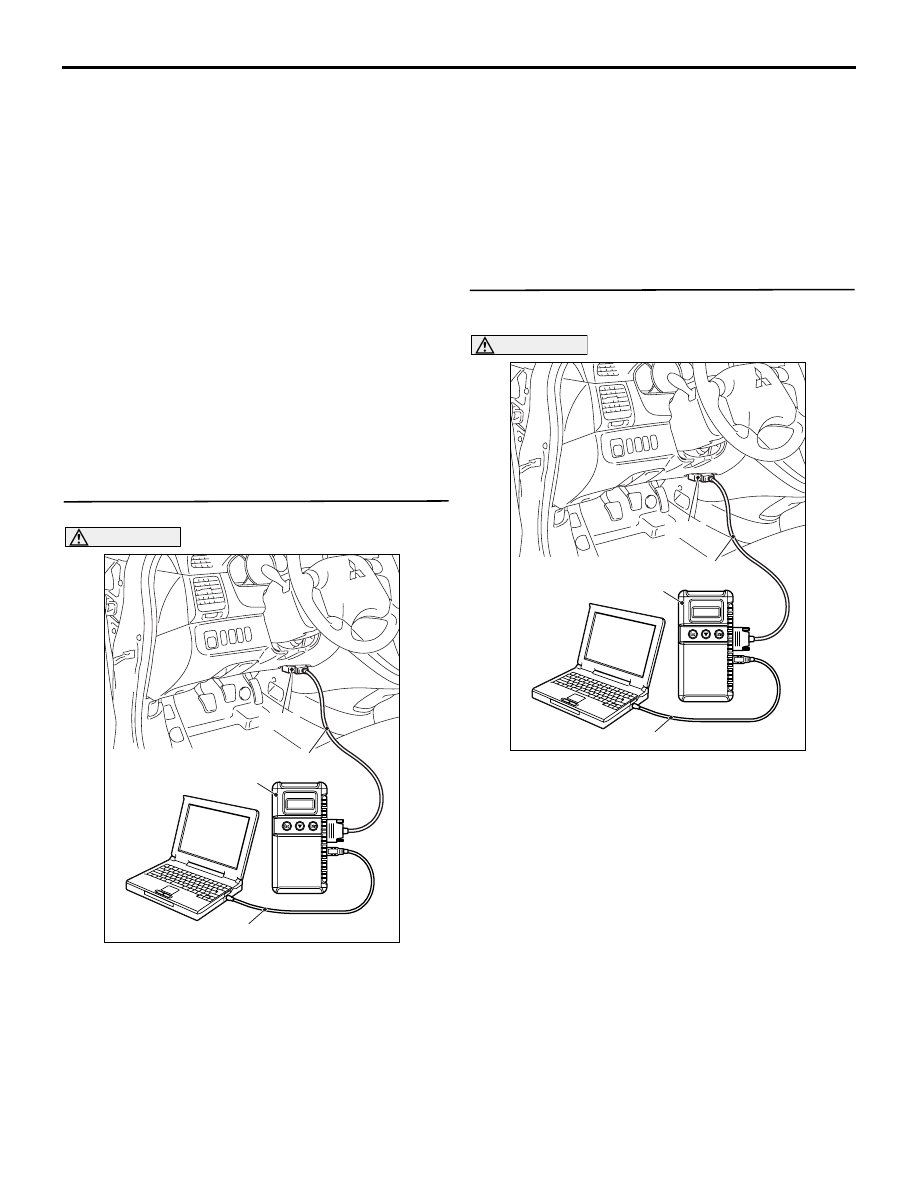

STEP 1. MUT-III CAN bus diagnostics

CAUTION

Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.
(1) Connect MUT-III to the 16-pin diagnosis

connector.

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF)

position.

Q: Is the check result normal?

YES :

Go to Step 3

NO :

Repair the CAN bus line (Refer to GROUP
54D, CAN bus line Diagnostic flow

P.54D-9

). Then go to Step 2.

STEP 2. Check whether the diagnosis code is
reset.

CAUTION

Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the diagnosis code.
(3) Turn the ignition switch to the "LOCK" (OFF)

position.

(4) Turn the ignition switch to the "ON" position.
(5) Check if the diagnosis code is set.
(6) Turn the ignition switch to the "LOCK" (OFF)

position.

Q: Is code No.C1201, C1206, C1211 and C1216 set?

YES :

Go to Step 3.

NO :

The procedure is complete.

AC302297

AC310120

AB

MB991827

16-pin

MB991910

MB991824

AC302297

AC310120

AB

MB991827

16-pin

MB991910

MB991824

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-25

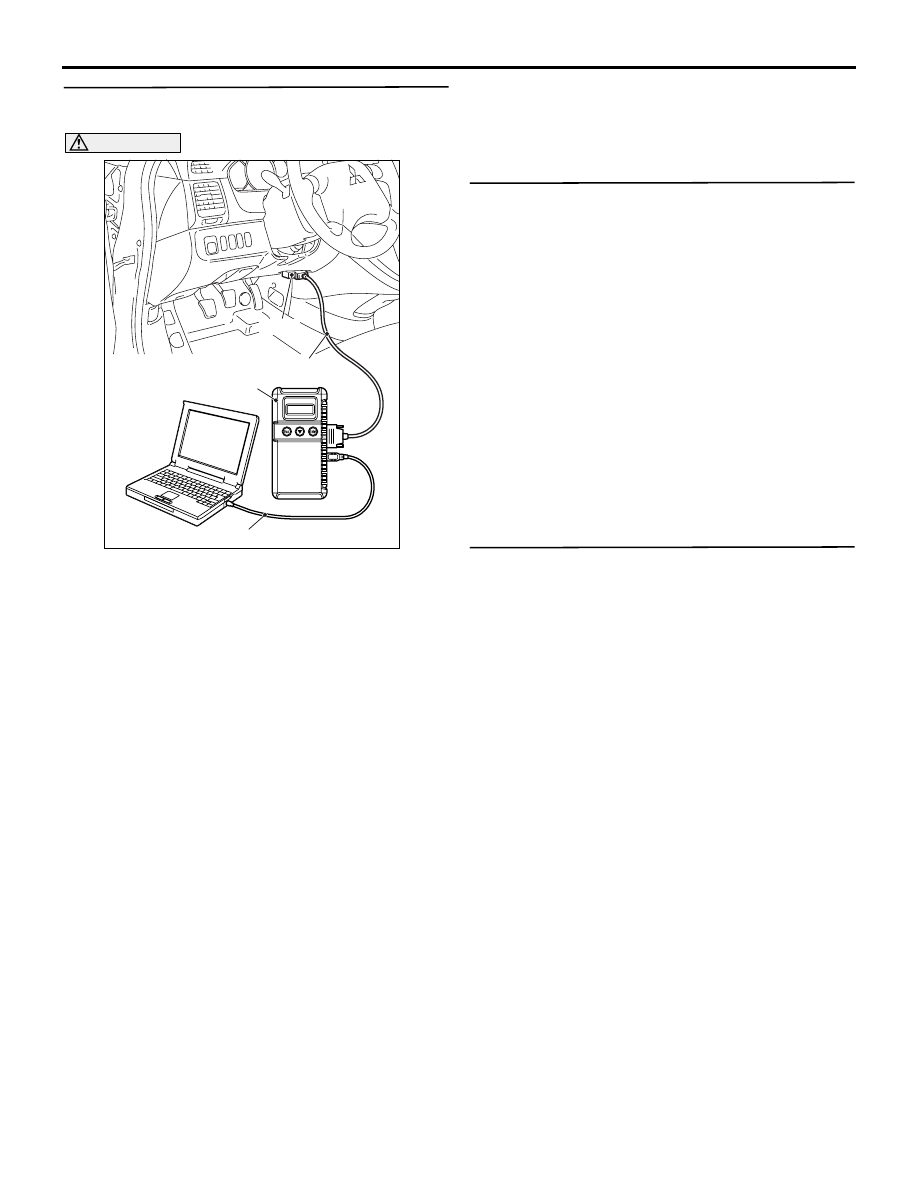

STEP 3. Check whether the diagnosis code is
reset.

CAUTION

Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.
Use MUT-III to check whether diagnosis codes
No.C1200, C1205, C1210 and C1215 have been set
simultaneously.
(1) Connect MUT-III to the 16-pin diagnosis

connector.

(2) Turn the ignition switch to the "ON" position.
(3) Check whether diagnosis codes No.C1200,

C1205, C1210 or C1215 have been set.

(4) Turn the ignition switch to the "LOCK" (OFF)

position.

Q: Is codes No.C1200, C1205, C1210 or C1215 set?

YES :

Carry out diagnosis relevant to diagnosis

codes No.C1200, C1205, C1210 or C1215
(Refer to

P.35B-9

).

NO :

Go to Step 4.

STEP 4. Check the installation condition of the
wheel speed sensors.

For the wheel speed sensor, which the diagnosis
code indicates, check whether the sensor or its
mounting bolts are loosened.

• Code No.C1201 is set: Front right wheel speed

sensor

• Code No.C1206 is set: Front left wheel speed

sensor

• Code No.C1211 is set: Rear right wheel speed

sensor

• Code No.C1216 is set: Rear left wheel speed

sensor

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Reinstall the wheel speed sensor correctly.
Then go to Step 15.

STEP 5. Check the wheel speed sensor after it is
removed from the vehicle.

Check the wheel speed sensor, which the diagnosis
code indicates (Refer to

P.35B-81

).

• Code No.C1201 is set: Front right wheel speed

sensor

• Code No.C1206 is set: Front left wheel speed

sensor

• Code No.C1211 is set: Rear right wheel speed

sensor

• Code No.C1216 is set: Rear left wheel speed

sensor

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace the wheel speed sensor. Then go
to Step 15.

AC302297

AC310120

AB

MB991827

16-pin

MB991910

MB991824

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-26

STEP 6. Check the wheel bearing for looseness.
NOTE: If the wheel bearing is loose, the gap
between the wheel speed sensor and rotor may
become excessive. Check the wheel bearing, which
diagnosis code indicates, for looseness.

• Code No.C1201 is set: Check the front right

wheel bearing (Refer to GROUP 26, On-vehicle
service

− Hub axial play check

P.26-6

).

• Code No.C1206 is set: Check the front left wheel

bearing (Refer to GROUP 26, On-vehicle service
− Hub axial play check

P.26-6

).

• Code No.C1211 is set: Check the rear right wheel

bearing (Refer to GROUP 27, On-vehicle service
− Wheel bearing axial play check

P.27-3

).

• Code No.C1216 is set: Check the rear left wheel

bearing (Refer to GROUP 27, On-vehicle service
− Wheel bearing axial play check

P.27-3

).

Q: Is the check result normal?

YES :

Go to Step 7.

NO (front hub axial play is not within the standard
value) :

Replace the front hub assembly (Refer to

GROUP 26, Front axle hub assembly

P.26-8

). Then go to Step 15.

NO (rear wheel bearing axial play is not within the
standard value) :

Replace the rear hub assembly

(Refer to GROUP 27, Rear axle hub
assembly

P.27-5

). Then go to Step 15.

STEP 7. Check the vehicle speed detection
encoder.

Check the vehicle speed detection encoder, which
diagnosis code indicates, for foreign material or
deformation.

• Code No.C1201 is set: Front right wheel speed

sensor

• Code No.C1206 is set: Front left wheel speed

sensor

• Code No.C1211 is set: Rear right wheel speed

sensor

• Code No.C1216 is set: Rear left wheel speed

sensor

Q: Is the check result normal?

YES :

Go to Step 8.

NO (front hub axial play is not within the standard
value) :

If the vehicle speed detection encoder is

contaminated with foreign material, clean it.
If the front hub assembly is deformed,
replace it (Refer to GROUP 26, Front axle
hub assembly

P.26-8

). Then go to Step 15.

NO (rear wheel bearing axial play is not within the
standard value) :

If the vehicle speed detection

encoder is contaminated with foreign
material, clean it. If the rear axle hub
assembly is deformed, replace it (Refer to
GROUP 27, Rear axle hub assembly

P.27-5

). Then go to Step 15.

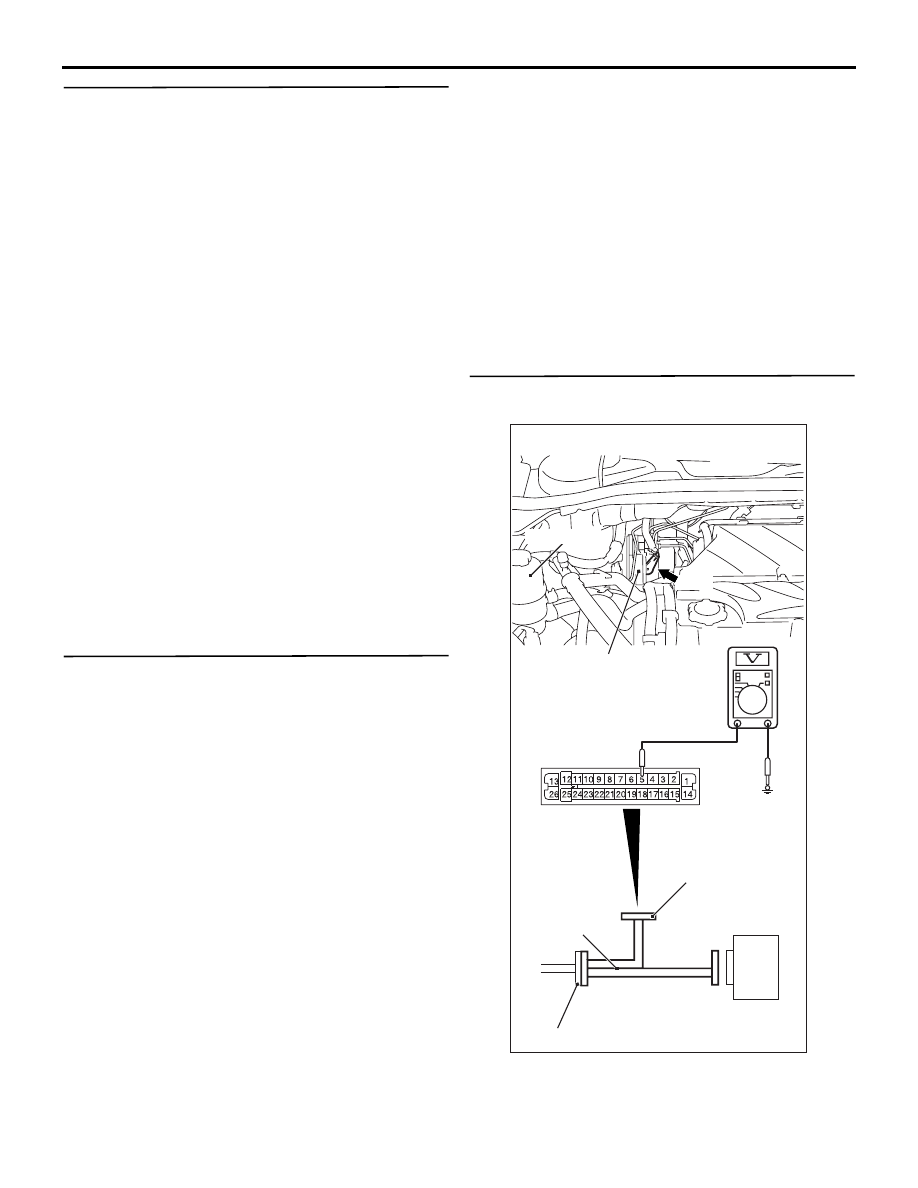

STEP 8. Voltage measurement at ABS-ECU
connector A-03.

(1) Disconnect the connector A-03, and connect

special tool ABS Check Harness (MB991974) to
the wiring harness-side connector.

AC312620AR

Oil reservoir

Connector: A-03

ABS-ECU

MB991974

Check connector

A-03 Harness connector

A-03

Hydraulic unit
(with built-in ABS-ECU)
