TRANSMISSION CONTROL

AUTOMATIC TRANSMISSION (FF)

23A-143

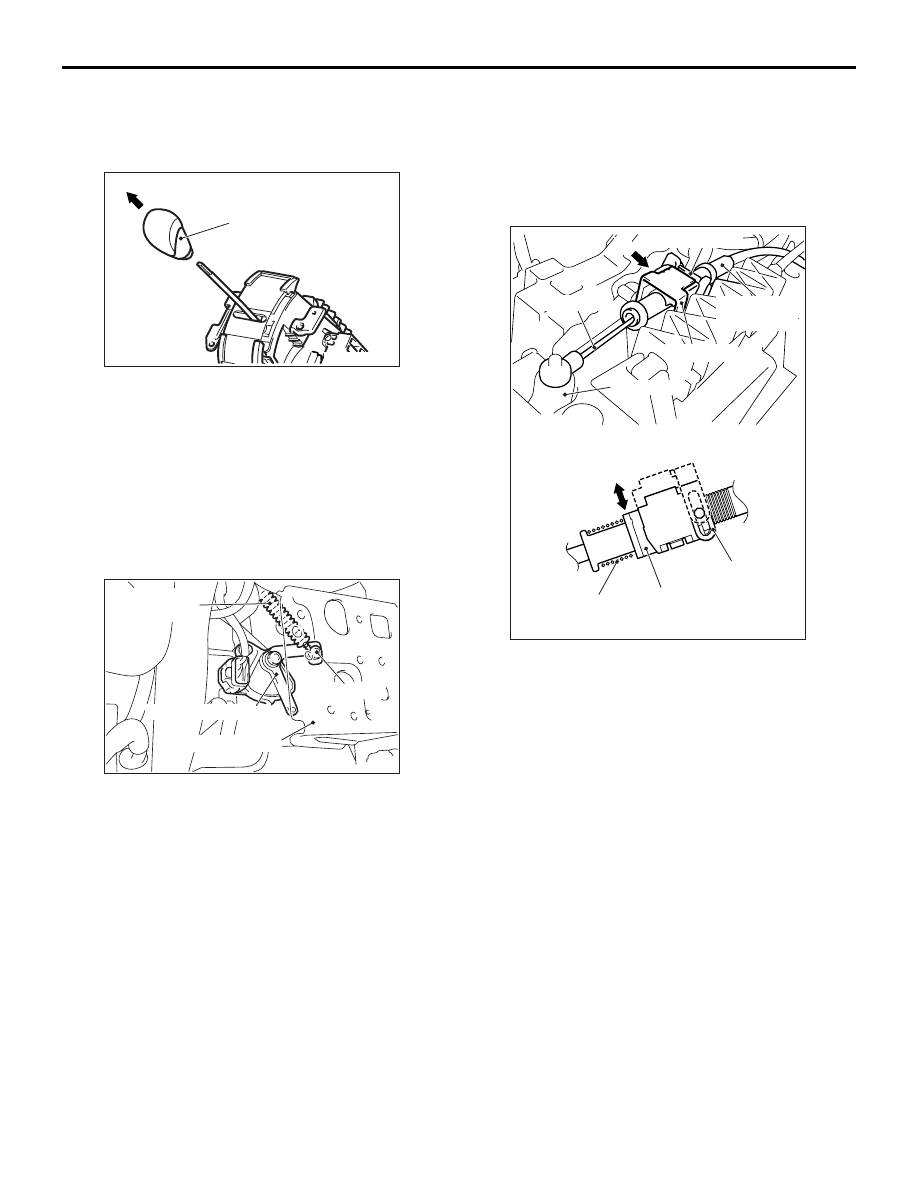

REMOVAL SERVICE POINTS
<<A>> SELECTOR LEVER KNOB
REMOVAL

Pull out the selector knob to the direction shown.

INSTALLATION SERVICE POINTS
>>A<< TRANSMISSION CONTROL
CABLE ASSEMBLY (TRANSMISSION
SIDE) INSTALLATION

1. Place the selector lever and manual control lever

in the N position.

2. Tighten the transmission control cable locking nut

to the specified torque.

Tightening torque: 12

± 2 N⋅m

>>B<< KEY INTERLOCK CABLE
INSTALLATION

1. Selector lever to P position.
2. Turn the ignition key to LOCK (OFF) position.

3. Install the tip of the key interlock cable to the lock

cam of the selector lever assembly taking care not
to twist the inner cable.

4. Lift the lock guide (unlocked position) and then

install the adjuster case.

5. Lower the lock guide thoroughly and lock it.

NOTE: The lock position of the key interlock cable
is automatically adjusted by a spring.

AC311826AC

Selector lever knob

AC303714AE

Manual control lever

Locking nut

Transmission
control cable

Battery bracket

AC311846AB

A

Lock guide

Adjuster case

Spring

Lock

Unlock

Lock cam

Lock guide

Adjuster case

Key interlock
cable

Inner cable

View A

TRANSMISSION CONTROL

AUTOMATIC TRANSMISSION (FF)

23A-144

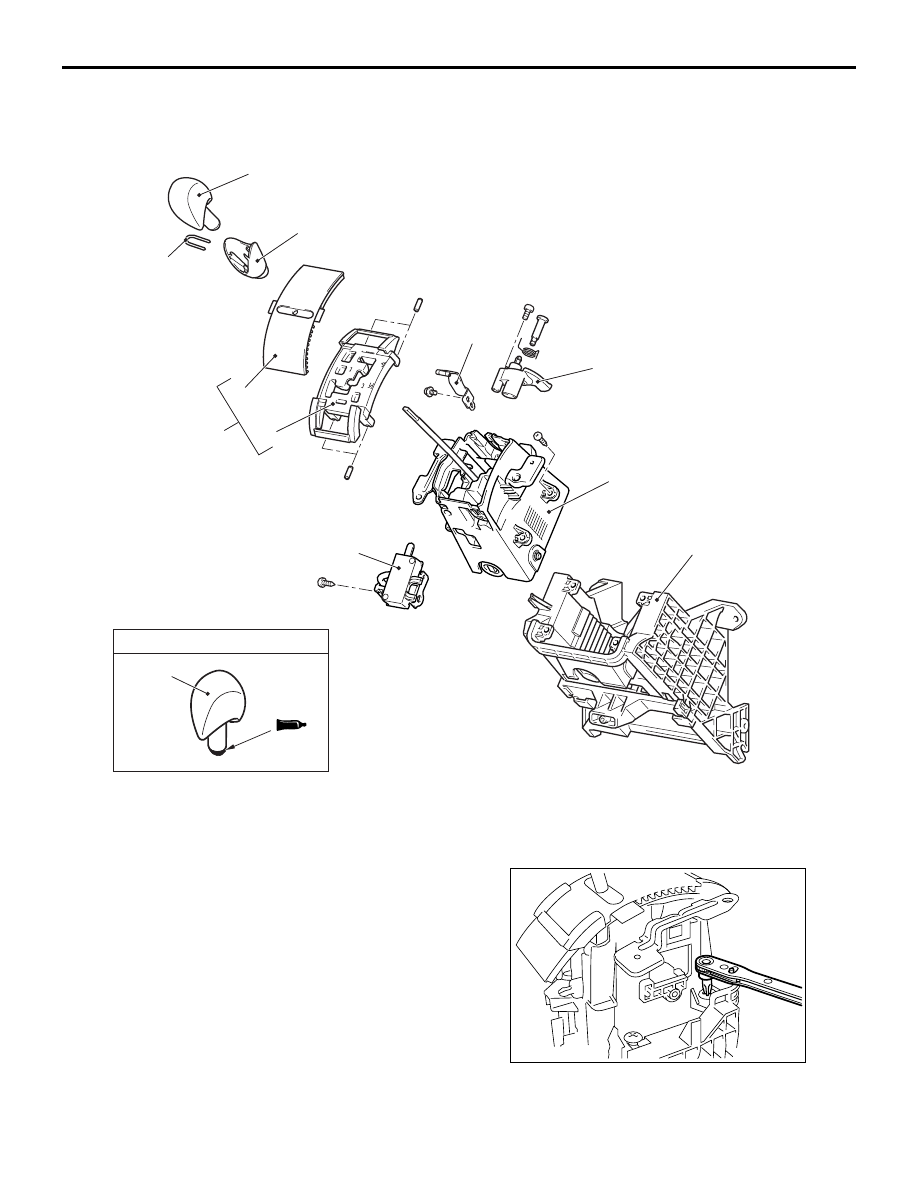

DISASSEMBLY AND REASSEMBLY

M1231006800471

REMOVAL SERVICE POINTS
<<A>> SELECTOR LEVER SUB
ASSEMBLY REMOVAL

A commercial plate type ratchet screwdriver is
recommended for removing the shift switch
assembly side tapping screws (two screws).

AC311926AB

Urethan adhesive: PANDO 156A

1

2

3

6

5

4

7

8

9

10

1

11

Disassembly steps

1.

Selector lever knob

2.

Garnish

3.

Pin

4.

Shift switch assembly

5.

Slider unit

6.

Slider

7.

Gate upper

8.

Lock cam

9.

Shift lock spring

10. Selector lever sub assembly
11. Lever mount bracket sub

assembly

AC311923AB

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

AUTOMATIC TRANSMISSION (FF)

23A-145

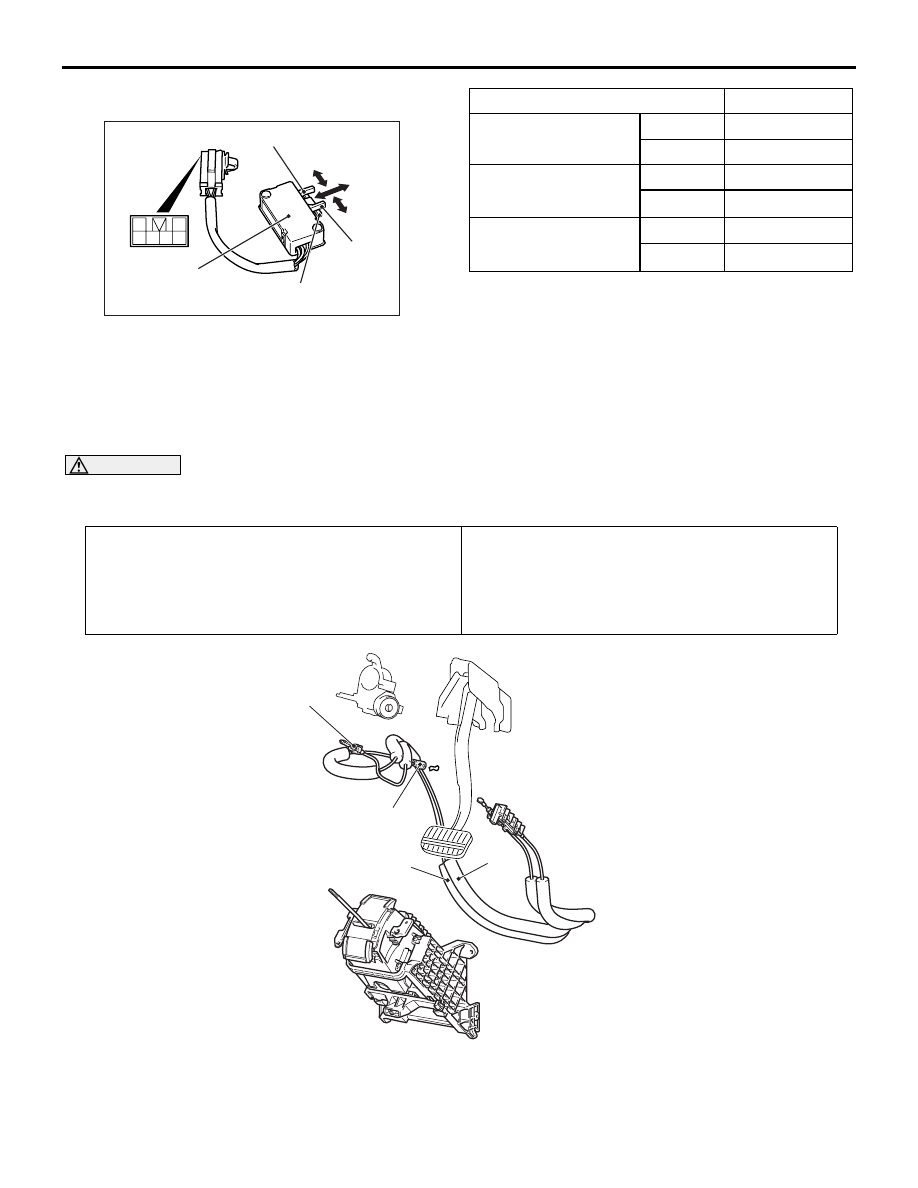

INSPECTION

M1231006900241

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

REMOVAL AND INSTALLATION

M1232001200563

CAUTION

When removing and installing the shift lock and key interlock cable, be careful not to hit the
SRS-ECU.

1

3 4 5 6

2

AC103390AC

Shift switch (up)

Select switch

Shift switch
(down)

Shift switch
assembly

OFF

ON

OFF

ON

OFF

ON

Switch position

Terminal NO.

Select switch

ON

1

− 4

OFF

1

− 2

Shift switch (up)

ON

3

− 6

OFF

−

Shift switch (down)

ON

3

− 5

OFF

−

Pre-removal Operation
• Selector Lever Assembly Removal (Refer to

P.23A-141

.)

Post-installation Operation
• Selector Lever Assembly Installation (Refer to

P.23A-141

.)

• Key Interlock and Shift Lock Mechanism Check (Refer to

P.23A-139

.)

• Selector lever operation check (Refer to

P.23A-139

.)

AC311663AB

1

2

3

4

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

AUTOMATIC TRANSMISSION (FF)

23A-146

REMOVAL SERVICE POINTS
<<A>> KEY INTERLOCK CABLE (ENGINE
STARTING SWITCH ASSEMBLY SIDE)
REMOVAL

Turn the ignition switch to the ACC position and then
pull the key interlock cable out from the ignition key
cylinder.

INSTALLATION SERVICE POINTS
>>A<< KEY INTERLOCK CABLE (ENGINE
STARTING SWITCH ASSEMBLY SIDE)
INSTALLATION

Turn the ignition switch to the ACC position and then
install the key interlock cable to the ignition key
cylinder.

Removal steps for key interlock
cable

•

Lower panel (Refer to GROUP
52A

− Instrument Panel

P.52A-2

).

•

Steering column cover lower
(Refer to GROUP 37A

− Steering

Shaft

P.37-16

).

<<A>>

>>A<<

1.

Key interlock cable connection
(engine starting assembly side).

2.

Key interlock cable
Removal steps for shift lock
cable

3.

Shift lock cable connection (brake
pedal side)

4.

Shift lock cable
