TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-31

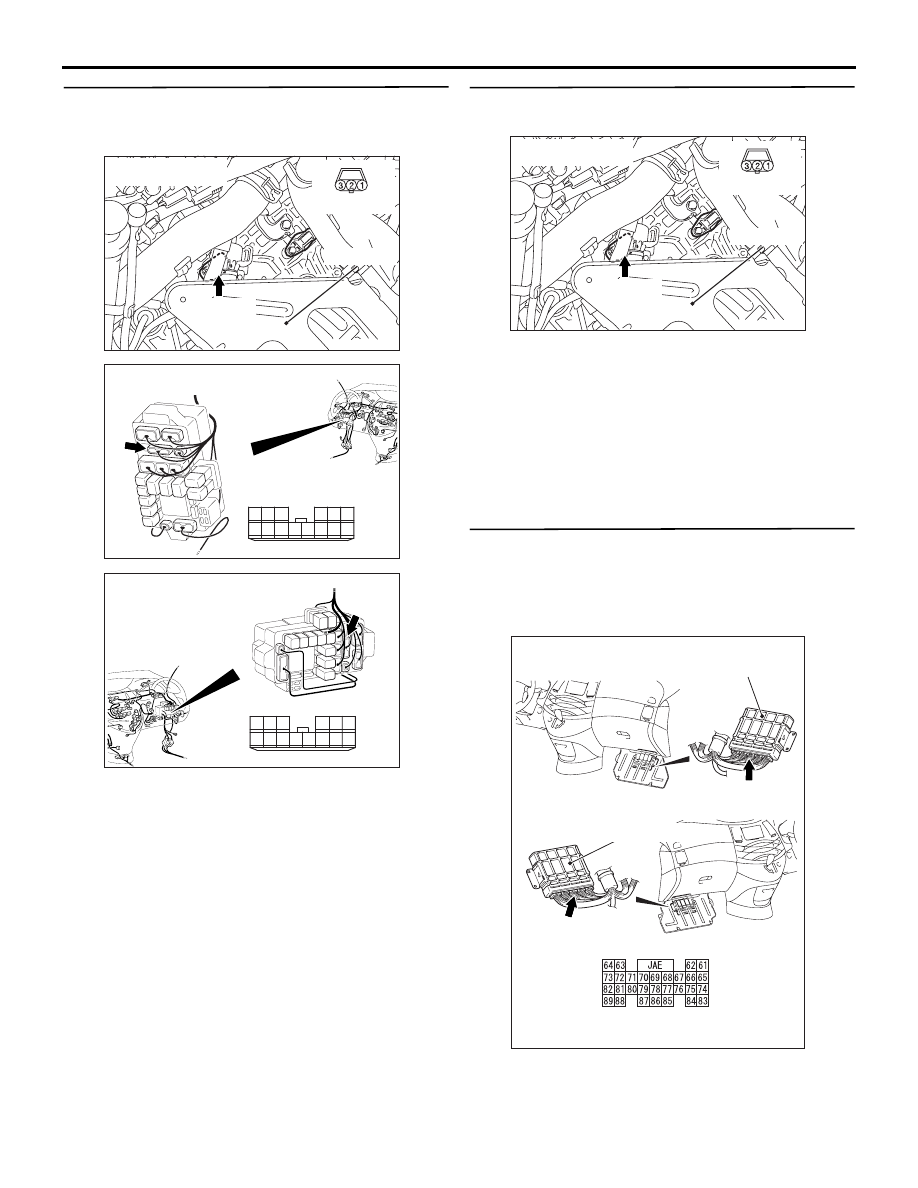

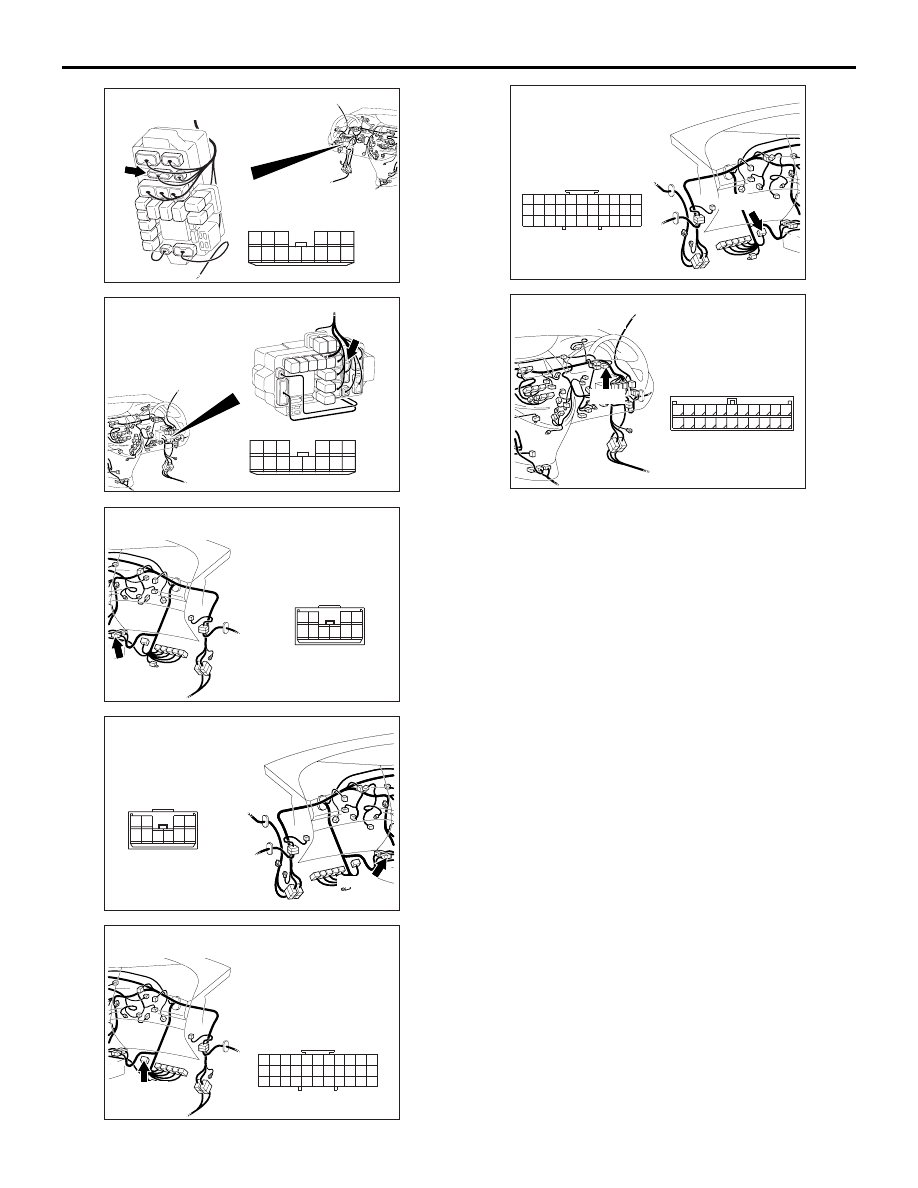

STEP 10. Connectors check: C-203 J/B
connector, C-18 intermediate connector, C-116
J/C (4), C-33 J/C (7) <RHD>

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-32

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

AC310623

Connectors: C-203 <LHD>

AL

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

AC310618

Connectors: C-203 <RHD>

AK

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

AC310615

AQ

Connector: C-18
<LHD>

C-18

2

6

1

5

9

3

7 8

10

4

AC310628

C-18

AC310628AT

Connector: C-18
<RHD>

C-18

2

6

1

5

9

3

7 8

10

4

AC310615

C-116

Connector: C-116
<LHD>

AP

23

12

1

7

29

18

4

26

15

1314

25

24

2 3

1617

28

27

5 6

10

32

21

1920
3031

8 9

22
33

11

AC310628AS

C-116

Connector: C-116
<RHD>

23

12

1

7

29

18

26

13

25

24

2

28

27

4

15

14

3

1617

5 6

10

32

21

1920
3031

8 9

22
33

11

AC310631AV

C-33

Connector: C-33
<RHD>

2

1

3

13

12

14

21

10

5

4

6

16

15

17

7 8 9

19

18

20

11

22

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-33

STEP 11. Check the harness between input shaft
speed sensor connector B-112 terminal No.3 and
junction block connector C-203 terminal No.12.

Check the power supply line for short or open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

STEP 12. Measure the voltage at input shaft
speed sensor connector B-112.

(1) Disconnect the connector, and measure the

voltage between terminal 2 and earth at the
wiring harness side.

(2) Turn the ignition switch to the ON position.

OK: 4.9

 5.1 V

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Go to Step 13.

STEP 13. Measure the voltage at engine-A/T-ECU
connector C-112.
(1) Disconnect input shaft speed sensor connector

B-112.

(2) Turn the ignition switch to the ON position.

(3) Measure the voltage between engine-A/T-ECU

connector C-112 terminal No.64 and earth.

OK: 4.9

 5.1 V

Q: Is the check result normal?

AC302452

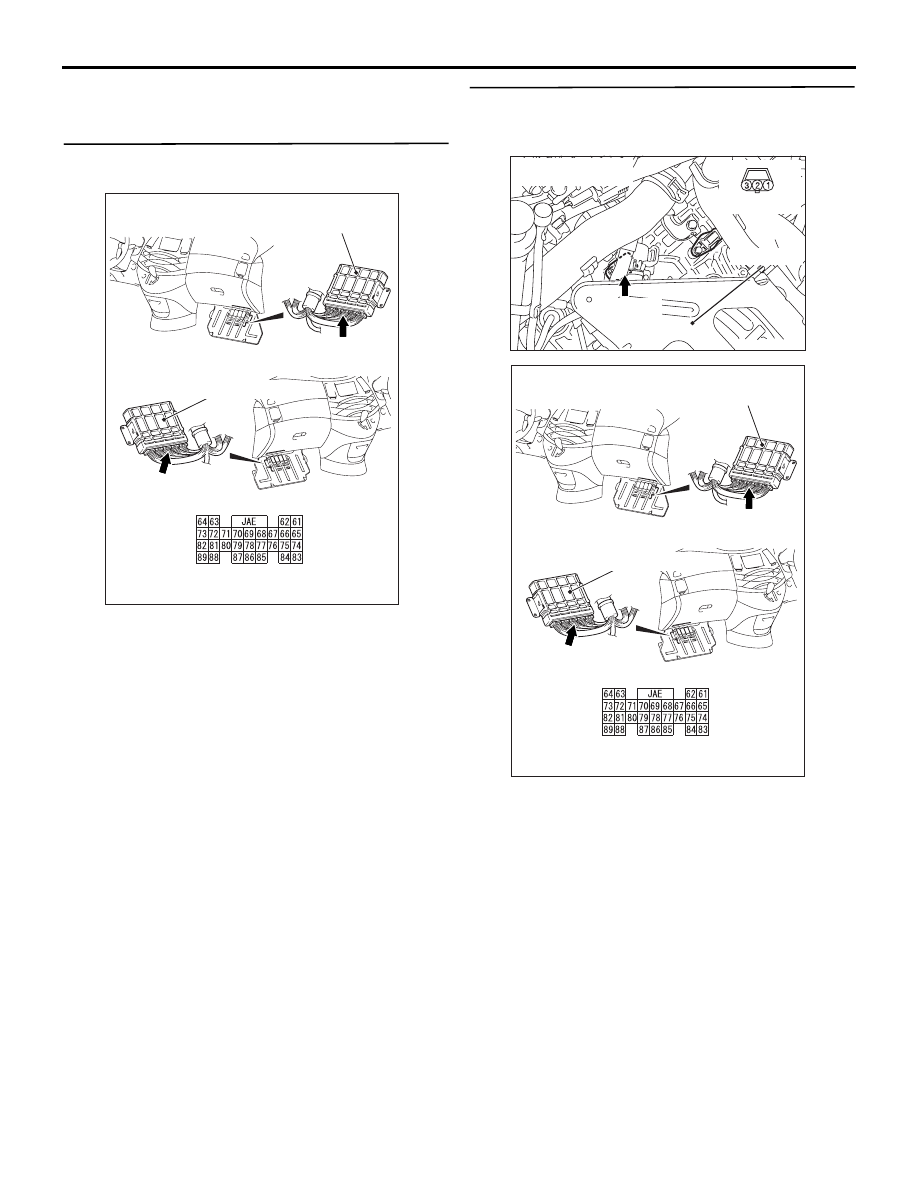

Battery tray

B-112 (B)

Harness side

Connector: B-112

AG

AC310623

Connectors: C-203 <LHD>

AL

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

AC310618

Connectors: C-203 <RHD>

AK

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

AC302452

Battery tray

B-112 (B)

Harness side

Connector: B-112

AG

AC311284

Connector: C-112 <LHD>

Connector: C-112 <RHD>

Harness side

Engine-A/T-ECU

C-112 (GR)

C-112 (GR)

Engine-A/T-ECU

AG

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-34

YES :

Go to Step 16.

NO :

Go to Step 14.

STEP 14. Connector check: C-112
engine-A/T-ECU connector

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the defective connector.

STEP 15. Check the harness between input shaft
speed sensor connector B-112 terminal No.2 and
engine-A/T-ECU connector C-112 terminal No.64.

Check the output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

AC311284

Connector: C-112 <LHD>

Connector: C-112 <RHD>

Harness side

Engine-A/T-ECU

C-112 (GR)

C-112 (GR)

Engine-A/T-ECU

AG

AC302452

Battery tray

B-112 (B)

Harness side

Connector: B-112

AG

AC311284

Connector: C-112 <LHD>

Connector: C-112 <RHD>

Harness side

Engine-A/T-ECU

C-112 (GR)

C-112 (GR)

Engine-A/T-ECU

AG
