FRONT BUMPER ASSEMBLY

EXTERIOR

51-3

FRONT BUMPER ASSEMBLY

ADHESIVE

M1511000500534

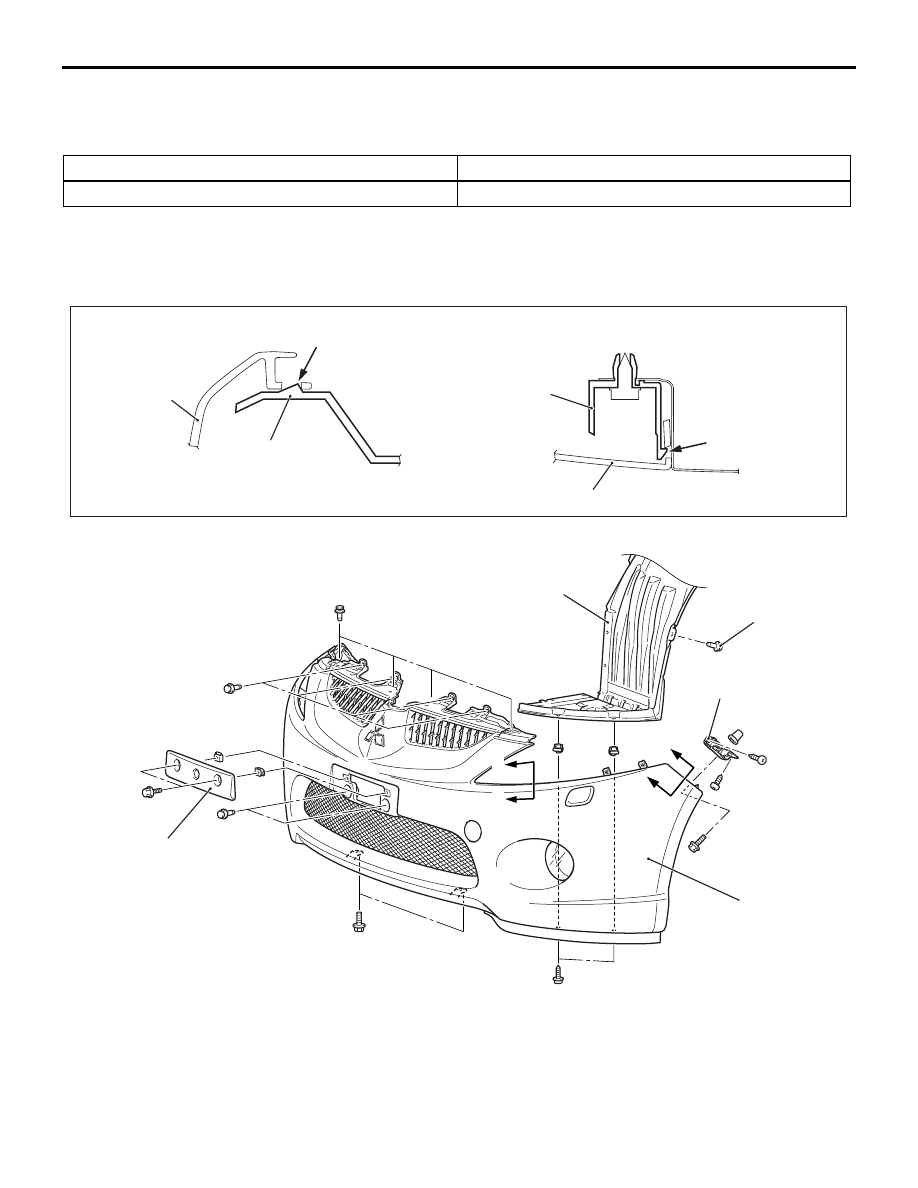

FRONT BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

M1511001400648

Application

Specified adhesive

Front three-diamond mark

Double-sided tape [20 mm width 1.2 mm thickness]

AC302774

3

3

AB

Section A – A

Section B – B

Claw

Front bumper
side bracket

Claw

Front bumper
support bracket

AC311852AB

2

4

3

1

A

A

B

B

Splash shield

Removal steps
1. Licence plate bracket
2. Splash shield mounting clips
•

Fog lamp connector connection

•

Headlamp washer hose connection

3. Front bumper assembly
4. Front bumper side bracket

Removal steps (Continued)

FRONT BUMPER ASSEMBLY

EXTERIOR

51-4

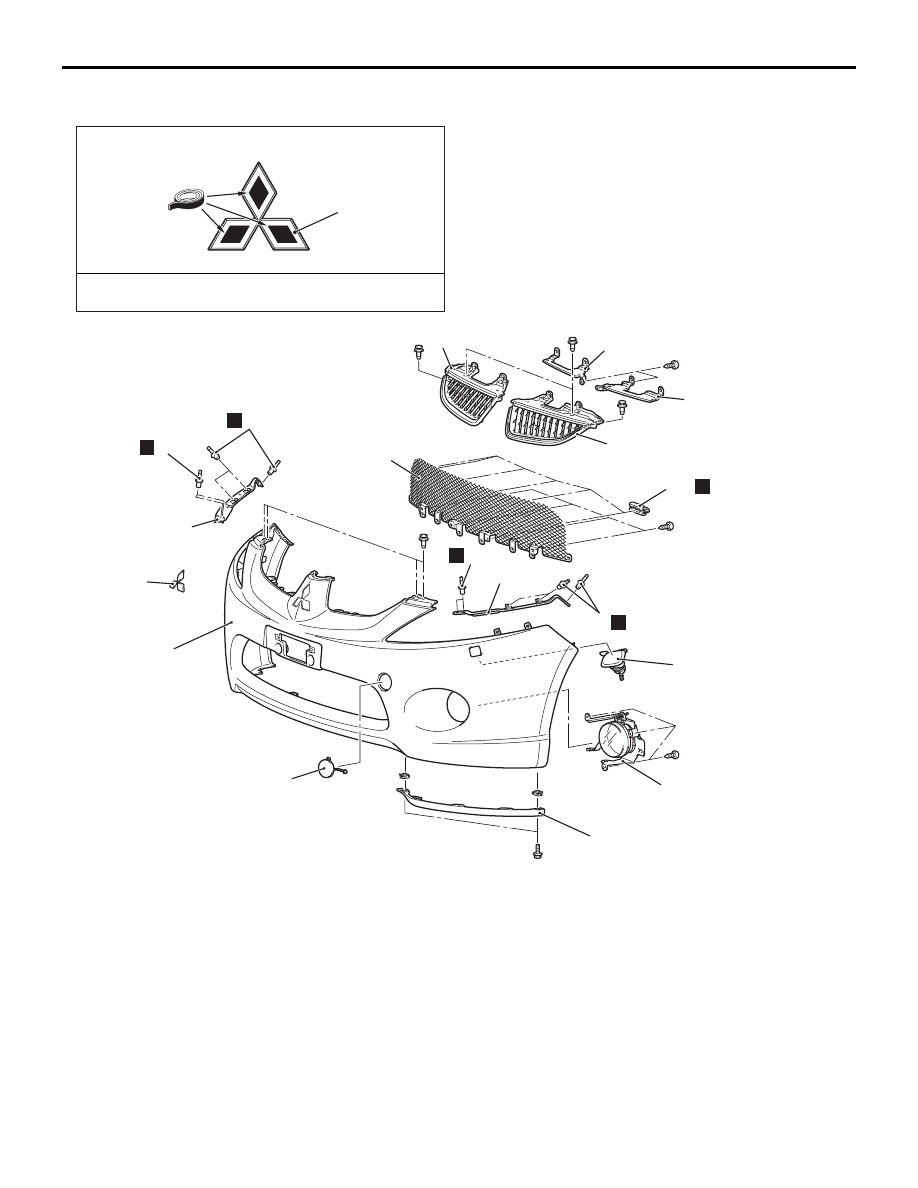

DISASSEMBLY AND REASSEMBLY

M1511001600631

AC311138

Double-sided tape:
Generic products [ 20 mm width and 1.2 mm thickness ]

Double-sided tape affixed location

AB

1

AC310587AB

3

2

6

5

5

3

2

4

10

7

6

5

5

N

N

N

N

N

1

11

9

8

Clip

Removal steps
1. Front three-diamond mark
2. Front bumper upper grille
3. Front grille upper reinforcement
4. Bumper centre net

<<A>> >>A<<

5. Rivets
6. Front bumper side plate

7. Towing cover
8. Headlamp washer pop-up unit

assembly

9. Fog lamp assembly
10. Front air dam
11. Front bumper face

Removal steps (Continued)

FRONT BUMPER ASSEMBLY

EXTERIOR

51-5

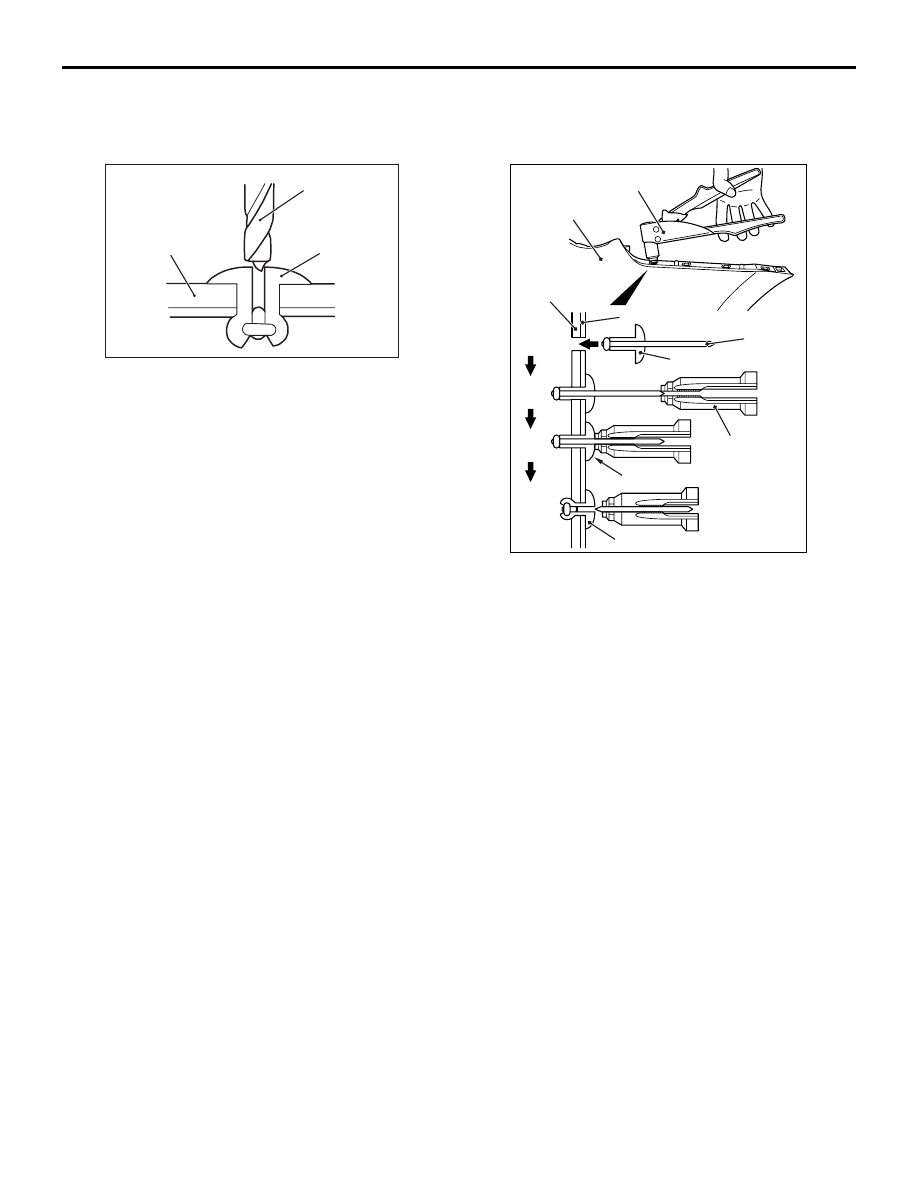

DISASSEMBLY SERVICE POINT
<<A>> FRONT BUMPER SIDE PLATE
ASSEMBLY REMOVAL

Use a drill (4.0 mm) to make a hole in the rivet to
break it, and then remove the rivet.

REASSEMBLY SERVICE POINT
>>A<< FRONT BUMPER SIDE PLATE
ASSEMBLY

Use recommended tool shown in the illustration to
connect the rivet by the following procedure.
1. Insert the rivet into the base material (front

bumper face and front bumper side plate
assembly).

2. Place the recommended tool over section A of the

rivet.

3. While pushing the flange surface of the rivet with

the recommended tool, press the handle of the
tool.

4. The thin part of section A of the rivet will break

and the rivet will then be attached.

AC303663AB

Rivet

Drill

Bumper face

AC205918

AB

1

2

3

4

Section A

Flange

Rivet

Rivet

Front bumper

side plate

Recommended
tool

Recommended
tool

Front bumper

face

Front bumper face

REAR BUMPER ASSEMBLY

EXTERIOR

51-6

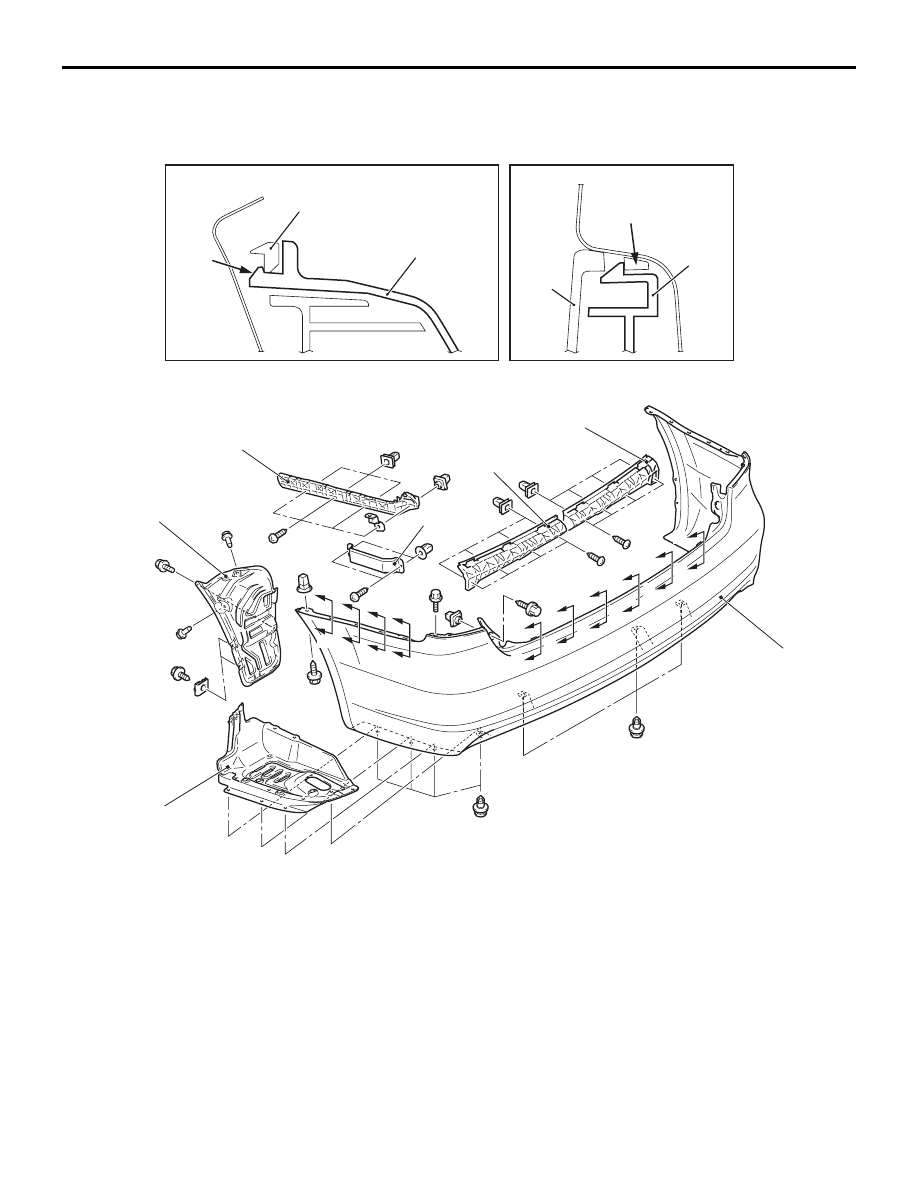

REAR BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

M1511001900568

AC313567

5

6

2

2

AB

Section A – A

Section B – B

Claw

Claw

AC311155AB

A

A

B

B

B

B

B

B

B

A

A

A

A

A

A

A

A

A

A

B

2

6

4

3

3

5

1

Removal steps
•

Tailgate damper lower (Refer to
GROUP 42, Tailgate

P.42-48

.)

1. Rear splash shield
2. Rear bumper assembly

3. Rear bumper centre bracket
4. Rear bumper side bracket
5. Rear bumper side reinforcement
6. Rear under cover side panel(LH)

Removal steps (Continued)
