AUTO-CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-13

STEP 7. Check the harness between engine-ECU
connector C-113 <M/T> terminal No.94 or
engine-A/T-ECU connector C-113 <A/T> terminal
No.94 and the auto-cruise control switch
connector C-305 terminal No.2.

Q: Is the check result normal?

AC311284AC

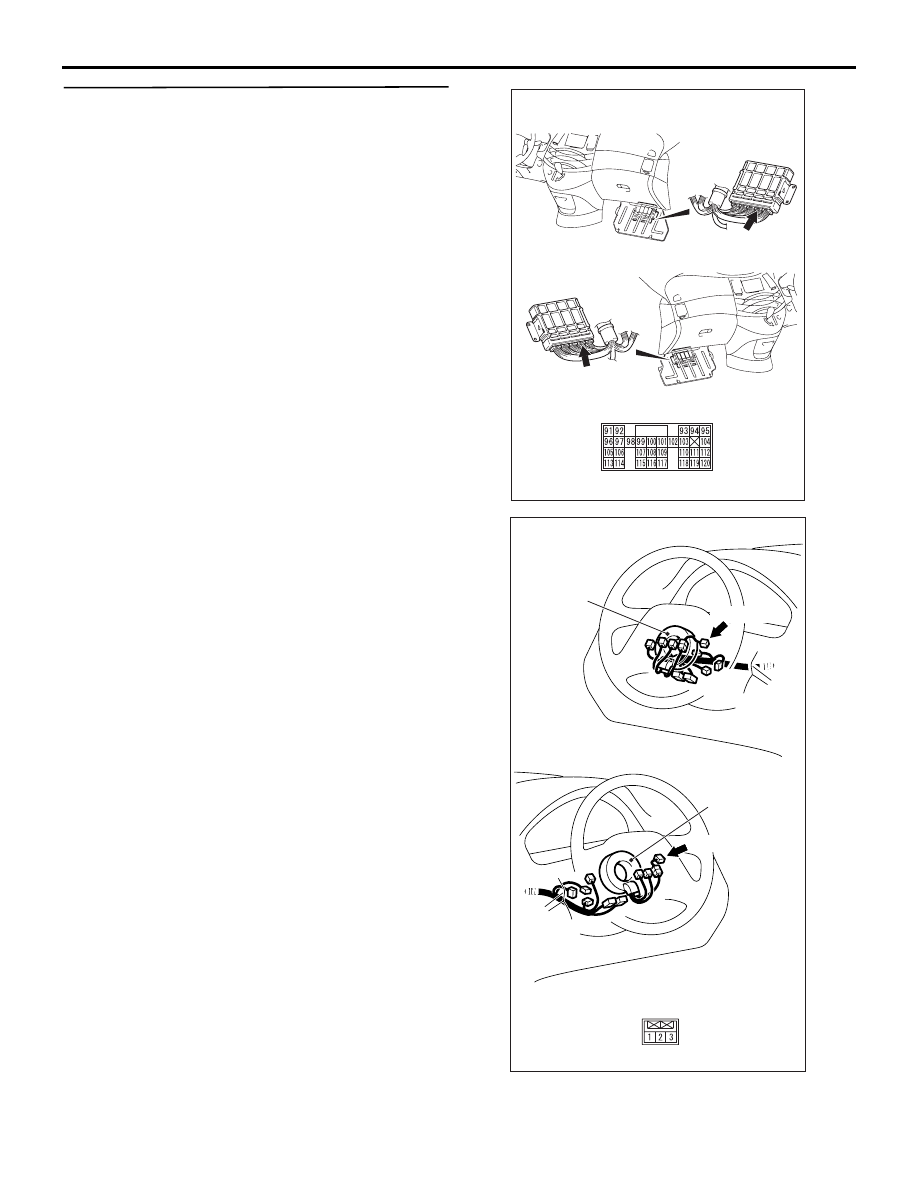

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

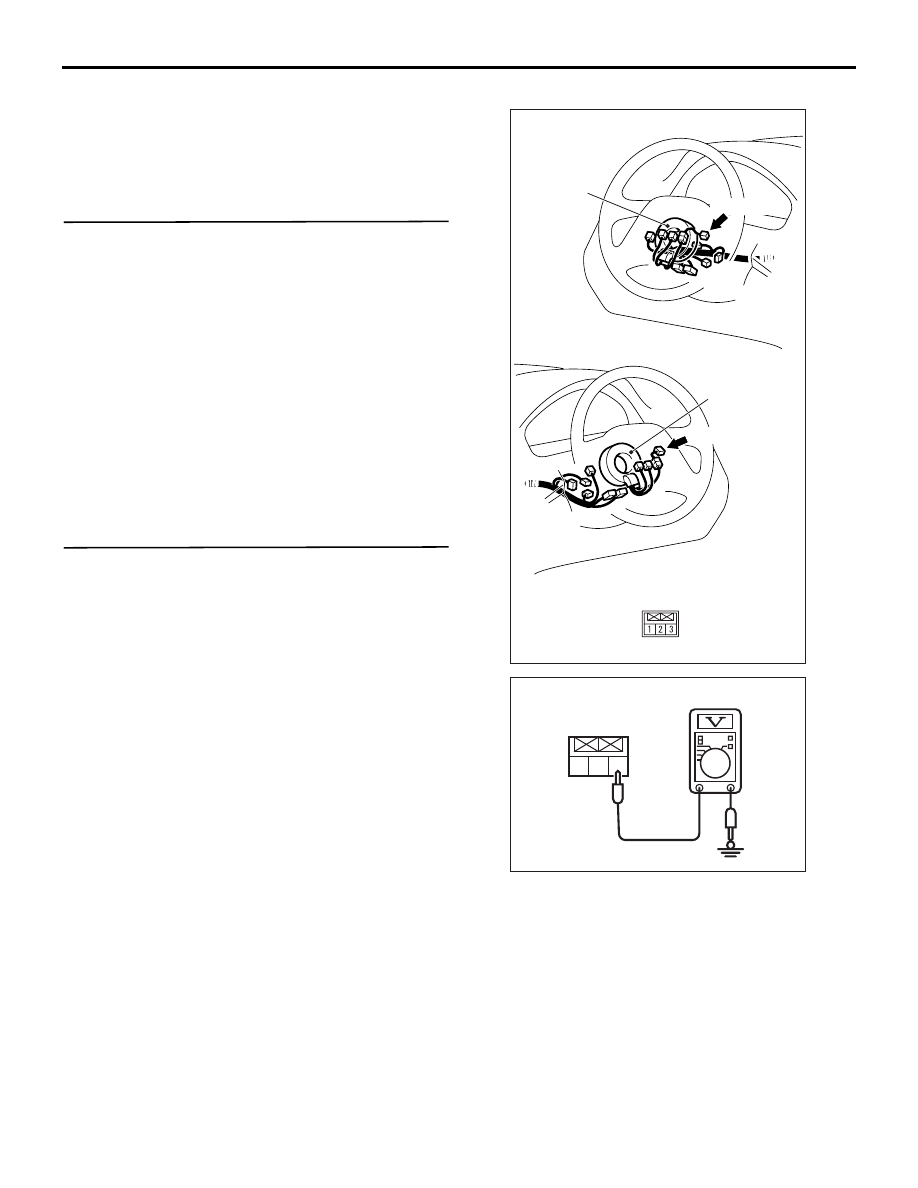

AC311366

Connector: C-305

<L.H. drive vehicles>

<R.H. drive vehicles>

C-305 (Y)

C-305 (Y)

AC

Clock
spring

Clock
spring

AUTO-CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-14

YES :

Go to Step 8.

NO :

Repair the damaged harness wire, and
install the air bag module (driver’s side)
(Refer to GROUP 52B,  Driver’s, Front
Passenger’s Air Bag Module(s) and Clock
Spring

P.52B-225

). Then go to Step 18.

STEP 8. Check the clock spring.

Refer to GROUP 52B,  Driver’s, Front Passenger’s
Air Bag Module(s) and Clock Spring

P.52B-225

.

Q: Is the check result normal?

YES :

It can be assumed that this malfunction is

intermittent, and install the air bag module
(driver’s side) (Refer to GROUP 52B,
Driver’s, Front Passenger’s Air Bag
Module(s) and Clock Spring

P.52B-225

).

Then go to Step 18.

NO :

Replace the clock spring and install the air
bag module (driver’s side) (Refer to GROUP
52B,  Driver’s, Front Passenger’s Air Bag
Module(s) and Clock Spring

P.52B-225

).

Then go to Step 18.

STEP 9. Measure the voltage at auto-cruise
control switch connector C-305.
(1) Turn the ignition switch to the "ON" position and

the MAIN switch to the "ON" position.

(2) Measure the voltage between connector C-305

terminal No.3 and earth.

OK: 0.5 V or less

(3) Turn the MAIN switch to the "OFF" position and

the ignition switch to the "LOCK" (OFF) position.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Go to Step 10.

AC311366

Connector: C-305

<L.H. drive vehicles>

<R.H. drive vehicles>

C-305 (Y)

C-305 (Y)

AC

Clock
spring

Clock
spring

1 2

AC209264

3

AF

C-305 harness
connector:
harness side

AUTO-CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-15

STEP 10. Measure the voltage at engine-ECU
connector C-114 <M/T> or engine-A/T-ECU
connector C-114 <A/T>.
(1) Turn the ignition switch to the "ON" position and

the MAIN switch to the "ON" position.

(2) Measure the voltage between engine-ECU

connector C-114 <M/T> terminal No.146 or
engine-A/T-ECU connector C-114 <A/T> terminal

No.146 and earth.

OK: 0.5 V or less

(3) Turn the MAIN switch to the "OFF" position and

the ignition switch to the "OFF" position.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Go to Step 11.

STEP 11. Connector check: C-114 engine-ECU
connector <M/T> or C-114 engine-A/T-ECU
connector <A/T>

Q: Is the check result normal?

YES :

Install the air bag module (driver’s side)

(Refer to GROUP 52B,  Driver’s, Front
Passenger’s Air Bag Module(s) and Clock
Spring

P.52B-225

). Then go to Step 17.

NO :

Repair or replace the faulty connector, and
install the air bag module (driver’s side)
(Refer to GROUP 52B,  Driver’s, Front
Passenger’s Air Bag Module(s) and Clock
Spring

P.52B-225

). Then go to Step 18.

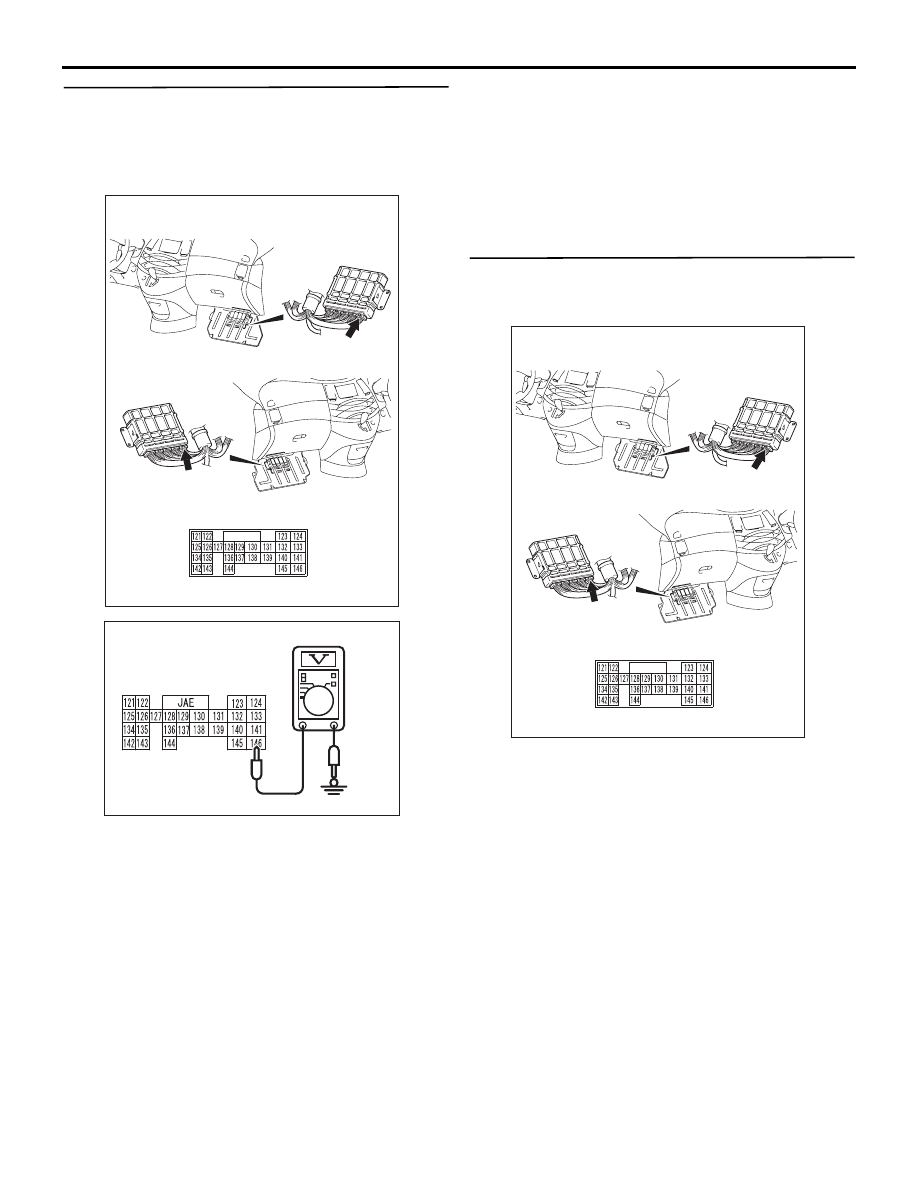

AC311284AD

Connector: C-114

<L.H. drive vehicles>

<R.H. drive vehicles>

C-114 (GR)

C-114 (GR)

AC304575AE

C-114 harness
connector:
component side

AC311284AD

Connector: C-114

<L.H. drive vehicles>

<R.H. drive vehicles>

C-114 (GR)

C-114 (GR)

AUTO-CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-16

STEP 12. Connectors check: C-114 engine-ECU
connector <M/T> or C-114 engine-A/T-ECU
connector <A/T>, C-17 and C-304 intermediate
connector, C-305 auto-cruise control switch
connector, C-310 and C-311 clock spring
connectors
