TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-315

STEP 5. Connector check: C-111 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace.

STEP 6. Perform voltage measurement at C-111
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 45 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 7 .

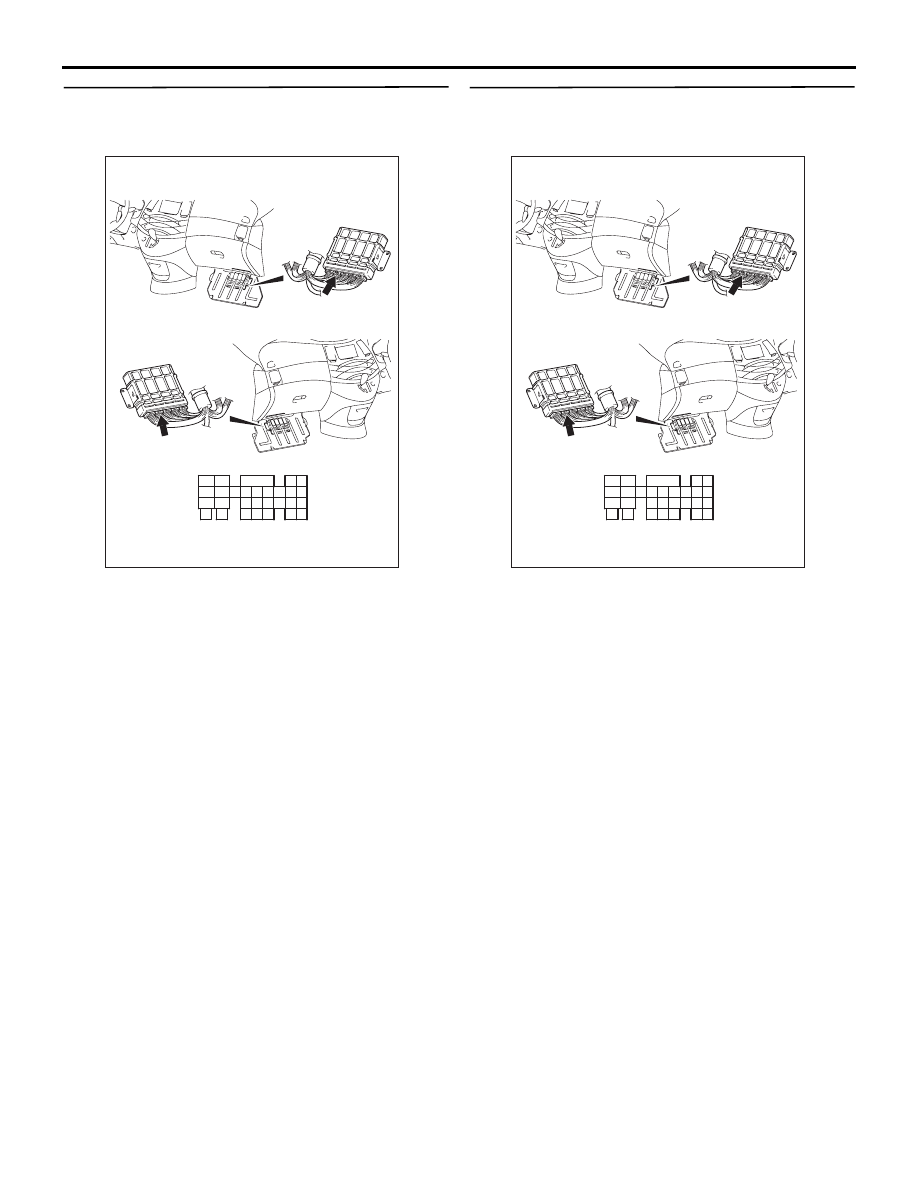

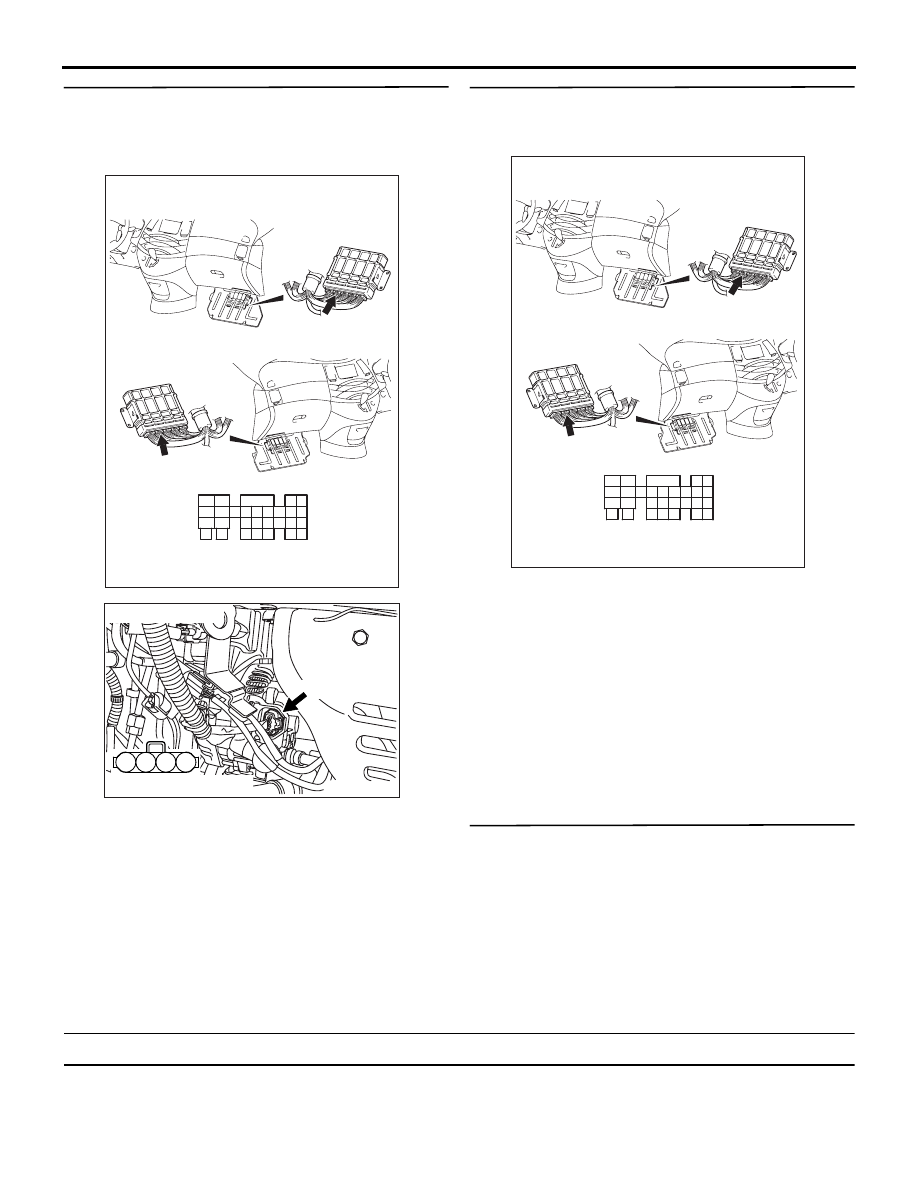

AK305625AB

Connector: C-111

<L.H. drive vehicles>

<R.H. drive vehicles>

C-111 (GR)

C-111 (GR)

Harness side connector

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AK305625AB

Connector: C-111

<L.H. drive vehicles>

<R.H. drive vehicles>

C-111 (GR)

C-111 (GR)

Harness side connector

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-316

STEP 7. Check harness between C-111 (terminal
No. 45) engine-ECU <M/T> or engine-A/T-ECU
<A/T> and B-119 (terminal No. 1) alternator
connector.

• Check output line for open/short circuit.

Q: Is the check result normal?

YES :

replace alternator.

NO :

Repair.

STEP 8. Perform voltage measurement at C-111
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Measure engine-ECU <M/T> or engine-A/T-ECU

<A/T> terminal voltage.

• Engine: Idling after warm-up

• Transmission: Neutral <M/T> or P range <A/T>

• Radiator fan: Inactive

• Voltage between terminal No. 45 and earth.

OK: Switching the headlamps to ON from
OFF causes the voltage to increase.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Replace alternator.

STEP 9. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace engine-ECU <M/T> or

engine-A/T-ECU <A/T>.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

Inspection Procedure 20: Overheating

COMMENT ON TROUBLE SYMPTOM

• Failure is possibly caused by failed engine

cooling system, failed fan controller, failed engine

coolant temperature sensor or other faults.

AK305625AB

Connector: C-111

<L.H. drive vehicles>

<R.H. drive vehicles>

C-111 (GR)

C-111 (GR)

Harness side connector

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AK300990

2

1

3

4

AC

B-119 (GR)

Connector: B-119

Harness side connector

AK305625AB

Connector: C-111

<L.H. drive vehicles>

<R.H. drive vehicles>

C-111 (GR)

C-111 (GR)

Harness side connector

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-317

PROBABLE CAUSE

• Insufficient or deteriorated engine coolant

• Failed fan controller

• Failed engine coolant temperature sensor

• Failed thermostat

• Failed water pump

• Failed radiator core

• Failed engine-ECU <M/T>

• Failed engine-A/T-ECU <A/T>

DIAGNOSIS PROCEDURE

STEP 1. MUT-III diagnosis code

Q: Diagnosis code set?

YES :

Inspection chart for diagnosis code (Refer

to

P.13A-20

).

NO :

Go to Step 2 .

STEP 2. Check engine coolant
NOTE: If engine coolant level falls too early, check
for leaky spots, and repair if necessary.

• Check engine coolant (Refer to GROUP 14 −

On-vehicle Service

− Engine Coolant Leak Check

P.14-16

).

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Replace or add engine coolant.

STEP 3. MUT-III actuator test

• Item 21: Fan controller

OK: Fan motor rotating

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Check fan control relay system (Refer to
Inspection Procedure 24

P.13A-340

).

STEP 4. MUT-III data list

• Item 21: Engine coolant temperature sensor

OK:

Engine cold state: At ambient temperature

(atmospheric temperature) or equivalent.

Engine hot state: At 80

− 120°C

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Check engine coolant temperature sensor
system (Refer to Code No. P0115

P.13A-37

).

STEP 5. Check thermostat.

• Check thermostat (Refer to GROUP 14 −

Thermostat

− Thermostat Inspection

P.14-21

).

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Replace thermostat.

STEP 6. Check water pump.

• Check water pump.

Q: Is the check result normal?

YES :

Replace radiator.

NO :

Replace water pump.

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-318

Inspection Procedure 21: Abnormal Rotation of Fan Motor

OPERATION

• The control (duty) signal is inputted to the fan

controller (terminal No. 2) from the engine-ECU
<M/T> or engine-A/T-ECU <A/T> (terminal No.
17).

FUNCTION

• The engine-ECU <M/T> or engine-A/T-ECU

<A/T> inputs a duty signal suitable for the engine
coolant temperature, vehicle speed and A/C
switch position to the fan controller. In response
to the signal, the fan controller controls the
rotating speeds of the radiator fan and A/C
condenser fan (The fan speed becomes higher
as the average voltage of the terminal comes
nearer to 5V).

PROBABLE CAUSE

• Failed fan controller

• Open/short circuit in fan controller circuit or loose

connector contact

• Failed engine-ECU <M/T>

• Failed engine-A/T-ECU <A/T>

AK305577

1

2

3

5

6 7 8 9

4

20

21 22

232425

2627

10111213

14 15

16 1718

19

1 2 3

C-110

(MU803802)

AB

Fan controller

Fan
control
circuit

      A-26
(MU802322)

2

L-W

L-W

8

A-16

17

Fan controller (Radiator fan, A/C condensor fan) circuit

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet

Engine-ECU <M/T> or
engine-A/T-ECU <A/T>
