TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-135

Code No. P0222: Throttle Position Sensor (Sub) Circuit Low Input

OPERATION

• A power voltage of 5 V is applied to the

electronic-controlled throttle valve (terminal No.
5) from the engine-ECU <M/T> or
engine-A/T-ECU <A/T> (terminal No. 106).

• The power voltage is earthed to the engine-ECU

<M/T> or engine-A/T-ECU <A/T> (terminal No.
105) from the electronic-controlled throttle valve
(terminal No. 3).

• The sensor signal is inputted to the engine-ECU

<M/T> or engine-A/T-ECU <A/T> (terminal No.
113) from the electronic-controlled throttle valve
output terminal (terminal No. 6).

FUNCTION

• The throttle position sensor converts the throttle

valve position into voltage and inputs it into the
engine-ECU <M/T> or engine-A/T-ECU <A/T>.

• The engine-ECU <M/T> or engine-A/T-ECU

<A/T> controls the throttle valve position.

TROUBLE JUDGMENT

Check Condition

• Ignition switch is in ON position.

Judgment Criterion

• Throttle position sensor (sub) output voltage is

2.25 V or less for 0.5 second.

PROBABLE CAUSE

• Failed throttle position sensor (sub)

AK305560

6

1 2 3 4 5

9192

939495

96979899

100

105

113114

115116117

118119120

106

107108109

110111112

101102103

104

(sub)

Hall IC

AB

5 V

106

5

B

C-115

W

B

R

Engine-ECU <M/T> or
engine-A/T-ECU <A/T>

113

105

7

6

3

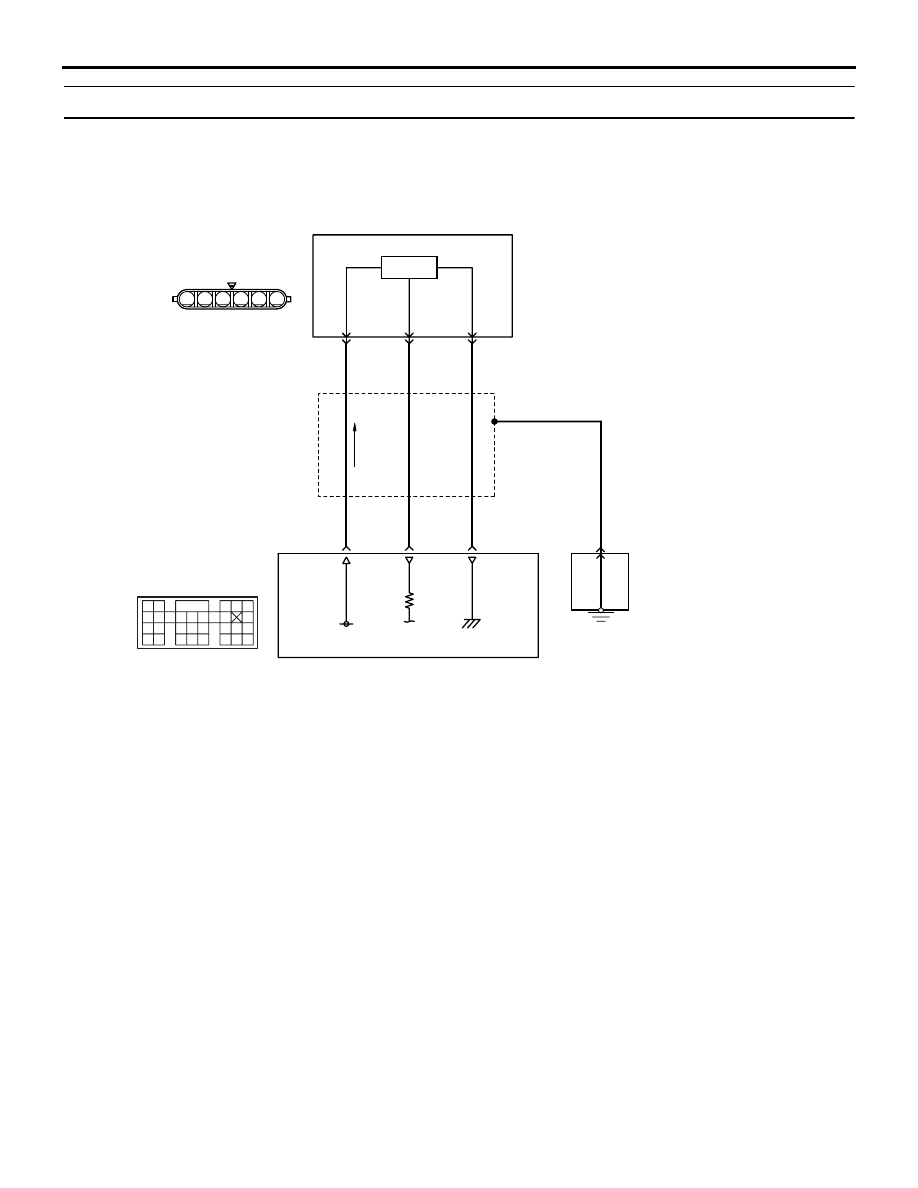

Throttle position sensor (sub) circuit

B-06

C-113

(MU803805)

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet

Electronic-controlled
throttle valve

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-136

• Open/short circuit in throttle position sensor (sub)

circuit or loose connector contact

• Failed engine-ECU <M/T>

• Failed engine-A/T-ECU <A/T>

DIAGNOSIS PROCEDURE

STEP 1. MUT-III data list

• Refer to Data List Reference Table

P.13A-363

.

a. Item 14: Throttle position sensor (sub)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

NO :

Go to Step 2 .

STEP 2. Connector check: B-06
electronic-controlled throttle valve connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace.

STEP 3. Perform voltage measurement at B-06
electronic-controlled throttle valve connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 5 and earth.

OK: 4.9

 5.1 V

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 4 .

STEP 4. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace.

AK300972

1

6 5 4 3 2

AC

Harness side connector

Connectors: B-06

B-06 (B)

AK300972

1

6 5 4 3 2

AC

Harness side connector

Connectors: B-06

B-06 (B)

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-137

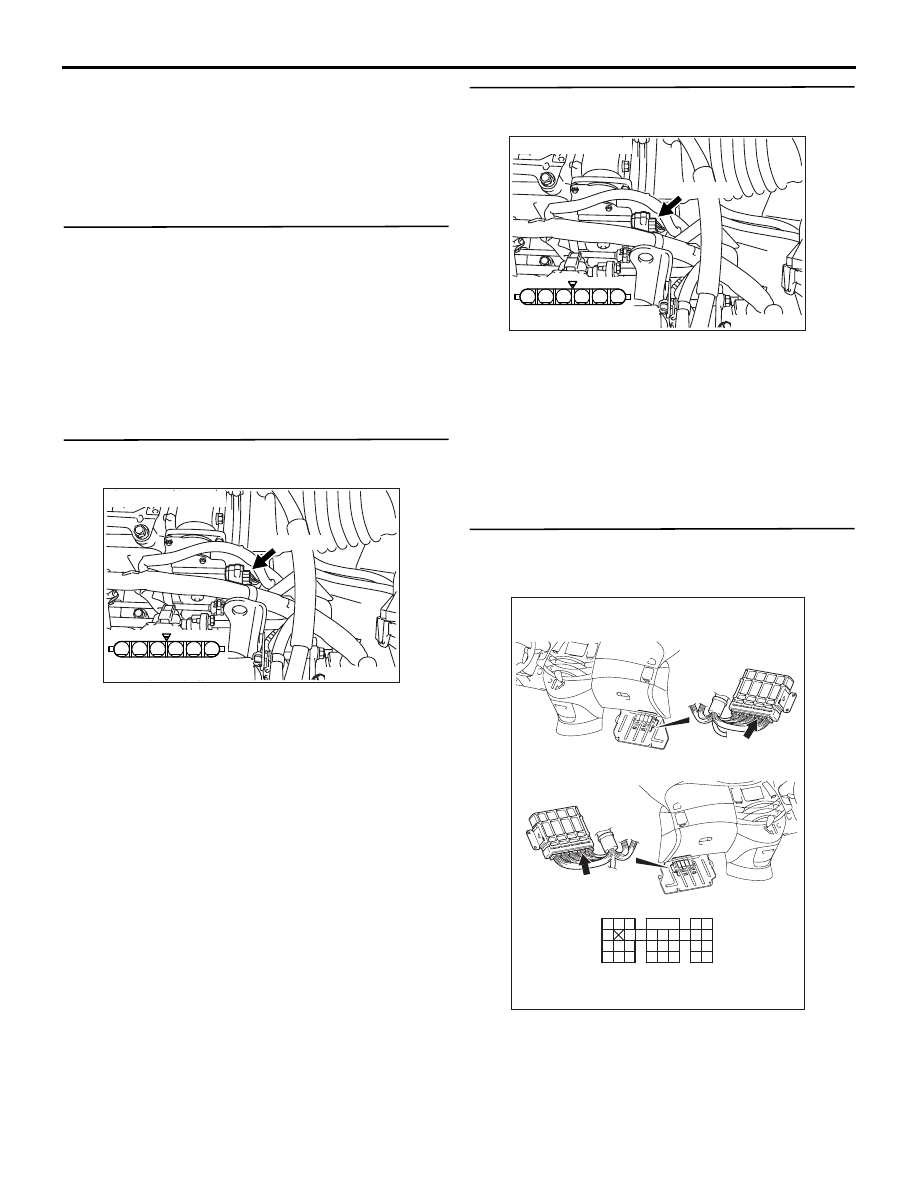

STEP 5. Check harness between B-06 (terminal
No. 5) electronic-controlled throttle valve
connector and C-113 (terminal No. 106)
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Check power supply line for open/short circuit.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair.

STEP 6. MUT-III data list

• Refer to Data List Reference Table

P.13A-363

.

a. Item 79: Throttle position sensor (main)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

NO :

Replace engine-ECU <M/T> or
engine-A/T-ECU <A/T>.

STEP 7. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair or replace.

AK300972

1

6 5 4 3 2

AC

Harness side connector

Connectors: B-06

B-06 (B)

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-138

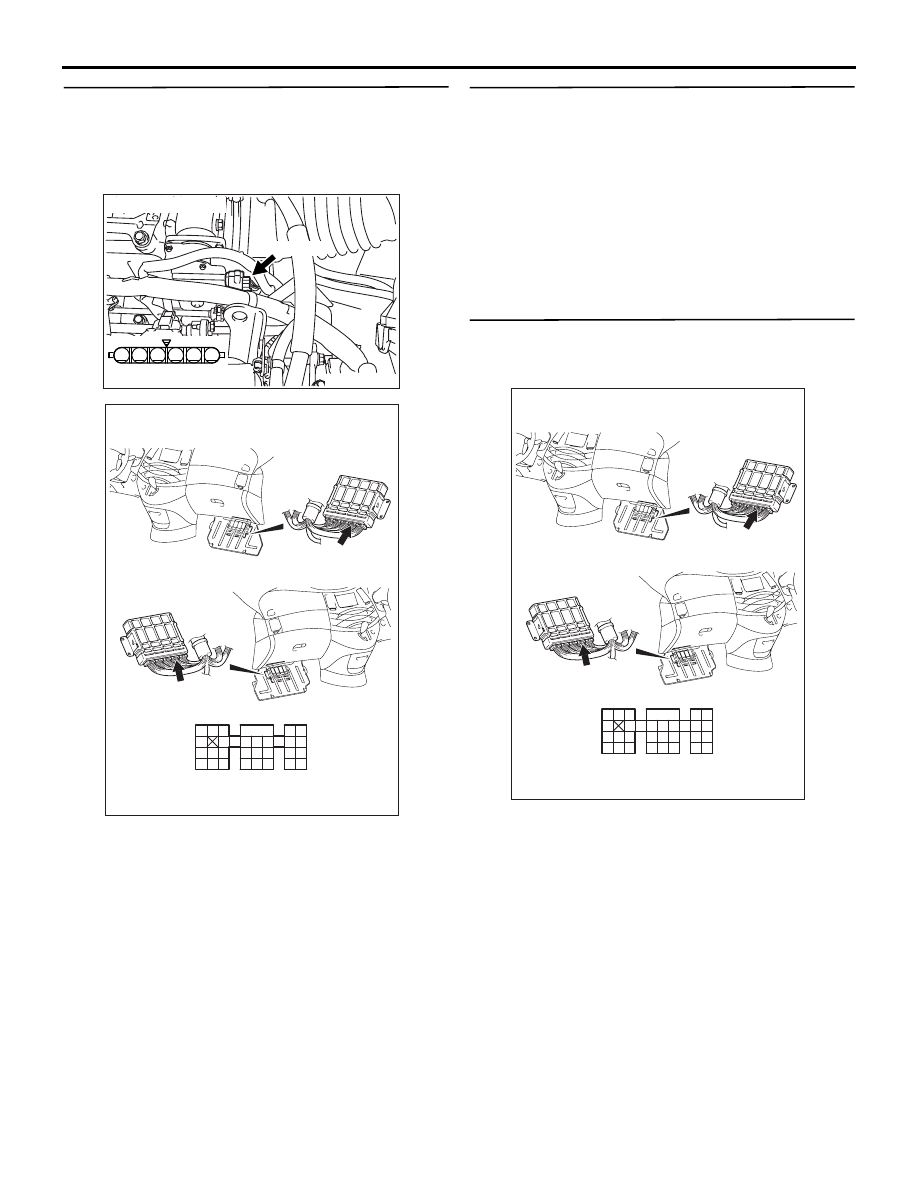

STEP 8. Check harness between B-06 (terminal
No. 5) electronic-controlled throttle valve
connector and C-113 (terminal No. 106)
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair.

STEP 9. Check harness between B-06 (terminal
No. 6) electronic-controlled throttle valve
connector and C-113 (terminal No. 113)
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Check output line for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair.

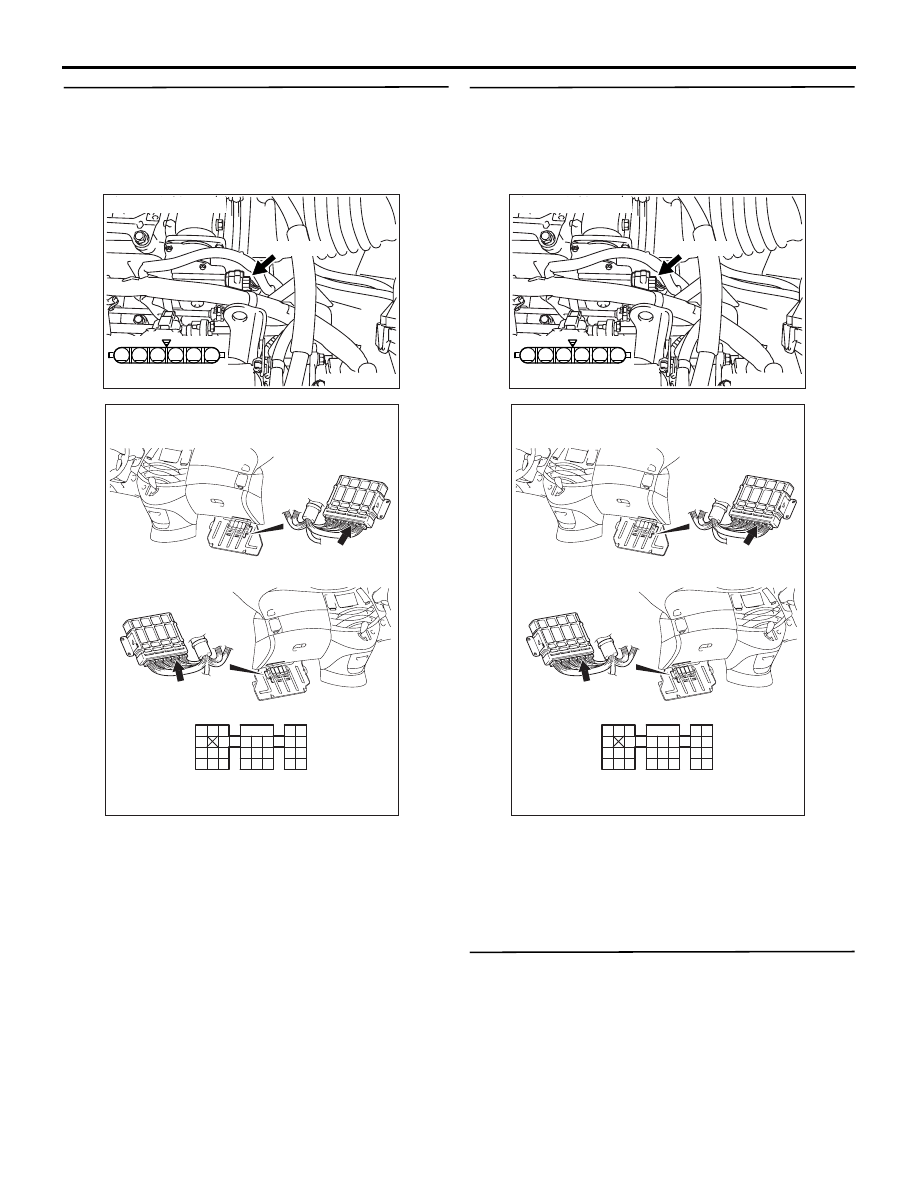

STEP 10. Replace the electronic-controlled
throttle valve

• After replacing the electronic-controlled throttle

valve, re-check the trouble symptoms.

Q: Is the check result normal?

YES :

Check end.

NO :

Replace engine-ECU <M/T> or
engine-A/T-ECU <A/T>.

AK300972

1

6 5 4 3 2

AC

Harness side connector

Connectors: B-06

B-06 (B)

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300972

1

6 5 4 3 2

AC

Harness side connector

Connectors: B-06

B-06 (B)

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector
