Mitsubishi Grandis. Manual - part 684

SUNROOF ASSEMBLY

BODY

42-64

Post-installation Operation <Rear roof lid glass
assembly, Rear sunroof assembly>
• Sunroof Water Test (Refer to

P.42-60

).

• Rear Sunroof Fit Adjustment (Refer to

P.42-60

).

• Sunroof Initialising Adjustment (Refer to

P.42-61

).

AC310668

1

2

3

4

4

5

5

6

7

8

9

9

10

10

3.0 ± 0.5 N·m

5.4 ± 1.5 N·m

AB

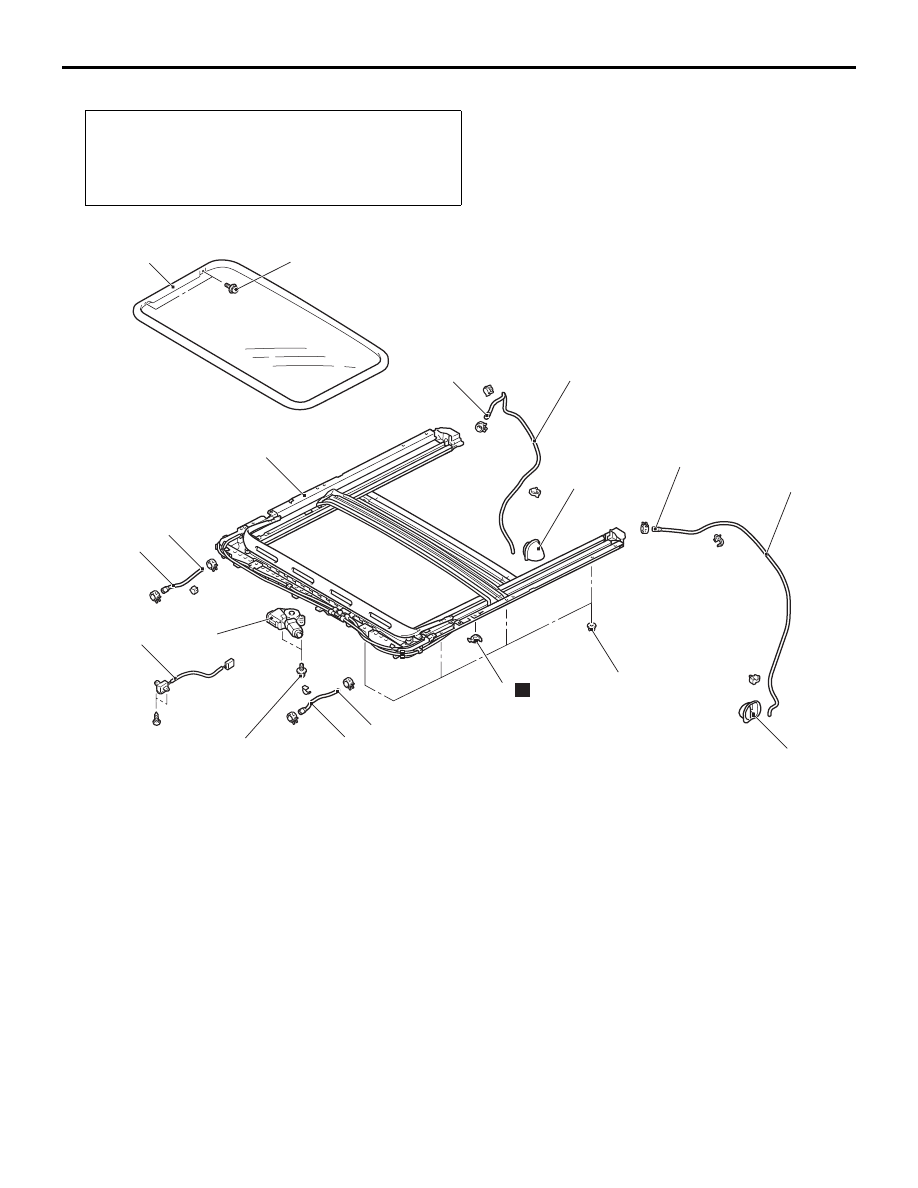

<Rear sunroof assembly>

N

11

11

Sunroof switch removal steps

•

Rear heater controller assembly
(Refer to GROUP 52A, Headlining

P.52A-17

).

1.

Sunroof switch
Sunroof motor assembly
removal steps

•

Headlining assembly (Refer to
GROUP 52A, Headlining

P.52A-17

).

2.

Sunroof motor assembly
Rear roof lid glass assembly
removal

3.

Rear roof lid glass assembly

Rear sunroof assembly removal
steps

•

Headlining assembly (Refer to
GROUP 52A, Headlining

P.52A-17

).

1.

Sunroof switch

•

Rear heater controller bracket
(Refer to GROUP 55, Rear Air
Conditioner Switch

P.55-213

).

2.

Sunroof motor assembly

3.

Rear roof lid glass assembly

4.

Centre drain pipe connection

5.

Rear drain pipe connection

6.

Rear sunroof assembly mounting
nut

<<A>>

7.

Rear sunroof assembly

>>B<<

8.

Plate nut

SUNROOF ASSEMBLY

BODY

42-65

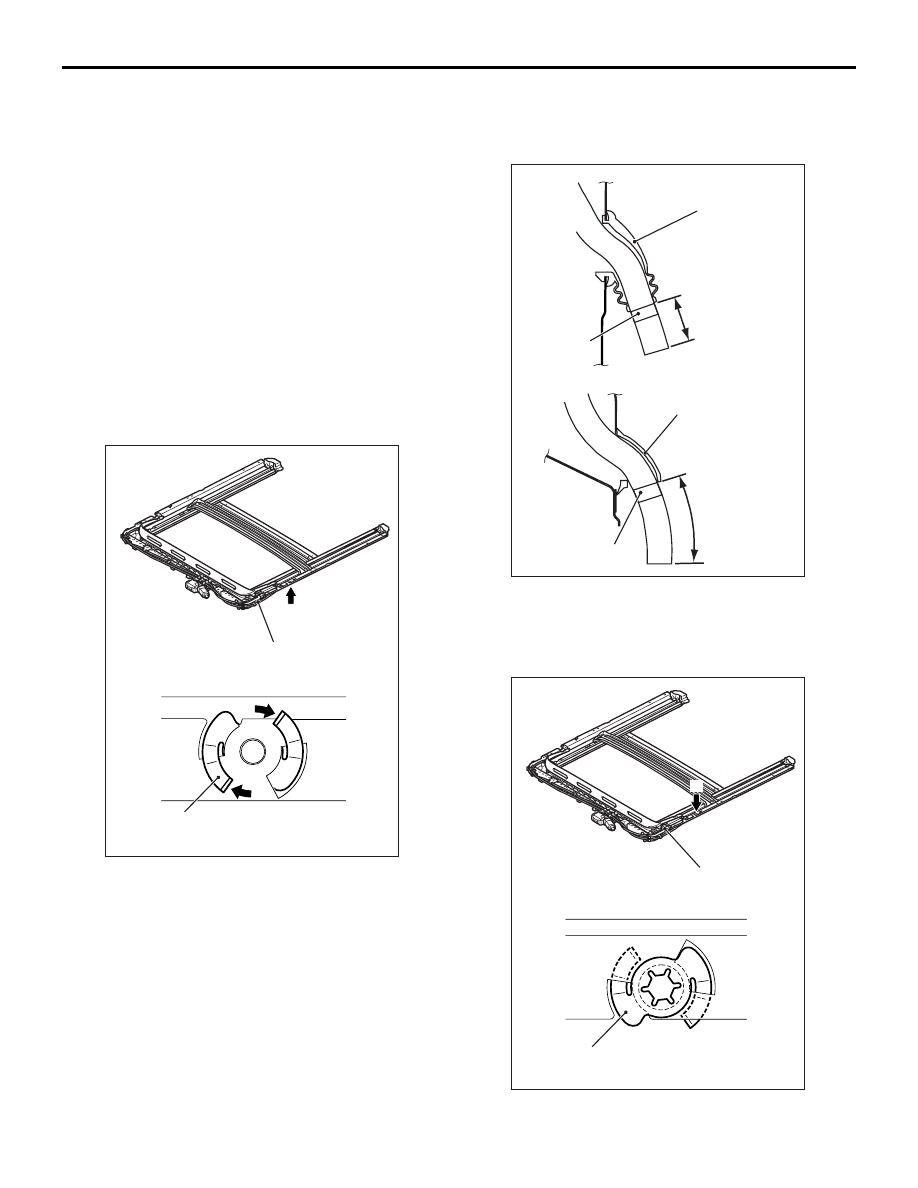

REMOVAL SERVICE POINT
<<A>> REAR SUNROOF ASSEMBLY
REMOVAL

Rotate the plain nut to the direction shown by using a
flat-tipped screwdriver. Then remove the rear sunroof
assembly.

INSTALLATION SERVICE POINTS
>>A<< FRONT DRAIN PIPE/REAR DRAIN
PIPE INSTALLATION

Install the grommet. Adjust the drain pipe projection
as shown.

>>B<< PLATE NUT INSTALLATION

Install the plain nut to the rear sunroof assembly as
shown.

Centre drain pipe removal steps

•

Headlining assembly (Refer to
GROUP 52A, Headlining

P.52A-17

).

9.

Centre drain pipe
Rear drain pipe removal steps

•

Headlining assembly (Refer to
GROUP 52A, Headlining

P.52A-17

).

•

Rear heater unit (Refer to GROUP
55, Rear Heater Unit

P.55-214

).

•

Insulator pad

>>A<<

10. Rear drain pipe
11. Grommet

AC303644

AB

View A

Rear sunroof assembly

Plate nut

A

AC303647 AB

40 ± 5

40 ± 5

Units: mm

<Front drain pipe>

<Rear drain pipe>

Grommet

Marking part

Marking part

Grommet

AC303645

AB

View A

Rear sunroof assembly

Plate nut

A

SUNROOF ASSEMBLY

BODY

42-66

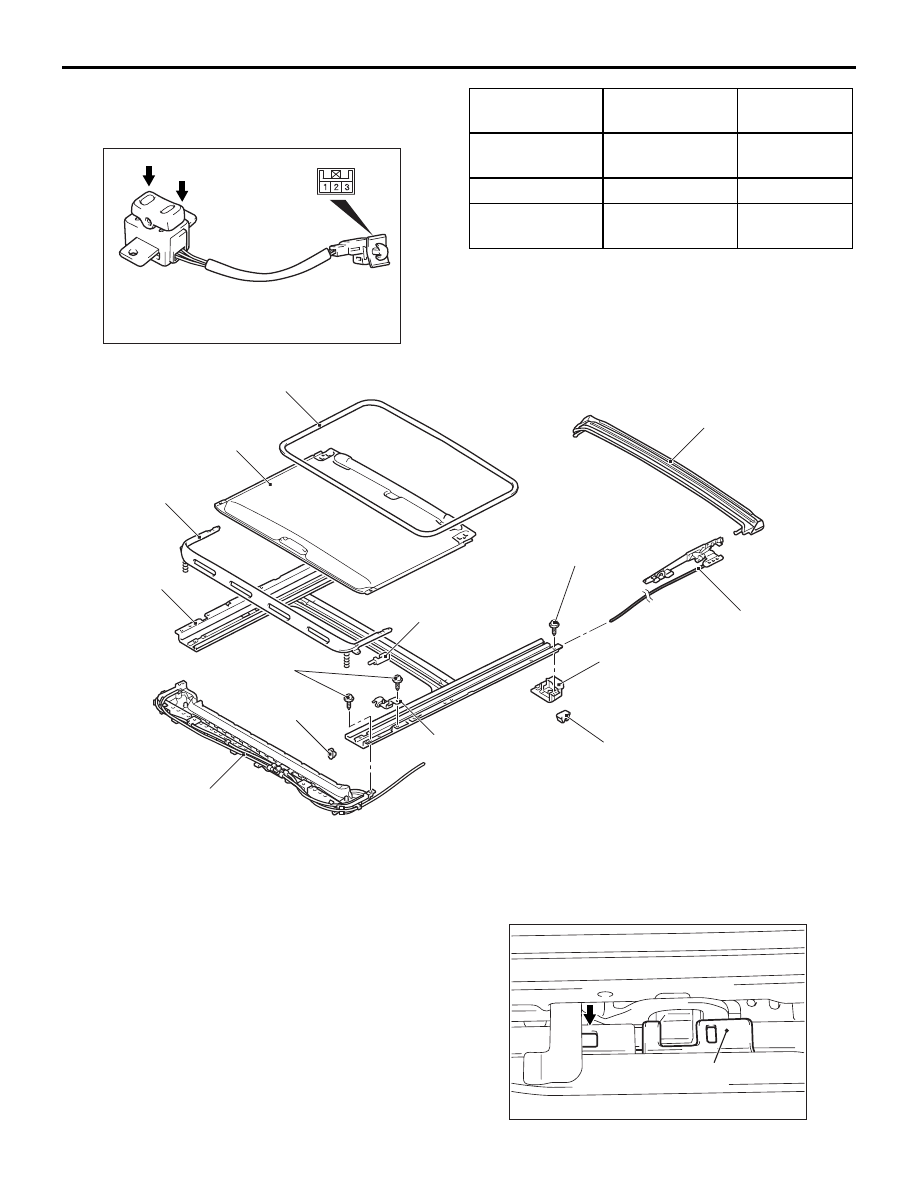

INSPECTION

M1426001600124

SUNROOF SWITCH CONTINUITY CHECK

DISASSEMBLY AND REASSEMBLY

M1426001400324

DISASSEMBLY SERVICE POINT
<<A>> SUNROOF GUIDE RAIL ROD
HOLDER REMOVAL

AC303182AB

Open

Close

Switch position Tester

connection

Specified
condition

Open

1

− 2

Less than 2
ohms

OFF

1

− 2, 1 − 3, 2 − 3 Open circuit

Close

2

− 3

Less than 2
ohms

AC310669

1

2

3

4

5

6

7

8

9

10

11

12

2.0 ± 0.5 N·m

2.0 ± 0.5 N·m

AB

Disassembly steps

1.

Weatherstrip

2.

Sunroof drip plate

3.

Sunshade stopper rear

4.

Sunshade

5.

Sunroof lid glass holder front

6.

Deflector assembly

7.

Sunroof drip rail

8.

Sliding roof operating unit

9.

Roof blind stopper

<<A>>

10. Sunroof guide rail rod holder
11. Roof lid lifter
12. Sunroof housing

AC303181AB

Sunroof guide rail
rod holder

LOOSE PANEL

BODY

42-67

Slide the sunroof guide rail rod holder to the rear of
the vehicle while pushing the shown spot with a
flat-tipped screwdriver.

LOOSE PANEL

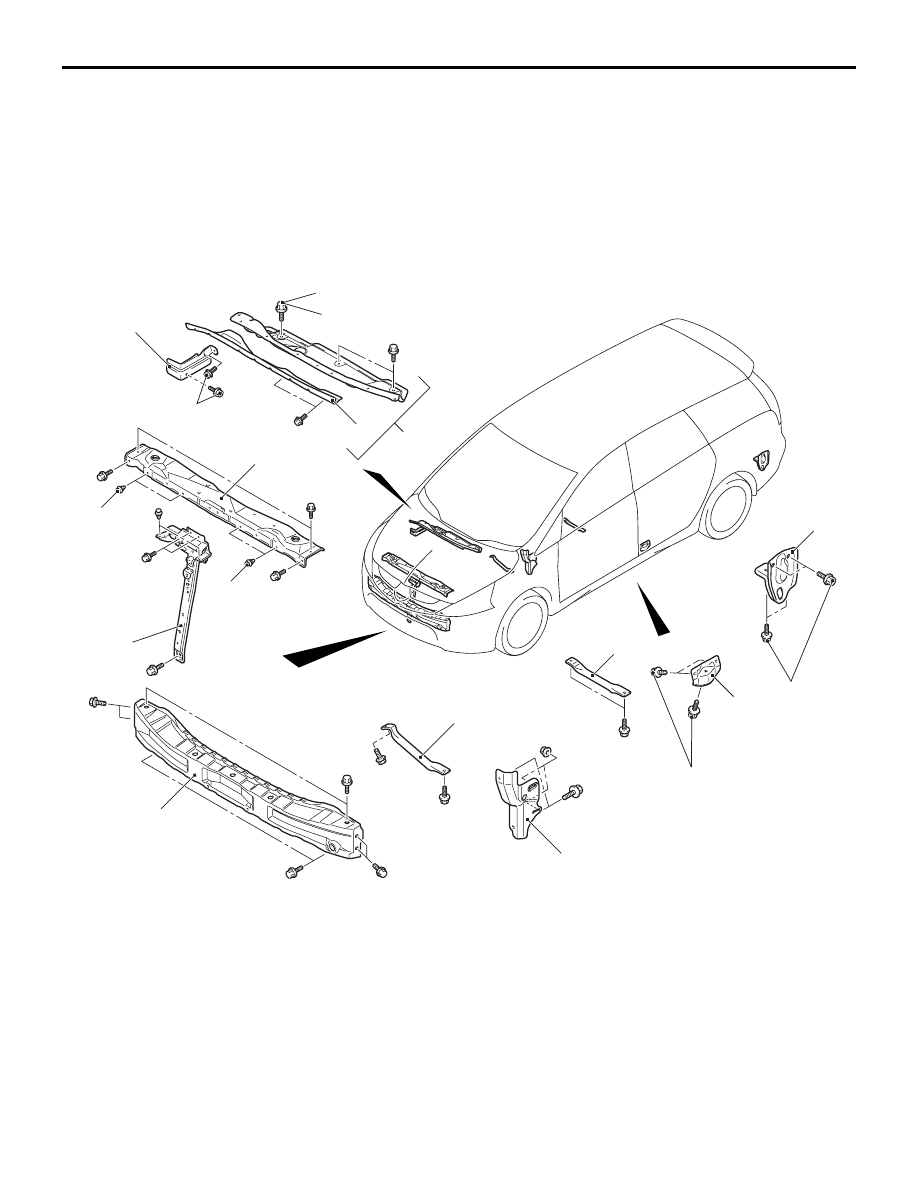

REMOVAL AND INSTALLATION

M1421003100067

AC310540

1

2

3

4

5

6

6

7

8

9

10

AB

11

12

13

23 ± 2 N·m

83 ± 3 N·m

5.0 ± 1.0 N·m

7.4 ± 1.4 N·m

Cowl top panel removal steps

1. Heat protector <RH drive vehicles>
•

Front deck garnish (Refer to GROUP
51, Windshield Wiper

P.51-22

).

2. Windshield wiper link assembly

mounting bolt

3. Cowl top panel front
4. Cowl top extension

Front end beam removal steps

•

Front bumper assembly (Refer to
GROUP 51, Front Bumper

P.51-3

).

5. Front end beam

Front end upper bar removal steps

6. Front bumper upper grille mounting

clip

7. Front end upper bar

Hood lock stay removal steps

•

Hood latch (Refer to

P.42-5

).

•

Front bumper assembly (Refer to
GROUP 51, Front Bumper

P.51-3

).

•

Horn

8. Hood lock stay
