KEYLESS ENTRY SYSTEM

BODY

42-56

NOTE:

.

•

The customisation function allows you to
change the answerback setting as follows.
Prior to that check, confirm which setting is
activated.

•

The hazard warning lights flash once
when locked and twice when unlocked.
The room lamp flashes once when locked
and illuminates for 15 seconds when
unlocked (default setting).

•

The hazard warning lights flash once
when locked and do not flash when
unlocked. The room lamp flashes once
when locked and illuminates for 15
seconds when unlocked.

•

The hazard warning lights do flash when
locked and flash twice when unlocked.
The room lamp flashes once when locked
and illuminates for 15 seconds when
unlocked.

•

The hazard warning lights do not flash
when both locked and unlocked. The room
lamp flashes once when locked and
illuminates for 15 seconds when unlocked.

•

The hazard warning lights flash twice
when locked and once when unlocked.
The room lamp flashes twice when locked
and illuminates for 15 seconds when
unlocked.

•

The hazard warning lights flash twice
when locked and do not flash when
unlocked. The room lamp flashes twice
when locked and illuminates for 15
seconds when unlocked.

•

The hazard warning lights do flash when
locked and flash once when unlocked.
The room lamp flashes twice when locked
and illuminates for 15 seconds when
unlocked.

•

The hazard warning lights do not flash
when both locked and unlocked. The room
lamp flashes twice when locked and
illuminates for 15 seconds when unlocked.

MULTI-MODE KEYLESS ENTRY
FUNCTION INSPECTION

M1428004100049

Check that the transmitter operates the electric
outside mirrors. If they do not operate, carry out
troubleshooting. Refer to GROUP 54B,
Troubleshooting

P.54B-27

 or GROUP 54C,

Troubleshooting

P.54C-8

.

KEYLESS ENTRY SYSTEM TIMER LOCK
FUNCTION INSPECTION

M1428004000194

Attempt to unlock the doors and the tailgate by using
the transmitter. If the doors and the tailgate are not
locked within 30 seconds, carry out troubleshooting.
Note that the doors and the tailgate will not be locked
if the ignition key is inserted within the 30-second
period, one of the doors or the tailgate is opened, or
the multi-mode keyless entry function is triggered.
Refer to GROUP 54B, Troubleshooting

P.54B-27

,

refer to GROUP 54C, Troubleshooting

P.54C-8

.

NOTE: The customisation function allows you to
change the keyless entry system timer lock period
from 30 seconds (default setting) to 60, 120 or 180
seconds. Prior to the check, confirm which setting is
activated.

ENABLING/DISABLING THE
ANSWERBACK FUNCTION

M1428003200366

If the keyless entry system locks or unlocks the
doors, the room lamp flashes or illuminates, the
hazard warning lamp flashes (hazard answerback
function). The hazard answerback function can be
enabled or disabled according to the following
procedure:

ENABLING/DISABLING THE HAZARD
ANSWERBACK FUNCTION

The hazard answerback function can be enabled or
disabled by one of the two following procedures.

HOW TO ADJUST HAZARD
ANSWERBACK WHEN THE
TRANSMITTER IS USED TO LOCK
DOORS

1. Remove the ignition key.
2.  Push the ”UNLOCK” button and then push the

”LOCK“ button within 4 seconds to 10 seconds.

3. Release the ”LOCK” button within 10 seconds

after Step 2 and then release the “UNLOCK”
button. The ETACS-ECU buzzer will sound,
indicating that the hazard answerback function
can be enabled or disabled when the doors are
locked.

• Enable the hazard answerback function

when the doors are locked: The
ETACS-ECU buzzer will sound once.

• Disable the hazard answerback function

when the doors are locked: The
ETACS-ECU buzzer will sound twice.

KEYLESS ENTRY SYSTEM

BODY

42-57

HOW TO ADJUST HAZARD
ANSWERBACK WHEN THE
TRANSMITTER IS USED TO UNLOCK
DOORS

1. Remove the ignition key.
2.  Push the ”UNLOCK” button and then push the

”LOCK“ button within 4 seconds to 10 seconds.

3. Release the ”UNLOCK” button within 10 seconds

after Step 2 and then release the “LOCK” button.
The ETACS-ECU buzzer will sound, indicating
that the hazard answerback function can be
enabled or disabled when the door are unlocked.

• Enable the hazard answerback function

when the doors are unlocked: The
ETACS-ECU buzzer will sound once.

• Disable the hazard answerback function

when the doors are unlocked: The
ETACS-ECU buzzer will sound twice.

HOW TO REGISTER SECRET CODE

M1428001000474

Each individual secret code is registered inside the
transmitter, and so it is necessary to resister these
codes with the EEPROM inside the receiver in the
following cases.

• When the transmitter or ETACS-ECU is replaced

• If more transmitters are to be used

• If it appears that a problem is occurring because

of faulty registration of a code.

A maximum of four different codes can be stored in
the EEPROM memory (four different transmitters can
be used). When the code for the first transmitter is
registered, the previously registered codes for all
transmitters are cleared. Therefore, if you are using
four transmitters or are adding more transmitters, the
codes for all transmitters must be registered at the
same time.

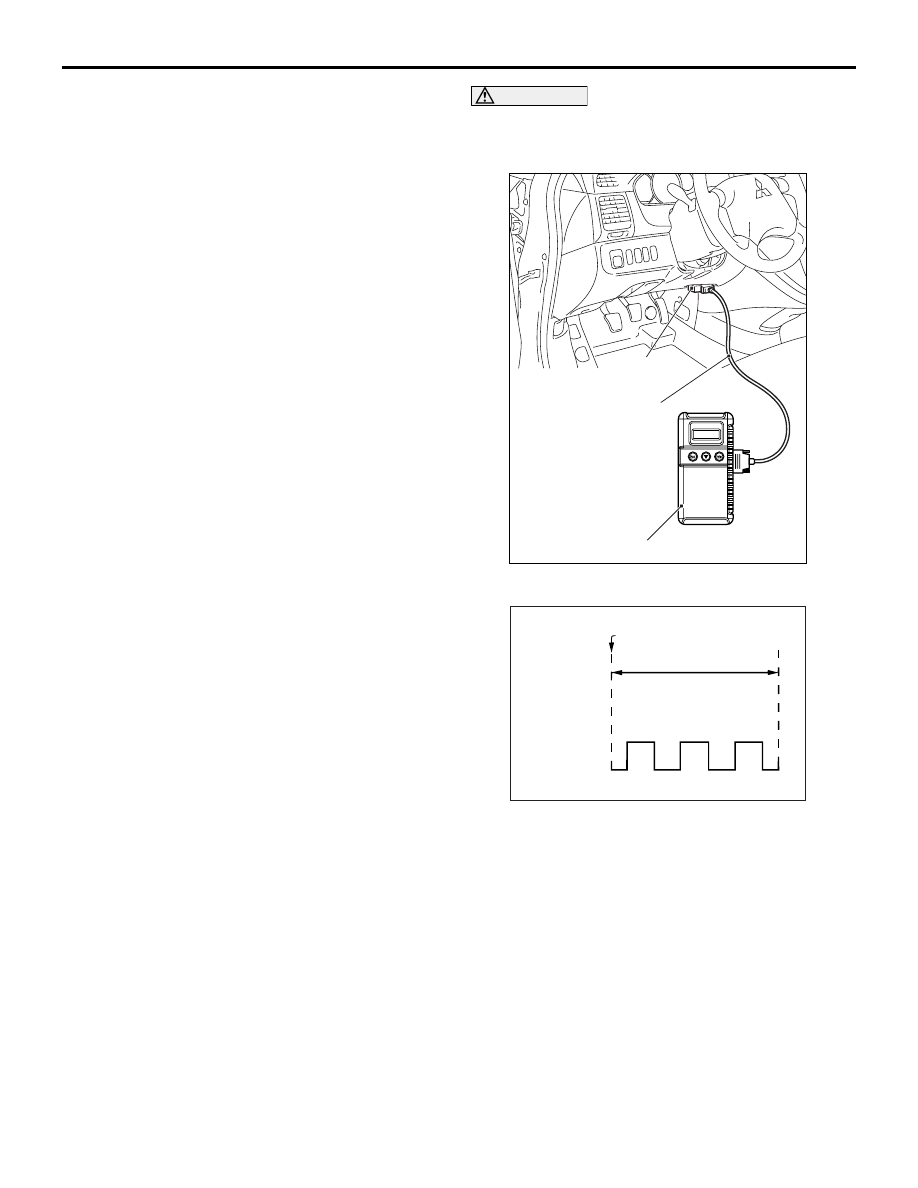

WHEN THE SPECIAL TOOL V.C.I.
(MB991824) IS USED

1. Check that the doors lock normally when the key

is used.

2. Insert the ignition key.

CAUTION

Before connecting or disconnecting the V.C.I.,
turn the ignition switch to the "LOCK" (OFF)
position.

3. Connect the V.C.I. to the diagnosis connector.

4. Within 10 seconds after turning the V.C.I. power

switch to the "ON" position, press the hazard
switch six times.
NOTE: Once the process is completed six times,
then it will operate with all doors and tailgate lock
and unlock operations once and then go to the
save mode.
NOTE: The hazard warning lamp switch is turned
on and off alternately whenever it is pushed.

5. Press the transmitter switch, and then press it two

times within 10 seconds of the first press. This will
register the code.

6.  Once the program is saved, it will operate once

with the all doors and tailgate lock and unlock
operations.

AC310120

AC310861

AB

MB991910

MB991824

16-Pin

ACX00571

Connect V. C. I. and turn
the V. C. I. power supply
switch ON.

Within 10 seconds

Hazard
warning
switch

ON

OFF

1

2

3

4

5

6

AJ

KEYLESS ENTRY SYSTEM

BODY

42-58

7. If you are using two or more transmitters or have

added a second transmitter, the same registration
procedure should be carried out within one minute
after registering the code for the first transmitter.

8. Registration mode will be cancelled under the

following conditions:

• When the secret code for four transmitters has

been registered;

• When one minute has passed after registration

mode started;

• When the V.C.I. is disconnected from the

diagnosis connector;

• When the key is removed from the key cylinder;

9. After the registration is completed, remove the

ignition key and close all the doors, and then
check that the keyless entry system operates
normally.

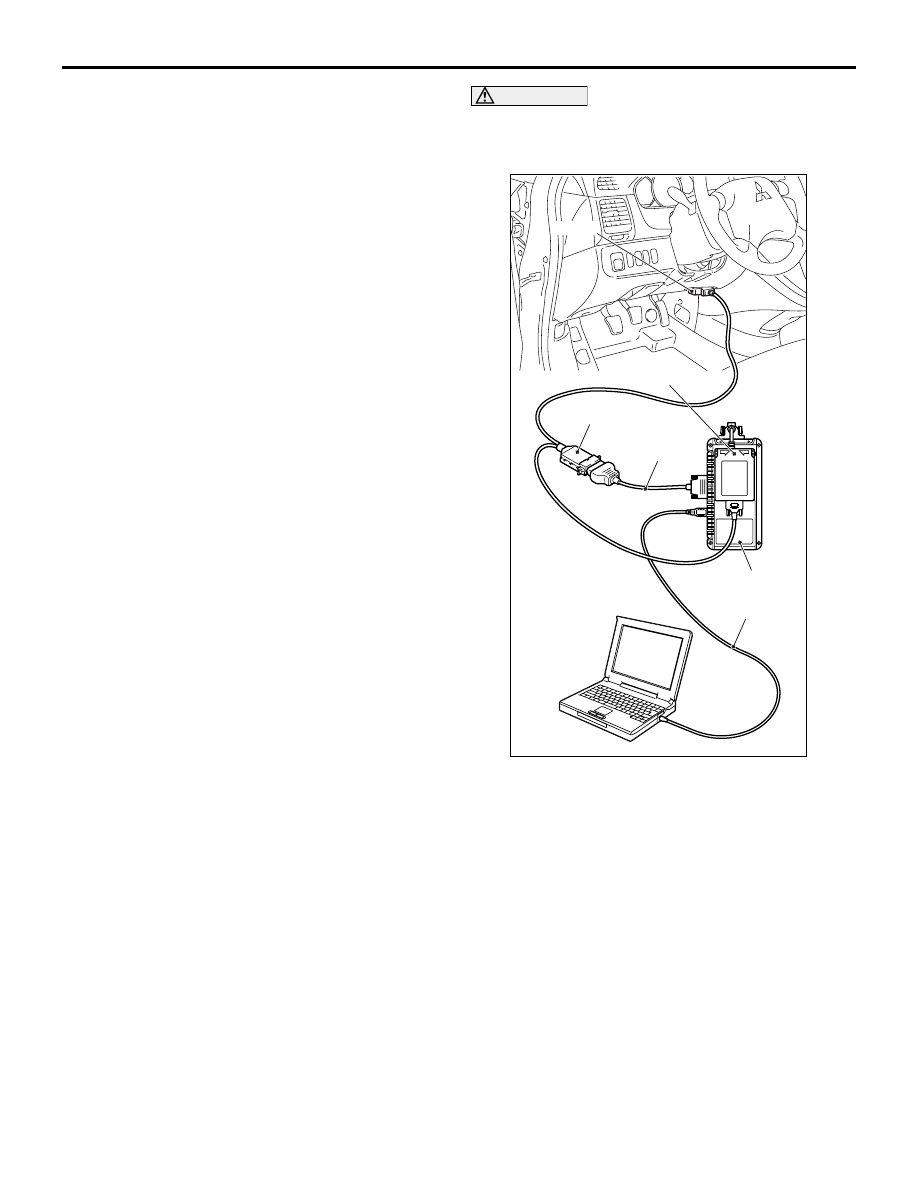

WHEN THE MUT-III AND SWS MONITOR
IS USED

1. Check that the doors lock normally when the

ignition key is inserted into the door key cylinder
and turned.

2. Insert the ignition key in the ignition switch.

CAUTION

Before connecting or disconnecting the MUT-III
and SWS monitor, turn the ignition switch to the
"LOCK" (OFF) position.

3. Connect the SWS monitor to the MUT-III. Refer to

GROUP 54C, How to Connect The SWS Monitor

P.54C-10

.

4. Connect the MUT-III to the diagnosis connector.
5. Select "Interactive Diagnosis" from the main

menu.

6. Select "System Select" from "Interactive

Diagnosis".

7. Select "BODY" from the upper tab on "System

Select" window.

8. Select "SWS" from "BODY".
9. Select "SWS Monitor" from "SWS".
10.If "New communication between doors" is

selected from "SWS monitor", the display screen
will be changed. Select "Keyless Entry" from that
screen.

AC311058

MB991910

MB991806
(SWS monitor)

MB991827

AB

MB991824

MB991960

16-Pin

KEYLESS ENTRY SYSTEM

BODY

42-59

11.Select "Keyless ID Regist" from "Keyless Entry"

items.

12.Press the YES key to clear encrypted codes for

all the current registered transmitters.

13.Push the hazard warning lamp switch to clear all

the encrypted codes completely.

14.Push the switch of the transmitter to be registered

consecutively three times. If another transmitter is
registered, push the switch of that transmitter
again consecutively three times.

15.Return to the previous step.
16.Select "Recept Inspect" from "Keyless Entry"

items.

17.Push the transmitter switch. If the transmitter can

receive signal normally, the screen will show
variation of the received signals and whether the
transmitter switch has been registered or not.
NOTE: For the keyless entry system, the signal
reception can be examined regardless of whether
the transmitter is registered or not.

18.Return to the main menu and complete.
19.Remove the MUT-III.
20.Disconnect the SWS monitor.
21.Check that the keyless entry system works

normally.

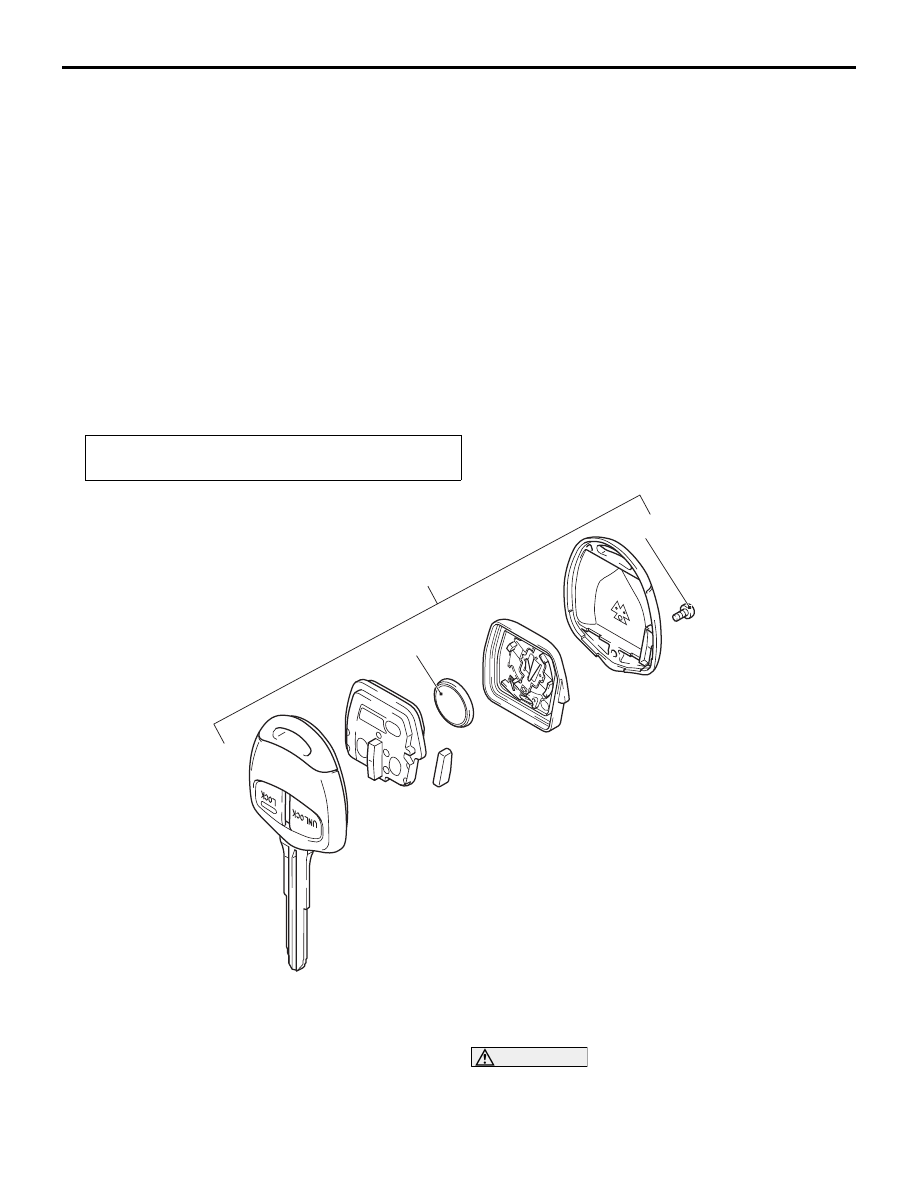

TRANSMITTER

DISASSEMBLY AND REASSEMBLY

M1428002800097

DISASSEMBLY SERVICE POINT
<<A>> BATTERY REMOVAL

CAUTION

Do not allow water or dust to enter the inside of
the transmitter assembly when it is open. Also,
do not touch the precision electronic device.

Post-installation operation
• Transmitter operation check

AC310838

AC303199
AC304118

1

2

3

AB

Disassembly steps

1.

Screw

<<A>>

>>A<<

2.

Battery

3.

Master key assembly
