TIMING BELT

ENGINE OVERHAUL

11B-27

INSPECTION

M1113002000544

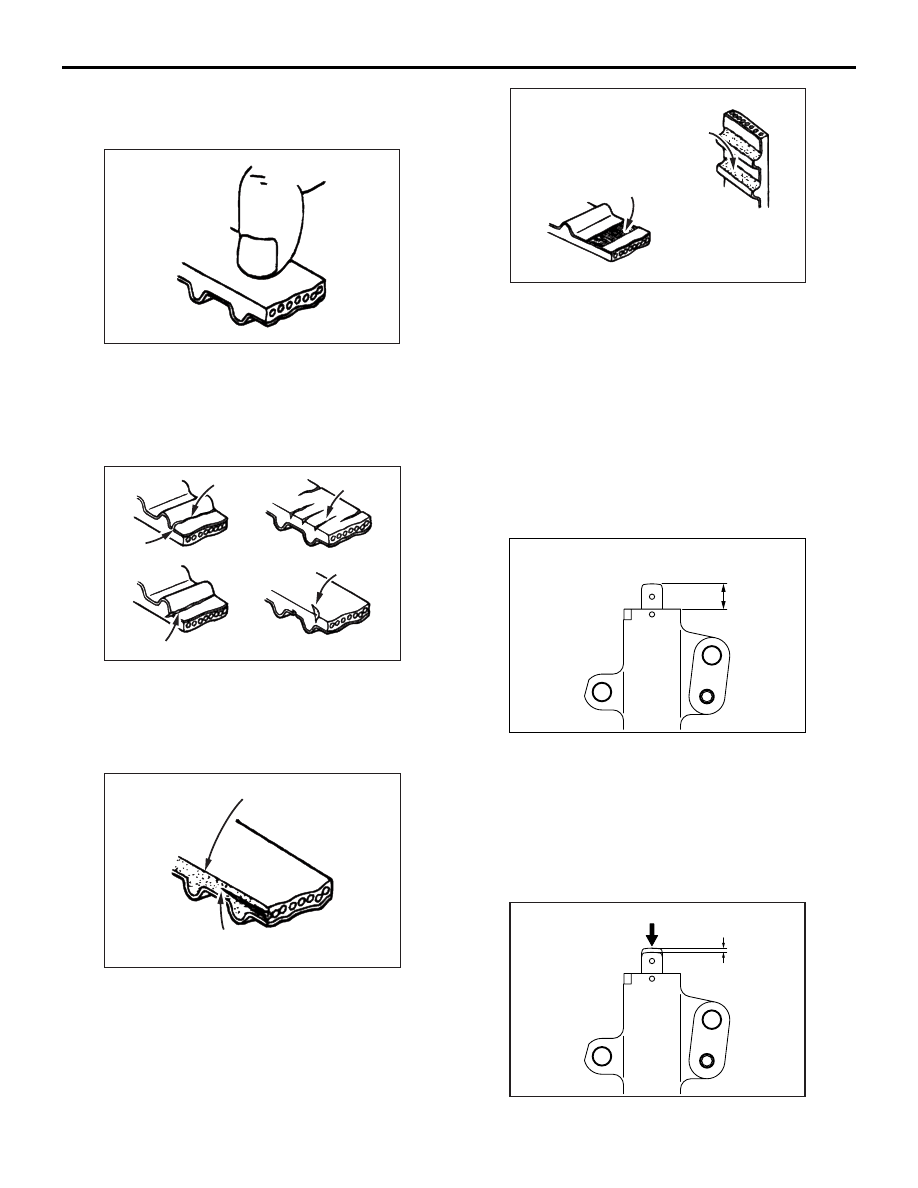

TIMING BELT

Replace the belt if any of the following conditions
exist:
1. Hardening of rubber backing.

Back side should be glossy without resilience and
leave no indent when pressed with fingernail.

2. Cracks on rubber back.
3. Cracks or peeling of canvas.
4. Cracks at bottom of ribs.
5. Cracks on belt sides.

6. Abnormal wear of belt sides. Normal wear is

indicated if the sides are sharp as if cut by a knife.
Abnormal wear is indicated if the sides are
ragged.

7. Abnormal wear on teeth.

Initial stage:
Canvas worn (fluffy canvas fibers, rubbery
texture gone, white discoloration, canvas
texture indistinct)
Final stage:
Canvas worn, exposing rubber (tooth width
reduced)

8. Missing tooth.

AUTO-TENSIONER

1. Check for oil leaks. If oil leaks are evident, replace

the auto-tensioner.

2. Check the rod end for wear or damage and

replace the auto-tensioner if necessary.

3. Measure the rod protrusion. If it is out of

specification, replace the auto tensioner.

Standard value: 12 mm

AK202794

AK202793

Cracks

Peeling of canvas

Cracks in tooth roots

Cracks

AD

Cracks in sides

AK202795

Rounded edge

Abnormal wear
(fluffy strand)

AD

AK202796

Missing
Tooth

Canvas lost and
rubber exposed

AB

AK301307AD

12 mm

AK301308AD

98 TO 196 N

Movement

TIMING BELT

ENGINE OVERHAUL

11B-28

4. Press the rod with a force of 98 to 196 N and

measure the movement of the rod.
If the measured value is out of the standard value,
replace the auto-tensioner.

Standard value: 1.0 mm or less

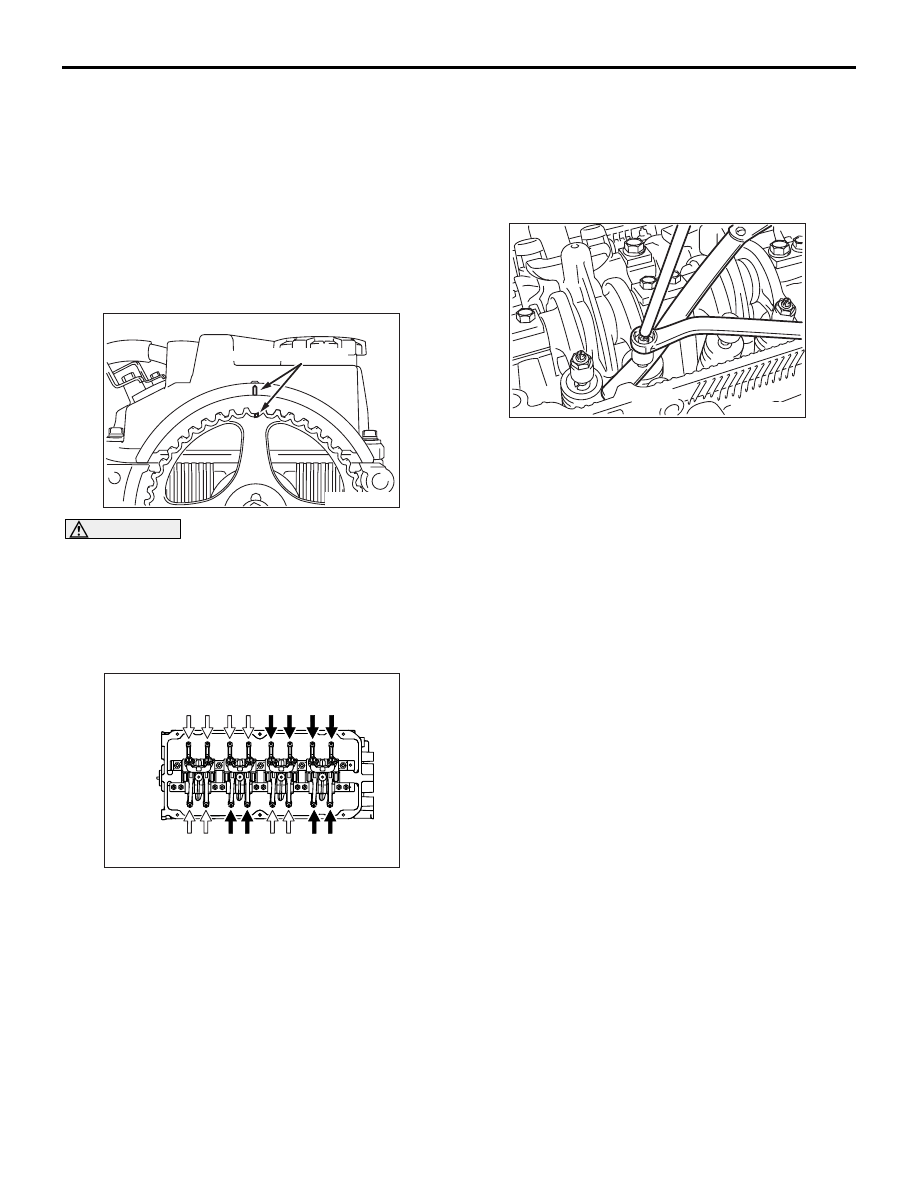

VALVE CLEARANCE ADJUSTMENT

Perform the adjustment of the valve clearance in the
following procedure.
1. Remove the rocker cover.

CAUTION

Rotate the crankshaft clockwise at any time.
2. Rotate crankshaft clockwise and then align the

timing mark on the camshaft sprocket with the
timing mark on the cylinder head. (Place No.1
cylinder on the top dead center of compression
stroke.)

3. Measure the valve clearance marked with arrows

shown in the figure.
White arrow mark: When No.1 cylinder is on the
top dead center of compression stroke.
Black arrow mark: When No.4 cylinder is on the
top dead center of compression stroke.

4. Using a thickness gauge, adjust the clearance

between the valve shaft end and the adjusting
screw.

Standard value (in cold state):

Intake side: 0.11 mm
Exhaust side: 0.20 mm
NOTE: After the engine assembly is installed on
the vehicle, check the valve clearance again in
the engine warm-up state. Adjust if necessary.

5. Hold the adjusting screw not rotating through a

driver and then tighten the rock nut.

6. Rotate the crankshaft one time clockwise and

then align the timing mark with the timing mark on
the crankshaft sprocket. (Place No.4 cylinder on
the top dead center of compression stroke.)

7. Adjust the valve clearance for the rest of the

valves.

8. Install the rocker cover.

AK300148

Timing mark

AE

AK204362AE

Exhaust valve side

No. 1 No. 2 No. 3 No. 4

Intake valve side

AK300153

FUEL AND EMISSION PARTS

ENGINE OVERHAUL

11B-29

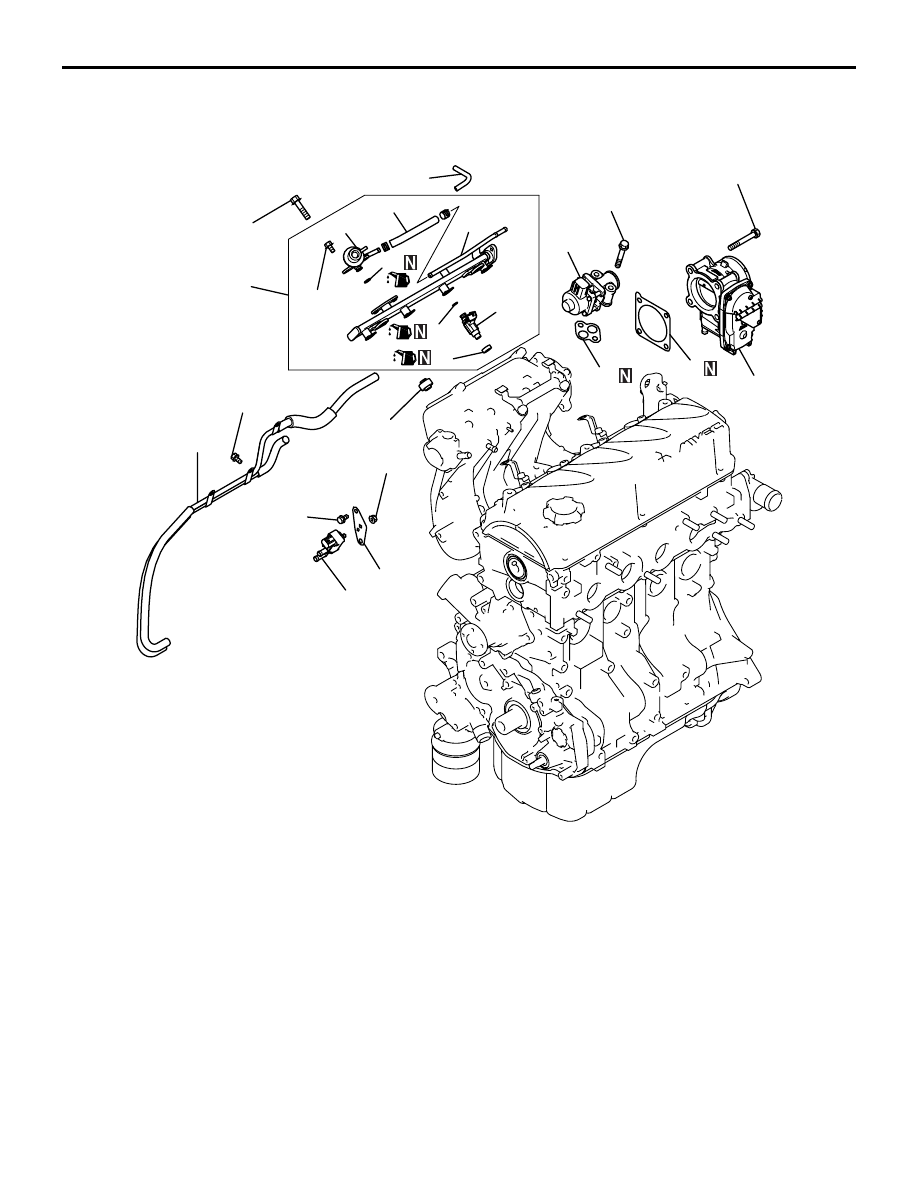

FUEL AND EMISSION PARTS

REMOVAL AND INSTALLATION

M1113002200559

AK305762AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

9.0 ± 1.0 N·m

11 ± 1 N·m

24 ± 3 N·m

9.0 ± 1.0 N·m

11 ± 1 N·m

14 ± 3 N·m

11 ± 1 N·m

Removal steps

1. Throttle body

>>C<<

2. Throttle body gasket
3. Vacuum pipe and hose
4. Solenoid valve
5. Solenoid valve bracket
6. Vacuum hose
7. Injector and delivery pipe
8. Insulator
9. Fuel hose

10. Fuel pressure regulator
11. O-ring
12. Insulator

>>B<<

13. Injector
14. O-ring
15. Delivery pipe
16. EGR valve

>>A<<

17. EGR gasket

Removal steps (Continued)

FUEL AND EMISSION PARTS

ENGINE OVERHAUL

11B-30

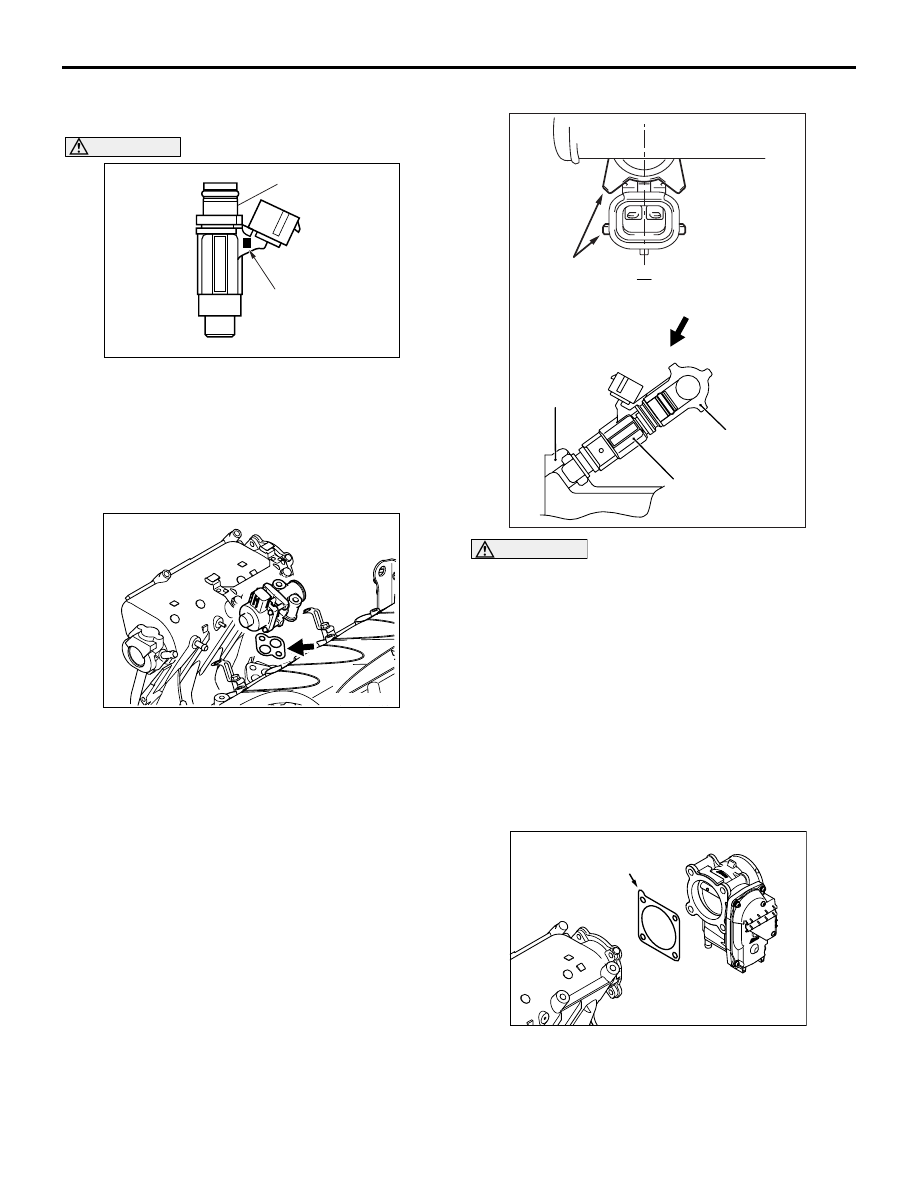

INSTALLATION SERVICE POINTS
>>A<< EGR VALVE INSTALLATION

CAUTION

• The fuel injectors are classified into A, B and

C by the injection quantity. When replacing
one of fuel injectors, use a same identification
mark fuel injector as the other fuel injectors.

• When replacing the fuel injectors of all

cylinders, use the same identification mark
fuel injectors.

Install a new gasket is positioned as shown in the
illustration.

>>B<< INJECTORS INSTALLATION

CAUTION

Use care not to let engine oil enter the delivery
pipe.
1. Apply clean engine oil to the O-ring.
2. Insert the injector into the delivery pipe.
3. Make sure the injector rotates smoothly.

If not, remove the injector to check the O-ring for
damage, and replace the O-ring if necessary.
Then, reinstall the injector and check that it
rotates smoothly.

>>C<< THROTTLE BODY GASKET
INSTALLATION

Install a new gasket so that the projection is
positioned as shown in the illustration.

AK305815

AB

Identification
mark (A, B or C)

Injector

AK305763AB

AK300155

Projection

Intake
manifold

Delivery pipe

Injector

A

A

AD

AK300579AD

Projection
