Mitsubishi Grandis. Manual - part 655





ALTERNATOR AND IGNITION SYSTEM

ENGINE OVERHAUL

11B-15

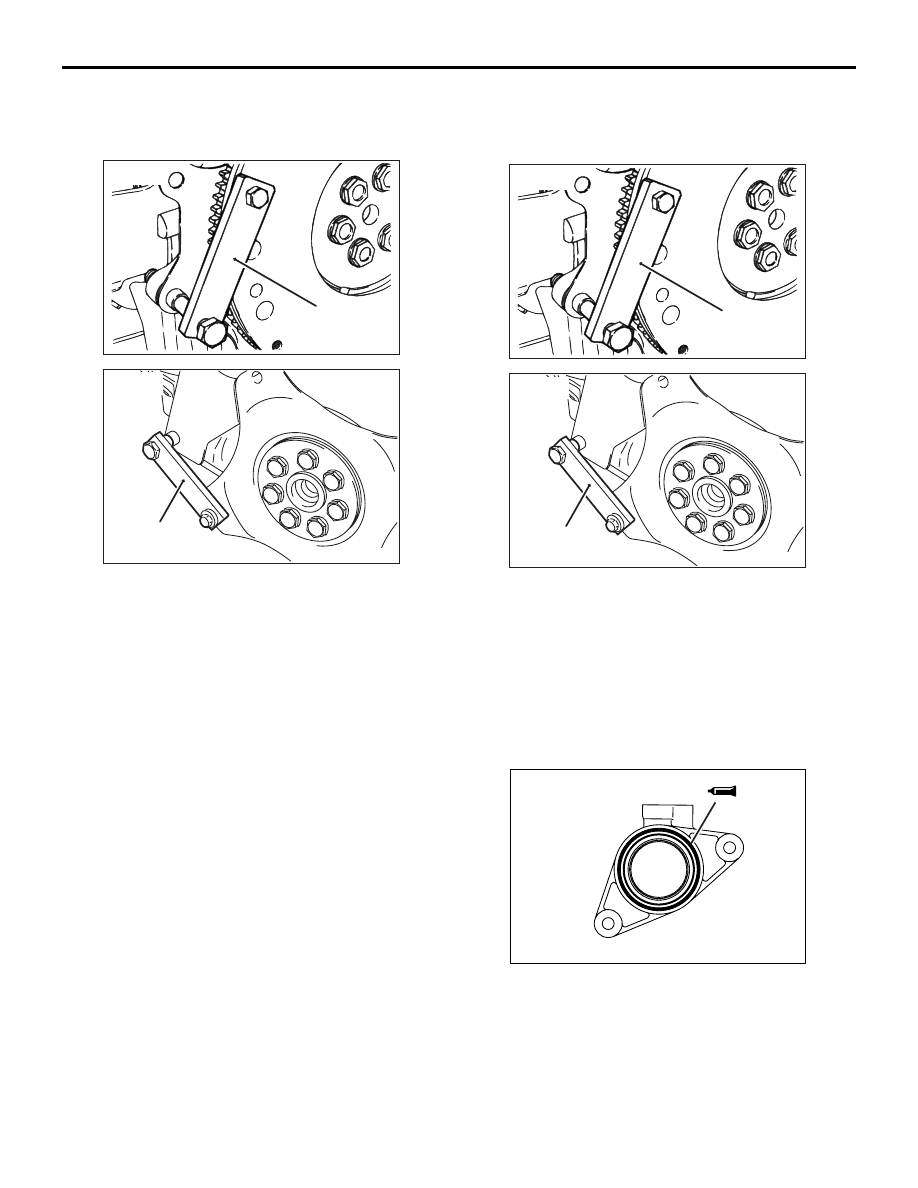

<<B>> CAMSHAFT POSITION SENSING
CYLINDER REMOVAL

1. Using special tool Fly wheel stopper (MD998781),

hold the drive plate.

2. Removal the camshaft position sensing cylinder.

INSTALLATION SERVICE POINT
>>A<< CAMSHAFT POSITION SENSING
CYLINDER INSTALLATION

1. Using special tool Fly wheel stopper (MD998781),

hold the drive plate.

2. Tighten the camshaft position sensing cylinder to

the specified torque.

Tightening torque: 22

± 4 N⋅m

>>B<< CAMSHAFT POSITION SENSOR
SUPPORT INSTALLATION

1. Remove completely the FIPG remaining on the

camshaft position sensor support and cylinder
head.

2. Apply a 3

± 1 mm diameter bead of FIPG to the

indicated surface of the camshaft position sensor
support.

AK202738

MD998781

AD

<M/T>

AK300135

MD998781

AG

<A/T>

AK202738

MD998781

AD

<M/T>

AK300135

MD998781

AG

<A/T>

AK300004AE

 3 mm

ALTERNATOR AND IGNITION SYSTEM

ENGINE OVERHAUL

11B-16

Specified sealant:

Mitsubishi Genuine Part No.MD970389 or

equivalent

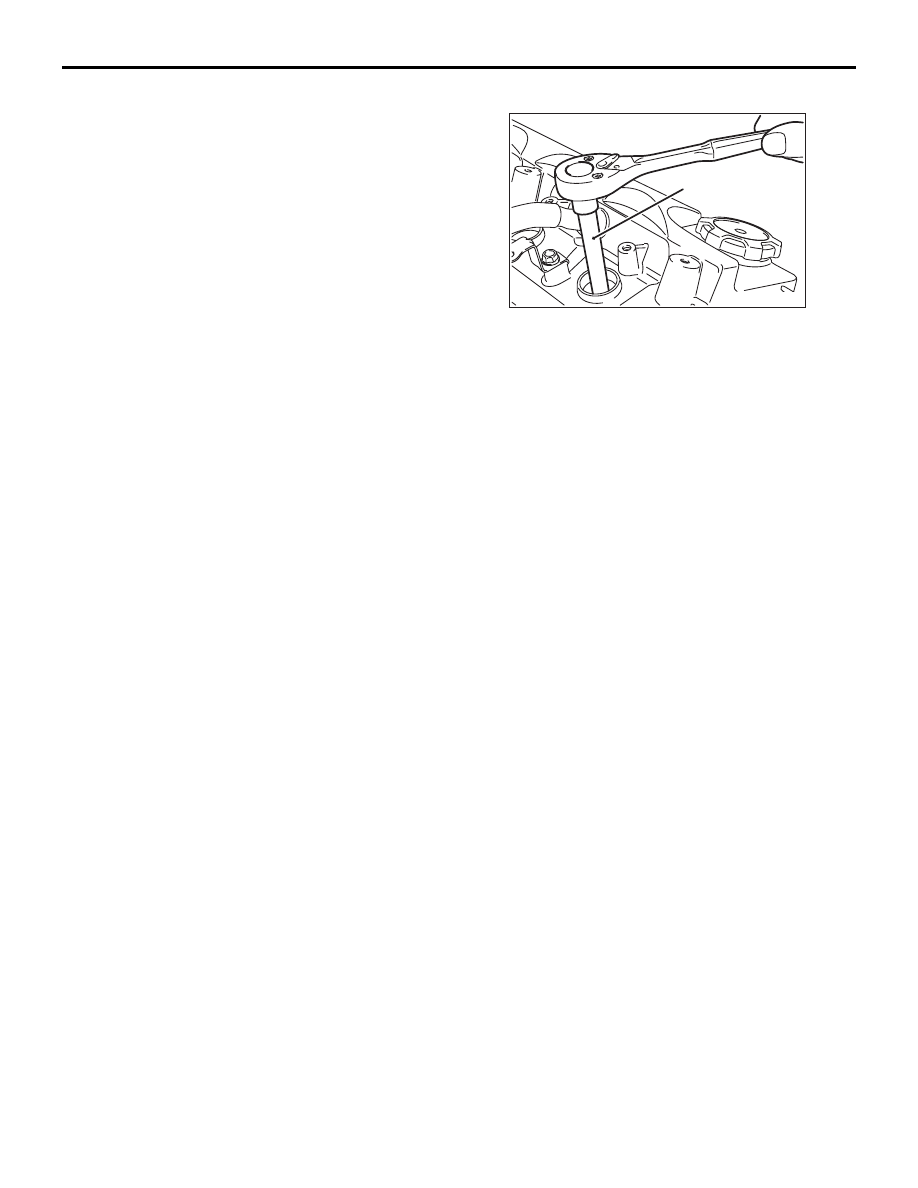

>>C<< SPARK PLUG INSTALLATION

Using special tool Spark plug wrench (MB991398),
tighten the spark plug to the specified torque.

Tightening torque: 25

± 5 N⋅m

AK300130

MB991398

AD

EXHAUST MANIFOLD

ENGINE OVERHAUL

11B-17

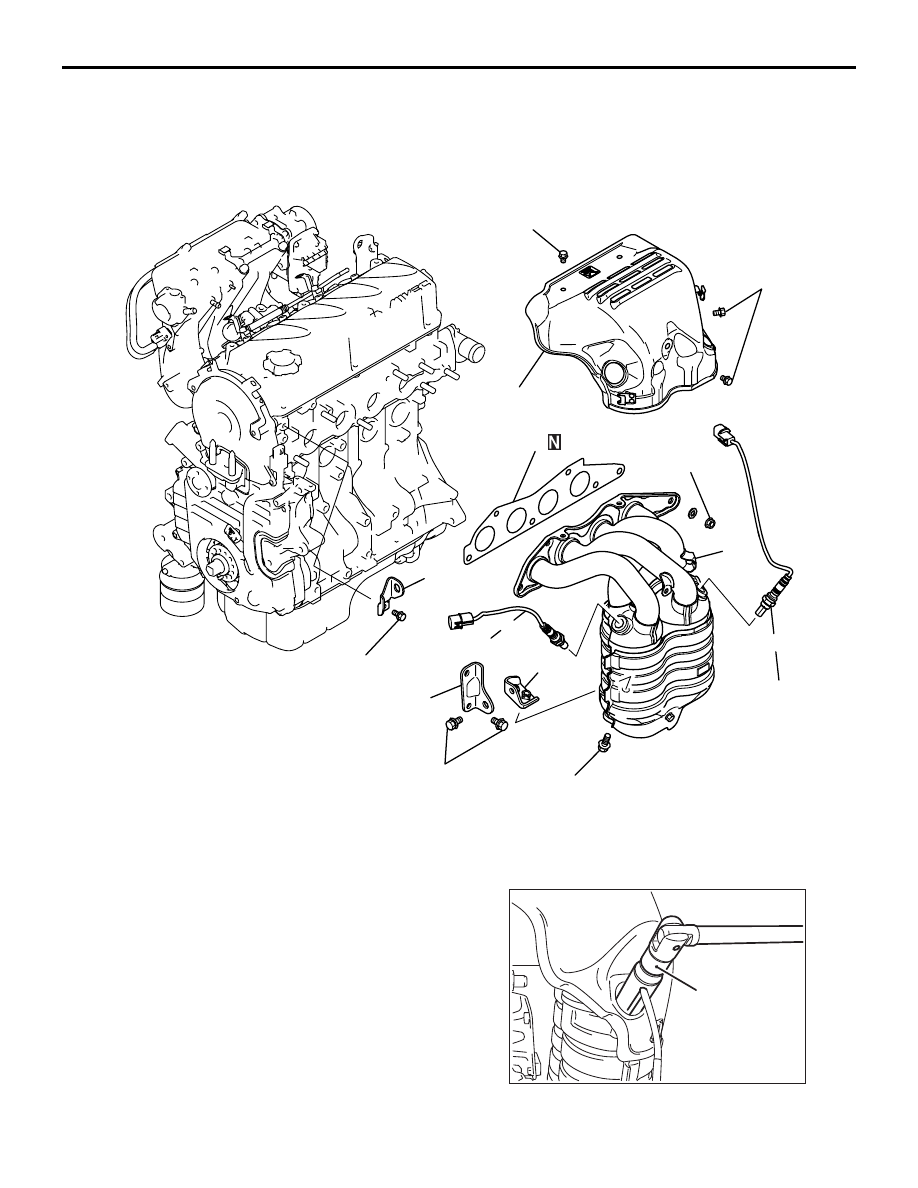

EXHAUST MANIFOLD

REMOVAL AND INSTALLATION

M1113004900510

REMOVAL SERVICE POINT
<<A>> OXYGEN SENSOR REMOVE

Using special tool Oxygen sensor wrench
(MD998770),  removal the oxygen sensor.

AK305761AB

1

2

3

4

8

5

6

7

49 ± 5 N·m

44 ± 5 N·m

14 ± 1 N·m

35 ± 6 N·m

14 ± 1 N·m

44 ± 4 N·m

44 ± 4 N·m

24 ± 3 N·m

Removal steps

1. Engine hanger

<<A>> >>B<<

2. Oxygen sensor

<<A>> >>B<<

3. Oxygen sensor
4. Exhaust manifold cover

>>A<<

5. Exhaust manifold bracket B
6. Exhaust manifold
7. Exhaust manifold gasket
8. Exhaust manifold bracket A

AK300132AD

MD998770

EXHAUST MANIFOLD

ENGINE OVERHAUL

11B-18

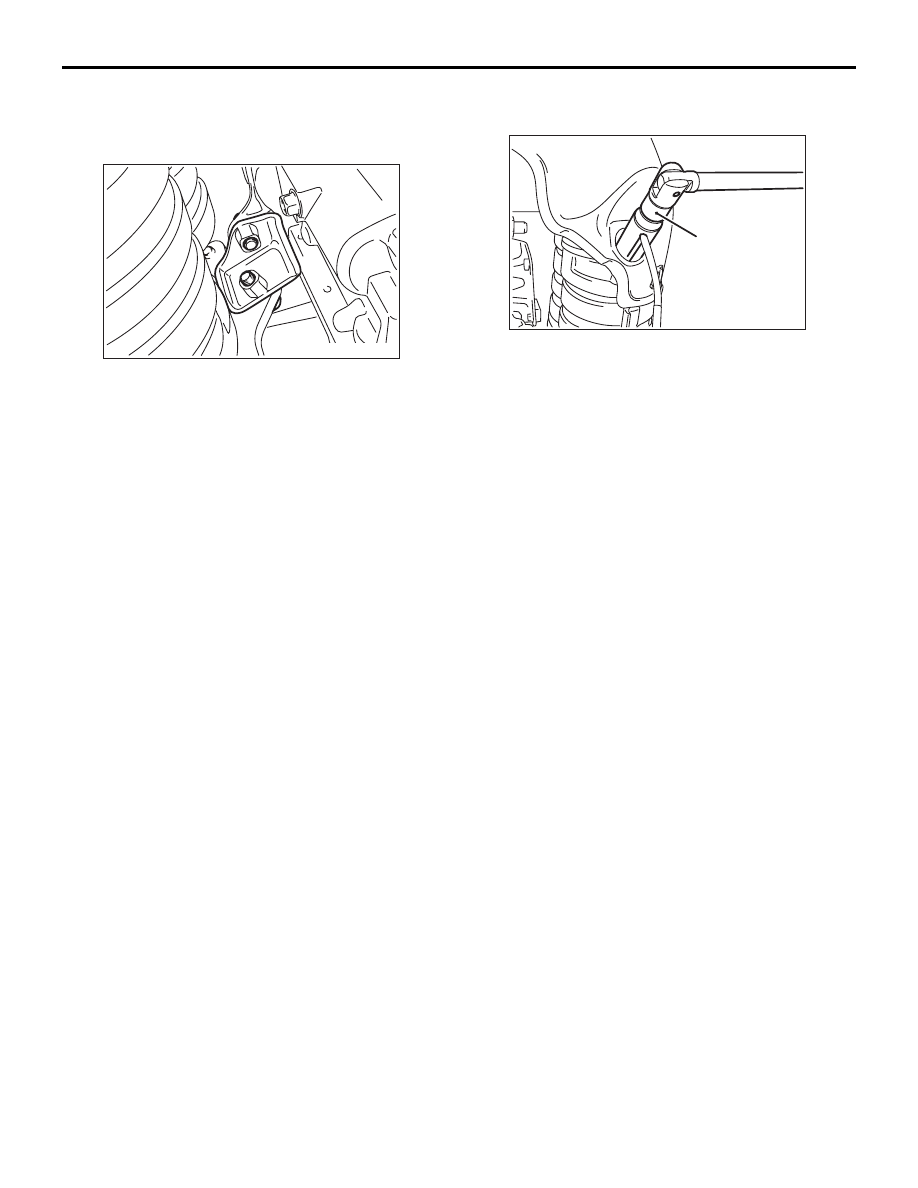

INSTALLATION SERVICE POINT
>>A<< EXHAUST MANIFOLD BRACKET
"B" INSTALLATION

Check to ensure that the exhaust manifold bracket
"B" is in close contact with the exhaust manifold and
the cylinder block before tightening the respective
mounting bolts to the specified torque.

>>B<< OXYGEN SENSOR INSTALLATION

Using special tool Oxygen sensor wrench
(MD998770), installation the oxygen sensor.

AK300131

AK300132AD

MD998770
