STARTING SYSTEM

ENGINE ELECTRICAL

16-16

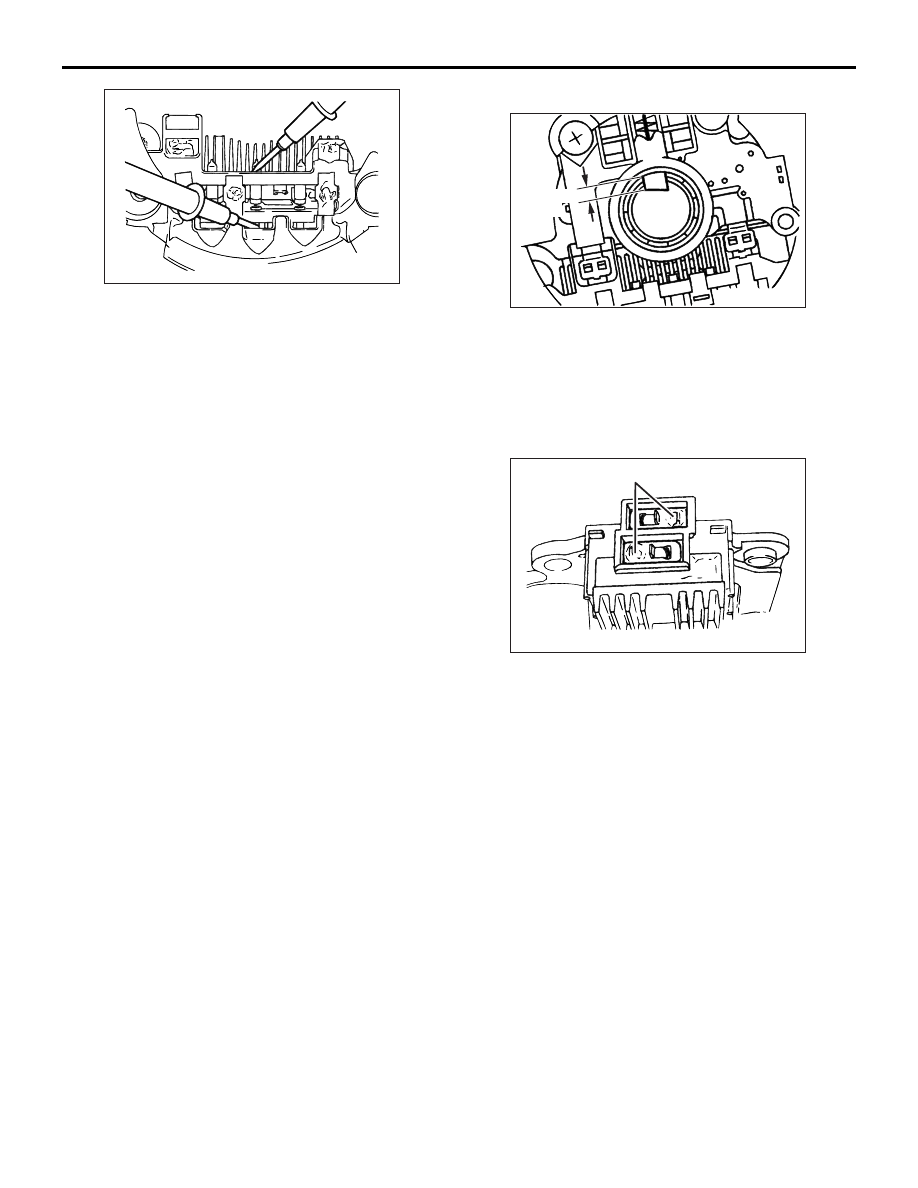

3. Check the condition of the diode trio by testing

continuity of each of the three diodes using a
circuit tester connected to both sides of the diode.
Connect in a polarity and then reverse the polarity
for each test.
If continuity exists or no continuity exists for both
polarities, the diode is defective. Replace the
rectifier assembly if any of the diodes is defective.

BRUSH

1. Measure the length of the protrusion of the brush.

Replace the brush if the protrusion length is
shorter than the limit.

Limit: 2 mm minimum

2. Unsolder the lead of the brush. The brush will

come out, becoming ready for removal.

3. Install a new brush by pushing it into the holder as

shown in the drawing and soldering the lead.

STARTING SYSTEM

GENERAL INFORMATION

M1162000100310

If the ignition switch is turned to the "START"
position, current flows in the pull-in and holding coils
provided inside magnetic switch, attracting the
plunger, When the plunger is attracted, the lever
connected to the plunger is actuated to engage the
starter clutch.
On the other hand, attracting the plunger will turn on
the magnetic switch, allowing the "B" terminal and
"M" terminal to conduct. Thus, current flows to
engage the starter motor.

When the ignition switch is returned to the "ON"
position after starting the engine, the starter clutch is
disengaged from the ring gear.
An overrunning clutch is provided between the pinion
and the armature shaft, to prevent damage to the
starter.

AK304682

AK304683

Protrusion
length

AB

AK304684

Solder

AB

STARTING SYSTEM

ENGINE ELECTRICAL

16-17

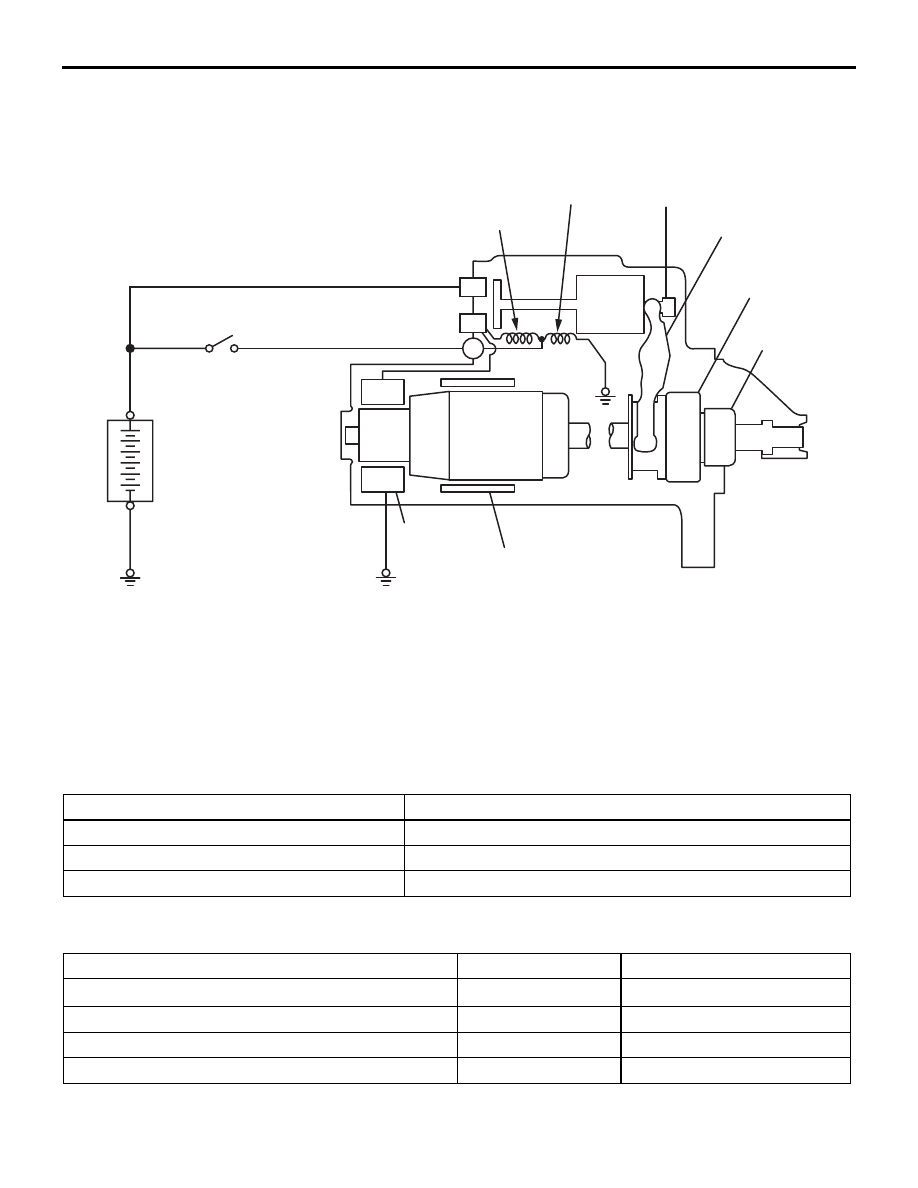

SYSTEM DIAGRAM

STARTER MOTOR SPECIFICATIONS

SERVICE SPECIFICATIONS

M1162000300079

AK202970

Pull-in coil

Holding coil

Plunger

Lever

Pinion gear

Overrunning clutch

Yoke

Brush

Armature

Ignition switch - ST

Battery

+

AD

B

M

S

Item

Specification

Type

Reduction drive with planetary gear

Rated output kW/V

1.4/12

Number of pinion teeth

8

Item

Standard value

Limit

Pinion gap mm

0.5

− 2.0

Commutator run-out mm

0.05

0.1

Commutator diameter mm

29.4

28.8

Undercut depth mm

0.5

 0.2

STARTING SYSTEM

ENGINE ELECTRICAL

16-18

STARTER MOTOR ASSEMBLY

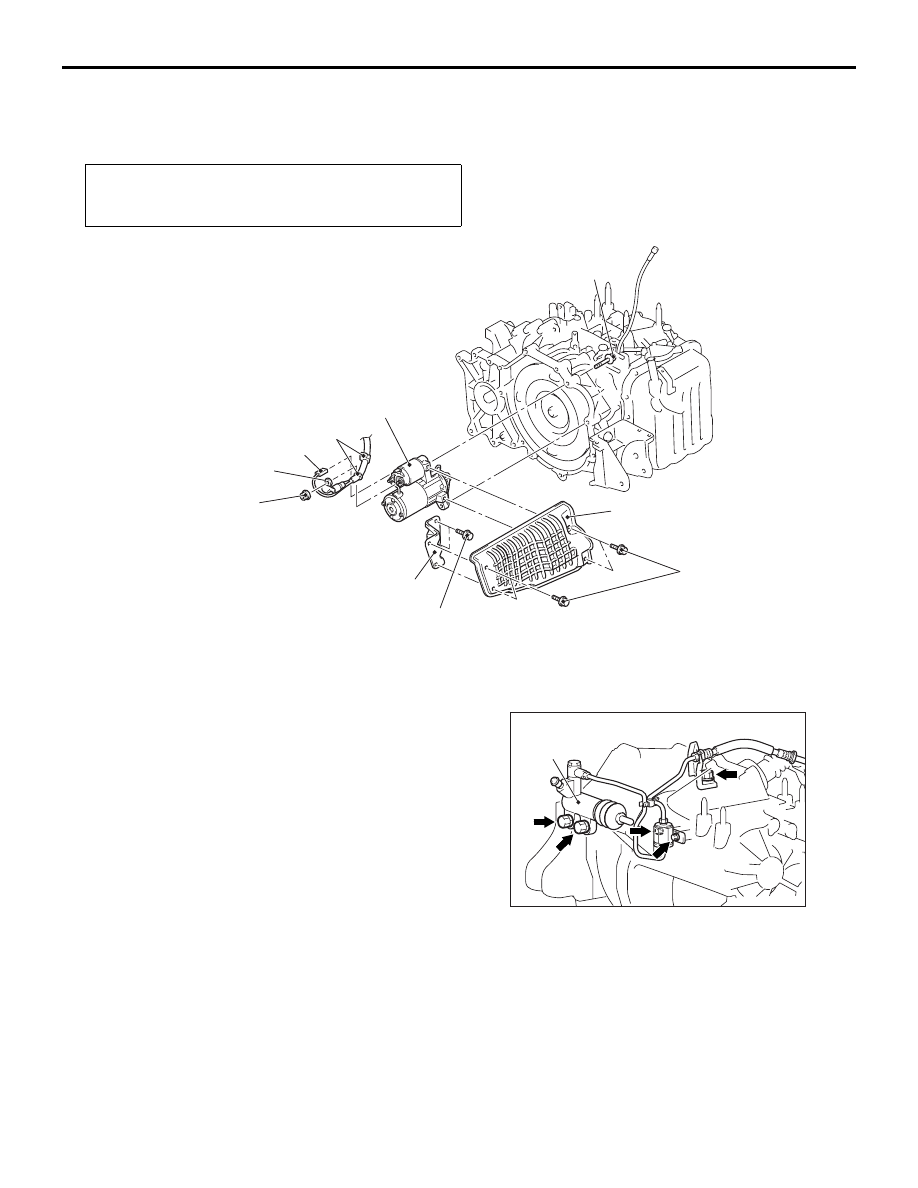

REMOVAL AND INSTALLATION

M1162001000792

REMOVAL SERVICE POINT
<<A>> CLUTCH MASTER CYLINDER
<M/T> REMOVAL

Remove the bolts as shown and place the clutch
master cylinder with clutch tube at the position where
it will not interfere with the removal of starter
assembly.

<<B>> STARTER ASSEMBLY REMOVAL

Remove the starter assembly from above the
vehicle.

Pre-removal and Post-installation Operation
Air Cleaner Intake Duct Removal and Installation (Refer to
GROUP 15, Air Cleaner

P.15-3

).

AC310554

9.0 ± 2.0 N·m

1

3

2

4

5

6

AB

49 ± 9 N·m

13 ± 2 N·m

30 ± 3 N·m

Removal steps

1.

Starter cover

2.

Harness clamp

3.

Starter connector

4.

Starter terminal

<<A>>

Clutch master cylinder  <M/T>

<<B>>

5.

Starter assembly

6.

Starter cover bracket

AC311197

Clutch master
cylinder

AB

STARTING SYSTEM

ENGINE ELECTRICAL

16-19

STARTER MOTOR ASSEMBLY INSPECTION

M1162001100250

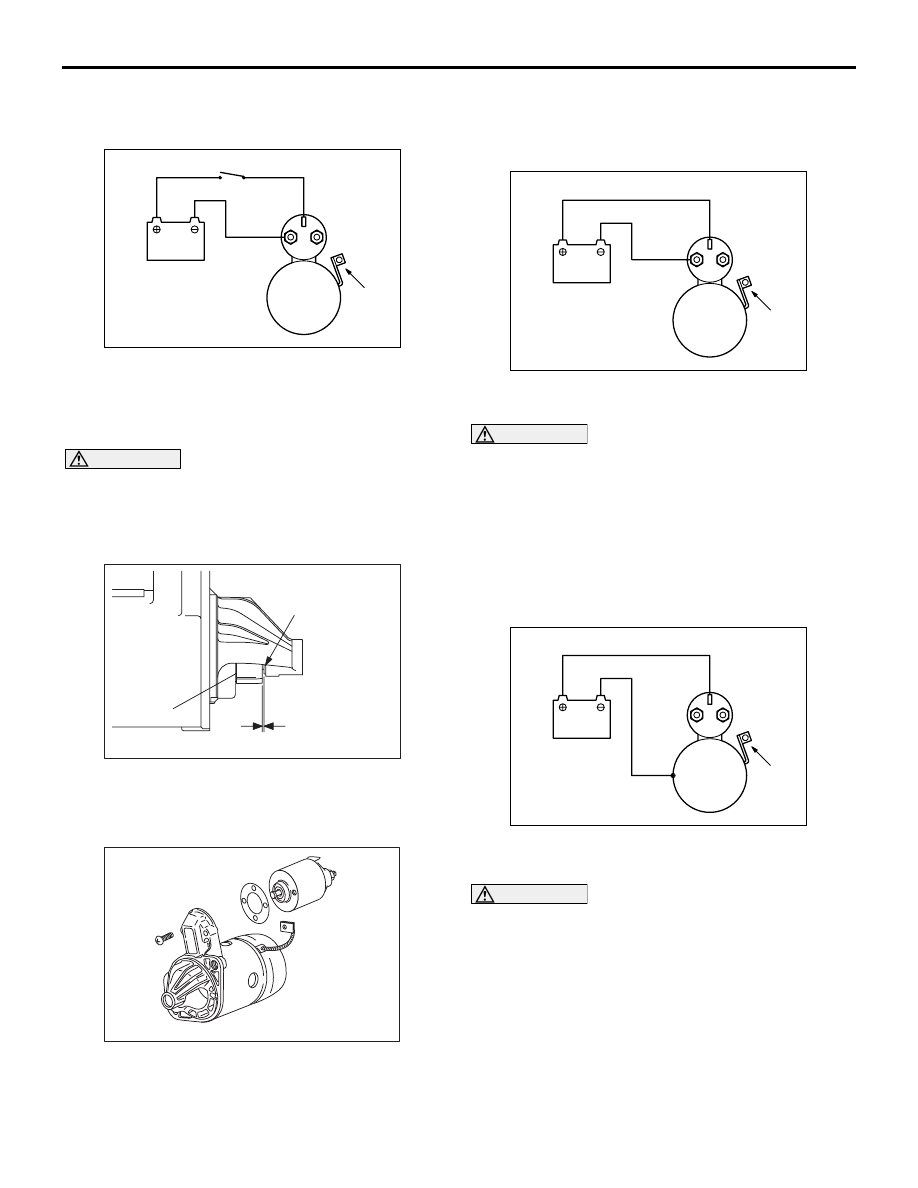

PINION GAP ADJUSTMENT

1. Disconnect the field coil wire from the M-terminal

of the magnetic switch.

2. Connect a 12-volt battery between the S-terminal

and M-terminal.

CAUTION

This test must be performed quickly (in less than
10 seconds) to prevent the coil from burning.
3. Set the switch to "ON", and the pinion will move

out.

4. Check the pinion-to-stopper clearance (pinion

gap) with a feeler gauge.

Standard value: 0.5

 2.0 mm

5. If the pinion gap is out of specification, adjust by

adding or removing gasket(s) between the
magnetic switch and front bracket.

MAGNETIC SWITCH PULL-IN TEST

1. Disconnect the field coil wire from the M-terminal

of the magnetic switch.

CAUTION

This test must be performed quickly (in less than
10 seconds) to prevent the coil from burning.
2. Connect a 12-volt battery between the S-terminal

and M-terminal.

3. If the pinion moves out, the pull-in coil is good. If it

doesn't, replace the magnetic switch.

MAGNETIC SWITCH HOLD-IN TEST

1. Disconnect the field coil wire from the M-terminal

of the magnetic switch.

CAUTION

This test must be performed quickly (in less than
10 seconds) to prevent the coil from burning.
2. Connect a 12-volt battery between the S-terminal

and body.

3. Manually pull out the pinion as far as the pinion

stopper position.

4. If the pinion remains out, everything is in order. If

the pinion moves in, the hold-in circuit is open.
Replace the magnetic switch.

AKX01238

B

M

S

battery

Switch

Starter
motor

Wire

AF

AKX00198

Stopper

Pinion gap

Pinion

AC

AKX00199

AKX01242

S

B

M

Battery

Starter
motor

Wire

AE

AKX01244

S

B

M

Battery

Starter
motor

Wire

AE
