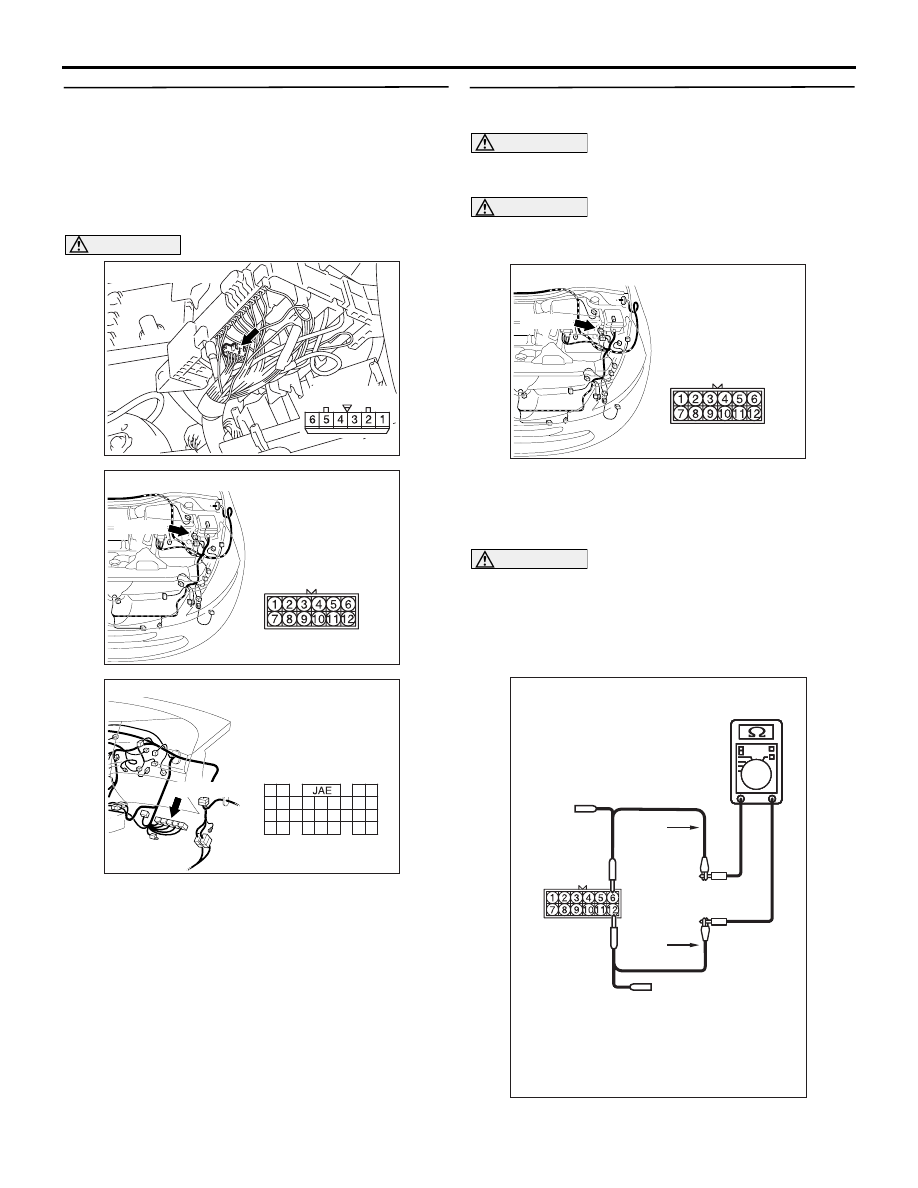

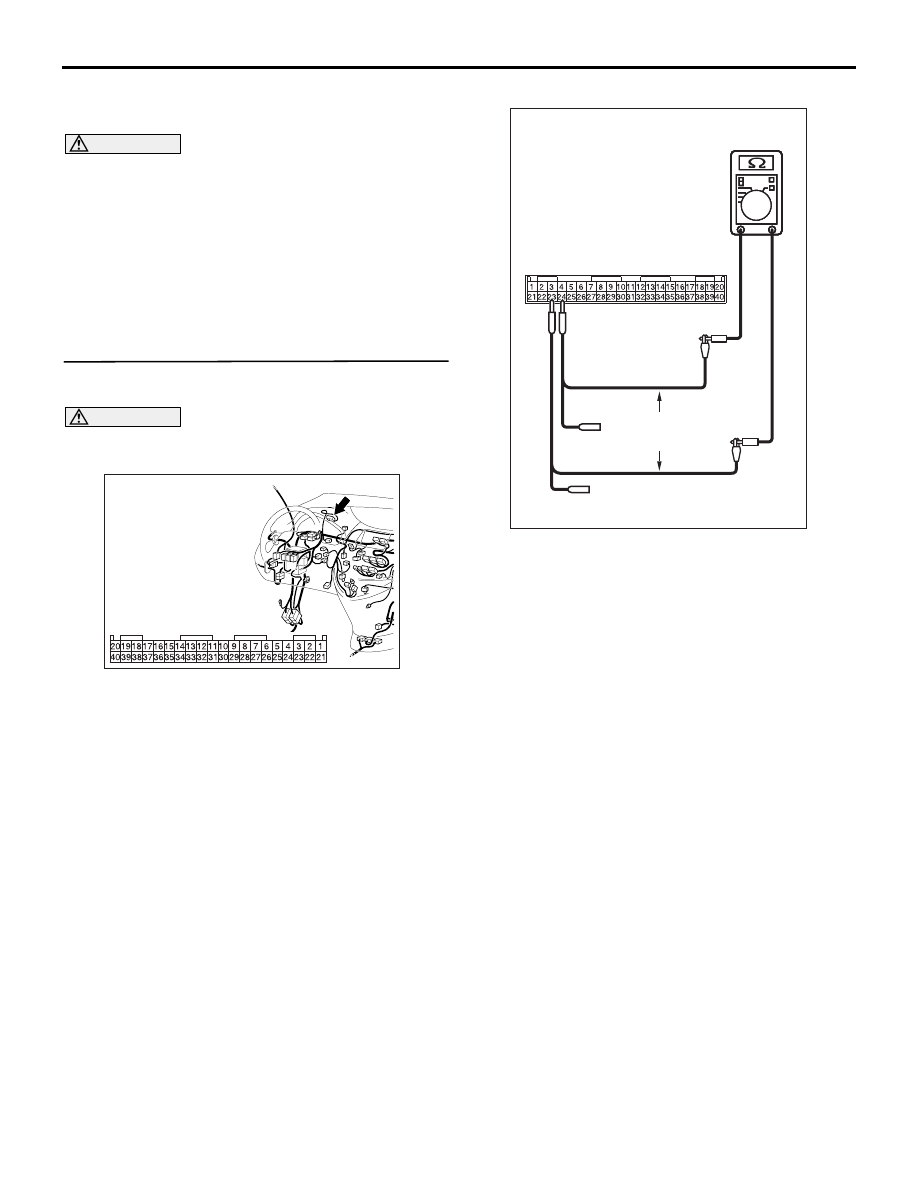

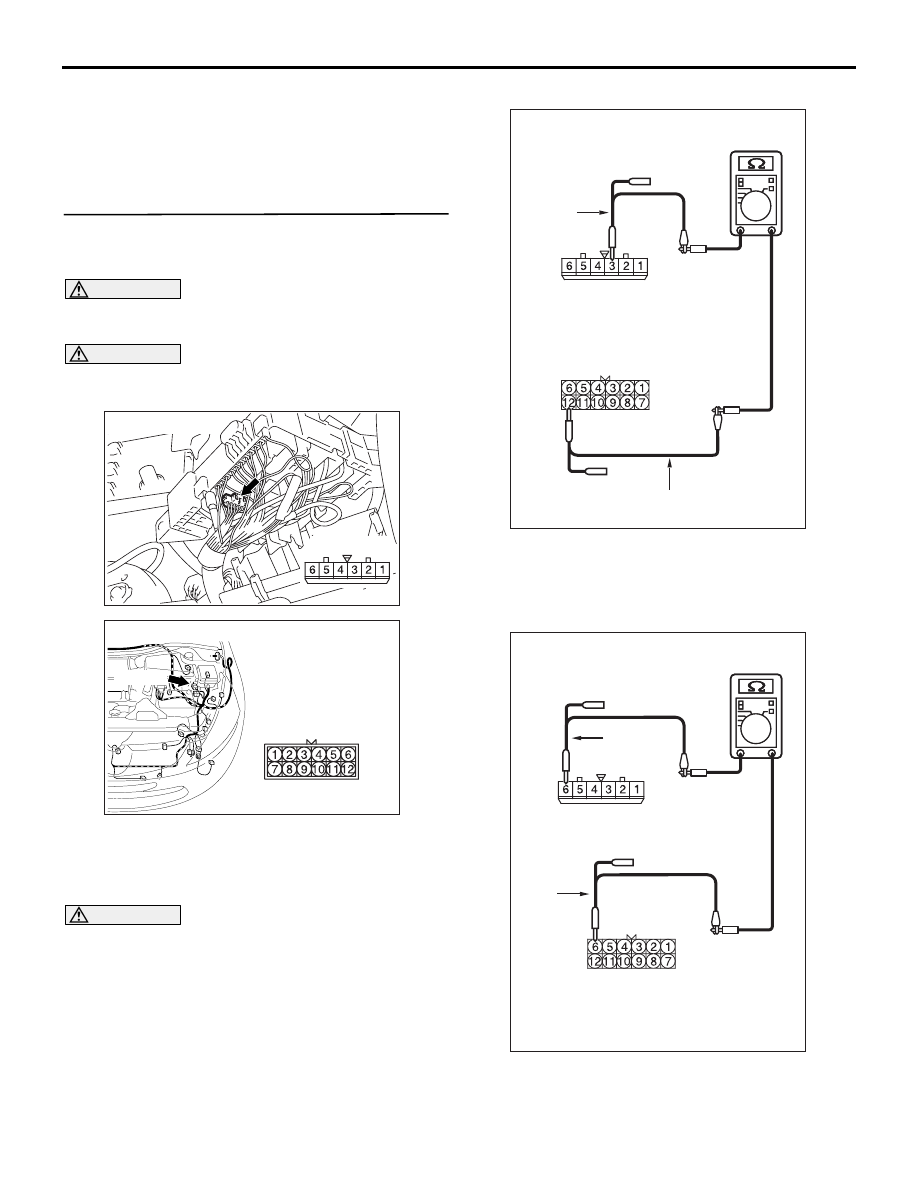

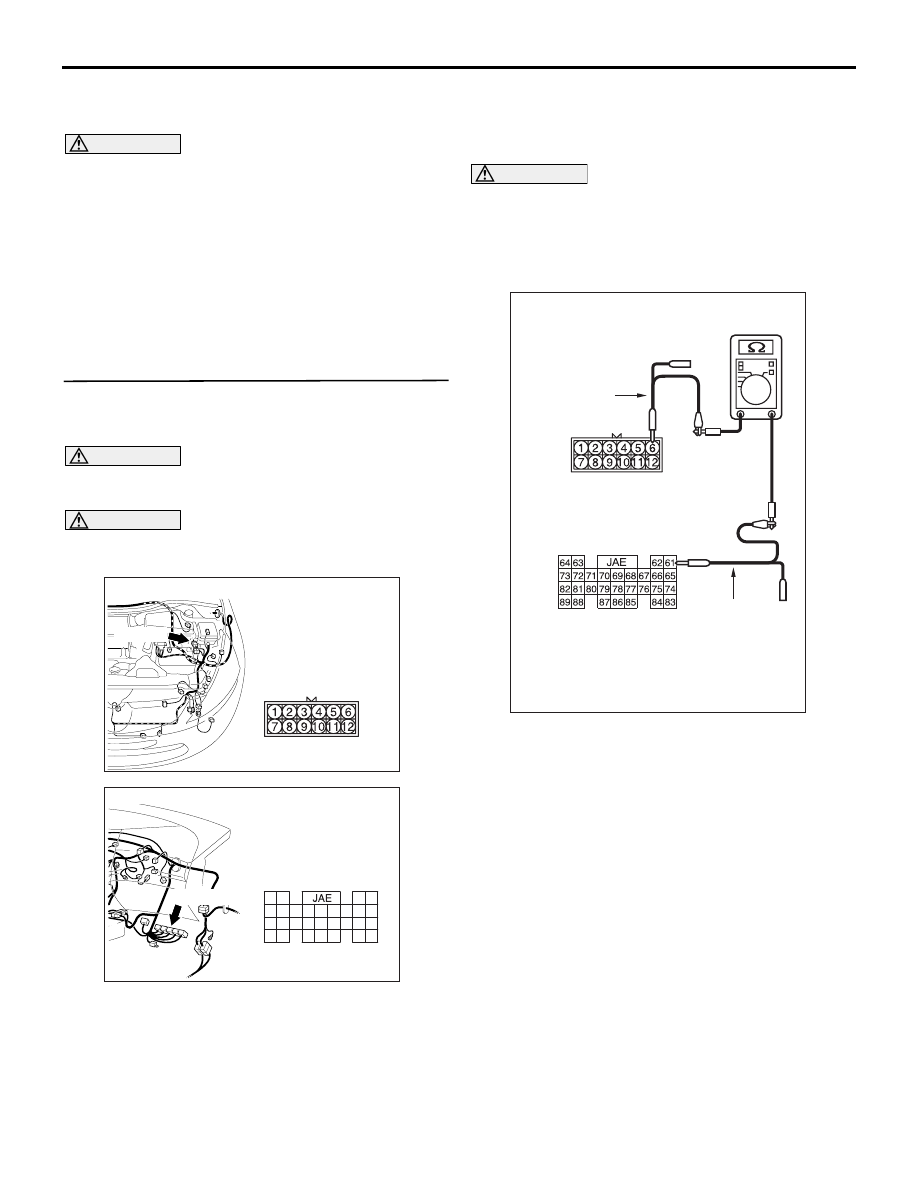

DIAGNOSIS CONTROLLER AREA NETWORK (CAN) 54D-438 connector terminal No.23 OK: 2 Ω or less CAUTION Strictly observe the specified wiring harness Q: Are the check results normal? YES : <All the voltages measure 2 Ω or less> Go to Step 6 . NO : <Either or all of the resistances measure Ω> Repair the wiring harness between joint connector (CAN2) and the STEP 6. Resistance measurement at C-02 CAUTION A digital multimeter should be used. For details (1) Remove the combination meter, and measure at the equipment side. (2) Resistance between C-02 combination meter connector terminal Nos. 23 and 24 OK: 120 ± 20 Ω Q: Is the check result normal? YES : <120 ± 20 within Ω> Diagnose CAN bus lines thoroughly. Refer to NO : <120 ± 20 not within Ω> Replace the combination meter. AC310613 BB Connector: C-02 <LHD> Harness side AC204740 AC204740 AC204740 AC204740DS Equipment side: C-02 Test |
