DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-406

connector terminal Nos.26 and 27

OK: 120

± 20 Ω

Q: Is the check result normal?

YES :

<Within 120

± 20 Ω> Go to Step 8 .

NO :

<Not within 120

± 20 Ω> Go to Step 3 .

STEP 3. Connector check: C-09 joint connector
(CAN2) and C-02 combination meter connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

When checking the joint connector, ensure that its
wiring harness side is not damaged.

Q: Are the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector, or replace the joint
connector. Then go to Step 2.

STEP 4. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: OFF (LOCK)

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(3) Ensure that the negative battery terminal is

disconnected.

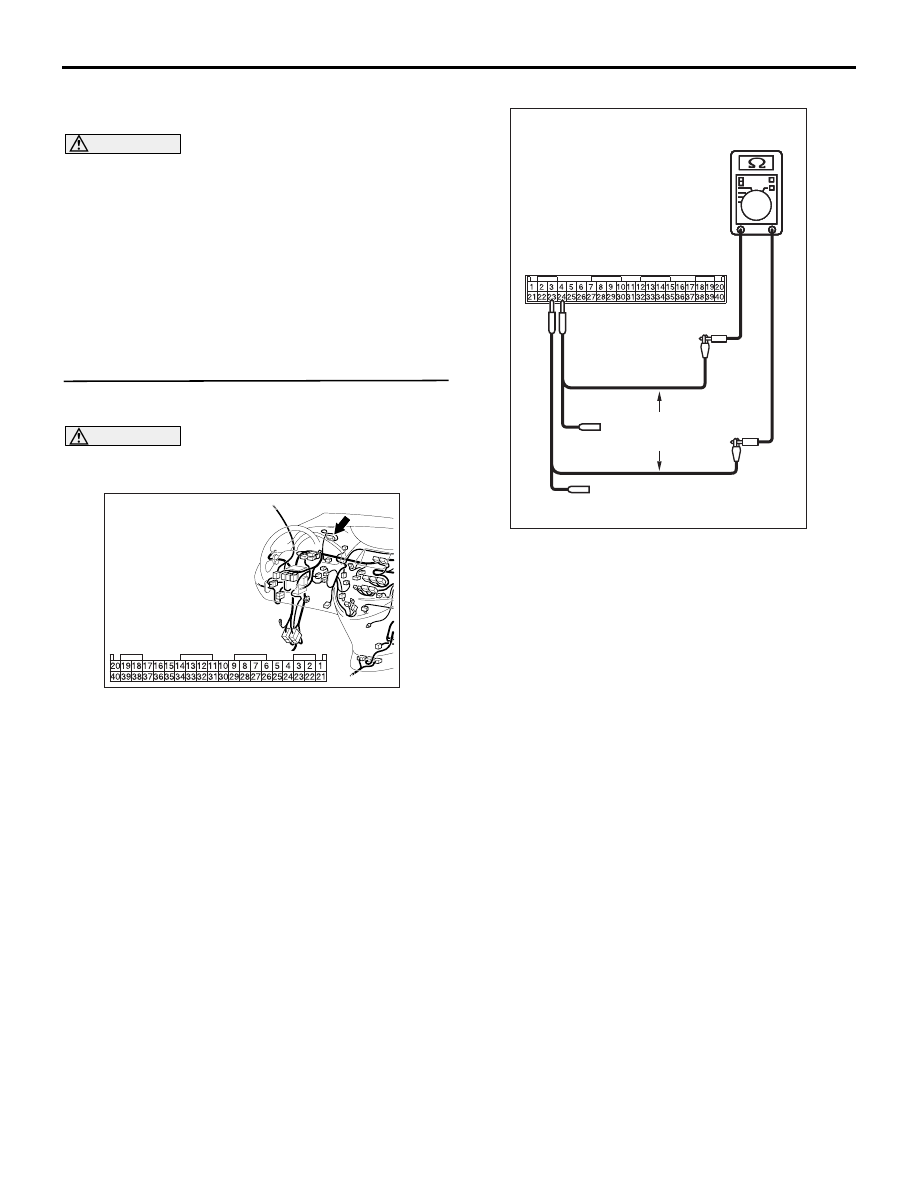

(4) Resistance between C-09 joint connector (CAN2)

AC310613

BB

Connector: C-02 <LHD>

Harness side

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC

Short pin

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC204740DD

Harness side: C-09

Test
harness

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-407

terminal Nos. 7 and 18

OK: 120

± 20 Ω

Q: Is the check result normal?

YES :

<Within 120

± 20 Ω> Go to Step 7 .

NO :

<Not within 120

± 20 Ω> Go to Step 5 .

STEP 5. Resistance measurement at C-09 joint
connector (CAN2) and C-02 combination meter
connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

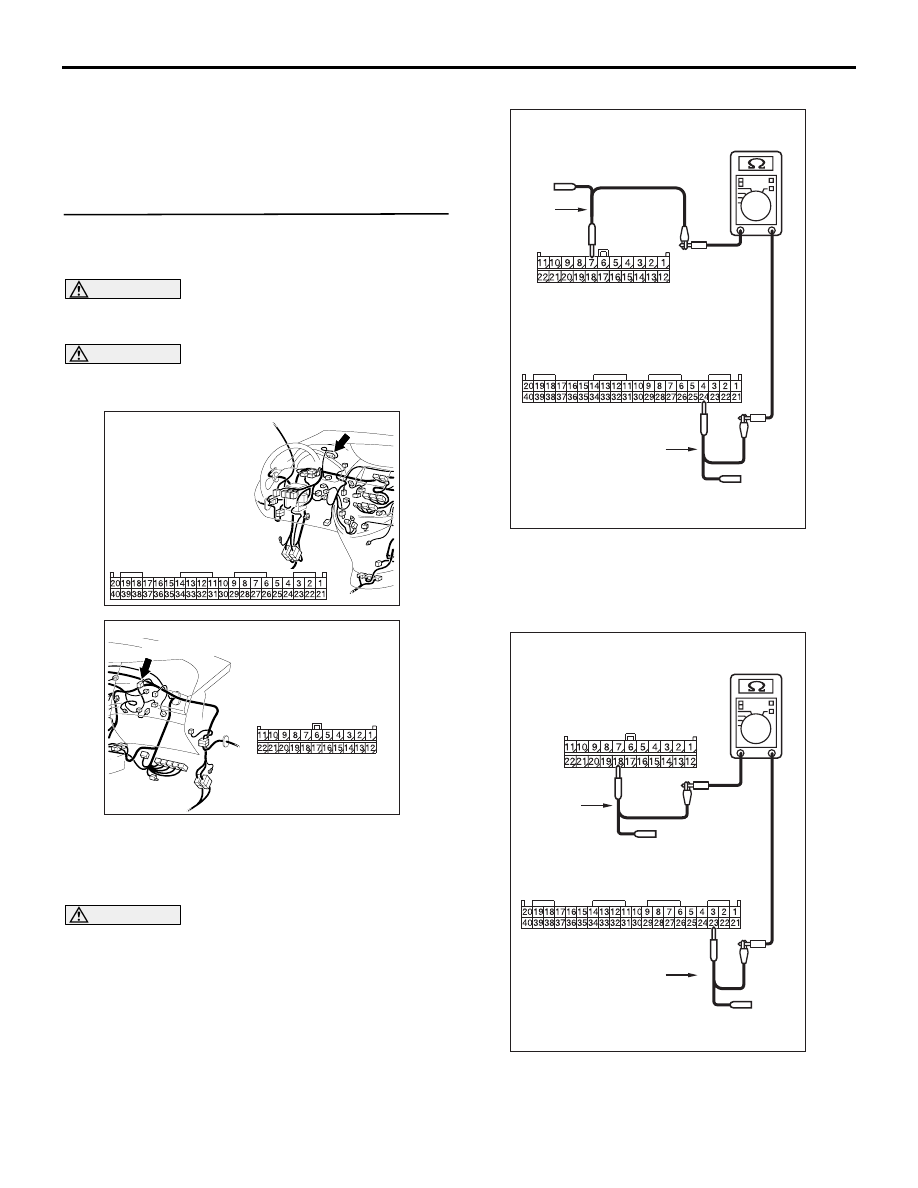

(1) Disconnect the joint connector (CAN2) and the

combination meter connector, and measure at
the wiring harness side.

(2) Ignition switch: OFF (LOCK)

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Continuity between C-09 joint connector (CAN2)

terminal No.7 and C-02 combination meter
connector terminal No.24

OK: 2

Ω or less

(5) Continuity between C-09 joint connector (CAN2)

terminal No.18 and C-02 combination meter

AC310613

BB

Connector: C-02 <LHD>

Harness side

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC312553  AI

Harness side: C-09

Test
harness

Harness side: C-02

Test
harness

AC312553  AK

Harness side: C-09

Harness side: C-02

Test
harness

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-408

connector terminal No.23

OK: 2

Ω or less

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Are the check result normal?

YES :

<All the voltages measure 2

Ω or less> Go

to Step 6 .

NO :

<Either or all of the voltages measure more
than 2

Ω> Repair the wiring harness

between joint connector (CAN2) and the
combination meter connector, and then go
to Step 2.

STEP 6. Resistance measurement at C-02
combination meter connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

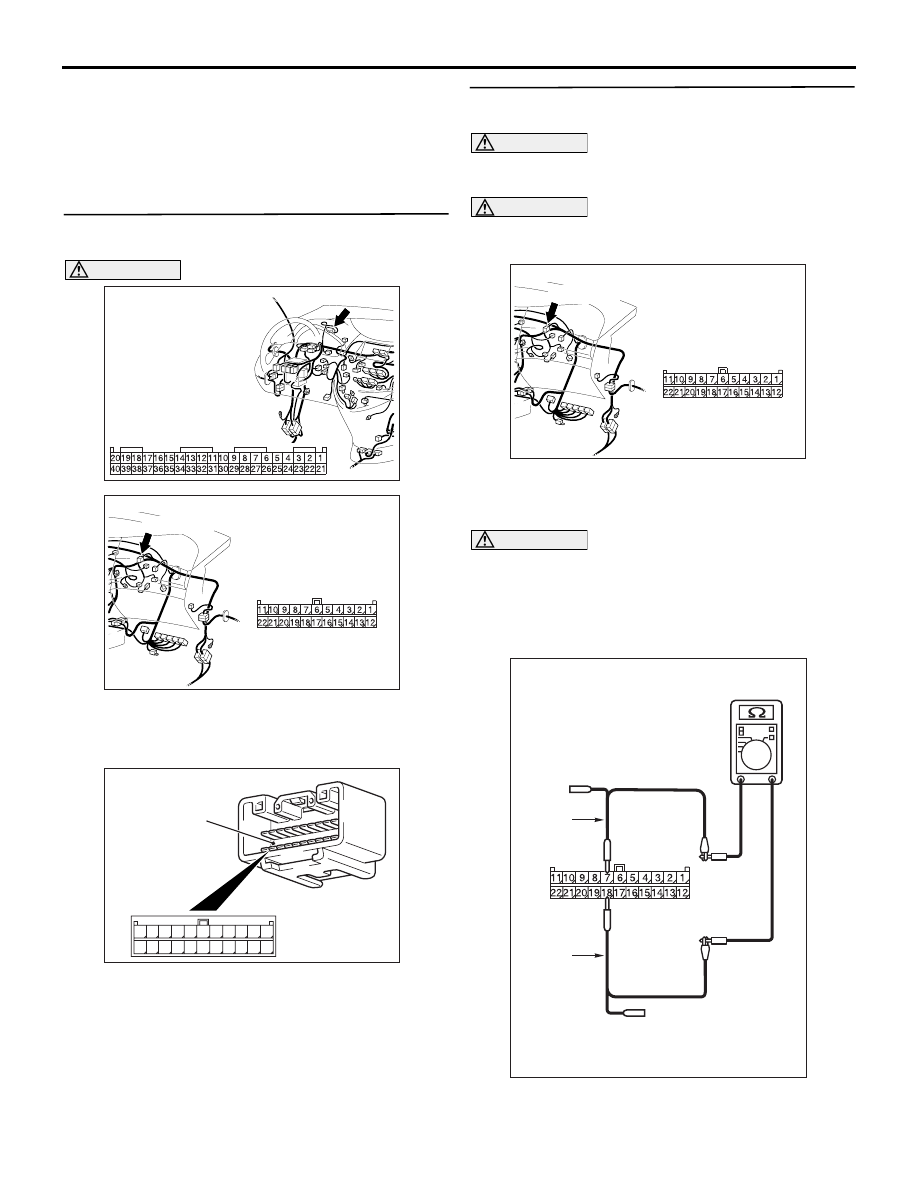

(1) Remove the combination meter, and measure at

the equipment side.

(2) Resistance between C-02 combination meter

connector terminal Nos. 23 and 24

OK: 120

± 20 Ω

Q: Is the check result normal?

YES :

<Within 120

± 20 Ω> Go to Step 2 .

NO :

<Not within 120

± 20 Ω> Replace the

combination meter, and then go to Step 2.

AC310613

BB

Connector: C-02 <LHD>

Harness side

AC204740

AC204740

AC204740

AC204740DS

Equipment side: C-02

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-409

STEP 7. Resistance measurement at C-125
intermediate connector and C-09 joint connector
(CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

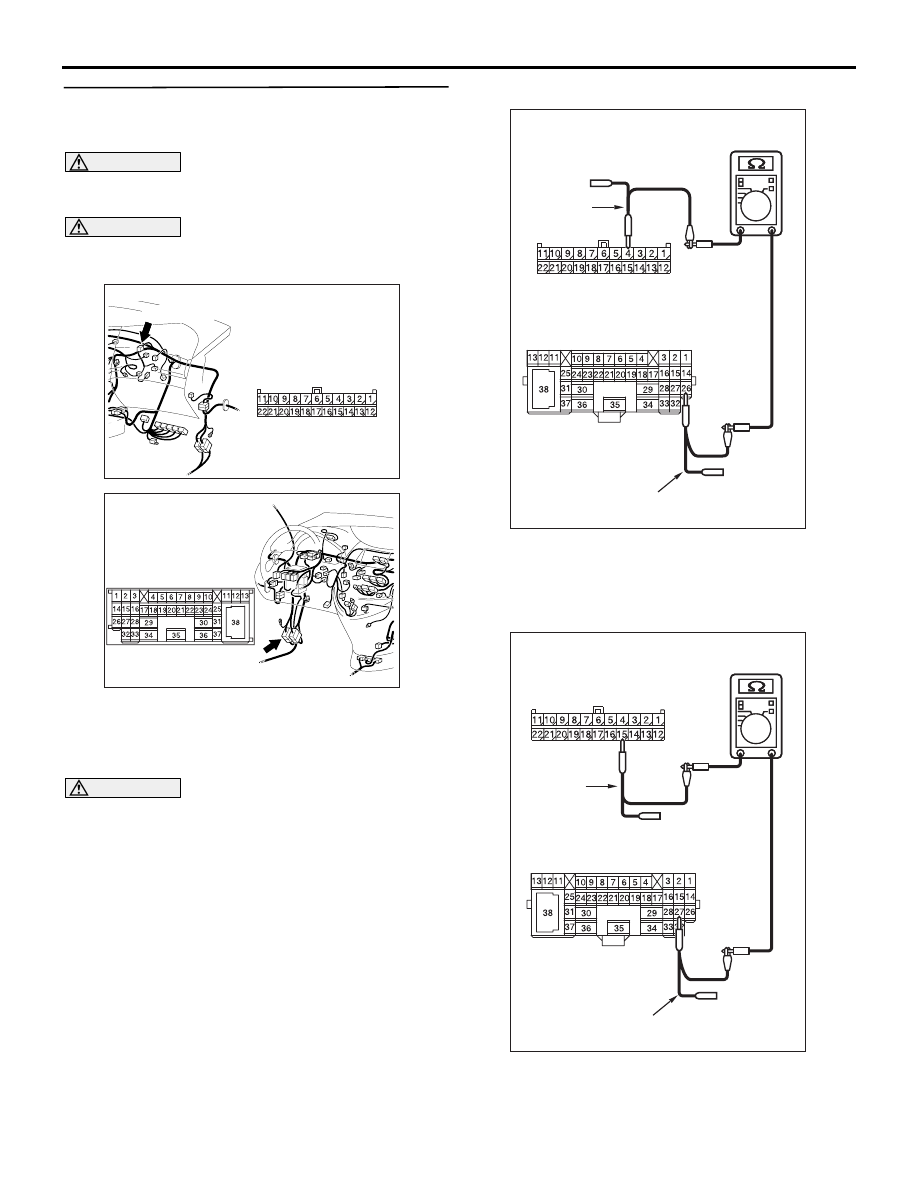

(1)  Disconnect the joint connector (CAN2) and the

intermediate connector, and measure at the
wiring harness side.

(2) Ignition switch: OFF (LOCK)

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Continuity between C-125 intermediate

connector terminal No.26 and C-09 joint
connector (CAN2) terminal No.4

OK: 2

Ω or less

(5) Continuity between C-125 intermediate

connector terminal No.27 and C-09 joint

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310613

AD

Connector: C-125 <LHD>

AC312553

AC312553 AM

Harness side: C-09

Test
harness

Female side: C-125

Test harness

AC312553

AC312553 AO

Harness side: C-09

Test
harness

Female side: C-125

Test harness
