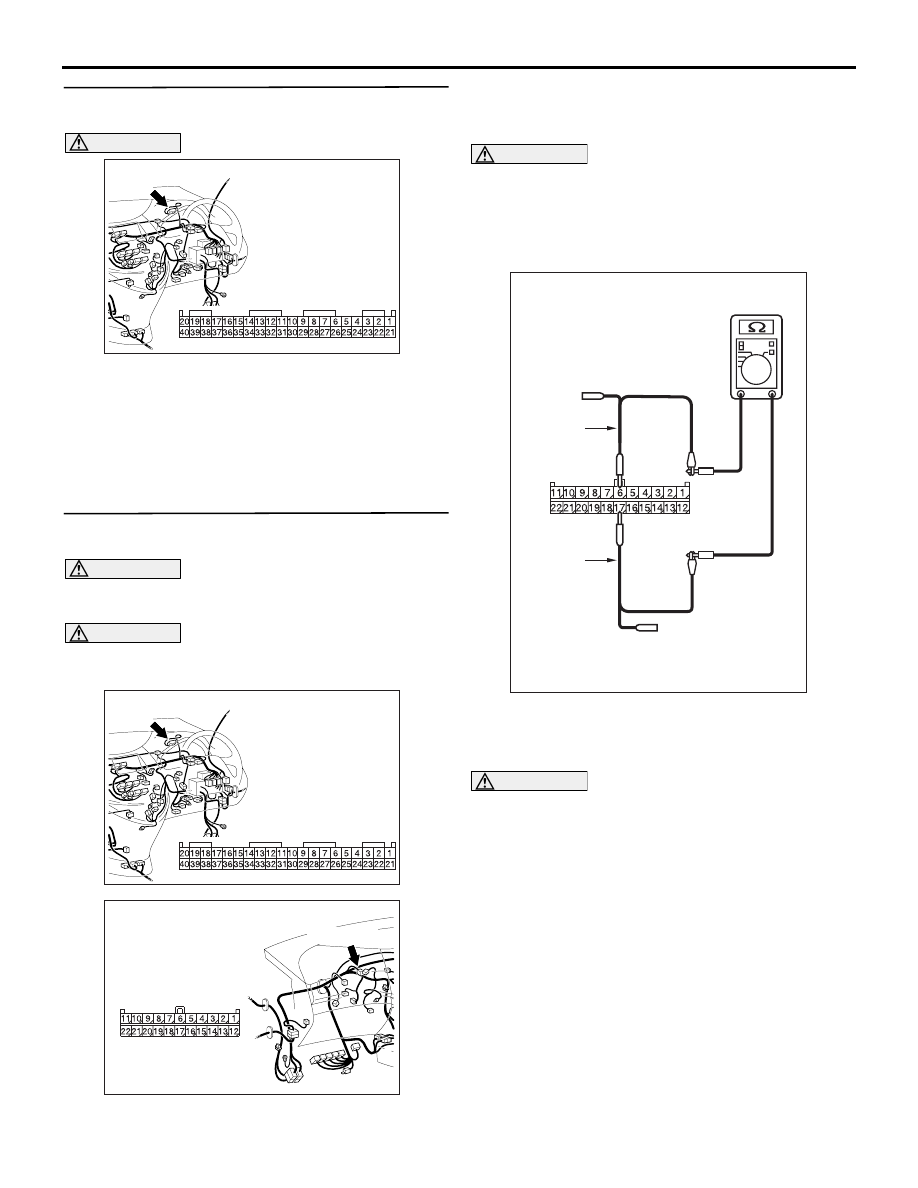

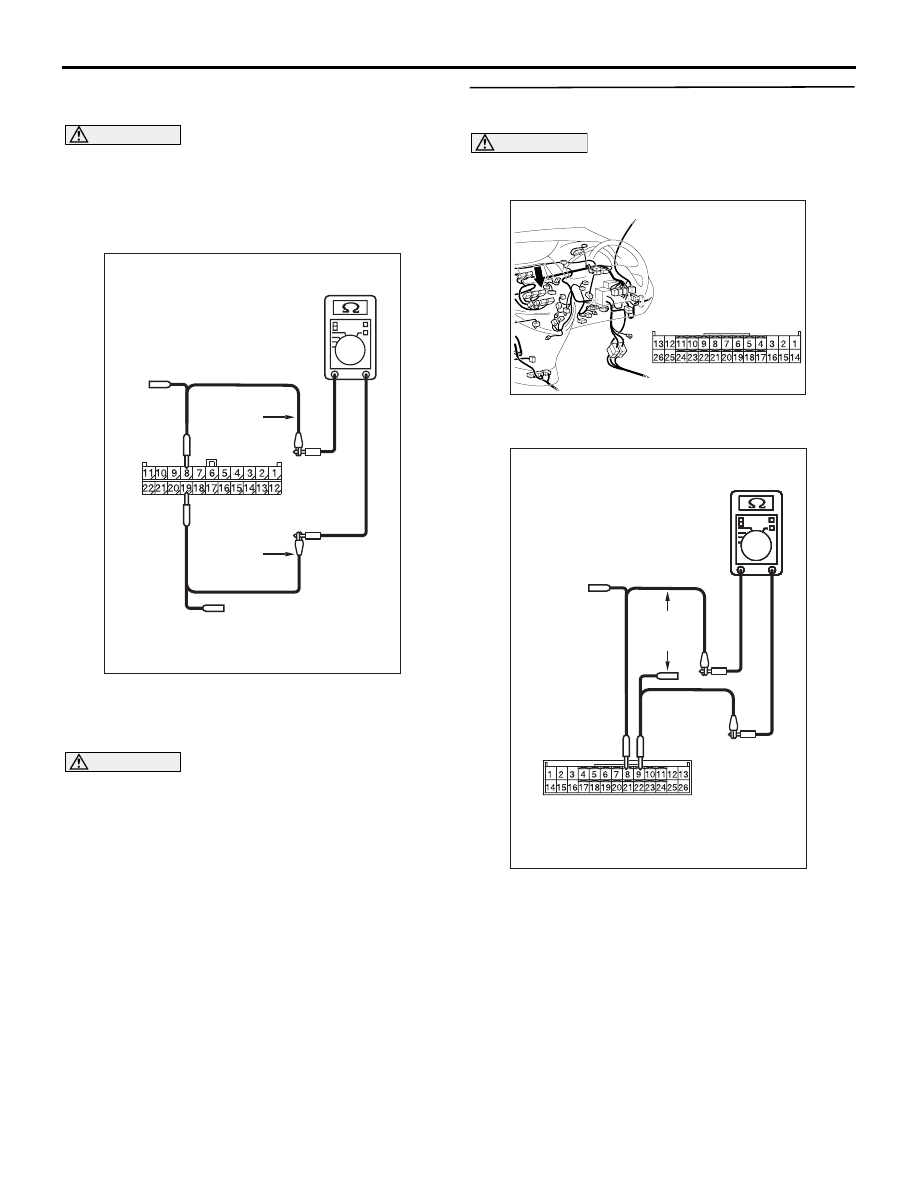

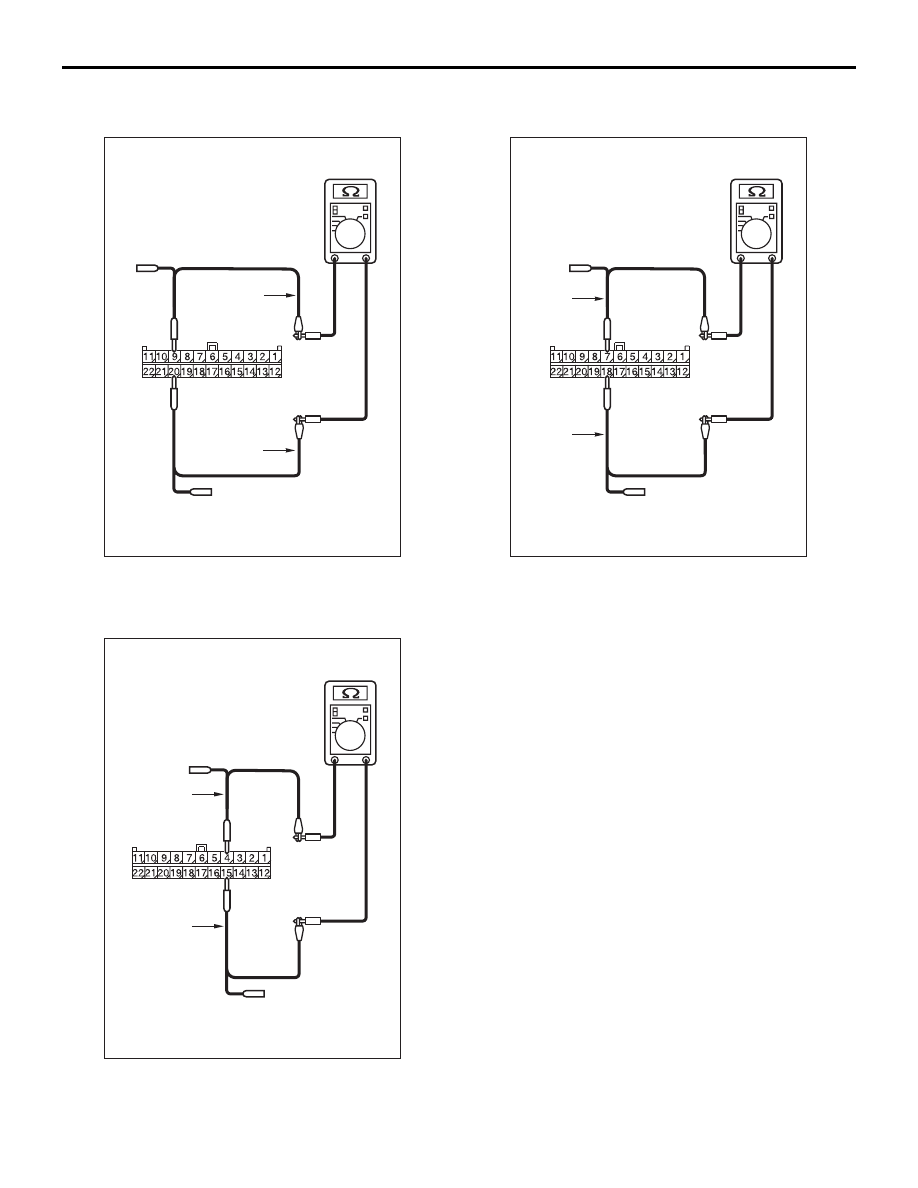

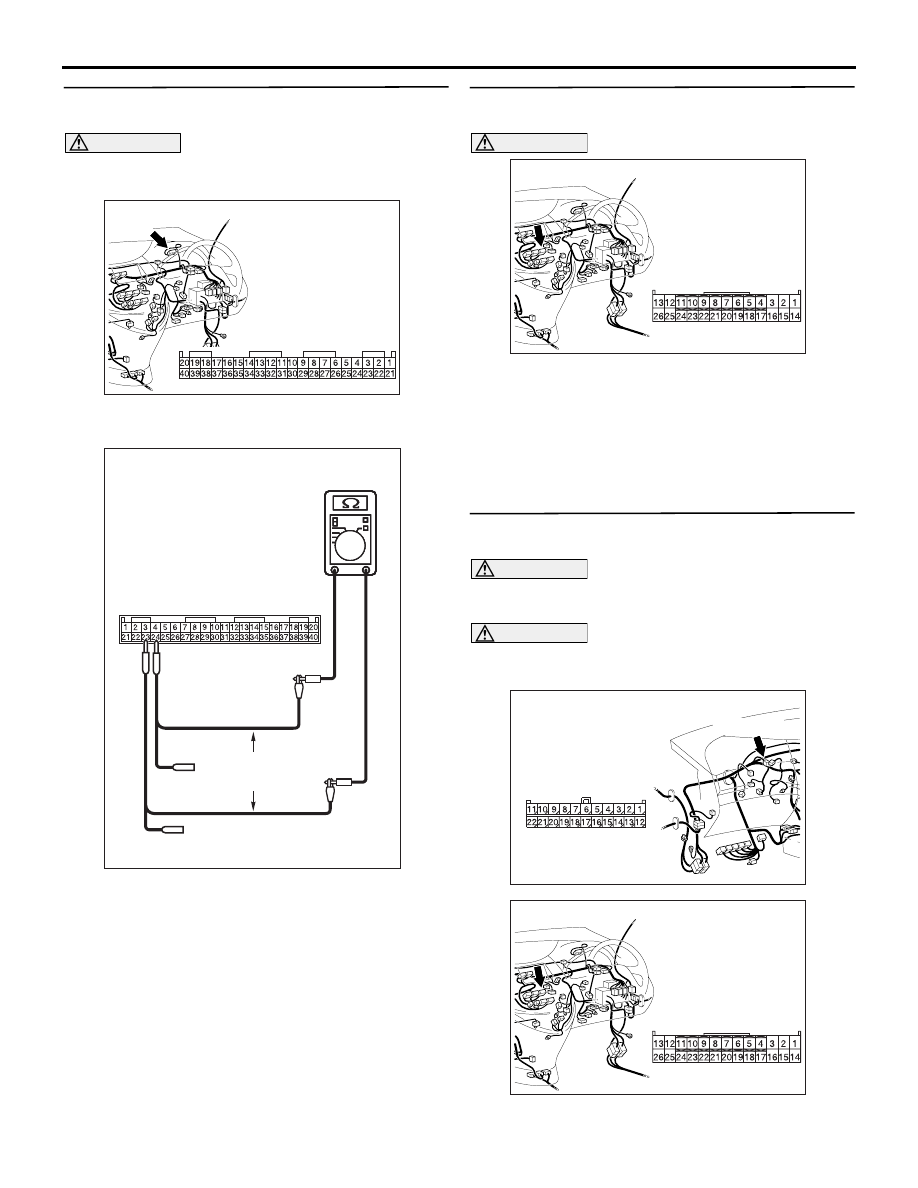

DIAGNOSIS CONTROLLER AREA NETWORK (CAN) 54D-358 terminal Nos. 5 and 16 OK: 1 k Ω or more (7) Resistance between C-09 joint connector (CAN2) terminal Nos. 9 and 20 OK: 1 k Ω or more (8) Resistance between C-09 joint connector (CAN2) terminal Nos. 4 and 15 OK: 1 k Ω or more (9) Resistance between C-09 joint connector (CAN2) terminal Nos. 7 and 18 OK: 1 k Ω or more Q: Are the check result normal? YES <all of the measurement results are within the Go to Step 25. NO <The resistance between terminal Nos. 6 and ±20 Ω> : Go to Step 5. NO <The resistance between terminal Nos. 8 and Ω> : Go to Step 8. NO <The resistance between terminal Nos. 5 and Ω> : Go to Step 11. NO <The resistance between terminal Nos. 9 and Ω> : Go to Step 14. NO <The resistance between terminal Nos. 4 and Ω> : Go to Step 20. NO <The resistance between terminal Nos. 7 and Ω> : Go to Step 23. AC204740DP Harness side: C-09 Test Test AC204740DQ Harness side: C-09 Test Test AC204740DD Harness side: C-09 Test Test |
