Mitsubishi Grandis. Manual - part 559

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-334

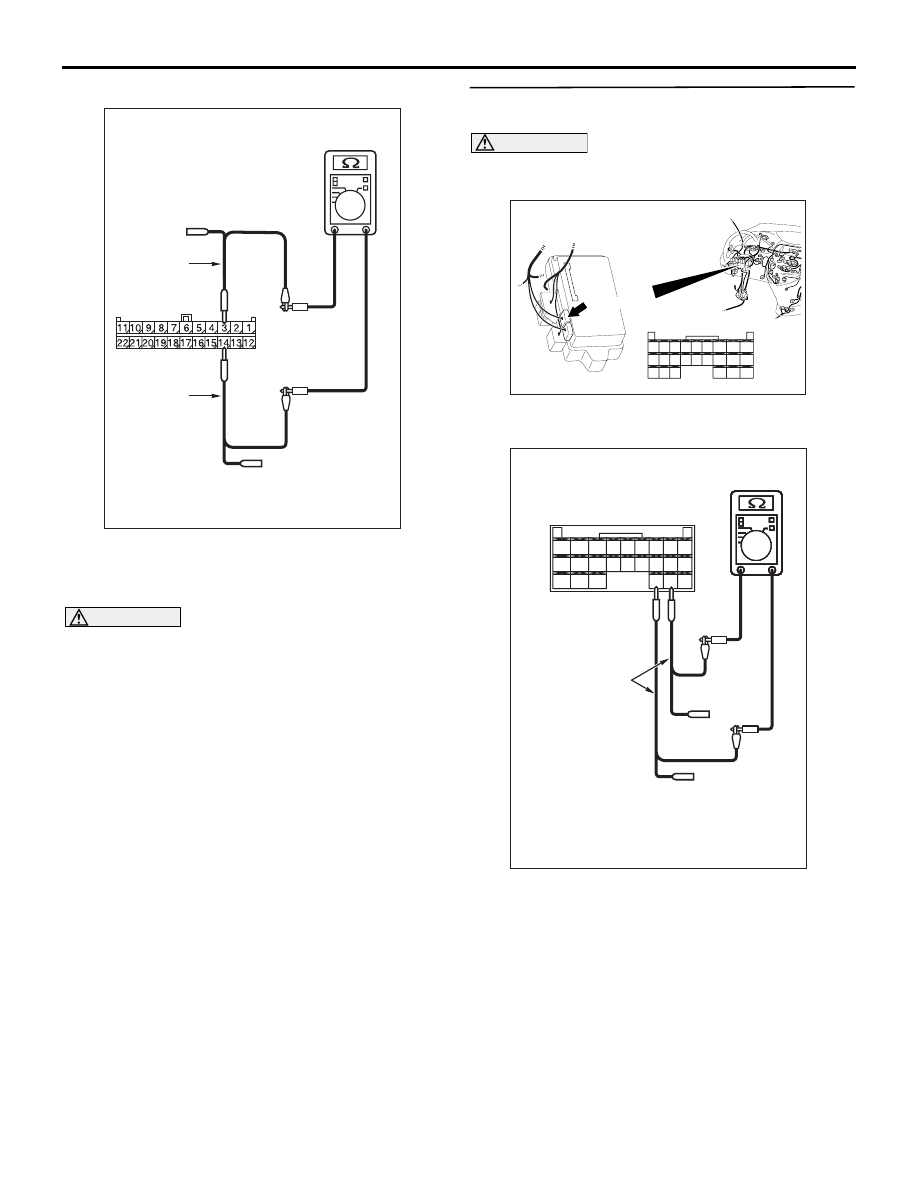

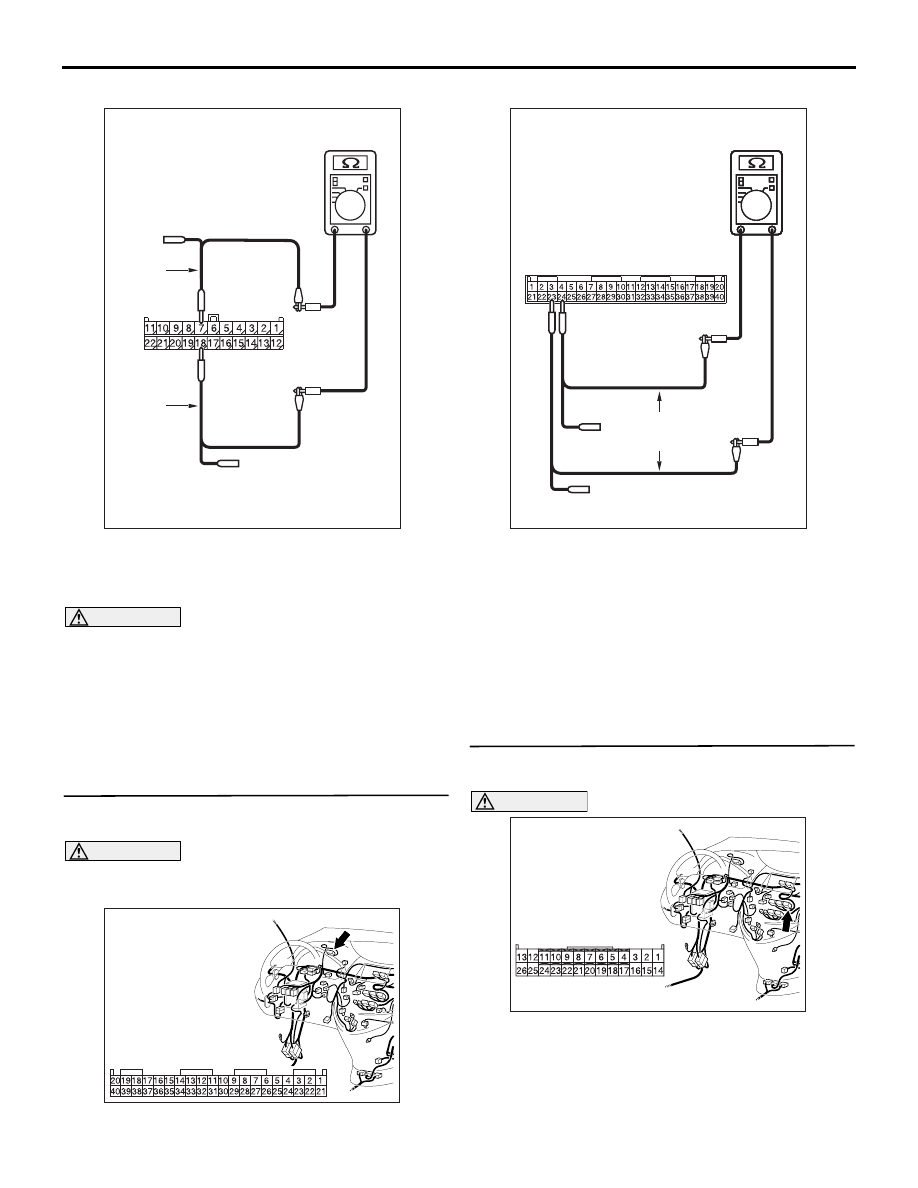

disconnected.

(4) Continuity between C-09 joint connector (CAN2)

terminal Nos. 7 and 18

OK: More than 2

Ω

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<More than 2

Ω> Go to Step 7.

NO :

<2

Ω or less> Repair the wiring harness

between joint connector (CAN2) and the
combination meter connector.

STEP 7. Resistance measurement at C-02
combination meter connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

(1) Remove the combination meter, and measure at

the equipment side.

(2) Resistance between C-02 combination meter

connector terminal Nos. 23 and 24

OK: 120

± 20 Ω

Q: Is the check result normal?

YES :

<Within 120

± 20 Ω> Follow diagnostic item

18, Diagnose CAN bus lines thoroughly.
Refer to

P.54D-476

.

NO :

<Not within 120

± 20 Ω> Replace the

combination meter.

STEP 8. Connector check: C-106 A/C-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the defective connector.

AC204740DD

Harness side: C-09

Test
harness

Test
harness

AC310613

BB

Connector: C-02 <LHD>

Harness side

AC204740

AC204740

AC204740

AC204740DS

Equipment side: C-02

Test
harness

AC310613

AB

Connector: C-106 <LHD>

Harness side

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-335

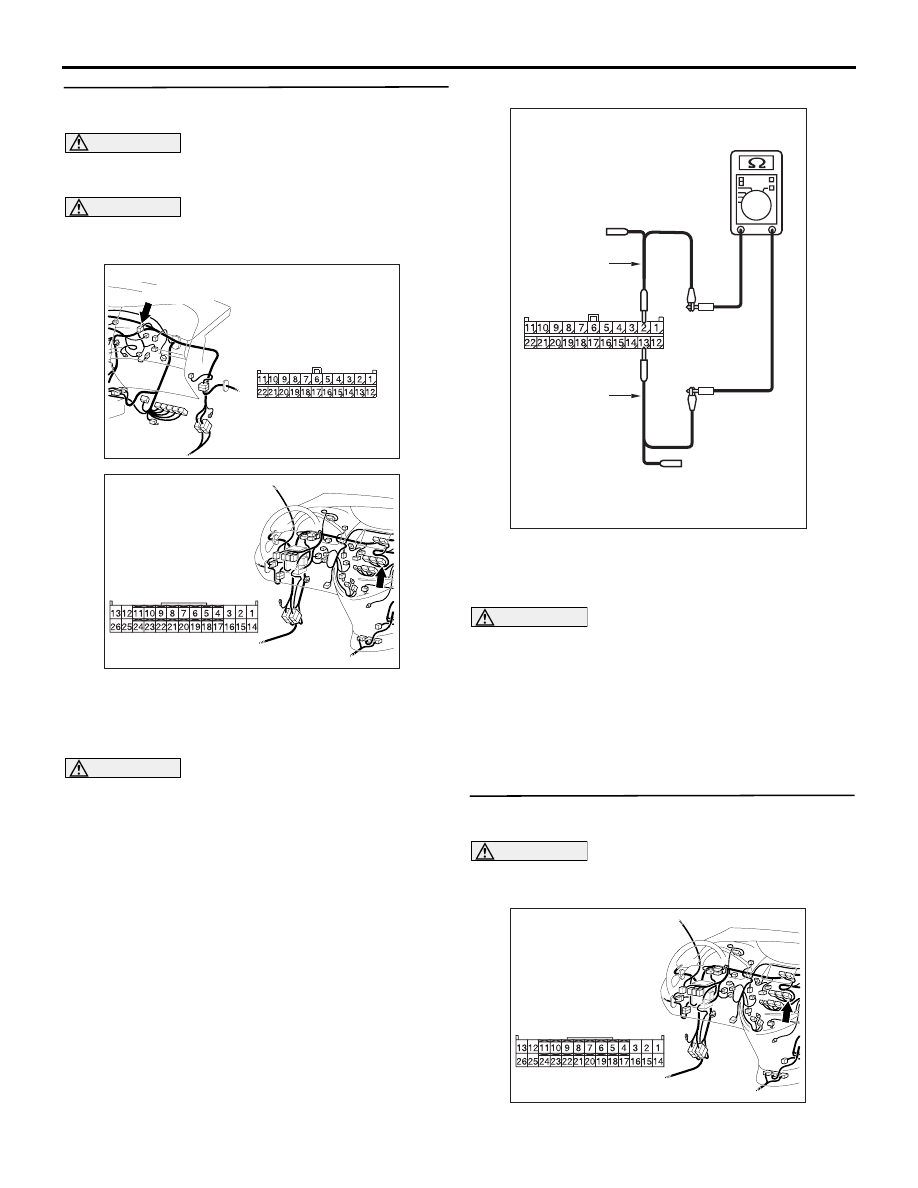

STEP 9. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

A/C-ECU connector, and measure at the wiring
harness side.

(2) Ignition switch: OFF (LOCK)

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Continuity between C-09 joint connector (CAN2)

terminal Nos. 2 and 13

OK: More than 2

Ω

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<More than 2

Ω> Go to Step 10.

NO :

<2

Ω or less> Repair the wiring harness

between joint connector (CAN2) and the
A/C-ECU connector.

STEP 10. Resistance measurement at C-106
A/C-ECU connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

(1) Remove the A/C-ECU, and measure at the

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310613

AB

Connector: C-106 <LHD>

Harness side

AC204740DE

Harness side: C-09

Test
harness

Test
harness

AC310613

AB

Connector: C-106 <LHD>

Harness side

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-336

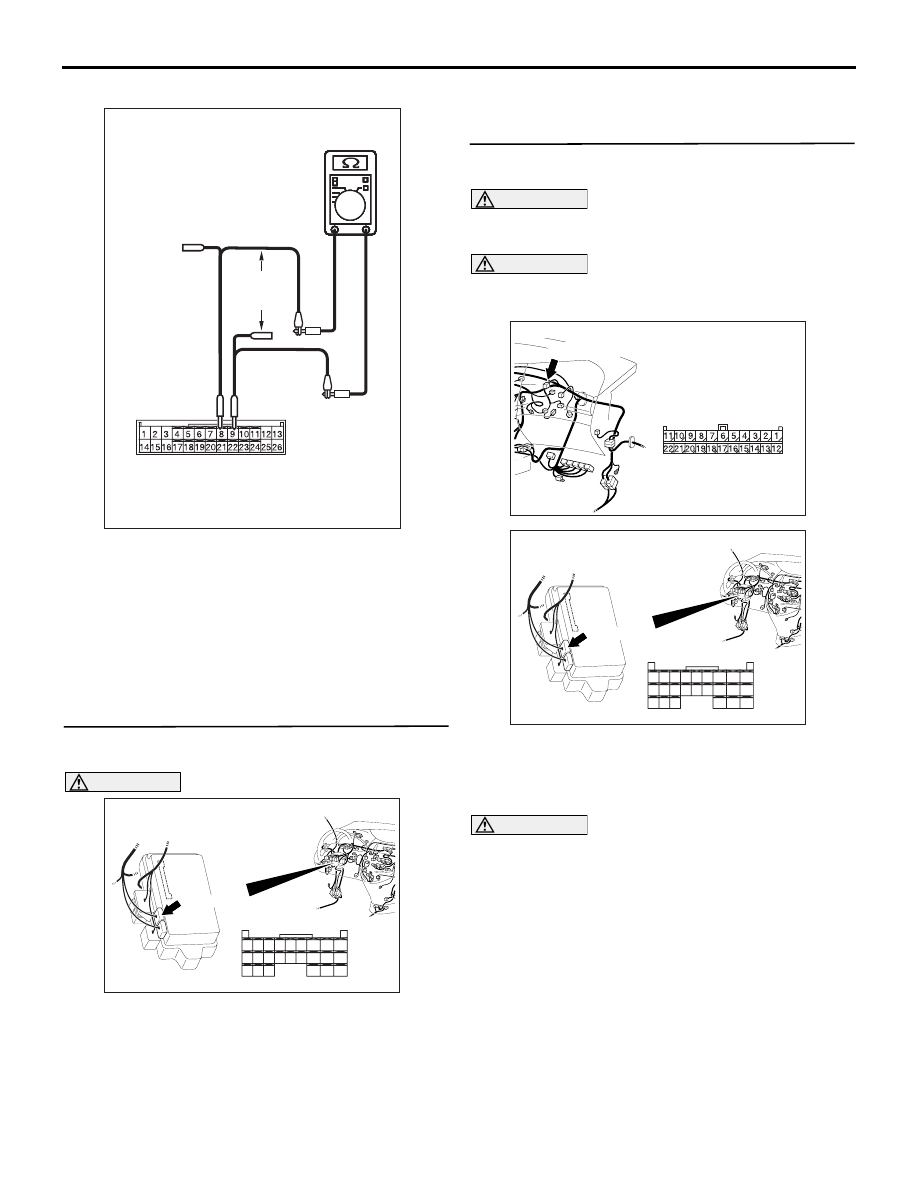

equipment side.

(2) Resistance between C-106 A/C-ECU connector

terminal Nos. 8 and 9

OK: 1 k

Ω or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 18,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-476

.

NO :

<Less than 1 k

Ω> Replace the A/C-ECU.

STEP 11. Connector check: C-221 ETACS-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the defective connector.

STEP 12. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

ETACS-ECU connector, and measure at the
wiring harness side.

(2) Ignition switch: OFF (LOCK)

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(3) Ensure that the negative battery terminal is

AC204740

AC204740

AC204740

AC204740

AC204740

AC204740

AC204740

AC204740DT

Equipment side: C-106

Test
harness

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-337

disconnected.

(4) Continuity between C-09 joint connector (CAN2)

terminal Nos. 3 and 14

OK: More than 2

Ω

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<More than 2

Ω> Go to Step 13.

NO :

<2

Ω or less> Repair the wiring harness

between joint connector (CAN2) and the
ETACS-ECU connector.

STEP 13. Resistance measurement at C-221
ETACS-ECU connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

(1) Remove the ETACS-ECU, and measure at the

equipment side.

(2) Resistance between C-221 ETACS-ECU

connector terminal Nos. 72 and 73

OK: 1 k

Ω or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 18,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-476

.

NO :

<Less than 1 k

Ω> Replace the

ETACS-ECU.

AC204740DF

Harness side: C-09

Test
harness

Test
harness

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC204740

69

60

51

55

64

71

62

53

61

70

52

63

54

73

67

66

65

72

56 57

68

74

59

58

AC204740

AC204740

AC204740

AC204740

AC204740DU

Equipment side: C-221

Test
harness
