Mitsubishi Grandis. Manual - part 540

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-258

terminal No.4 and body earth

OK: 1 k

Ω or more

(8) Resistance between C-09 joint connector (CAN2)

terminal No.7 and body earth

OK: 1 k

Ω or more

Q: Are the check result normal?

YES <all of the measurement results show 1 k

Ω or

more> :

Go to Step 45.

NO <The resistance between terminal No.6 and
body earth is less than 1 k

Ω> :

Go to Step 32.

NO <The resistance between terminal No.8 and
body earth is less than 1 k

Ω> :

Go to Step 33.

NO <The resistance between terminal No.5 and
body earth is less than 1 k

Ω> :

Go to Step 35.

NO <The resistance between terminal No.9 and
body earth is less than 1 k

Ω> :

Go to Step 37.

NO <The resistance between terminal No.4 and
body earth is less than 1 k

Ω> :

Go to Step 41.

NO <The resistance between terminal No.7 and
body earth is less than 1 k

Ω> :

Go to Step 43.

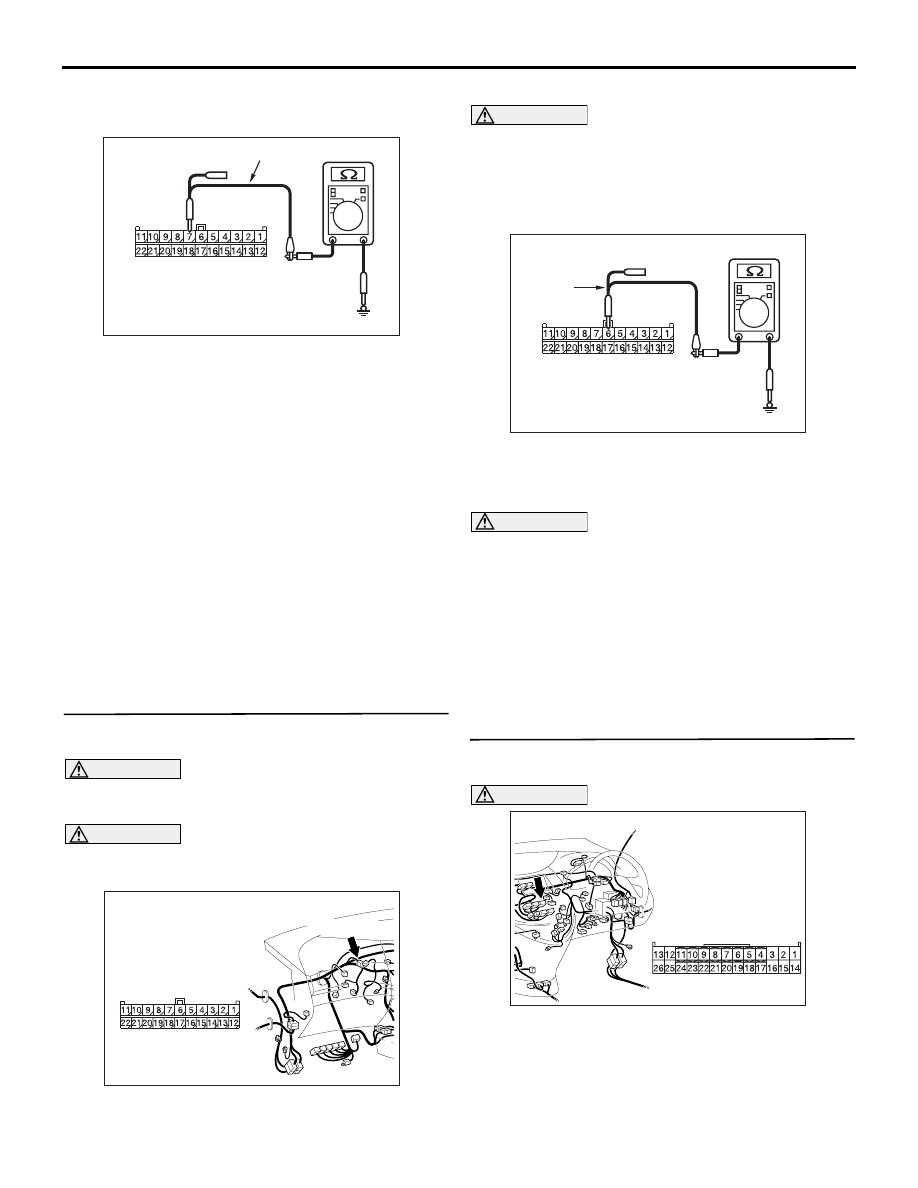

STEP 32. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

combination meter connector, and measure at

the wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.6 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 19,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-502

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
combination meter connector.

STEP 33. Connector check: C-106 A/C-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 34.

NO :

Repair the defective connector.

AC209364MJ

Harness side: C-09

Test harness

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC209364LX

Harness side: C-09

Test
harness

AC310631AB

Connectors: C-106 <RHD>

Harness side

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-259

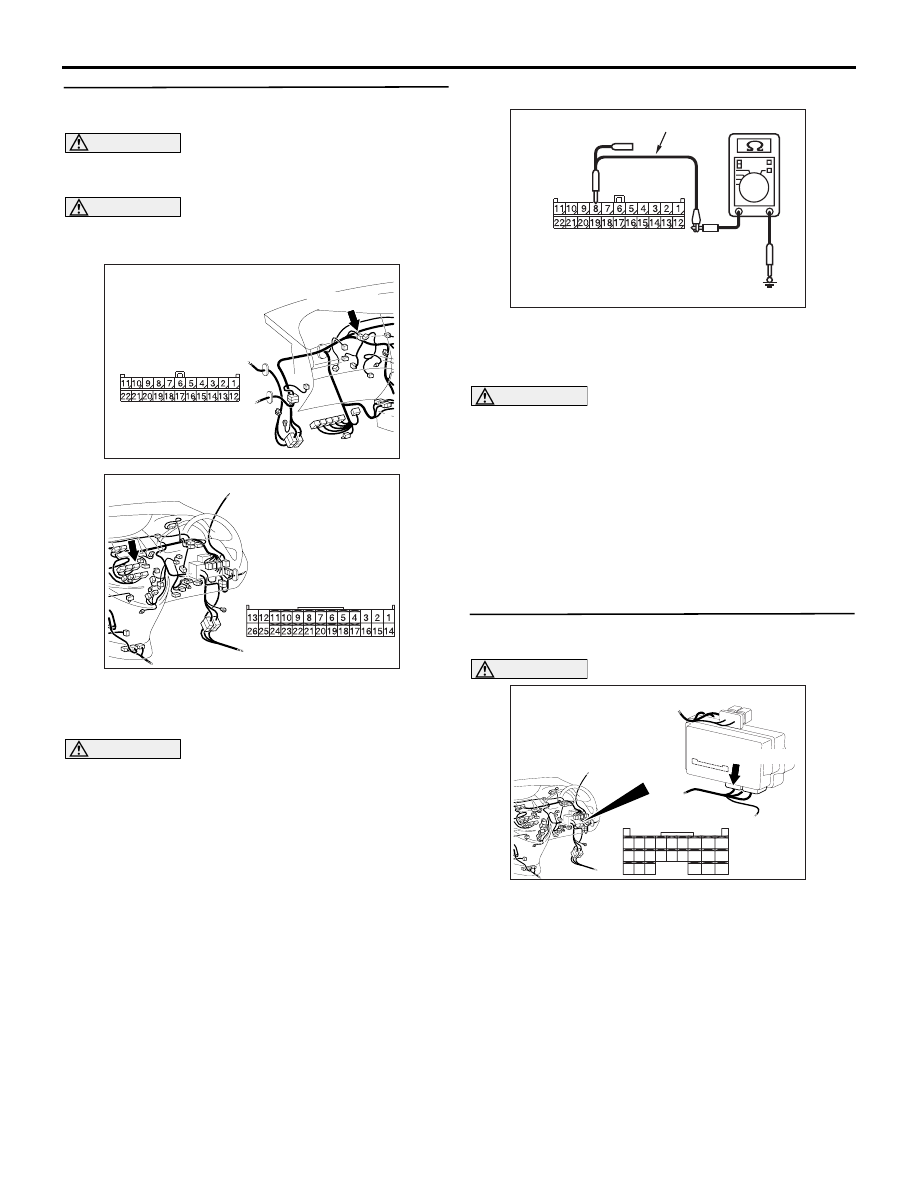

STEP 34. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

A/C-ECU connector, and measure at the wiring
harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.8 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 19,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-502

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
A/C-ECU connector.

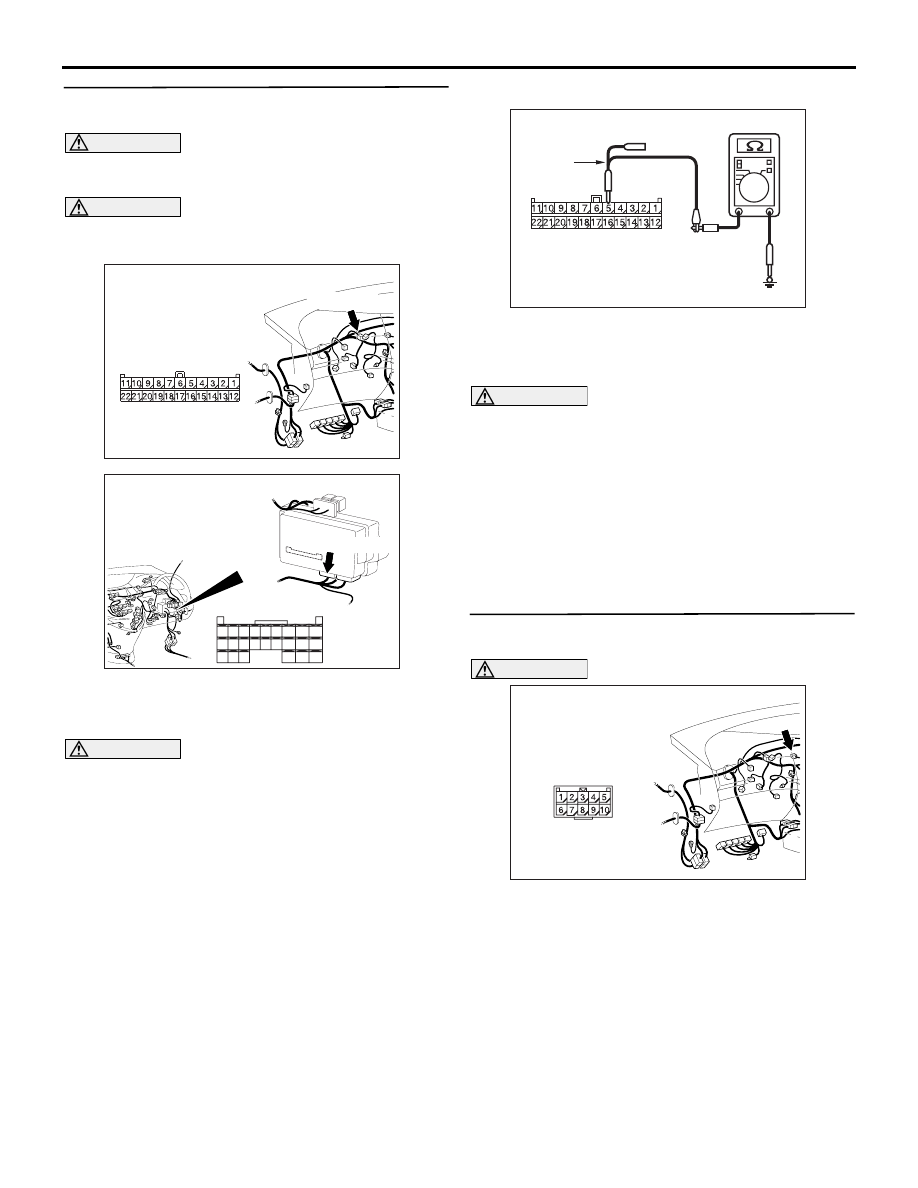

STEP 35. Connector check: C-221 ETACS-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 36.

NO :

Repair the defective connector.

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC310631AB

Connectors: C-106 <RHD>

Harness side

AC209364ME

Harness side: C-09

Test harness

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-260

STEP 36. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

ETACS-ECU connector, and measure at the
wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.5 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 19,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-502

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
ETACS-ECU connector.

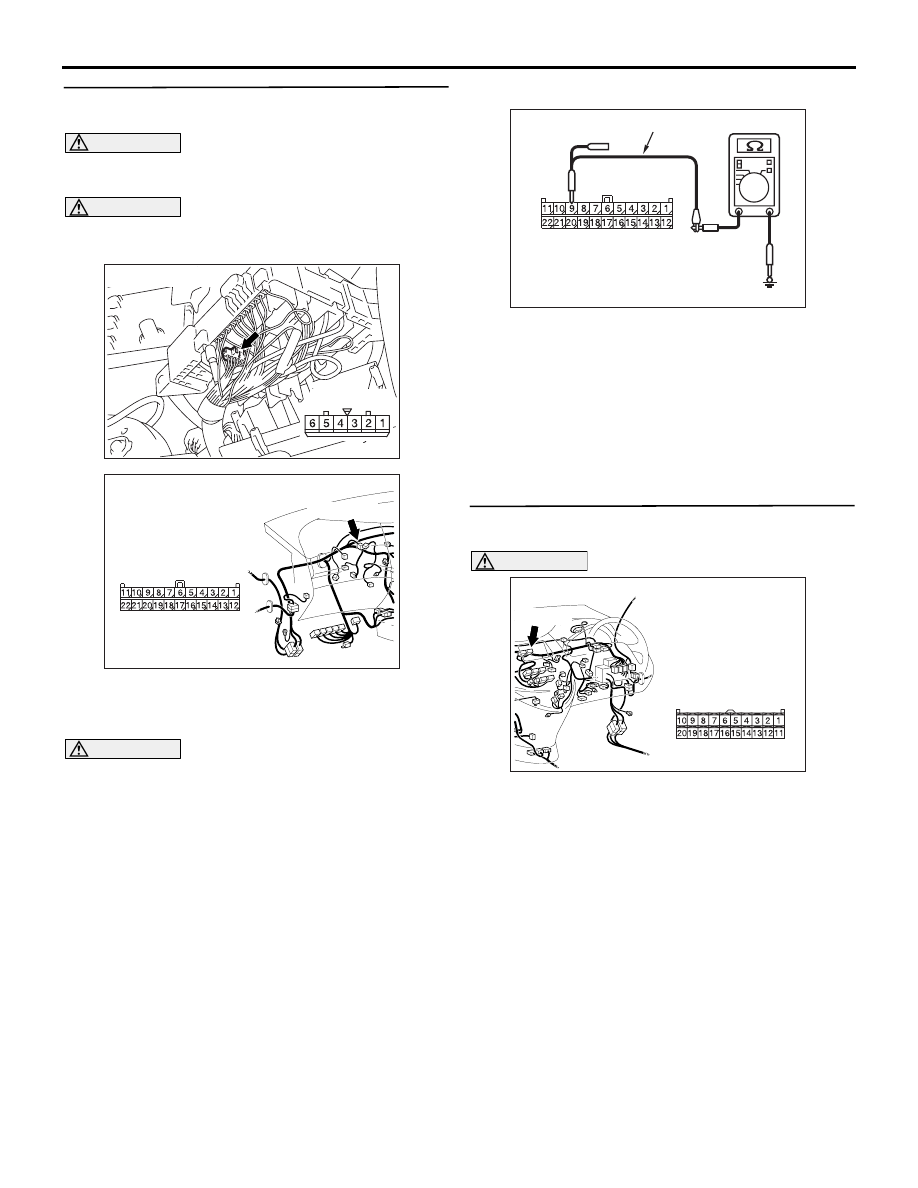

STEP 37. Connector check: C-37 jumper
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Check that the wiring harness of the jumper
connector is not damaged.

Q: Is the check result normal?

YES :

Go to Step 38 .

NO :

Repair the defective connector.

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC209364LU

Harness side: C-09

Test
harness

AC310628AZ

Connector: C-37 <RHD>

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-261

STEP 38. Resistance measurement at the C-09
joint connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

jumper connector, and measure at the wiring
harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.9 and body earth

OK: 1 k

Ω or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 39.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
jumper connector.

STEP 39. Connector check: C-07 centre display
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 40 .

NO :

Repair the defective connector.

AC302572AD

Connector: A-07

Harness side

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC209364MI

Harness side: C-09

Test harness

AC310631AY

Connector: C-07 <RHD>

Harness side

C-07 (B)
