ROOF

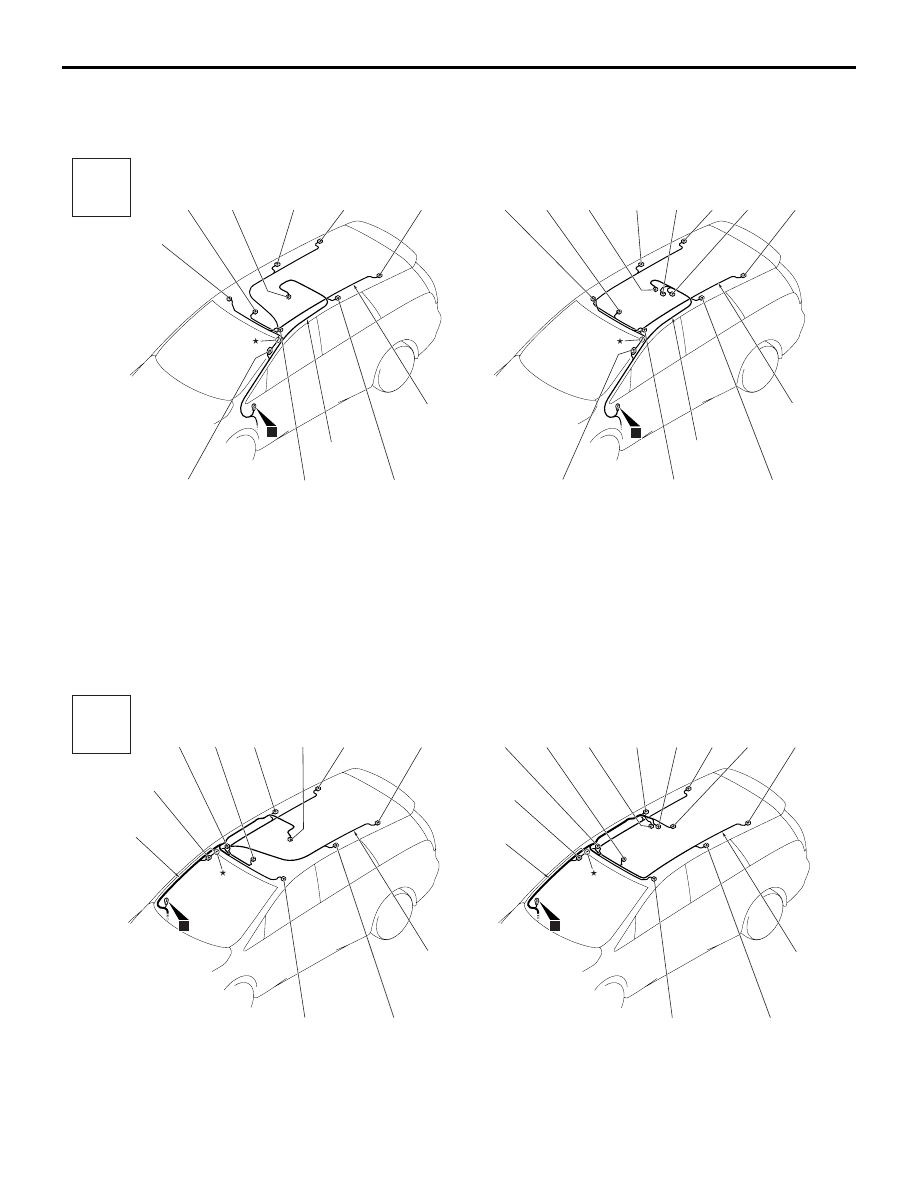

CONFIGURATION DIAGRAMS

80-19

ROOF

ROOF <LHD>

M1801003600013

ROOF < RHD >

M1801003600035

AC310817

Connector
symbol

E

AB

E-03

Room lamp
wiring harness

E-01

E-02

E-04

E-06

E-08

E-09

E-10

E-11

16

<Vehicles without sunroof>

Roof wiring
harness

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

E-03

Room lamp
wiring harness

E-01

E-02

E-06

E-08

E-09

E-10

E-11

16

<Vehicles with sunroof>

Roof wiring
harness

E-05

E-07

E-04

E-01

(2)

Vanity mirror lamp (RH)

E-02

(10)

Room lamp

E-03

(20)

Rear heater controller

E-04

(3)

Rear personal lamp (for second seat:
RH)

E-05

(3)

Sunroof switch

E-06

(3)

Rear personal lamp (for third seat:
RH)

E-07

(10)

Sunroof motor assembly

E-08

(3)

Rear personal lamp (for third seat: LH)

E-09

(3)

Rear personal lamp (for second seat:
LH)

E-10

(2)

Vanity mirror lamp (LH)

E-11

(6)

Roof wiring harness and room lamp
wiring harness combination

AC310818

Connector
symbol

E

AB

E-03

Room lamp
wiring harness

E-01

E-02

E-04

E-06

E-08

E-09

E-10

E-11

16

<Vehicles without sunroof>

Roof wiring
harness

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

E-03

Room lamp
wiring harness

E-01

E-02

E-06

E-08

E-09

E-10

E-11

16

<Vehicles with sunroof>

Roof wiring
harness

E-05

E-07

E-04

E-01

(2)

Vanity mirror lamp (RH)

E-02

(10)

Room lamp

E-03

(20)

Rear heater controller

E-04

(3)

Rear personal lamp (for second seat:
RH)

E-05

(3)

Sunroof switch

E-06

(3)

Rear personal lamp (for third seat:
RH)

E-07

(10)

Sunroof motor assembly

E-08

(3)

Rear personal lamp (for third seat: LH)

DOOR

CONFIGURATION DIAGRAMS

80-20

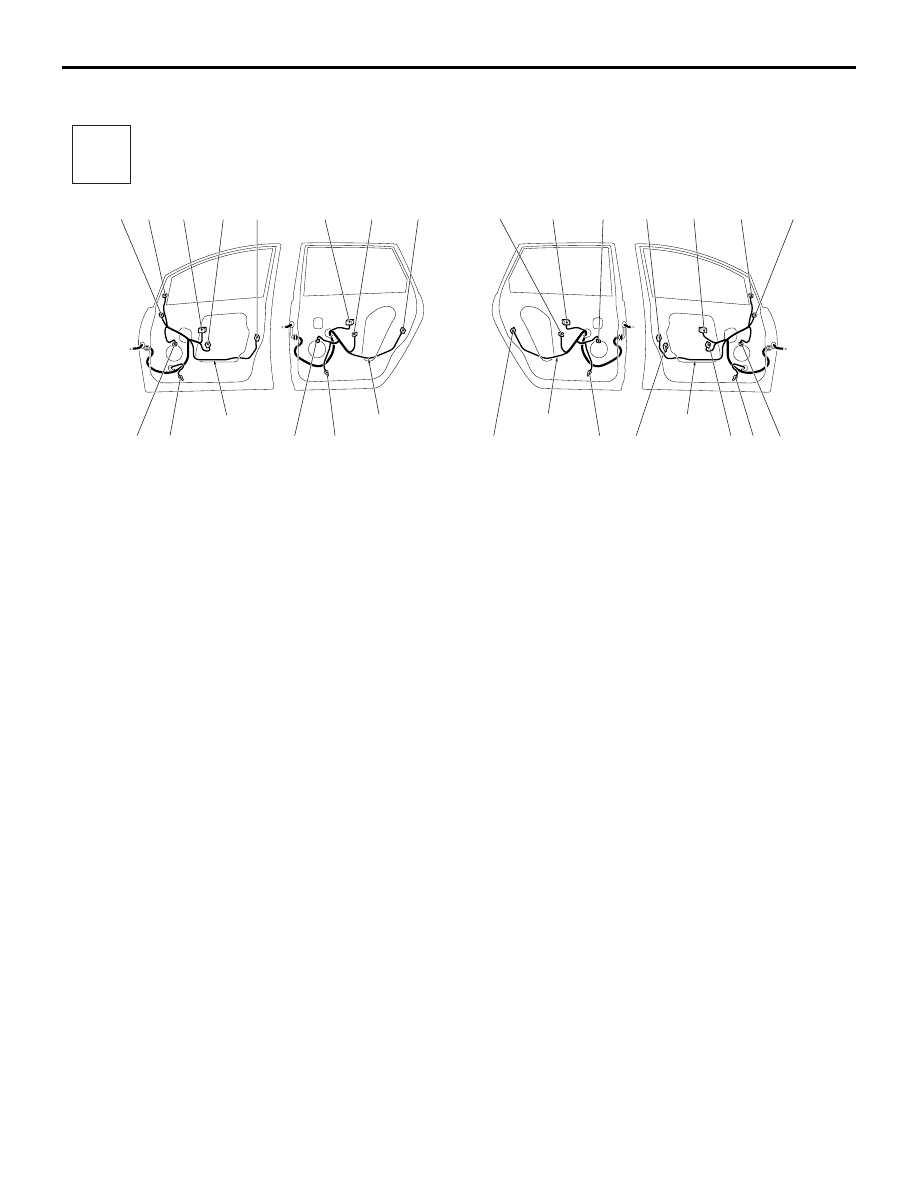

DOOR

DOOR <LHD>

M1801001400693

E-09

(3)

Rear personal lamp (for second seat:
LH)

E-10

(2)

Vanity mirror lamp (LH)

E-11

(6)

Roof wiring harness and room lamp
wiring harness combination

AC310819

Front door
wiring
harness (LH)

Rear door
wiring
harness (LH)

<Driver's side>

Connector
symbol

F

F-01

F-02

F-03

F-04

F-05

F-07

F-06

F-08

F-09

F-10

F-11

F-12

Rear door
wiring
harness (RH)

Front door
wiring
harness (RH)

<Passenger's side>

AB

F-14

F-15

F-17

F-18

F-19

F-20

F-21

F-22

F-24

F-25

F-16

F-13

F-23

F-01

(6-B)

Power window motor (Rear: LH)

F-02

(8-B)

Power window sub switch (Rear: LH)

F-03

(2)

Rear door speaker (LH)

F-04

(6-B)

Door lock actuator (Front: LH)

F-05

(14-B)

Power window main switch

F-06

(2)

Tweeter (LH)

F-07

(10)

Door mirror assembly (LH)

F-08

(6-B)

Door lock actuator (Rear: LH)

F-09

(2)

Door lamp (Rear: LH)

F-10

(6-B)

Power window motor (Front: LH)

F-11

(2)

Door lamp (Front: LH)

F-12

(2)

Front door speaker (LH)

F-13

(10)

Door mirror assembly (RH)

F-14

(2)

Tweeter (RH)

F-15

(8-B)

Power window sub switch (Front: RH)

F-16

(6-B)

Power window motor (Front: RH)

F-17

(6-B)

Door lock actuator (Front: RH)

F-18

(8-B)

Power window sub switch (Rear: RH)

F-19

(6-B)

Power window motor (Rear: RH)

F-20

(6-B)

Door lock actuator (Rear: RH)

F-21

(2)

Front door speaker (RH)

F-22

(2)

Door lamp (Front: RH)

F-23

(3-B)

Door key switch

F-24

(2)

Rear door speaker (RH)

F-25

(2)

Door lamp (Rear: RH)

DOOR

CONFIGURATION DIAGRAMS

80-21

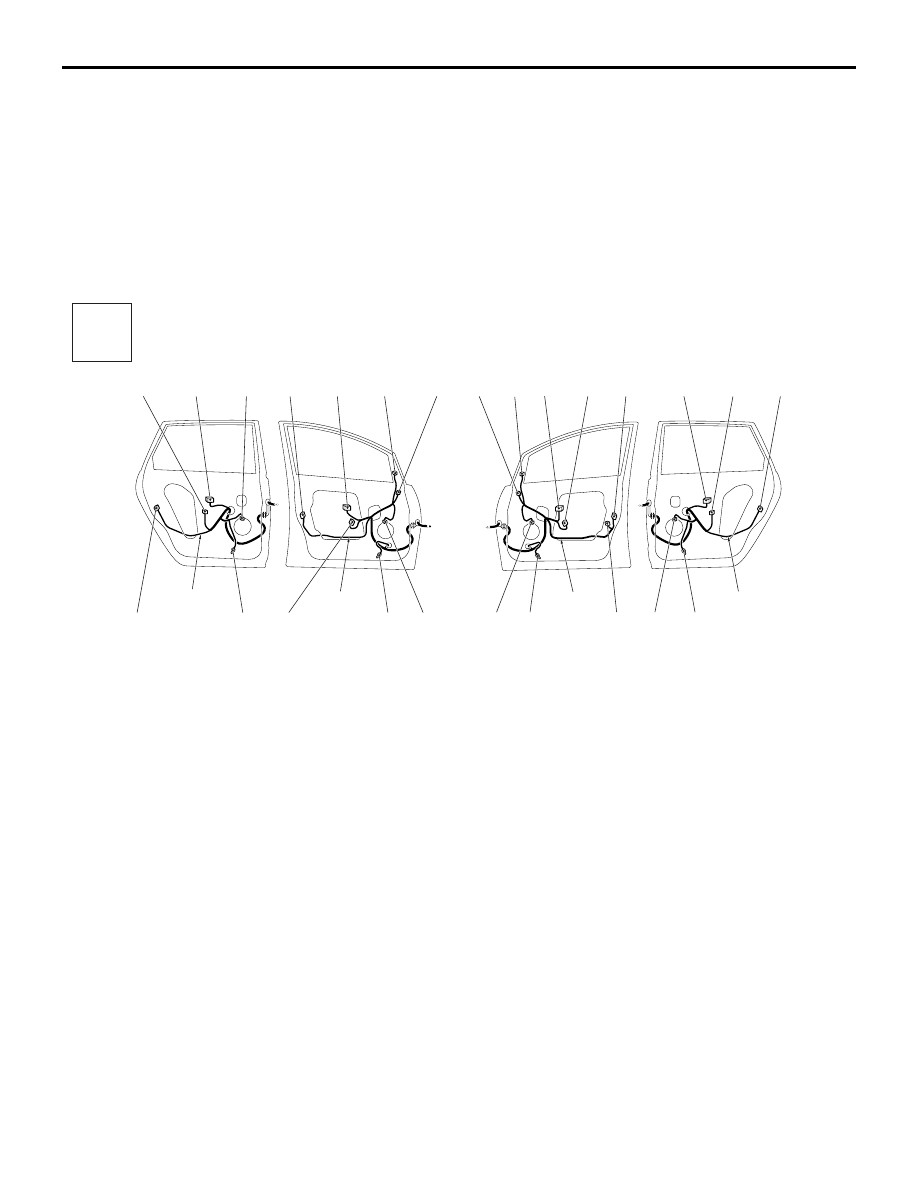

DOOR <RHD>

M1801001400701

AC310820

AB

Front door
wiring
harness (LH)

Rear door
wiring
harness (LH)

<Passenger's side>

F-01

F-02

F-03

F-04

F-26

F-07

F-06

F-08

F-09

F-11

F-12

F-23

F-10

Connector
symbol

F

Rear door
wiring
harness (RH)

Front door
wiring
harness (RH)

<Driver's side>

F-14

F-05

F-17

F-18

F-19

F-20

F-21

F-22

F-24

F-25

F-16

F-13

F-01

(6-B)

Power window motor (Rear: LH)

F-02

(8-B)

Power window sub switch (Rear: LH)

F-03

(2)

Rear door speaker (LH)

F-04

(6-B)

Door lock actuator (Front: LH)

F-05

(14-B)

Power window main switch

F-06

(2)

Tweeter (LH)

F-07

(10)

Door mirror assembly (LH)

F-08

(6-B)

Door lock actuator (Rear: LH)

F-09

(2)

Door lamp (Rear: LH)

F-10

(6-B)

Power window motor (Front: LH)

F-11

(2)

Door lamp (Front: LH)

F-12

(2)

Front door speaker (LH)

F-13

(10)

Door mirror assembly (RH)

F-14

(2)

Tweeter (RH)

F-16

(6-B)

Power window motor (Front: RH)

F-17

(6-B)

Door lock actuator (Front: RH)

F-18

(8-B)

Power window sub switch (Rear: RH)

F-19

(6-B)

Power window motor (Rear: RH)

F-20

(6-B)

Door lock actuator (Rear: RH)

F-21

(2)

Front door speaker (RH)

F-22

(2)

Door lamp (Front: RH)

F-23

(3-B)

Door key switch

F-24

(2)

Rear door speaker (RH)

F-25

(2)

Door lamp (Rear: RH)

F-26

(8-B)

Power window sub switch (Front: LH)

TAILGATE

CONFIGURATION DIAGRAMS

80-22

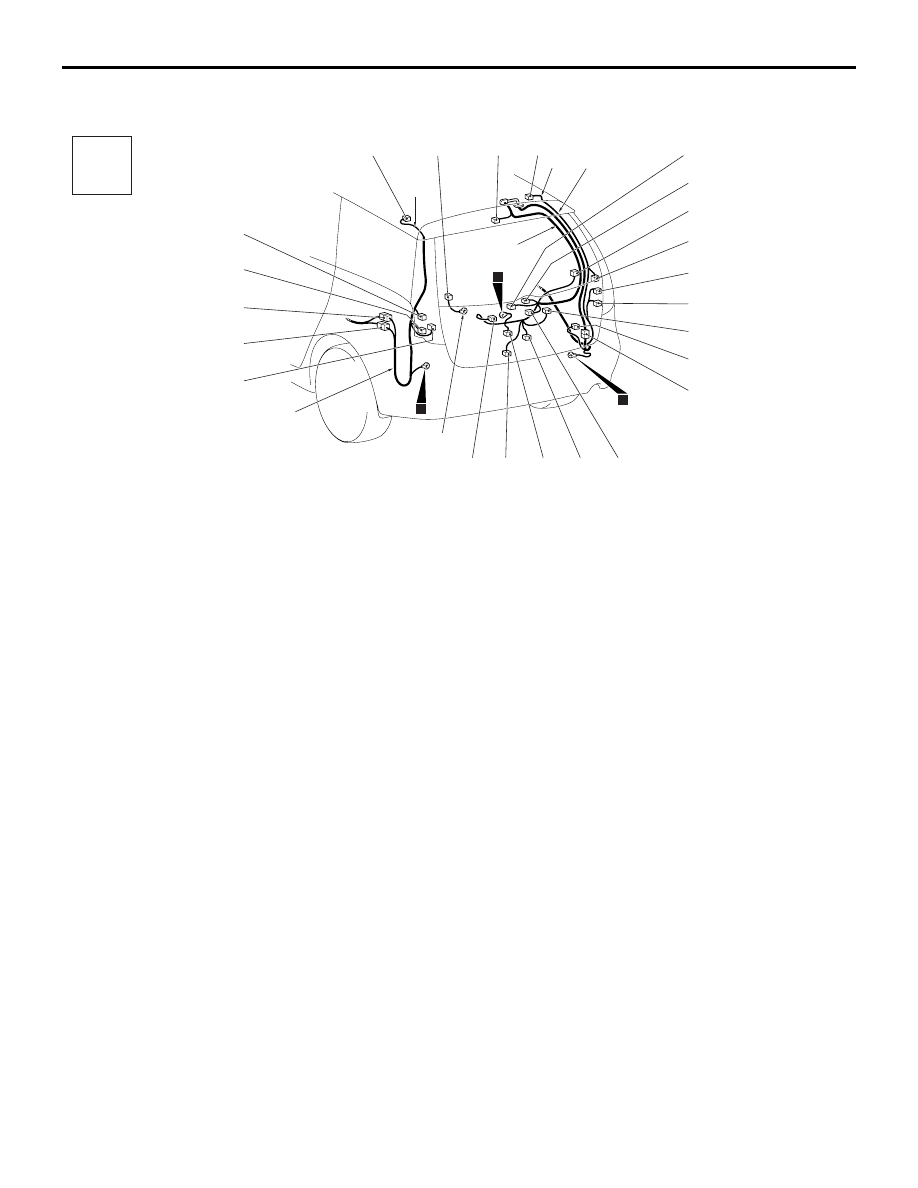

TAILGATE

M1801001900290

AC309797

Connector
symbol

G

18

G-20

Y

Rear window
defogger earth

Rear floor
wiring harness

G-21

G-22

G-24
G-23

G-25

G-01

G-02

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

Y

Floor wiring
harness

AB

Tailgate wiring
harness

7

8

G-03

G-04

G-05

G-06

G-07

G-08

G-09

G-10
G-11

G-12

G-13

G-14

G-19

G-18

G-17

G-16

G-15

G-01

(2-B)

Curtain air bag module (squib) (LH)

G-02

(1-B)

Rear window defogger (

−)

G-03

(2)

High-mounted stop lamp

G-04

(2-B)

Curtain air bag module (squib) (RH)

G-05

(4)

Rear wiper motor

G-06

(2)

Tailgate lock release handle

G-07

(1-B)

Rear window defogger (+)

G-08

(3)

Tail/ stop lamp (RH)

G-09

(2-B)

Rear turn-signal lamp (RH)

G-10

(2-GR)

Back-up lamp <LHD>

G-11

(2-GR)

Rear fog lamp <RHD>

G-12

(2)

Luggage compartment lamp

G-13

(5)

Rear air mixing damper control motor
and potentiometer

G-14

(14)

Floor wiring harness and tailgate
wiring harness combination

G-15

(2)

Licence plate lamp (RH)

G-16

(3)

Tailgate key switch

G-17

(2-B)

Tailgate lock actuator

G-18

(1-B)

Tailgate switch

G-19

(2)

Licence plate lamp (LH)

G-20

(3)

Tail/ stop lamp (LH)

G-21

(10)

Floor wiring harness and rear floor
wiring harness (LH) combination

G-22

(2-R)

Floor wiring harness and rear floor
wiring harness (LH) combination

G-23

(2-GR)

Rear fog lamp <LHD>

G-24

(2-GR)

Back-up lamp <RHD>

G-25

(2-B)

Rear turn-signal lamp (LH)
