Mitsubishi Grandis. Manual - part 418





DASH PANEL

CONFIGURATION DIAGRAMS

80-15

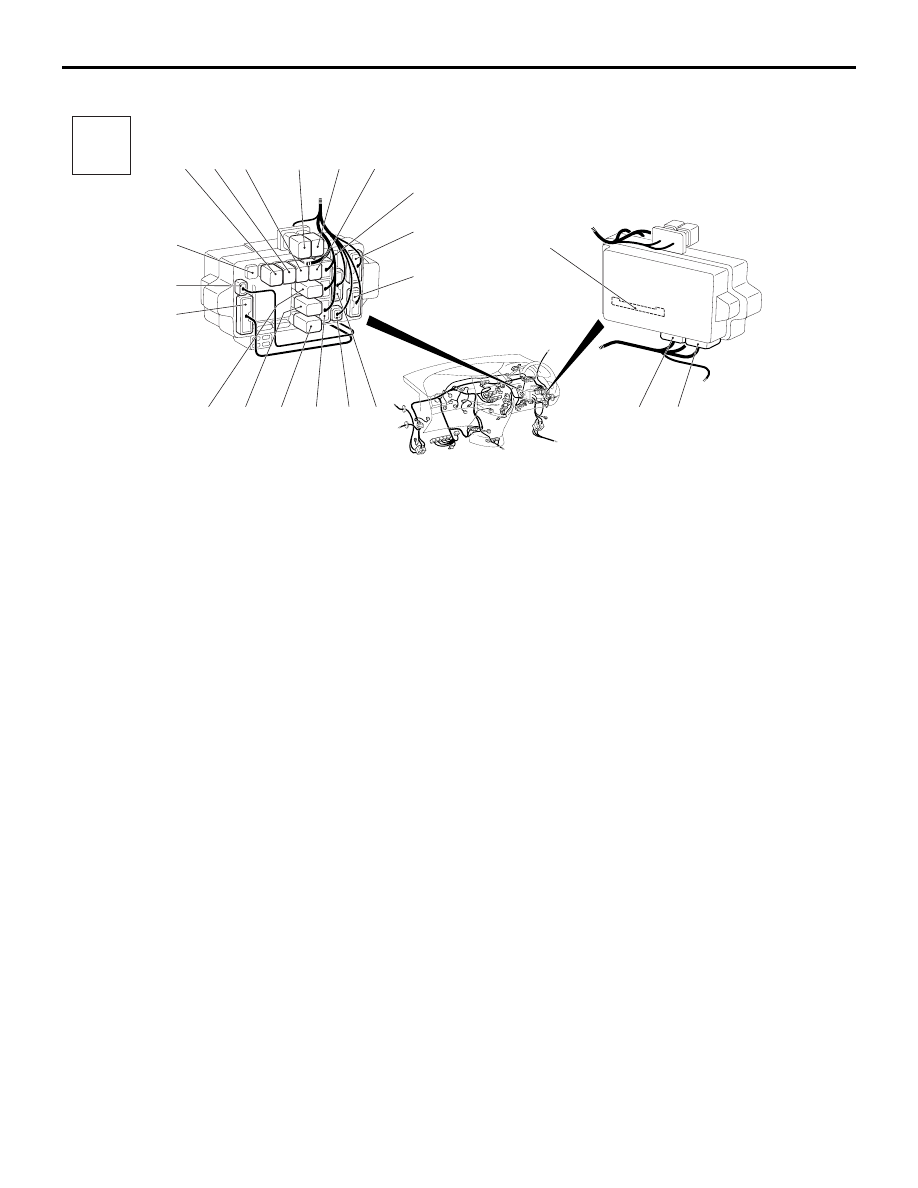

DASH PANEL <RHD> (CONTINUED)

AC310816

Connector
symbol

-201
thru
-221

C

C-214

C-215

C-216

C-207

C-217

C-208

C-206

C-211

C-213

C-210

C-205

C-212

C-202

C-218

C-203

C-201

C-204

C-209

<J/B (Front view) >

AB

C-219

C-221

C-220

<J/B (Rear view) >

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-201 (13)

Instrument panel wiring harness and
J/B combination

C-202 (6)

Instrument panel wiring harness and
J/B combination

C-203 (14)

Instrument panel wiring harness and
J/B combination

C-204 (1-B)

Instrument panel wiring harness and
J/B combination

C-205 (28)

Instrument panel wiring harness and
J/B combination

C-206 (5)

PTC heater relay 1

C-207 (5)

PTC heater relay 2

C-208 (5)

Rear window defogger relay

C-209 (5)

Front blower relay

C-210 (15)

Floor wiring harness and J/B
combination

C-211 (3)

Roof wiring harness and J/B
combination

C-212 (4)

No connection

C-213 (4)

Rear fog lamp relay

C-214 (4)

Fuel pump relay 2

C-215 (4)

Rear blower relay

C-216 (4)

Fuel pump relay 1

C-217 (5)

Power window relay

C-218 (2)

No connection

C-219 (20)

ETACS-ECU

C-220 (24)

ETACS-ECU

C-221 (24-GR) ETACS-ECU

DASH PANEL

CONFIGURATION DIAGRAMS

80-16

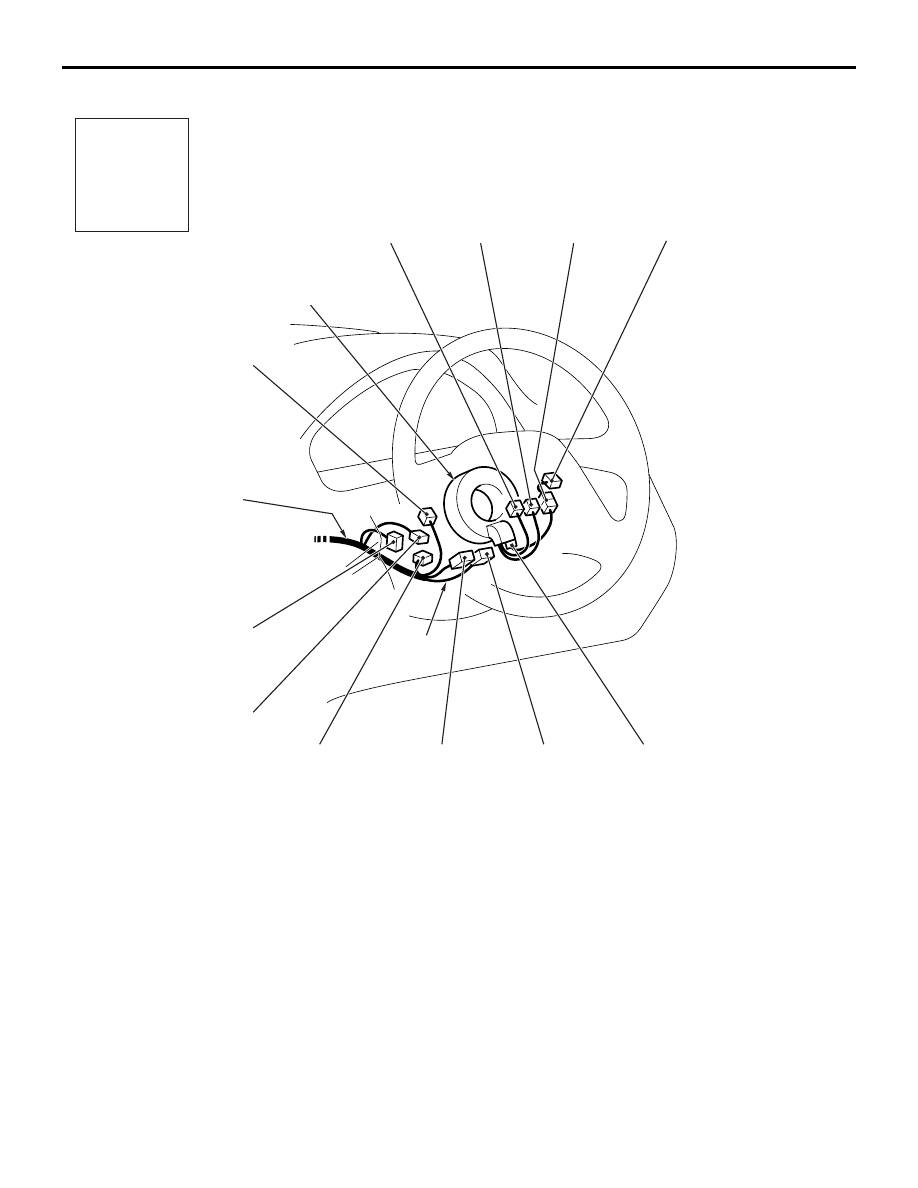

DASH PANEL <RHD> (CONTINUED)

AC309928

AB

C-302

Y

C-303

C-301

C-308

C-310

C-311

C-309

Instrument panel
wiring harness

C-307

C-306

C-305

Clock spring

<Steering column>

Connector
symbol

-301
thru
-311

C

C-304

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-301 (10)

Column switch

C-302 (1)

Horn switch

C-303 (4-Y)

Air bag module (squib) <Driver’s side>

C-304 (3-B)

Clock spring sub wiring harness and
auto-cruise control switch sub wiring
harness combination

C-305 (3-Y)

Auto-cruise control switch

C-306 (5)

Steering wheel sensor

C-307 (6)

Ignition switch

C-308 (7)

Key reminder switch

C-309 (4-Y)

Clock spring

C-310 (6-B)

Clock spring

C-311 (5)

Clock spring and clock spring sub wiring
harness combination

FLOOR

CONFIGURATION DIAGRAMS

80-17

FLOOR

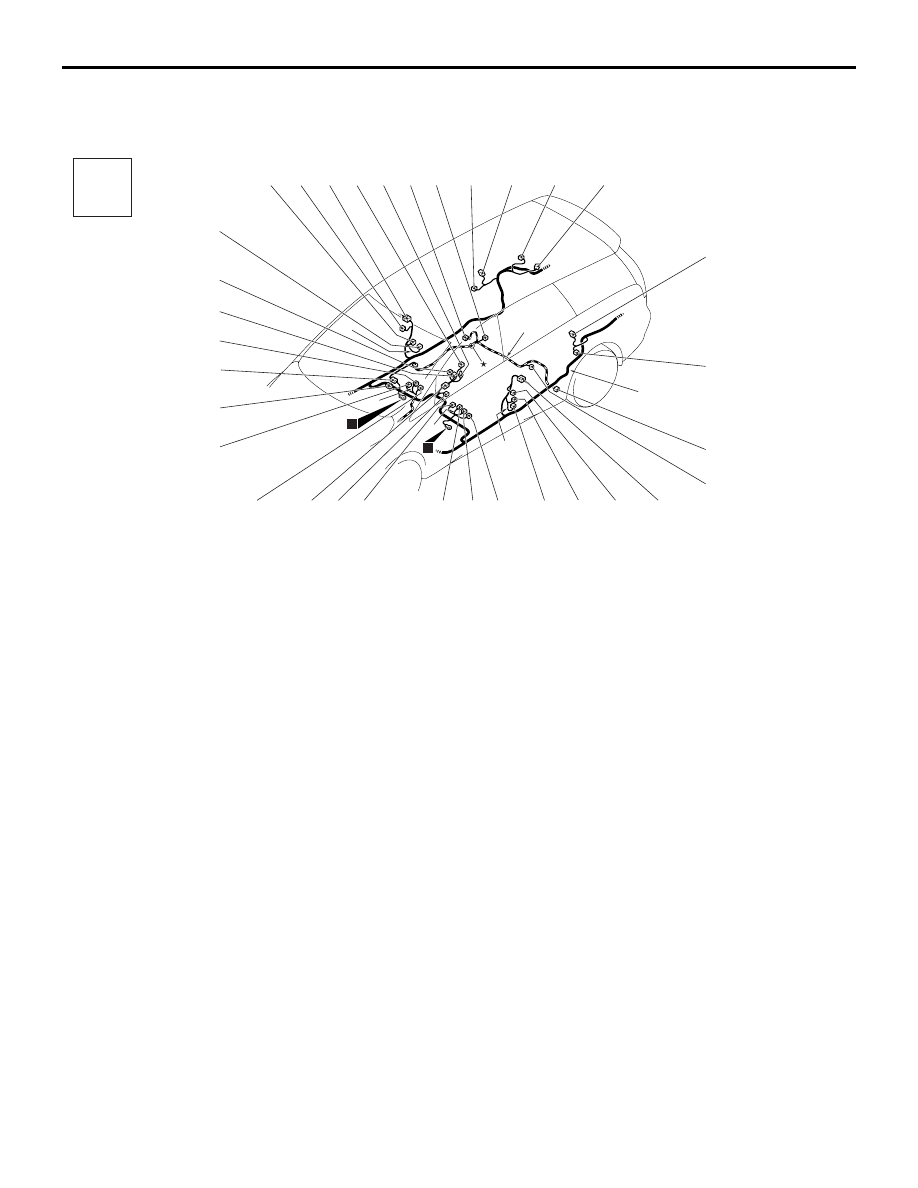

FLOOR <LHD>

M1801003500016

AC309785

Connector
symbol

D

D-22

D-27

D-28

D-29

D-32

D-07

D-08

17

Y

Y

6

Y

D-26

D-25

D-23

D-01

D-04

D-06

D-02

D-20

D-21

D-24

D-30

D-31

D-05

D-03

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

AB

D-09

Y

Floor wiring
harness

Fuel wiring
harness

D-10

D-11

D-12

D-14

D-13

D-19

D-18

D-17

D-16

D-15

D-34

D-01

(2-Y)

Side impact sensor (Front: RH)

D-02

(3)

Door switch (Front: RH)

D-03

(10-B)

Floor wiring harness and rear door
wiring harness (RH) combination

D-04

(9)

Heated seat switch

D-05

(2)

Cigarette lighter illumination lamp

D-06

(2-B)

Wheel speed sensor (Rear: RH)

D-07

(2)

Fuel tank gauge unit

D-08

(3)

Door switch (Rear: RH)

D-09

(2-Y)

Side impact sensor (Rear: RH)

D-10

(2)

Rear blower motor

D-11

(4)

Rear power transistor

D-12

(2-Y)

Side impact sensor (Rear: LH)

D-13

(3)

Door switch (Rear: LH)

D-14

(2-B)

Wheel speed sensor (Rear: LH)

D-15

(5-GR)

Fuel tank pump and gauge unit
assembly

D-16

(10)

Floor wiring harness and rear door
wiring harness (LH) combination

D-17

(3)

Door switch (Front: LH)

D-18

(2-Y)

Side impact sensor (Front: LH)

D-19

(2-B)

Seat belt pre-tensioner (LH)

D-20

(3-B)

Heated seat (LH)

D-21

(2-GR)

Seat slide sensor (LH)

D-22

(2-R)

Side air bag module (squib) (LH)

D-23

(2)

Seat belt switch (LH)

D-24

(1-B)

Parking brake switch

D-25

(10-GR) Floor wiring harness and console

wiring harness combination

D-26

(2)

Seat belt switch (RH)

D-27

(3-B)

Heated seat (RH)

D-28

(13)

Floor wiring harness and fuel wiring
harness combination

D-29

(2-R)

Side air bag module (squib) (RH)

D-30

(1)

Cigarette lighter

D-31

(1-B)

Cigarette lighter

D-32

(2-B)

Seat belt pre-tensioner (RH)

D-34

(8-B)

Spare connector (For navigation
system)

FLOOR

CONFIGURATION DIAGRAMS

80-18

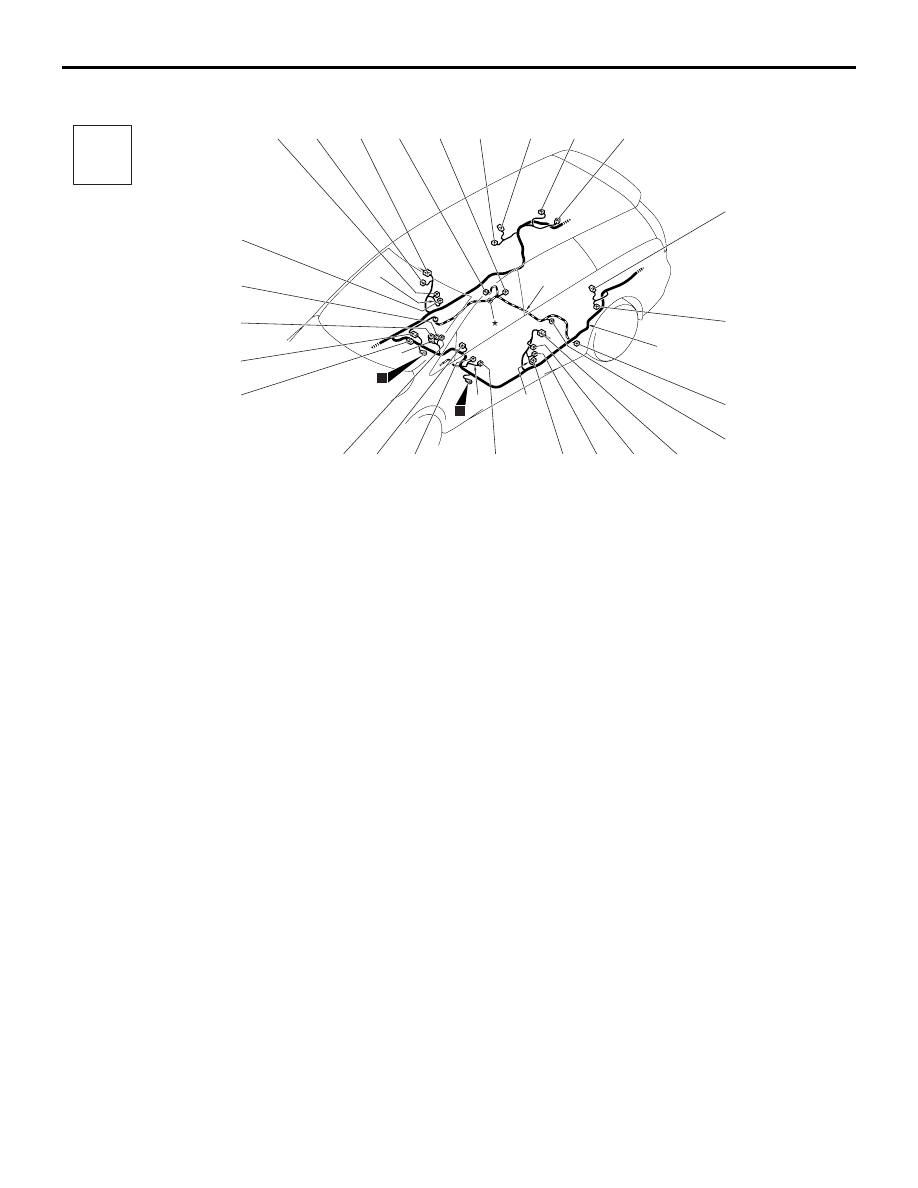

FLOOR <RHD>

M1801003500038

AC309788

Connector
symbol

D

D-22

D-34

D-28

D-29

D-32

D-07

D-08

17

Y

Y

6

Y

D-26

D-24

D-23

D-01

D-03

D-06

D-02

Connector colour code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

AB

D-09

Y

Floor wiring
harness

Fuel wiring
harness

D-10

D-11

D-12

D-14

D-13

D-19

D-18

D-17

D-16

D-15

D-33

D-01

(2-Y)

Side impact sensor (Front: RH)

D-02

(3)

Door switch (Front: RH)

D-03

(10-B)

Floor wiring harness and rear door
wiring harness (RH) combination

D-06

(2-B)

Wheel speed sensor (Rear: RH)

D-07

(2)

Fuel tank gauge unit

D-08

(3)

Door switch (Rear: RH)

D-09

(2-Y)

Side impact sensor (Rear: RH)

D-10

(2)

Rear blower motor

D-11

(4)

Rear power transistor

D-12

(2-Y)

Side impact sensor (Rear: LH)

D-13

(3)

Door switch (Rear: LH)

D-14

(2-B)

Wheel speed sensor (Rear: LH)

D-15

(5-GR)

Fuel tank pump and gauge unit
assembly

D-16

(10)

Floor wiring harness and rear door
wiring harness (LH) combination

D-17

(3)

Door switch (Front: LH)

D-18

(2-Y)

Side impact sensor (Front: LH)

D-19

(2-B)

Seat belt pre-tensioner (LH)

D-22

(2-R)

Side air bag module (squib) (LH)

D-23

(2)

Seat belt switch (LH)

D-24

(1-B)

Parking brake switch

D-26

(2)

Seat belt switch (RH)

D-28

(13)

Floor wiring harness and fuel wiring
harness combination

D-29

(2-R)

Side air bag module (squib) (RH)

D-32

(2-B)

Seat belt pre-tensioner (RH)

D-33

(2-GR)

Seat slide sensor (RH)

D-34

(8-B)

Spare connector (For navigation
system)
