Mitsubishi Grandis. Manual - part 403





PRECAUTIONS BEFORE SERVICE

GENERAL

00-18

PRECAUTIONS BEFORE SERVICE

M1001000500549

SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)

CAUTION

1. Items to review when servicing SRS:

a. Be sure to read GROUP 52B



Supplemental Restraint System (SRS). For
safe operation, please follow the
directions and heed all warnings.

b. Wait at least 60 seconds after

disconnecting the battery cable before
doing any further work. The SRS system is
designed to retain enough voltage to
deploy the air bag even after the battery
has been disconnected. Serious injury
may result from unintended air bag
deployment if work is done on the SRS
system immediately after the battery cable
is disconnected.

c. Warning labels must be heeded when

servicing or handling SRS components.
Warning labels can be found in the
following locations.

• Air bag module (Driver's and front

passenger's)

• Clock spring
• Curtain air bag module (Driver's side

and front passenger's side)

• Front impact sensor
• Glove box
• Hood
• Instrument panel
• Passengers air bag cut off switch
• Seat belt pre-tensioner
• Side air bag module (Driver's side and

front passenger's side)

• Side impact sensor
• SRS-ECU
• Steering wheel
• Steering joint cover
• Sun visor

d. Always use the designated special tools

and test equipment.

e. Store components removed from the SRS

in a clean and dry place. The air bag
module should be stored on a flat surface
and placed so that the pad surface is
facing upward. Do not place anything on
top of it.

f. Never attempt to disassemble or repair the

SRS components (SRS-ECU, air bag
module and clock spring).

g. Whenever you finish servicing the SRS,

check the SRS warning lamp operation to
make sure that the system functions
properly.

h. Be sure to deploy the air bag before

disposing of the air bag module or
disposing of a vehicle equipped with an air
bag (Refer to GROUP 52B

 Air Bag

Module Disposal Procedures

P.52B-246

).

2. Observe the following when carrying out

operations on places where SRS components
are installed, including operations not directly
related to the SRS air bag.

a. When removing or installing parts, do not

allow any impact or shock to the SRS
components.

b. If heat damage may occur during paint

work, remove the SRS-ECU, the air bag
module, clock spring, the front impact
sensor, the side impact sensor, and the
seat belt pre-tensioner.

• SRS-ECU, air bag module, clock

spring, front impact sensor, the side
impact sensor: 93

°C or more

• Seat belt pre-tensioner: 90 °C or more

INITIALIZATION PROCEDURE FOR
LEARNING VALUE IN MPI ENGINE
INITIALIZATION PROCEDURE

1. After the ignition switch is in "LOCK" (OFF)

position, connect MUT-III with the diagnosis
connector.

2. Select the item on the screen of the initialisation

for learning, and perform the initialisation.

NOTE: *

1

: Initialize A/T-related learning value.

Service

Item

At replacing engine
assembly *

1,

*

2



All ranges

− *

3

Misfire-related

At replacing injector and
at cleaning *

2

Learning value for
air/fuel ratio

At replacing throttle body
and at cleaning *

2

Idle speed
control-related

At replacing detonation
sensor

Learning value for
knocking

PRECAUTIONS BEFORE SERVICE

GENERAL

00-19

NOTE: *

2

: After initialising the learning value, the

idling learning in MPI engine is required (Refer to
LEARNING PROCEDURE FOR IDLING IN MPI
ENGINE ).
NOTE: *

3

: The datum items on MUT-III display are

shown, but do not use them.

LEARNING PROCEDURE FOR IDLING IN
MPI ENGINE
PURPOSE

When the engine-ECU <M/T> or the
engine-A/T-ECU <A/T> is replaced, or when the
learning value is initialized, the idling is not stabilized
because the learning value in MPI engine is not
completed. In this case, carry out the learning
method for the idling through the following
procedures.

LEARNING PROCEDURE

1. Start the engine and carry out the warm-up for the

engine coolant temperature to reach 80

°C or

more.

2. When the engine coolant temperature is 80

°C or

more, the warm-up is not needed if the ignition
switch is in "ON" position once.

3. Place the ignition switch in "LOCK" (OFF) position

and stop the engine.

4. After 10 seconds or more, start the engine again.
5. For 10 minutes, carry out the idling under the

condition shown below and then confirm the
engine has the normal idling.

• Transmission: Neutral (A/T: "P" range)

• Operation in ignition-related, fan and

attachments: Not to be operated

• Engine coolant temperature: 80°C or more

NOTE: When the engine stalls during the idling,
check the dirtiness (on the throttle valve) of the
throttle body and then perform the service from
Procedure 1 again.

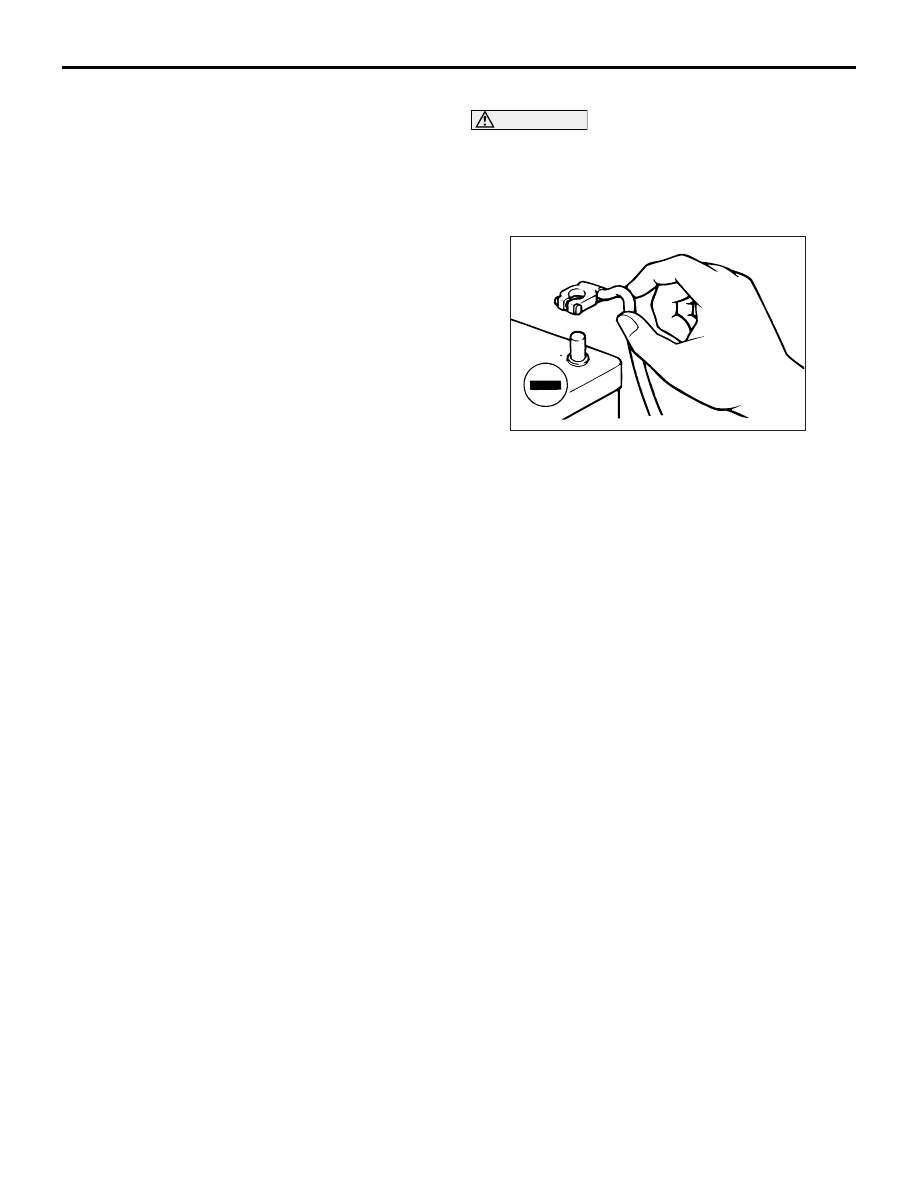

SERVICING ELECTRICAL SYSTEM

CAUTION

Before connecting or disconnecting the negative
(

) cable, be sure to turn off the ignition switch

and the lighting switch (If this is not done, there
is the possibility of semiconductor parts being
damaged).

Before replacing a component related to the
electrical system and before undertaking any repair
procedures involving the electrical system, be sure to
first disconnect the negative (

−) cable from the

battery in order to avoid damage caused by
short-circuiting.

APPLICATION OF ANTI-CORROSION
AGENTS AND UNDERCOATS

If oil or grease gets onto the oxygen sensor, it will
cause a drop in the performance of the sensor.
Cover the oxygen sensor with a protective cover
when applying anti-corrosion agents and undercoats.

PRE-INSPECTION CONDITION

"Pre-inspection condition" refers to the condition that
the vehicle must be in before proper engine
inspection can be carried out. If you see the words
"Set the vehicle to the pre-inspection condition". In
this manual, it means to set the vehicle to the
following condition.

• Engine coolant temperature 80 to 90°C

• Lamps, electric cooling fan and all accessories:

OFF

• M/T: Neutral

• A/T: N range

AC300693

PRECAUTIONS BEFORE SERVICE

GENERAL

00-20

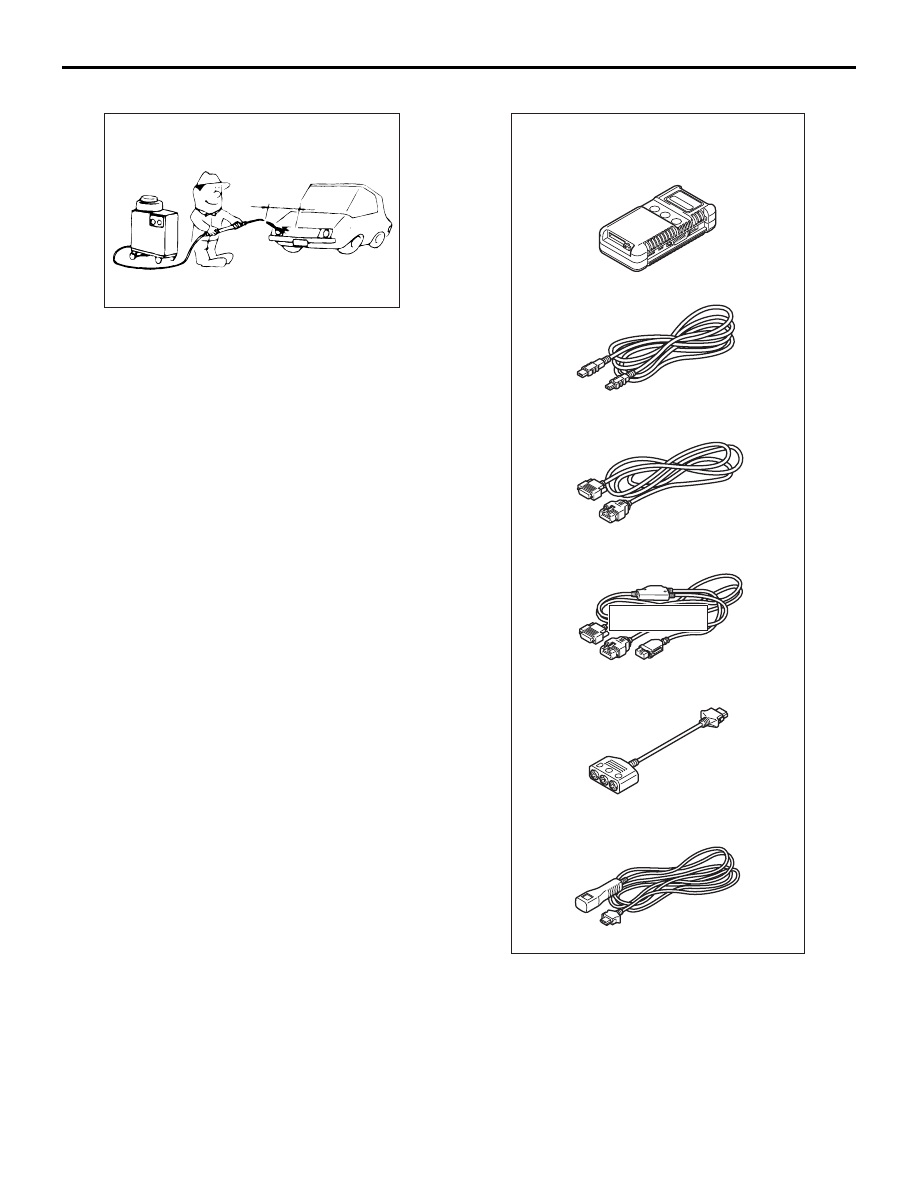

VEHICLE WASHING

If high-pressure car-washing equipment or steam
car-washing equipment is used to wash the vehicle,
be sure to note the following information in order to
avoid damage to plastic components, etc.

• Spray nozzle distance: Approx. 40 cm or more

• Spray pressure: 3,900 kPa or less

• Spray temperature: 82°C or less

• Time of concentrated spray to one point: within

30 sec.

MUT-III

Refer to the "MUT-III OPERATING INSTRUCTIONS"
for instructions on handling the MUT-III.

AC300832AB

Approximately 40 cm

AC305090

MB991910

MB991826

MB991911

MB991825

MB991824

MB991827

AC

Do not used

Vehicle communication interface (V.C.I.)

MUT-III main harness A

MUT-III USB cable

MUT-III main harness B

MUT-III measurement adapter

MUT-III trigger harness

MUT-III sub assembly

PRECAUTIONS BEFORE SERVICE

GENERAL

00-21

CAUTION

Turn the ignition switch to the "LOCK" (OFF)
position before connecting or disconnecting the
MUT-III.

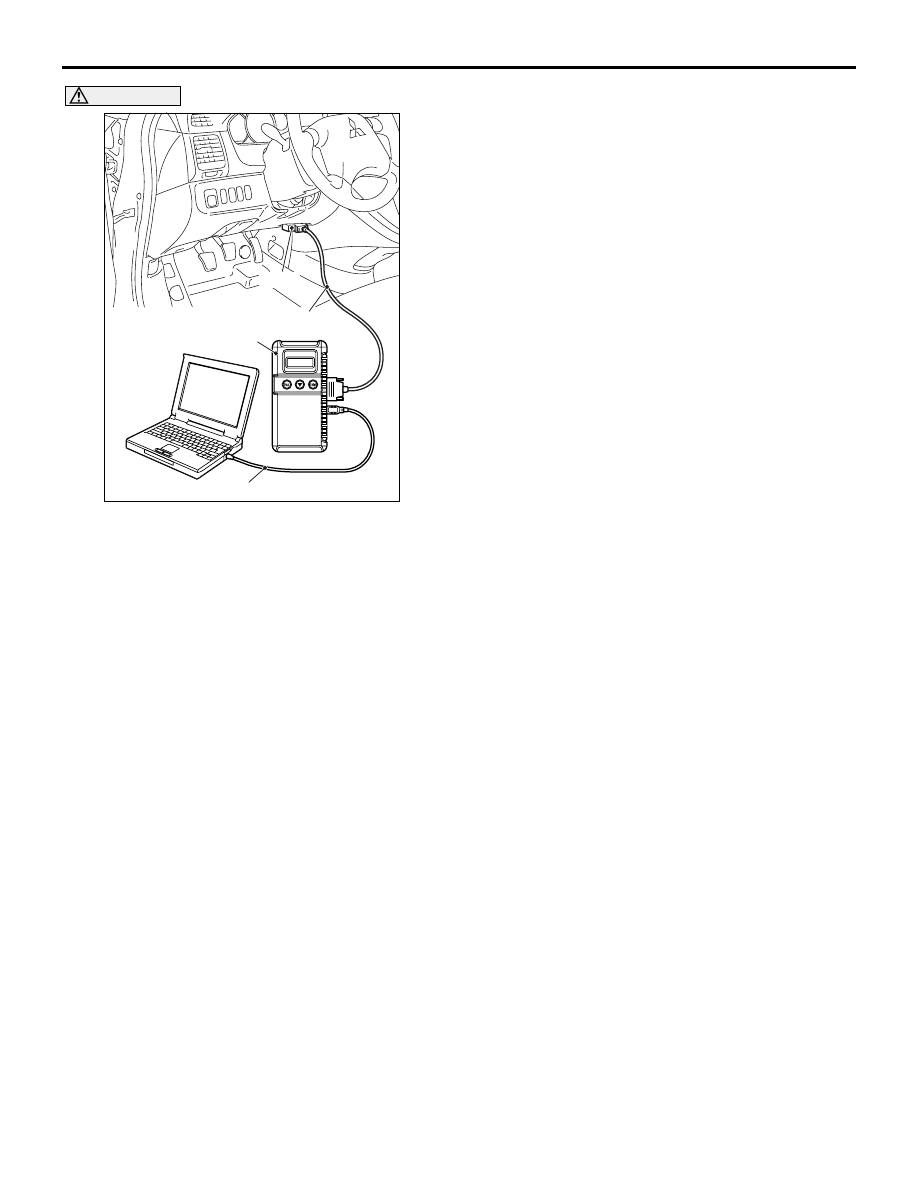

Connect the MUT-III to the diagnosis connector as
shown in the illustration.

IN ORDER TO PREVENT VEHICLES
FROM FIRE

"Improper installation of electrical or fuel related parts
could cause a fire. In order to retain the high quality
and safety of the vehicle, it is important that any
accessories that may be fitted or
modifications/repairs that may be carried out which
involve the electrical or fuel systems, MUST be
carried out in accordance with MMC's
information/Instructions".

ENGINE OILS
HEALTH WARNING

Prolonged and repeated contact with mineral oil will
result in the removal of natural fats from the skin,
leading to dryness, irritation and dermatitis. In
addition, used engine oil contains potentially harmful
contaminants which may cause skin cancer.
Adequate means of skin protection and washing
facilities must be provided.

RECOMMENDED PRECAUTIONS

The most effective precaution is to adapt working
practices which prevent, as far as practicable, the
risk of skin contact with mineral oils, for example by
using enclosed systems for handling used engine oil
and by degreasing components, where practicable,
before handling them.
Other precautions:

• Avoid prolonged and repeated contact with oils,

particularly used engine oils.

• Wear protective clothing, including impervious

gloves where practicable.

• Avoid contaminating clothes, particularly

underpants, with oil.

• Do not put oily rags in pockets, the use of overalls

without pockets will avoid this.

• Do not wear heavily soiled clothing and

oil-impregnated foot-wear. Overalls must be
cleaned regularly and kept separately from
personal clothing.

•  Where there is a risk of eye contact, eye

protection should be worn, for example, chemical
goggles or face shields; in addition an eye wash
facility should be provided.

• Obtain First Aid treatment immediately for open

cuts and wounds.

• Wash regularly with soap and water to ensure all

oil is removed, especially before meals (skin
cleansers and nail brushes will help). After
cleaning, the application of preparations
containing lanolin to replace the natural skin oils
is advised.

•  Do not use petrol, kerosine, diesel fuel, gas oil,

thinners or solvents for cleaning skin.

•  Use barrier creams, applying them before each

work period, to help the removal of oil from the
skin after work.

• If skin disorders develop, obtain medical advice

without delay.

AC302297

AC310120

AB

MB991827

16-pin

MB991910

MB991824
