SPEAKER

CHASSIS ELECTRICAL

54A-139

SPEAKER

REMOVAL AND INSTALLATION

M1544002600603

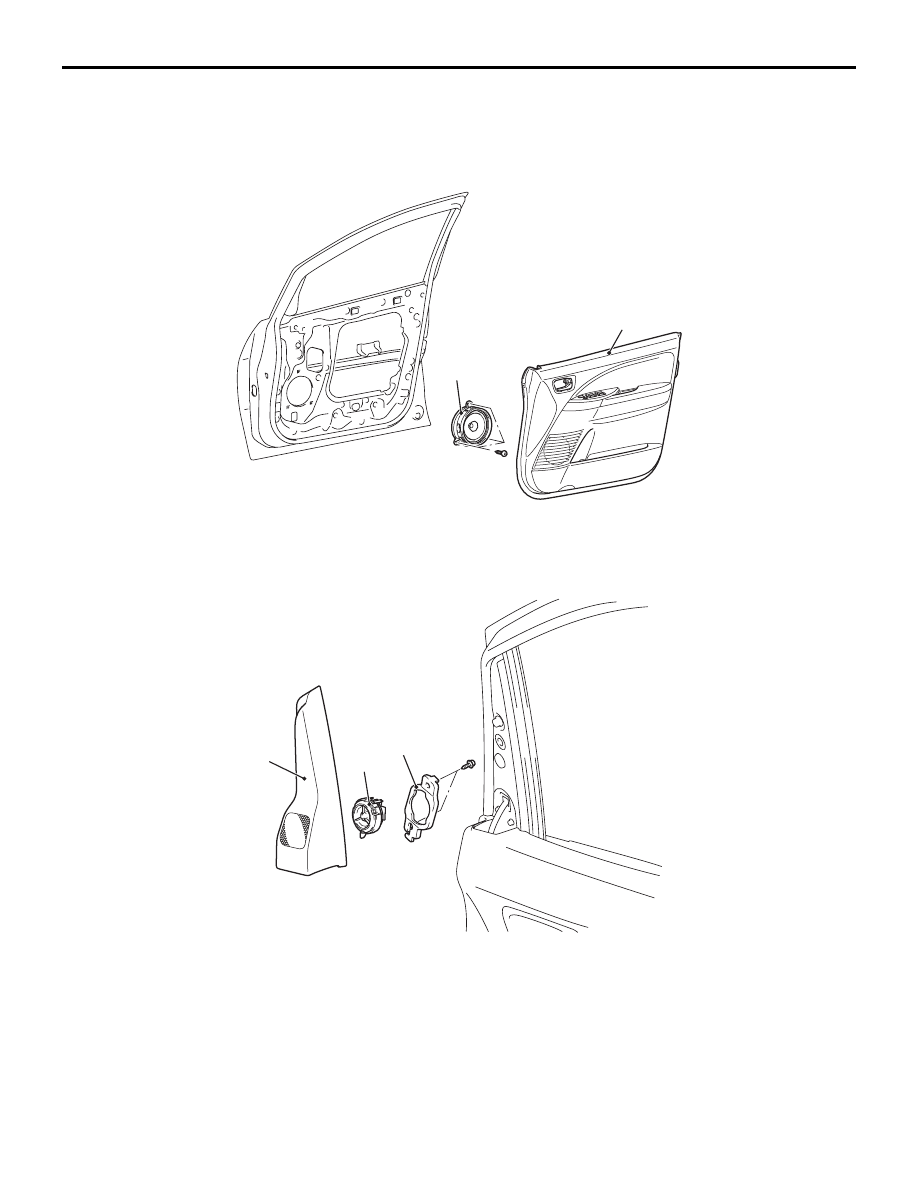

<SPEAKER>

<TWEETER>

AC303651AB

1

2

Removal steps

1.

Door trim (Refer to GROUP 52A,
Door Trim

P.52A-12

).

2.

Speaker

AC302772

1

2

3

AB

Removal steps

1.

Front door sash trim (Refer to
GROUP 52A, Door Trim

P.52A-12

).

2.

Bracket

3.

Tweeter

Removal steps (Continued)

GLASS ANTENNA

CHASSIS ELECTRICAL

54A-140

GLASS ANTENNA

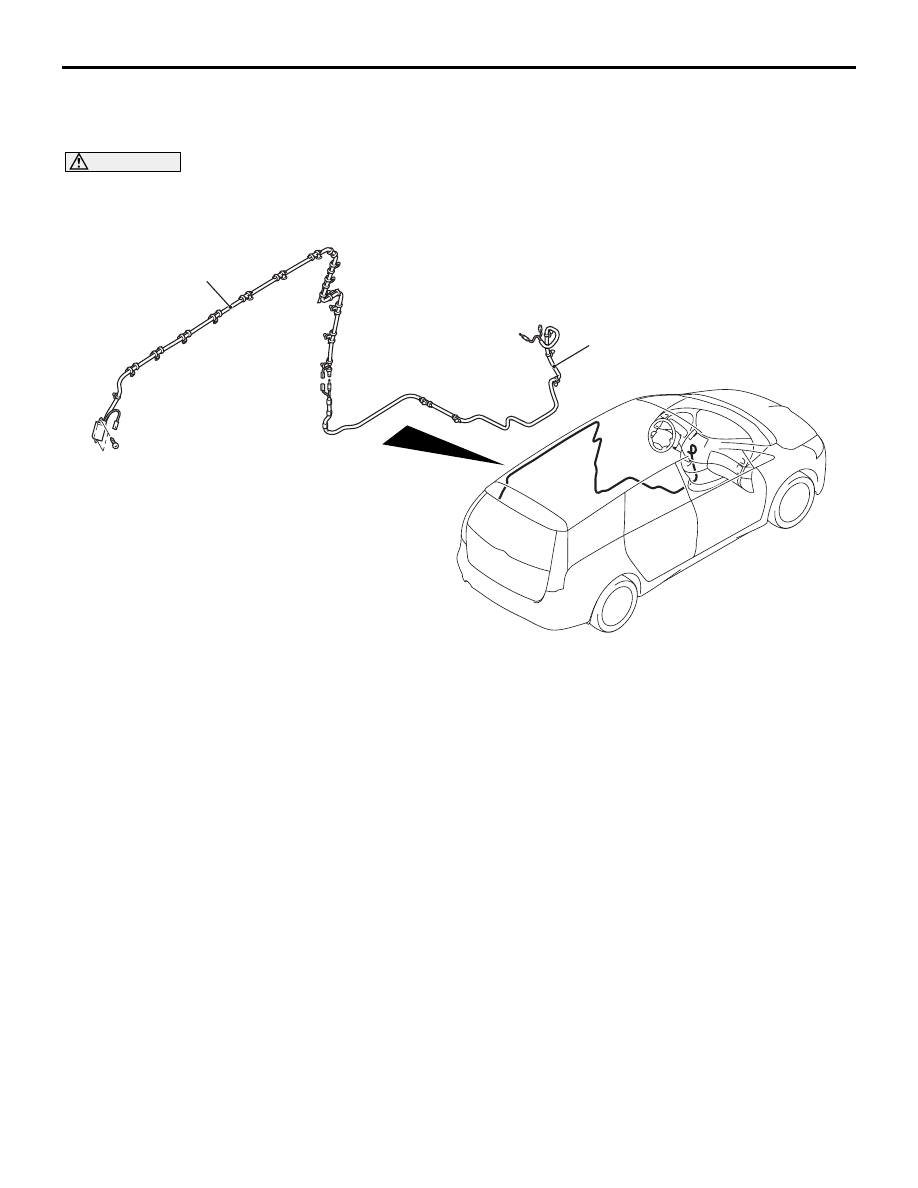

REMOVAL AND INSTALLATION

M1544005100061

CAUTION

For the removal of the headlining, refer to GROUP 52B, Service Precautions

P.52B-7

 and Side and

Curtain Air Bag Module

P.52B-231

.

AC312281AB

1

2

Removal steps

•

Headlining assembly (Refer to
GROUP 52A, Headlining

P.52A-17

).

•

Front seat assembly (Refer to
GROUP 52A, Front Seat Assembly

P.52A-21

).

•

Front scuff plate inner, Scuff plate
rear (Refer to GROUP 52A, Interior
Trim

P.52A-10

).

•

Outer seat belt lower anchor bolt
(Refer to GROUP 52A, Front Seat
Belt

P.52A-35

).

•

Centre pillar trim lower (Refer to
GROUP 52A, Interior Trim

P.52A-10

).

•

Second seat assembly, Seat
anchor cover outer/inner, Slide
adjuster end cover outer/inner, Rail
cover outer/inner (Refer to GROUP
52A, Second Seat Assembly

P.52A-26

).

•

Gear shift lever knob <M/T> (Refer
to GROUP 22A, Transmission
Control

P.22A-7

).

•

Selector lever knob <A/T> (Refer to
GROUP 23A, Transmission Control

P.23A-141

).

•

Selector lever panel (Refer to
GROUP 52A, Instrument Panel
Assembly

P.52A-2

).

•

Cowl side trim <LH> (Refer to
GROUP 52A, Interior Trim

P.52A-10

).

•

Glove box assembly (Refer to
GROUP 52A, Instrument Panel
Assembly

P.52A-2

).

•

Fuel filler lid lock release handle
(Refer to GROUP 42, Fuel Filler Lid

P.42-7

).

•

Cowl side trim <RH> (Refer to
GROUP 52A, Interior Trim

P.52A-10

).

•

Lower panel, Console side cover,
Centre console (Refer to GROUP
52A, Instrument Panel Assembly

P.52A-2

).

•

Foot rest

•

Accelerator pedal arm stopper
(Refer to GROUP 17, Accelerator
pedal

P.17-3

).

Removal steps (Continued)

GLASS ANTENNA

CHASSIS ELECTRICAL

54A-141

•

Floor carpet

•

Side roof duct, Centre roof duct
(Refer to GROUP 55, Duct

P.55-228

).

•

Curtain air bag module (Refer to
GROUP 52B, Side and Curtain Air
Bag Module(s)

P.52B-231

).

•

Instrument centre panel (Refer to
GROUP 52A, Instrument Panel
Assembly

P.52A-2

).

•

Radio and CD player (Refer to

P.54A-138

).

1.

Antenna feeder cable

2.

Glass antenna amplifier

Removal steps (Continued)

CENTRE DISPLAY

CHASSIS ELECTRICAL

54A-142

CENTRE DISPLAY

SPECIAL TOOLS

M1543000602097
