Mitsubishi Grandis. Manual - part 346





54A-3

SPECIAL TOOL  . . . . . . . . . . . . . . . . . . . . .

54A-102

COLUMN SWITCH . . . . . . . . . . . . . . . . . . .

54A-103

REMOVAL AND INSTALLATION . . . . . . . .

54A-103

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

54A-103

RADIO AND CD PLAYER . . . . . . . . .

54A-104

SPECIAL TOOLS . . . . . . . . . . . . . . . . . . . .

54A-104

TROUBLESHOOTING  . . . . . . . . . . . . . . . .

54A-104

TROUBLESHOOTING  . . . . . . . . . . . . . . . .

54A-104

TROUBLE SYMPTOM CHART. . . . . . . . . .

54A-105

SYMPTOM PROCEDURES . . . . . . . . . . . .

54A-106

Inspection Procedure 1: Power of radio and CD player
does not turn ON when the ignition switch is in the

"ACC" position or "ON" position. . . . . . . . . .

54A-106

Inspection Procedure 2: No Sound from One Speaker.

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-109

INSPECTION PROCEDURE 3: Noise Appears at

Certain Places when Travelling (AM).. . . . .

54A-121

INSPECTION PROCEDURE 4: Noise is Present while

Moving (FM). . . . . . . . . . . . . . . . . . . . . . . . .

54A-122

INSPECTION PROCEDURE 5: Mixed with Noise, Only

at Night (AM).  . . . . . . . . . . . . . . . . . . . . . . .

54A-123

INSPECTION PROCEDURE 6: Broadcasts can be
Heard but Both AM and FM have a lot of Noise.

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-123

INSPECTION PROCEDURE 7: There is More Noise on

Either AM or FM. . . . . . . . . . . . . . . . . . . . . .

54A-124

INSPECTION PROCEDURE 8: There is Noise when

Starting the Engine.. . . . . . . . . . . . . . . . . . .

54A-125

INSPECTION PROCEDURE 9: Some Noise Appears
When There is Vibration or Shocks During Travelling.

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-127

INSPECTION PROCEDURE 10: Noise Sometimes

Appears on FM during Travelling. . . . . . . . .

54A-127

INSPECTION PROCEDURE 11: Ever-Present Noise.

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-128

INSPECTION PROCEDURE 12: There is Noise but No
Reception for Both AM and FM or No Sound from AM,

or No Sound from FM.. . . . . . . . . . . . . . . . .

54A-128

INSPECTION PROCEDURE 13: Poor Reception.

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-129

INSPECTION PROCEDURE 14: Distortion on AM or on

Both AM and FM.  . . . . . . . . . . . . . . . . . . . .

54A-130

INSPECTION PROCEDURE 15: Distortion on FM
Only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-131

INSPECTION PROCEDURE 16: Using the Auto Select
Function, Too Few Automatic Stations are Selected.

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-131

Inspection Procedure 17: Preset Station are Erased.

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-132

INSPECTION PROCEDURE 18: CD can Not be
Inserted.  . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-135

INSPECTION PROCEDURE 19: No Sound. (CD only)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-135

INSPECTION PROCEDURE 20: CD Sound Skips.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-136

INSPECTION PROCEDURE 21: Sound Quality is
Poor.  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-136

INSPECTION PROCEDURE 22: CD can not be
ejected.  . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-136

ON-VEHICLE SERVICE . . . . . . . . . . . . . . .

54A-137

SPEAKER TEST . . . . . . . . . . . . . . . . . . . . .

54A-137

RADIO AND CD PLAYER . . . . . . . . . . . . . .

54A-138

REMOVAL AND INSTALLATION  . . . . . . . .

54A-138

SPEAKER . . . . . . . . . . . . . . . . . . . . . .

54A-139

REMOVAL AND INSTALLATION  . . . . . . . .

54A-139

GLASS ANTENNA . . . . . . . . . . . . . . .

54A-140

REMOVAL AND INSTALLATION  . . . . . . . .

54A-140

CENTRE DISPLAY . . . . . . . . . . . . . . .

54A-142

SPECIAL TOOLS  . . . . . . . . . . . . . . . . . . . .

54A-142

TROUBLESHOOTING  . . . . . . . . . . . . . . . .

54A-144

TROUBLESHOOTING  . . . . . . . . . . . . . . . .

54A-144

DIAGNOSIS FUNCTION . . . . . . . . . . . . . . .

54A-144

DIAGNOSIS CODE CHART  . . . . . . . . . . . .

54A-144

DIAGNOSIS CODE INSPECTION PROCEDURES

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-145

Code No.U1073 Bus Off . . . . . . . . . . . . . . .

54A-145

Code No.U1100 engine-ECU <M/T> or
engine-A/T-ECU <A/T> time-out (related to engine)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-146

Code No.U1108 Combination Meter Time-out

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-147

Code No.U1109 ETACS-ECU Time-out  . . .

54A-148

Code No.U1110 A/C-ECU Time-out  . . . . . .

54A-149

Code No.U1120 Failures Information on engine-ECU
<M/T> or engine-A/T-ECU <A/T> (Related to Engine)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-151

Code No.U1128 Failures Information on Combination
Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-152

Code No.U1130 Failures Information on A/C-ECU

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-153

Code No.U1600, U1601 M-BUSY open, short

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-154

Code No.U1602, U1603 M-DATA open, short

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-155

Code No.U1604, U1605 M-SCK open, short

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-156

TROUBLE SYMPTOM CHART . . . . . . . . . .

54A-157

INSPECTION PROCEDURE FOR TROUBLE

54A-4

SYMPTOMS . . . . . . . . . . . . . . . . . . . . . . . .

54A-158

INSPECTION PROCEDURE 1: Communication with

the MUT-III is not possible. . . . . . . . . . . . . .

54A-158

INSPECTION PROCEDURE 2: Check the centre

display power supply circuit. . . . . . . . . . . . .

54A-161

INSPECTION PROCEDURE 3: The clock display is not
normal.  . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-168

Inspection Procedure 4: "

−" is displayed on the driving

information display or the display is not normal.

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-170

Inspection Procedure 5: "

−" is displayed on the ambient

temperature display. . . . . . . . . . . . . . . . . . .

54A-172

Inspection Procedure 6: The radio and CD player

information cannot be displayed or the display is not
normal.. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-173

CENTRE DISPLAY . . . . . . . . . . . . . . . . . . .

54A-175

REMOVAL AND INSTALLATION  . . . . . . . .

54A-175

DEFOGGER  . . . . . . . . . . . . . . . . . . . .

54A-175

TROUBLESHOOTING  . . . . . . . . . . . . . . . .

54A-175

ON-VEHICLE SERVICE . . . . . . . . . . . . . . .

54A-176

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

54A-176

DEFOGGER SWITCH. . . . . . . . . . . . .

54A-176

REMOVAL AND INSTALLATION  . . . . . . . .

54A-176

BATTERY

CHASSIS ELECTRICAL

54A-5

BATTERY

SERVICE SPECIFICATIONS

M1541000300276

ON-VEHICLE SERVICE

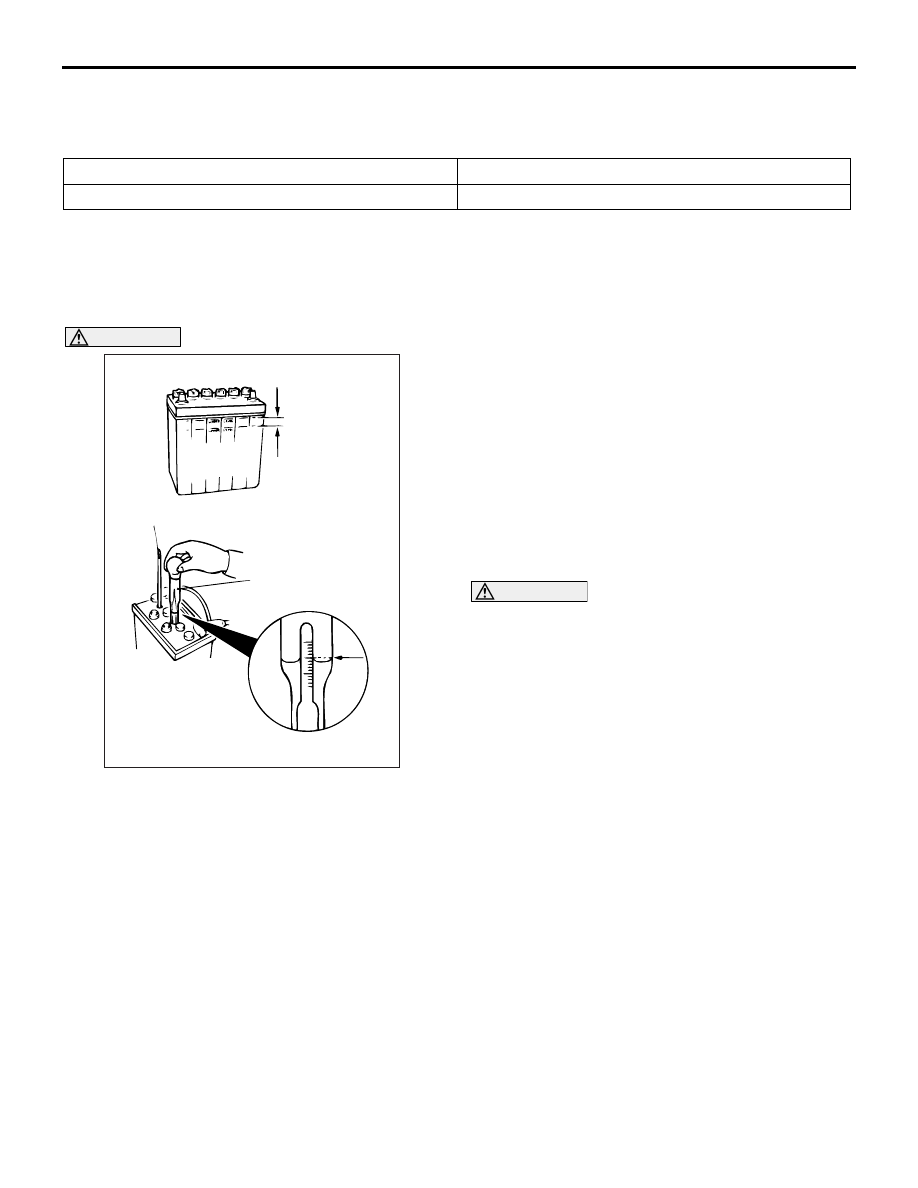

FLUID LEVEL AND SPECIFIC GRAVITY
CHECK

M1541000900096

CAUTION

• If the battery is used with the electrolyte level

below the LOWER LEVEL indicator, there is
the danger that explosions may occur, so add
water to the battery until the electrolyte level
is between the LOWER LEVEL and UPPER
LEVEL indications.

• If too much water is added to make the level

rise above the UPPER LEVEL indication, the
electrolyte may leak out, so adjust so that the
electrolyte level is between the LOWER
LEVEL and UPPER LEVEL indications.

1. Check that the battery electrolyte level is between

the UPPER LEVEL and LOWER LEVEL
indications.

2. Use a specific gravity meter and a thermometer to

measure the specific gravity.

Standard value: 1.220

 1.290 (electrolyte

temperature 20

°C)

3. The specific gravity of the battery electrolyte

changes according to the temperature, so the
specific gravity when the electrolyte is at a
temperature of 20

°C can be calculated using the

following formula. Use the converted value to
judge whether the electrolyte is okay or not.

D

20

 = (t

 20) X 0.0007 + Dt

D

20

: Specific gravity converted to a value for

electrolyte temperature of 20

°C

t: Electrolyte temperature at the time of
measurement
Dt: Actual specific gravity

CHARGING

M1541001100639

CAUTION

• The battery plugs should be removed during

charging.

• The battery electrolyte level may rise and

overflow from the battery during charging.

• Explosions may occur if the battery is

brought close to naked flames during
charging.

• Be careful to avoid tasks that might produce

sparks or other danger while the battery is
charging.

• After charging is complete, replace the

battery plugs, pour water over the battery to
rinse away any sulphuric acid, and let the
battery stand to dry.

• Charge the battery in a well-ventilated

location.

• Do not let the battery electrolyte temperature

rise above approximately 45

°C (approximately

55

°C during rapid charging).

1. Remove the battery from the vehicle.
2. The normal charging current is a value in

amperes which is 1/10th of the battery capacity. If
the battery needs to be charged rapidly because
of reasons such as time limitations, the maximum
charging current for rapid charging is the battery
capacity expressed as an ampere value.

Item

Standard value

Battery electrolyte specific gravity

1.220

− 1.290 (electrolyte temperature 20°C)

AC102027AE

OK

Thermometer

Specific
gravity meter

BATTERY

CHASSIS ELECTRICAL

54A-6

3. Determine when charging is finished.

• When the specific gravity of the battery

electrolyte is constantly within 1.250

− 1.290 for a

continuous period of one hour or more.

• When the voltage per cell during charging is 2.5 −

2.8 V constantly for a continuous period of one
hour or more.

BATTERY TEST

M1541001200647

TEST STEPS

Step 1. Battery no-load voltage check
(1) Illuminate the headlamp for 15 seconds.
(2) Turn off the headlamp and then leave it for about

2 minutes to stabilise the battery voltage.

(3) Remove the battery cable.
(4) Measure the battery no-load voltage.

OK: 12.4 V or more (Specific gravity
1.240)

Q: Does the measured voltage correspond with this

range?

YES :

Go to Step 3.

NO :

Go to Step 2.

Step 2. Battery charging

Q: Does the battery recharge?

YES :

Recharge the battery at 5A

(constant-current charging) and then go to
Step 1. (Refer to Table 1.)

NO :

Go to Step 3.

STEP 3. Load test check
(1) Connect the battery tester to battery.
(2) Feed a load current through the battery. (Refer to

Table 1.)

(3) Measure the battery voltage after 15 seconds

and then eliminate a load current.

(4) Compare the measured voltage to the specified

lowest voltage. (Refer to Table 2.)

Q: Is the measured voltage higher than the lowest

voltage?

YES :

The battery is normal.

NO :

Replace the battery.

(TABLE 1)

(TABLE 2)

Battery type

Capacity (5-hour rate)

Normal charging current Rapid charging current

75D23L

52 A

5.2 A

52 A

Battery type

75D23L

Charging time when fully discharged [5A constant current charging] (H)

11

Load current (A)

260

Outside air
temperature (

°C)

21 or
more

16

 20

10

 15

  9

-1

 -3

-7

 -2

-12

 -8

-18

 -13

Minimum voltage
(V)

9.6

9.5

9.4

9.3

9.1

8.9

8.7

8.5
