TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-149

INSPECTION PROCEDURE 21: Rear fan switch system <RHD>

COMMENTS ON TROUBLE SYMPTOM

If a rear fan switch signal is not set to the A/C-ECU,
the rear fan switch or the rear fan switch circuit
system may be defective.

POSSIBLE CAUSES

• Malfunction of the rear fan switch

• Malfunction of the A/C-ECU

• Damaged harness wires and connectors

DIAGNOSIS

Step 1. Connector check: C-19 rear fan switch

Q:  Is the check result normal?

IGNITION
SWITCH (IG2)

REAR
FAN
SWITCH

A/C-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

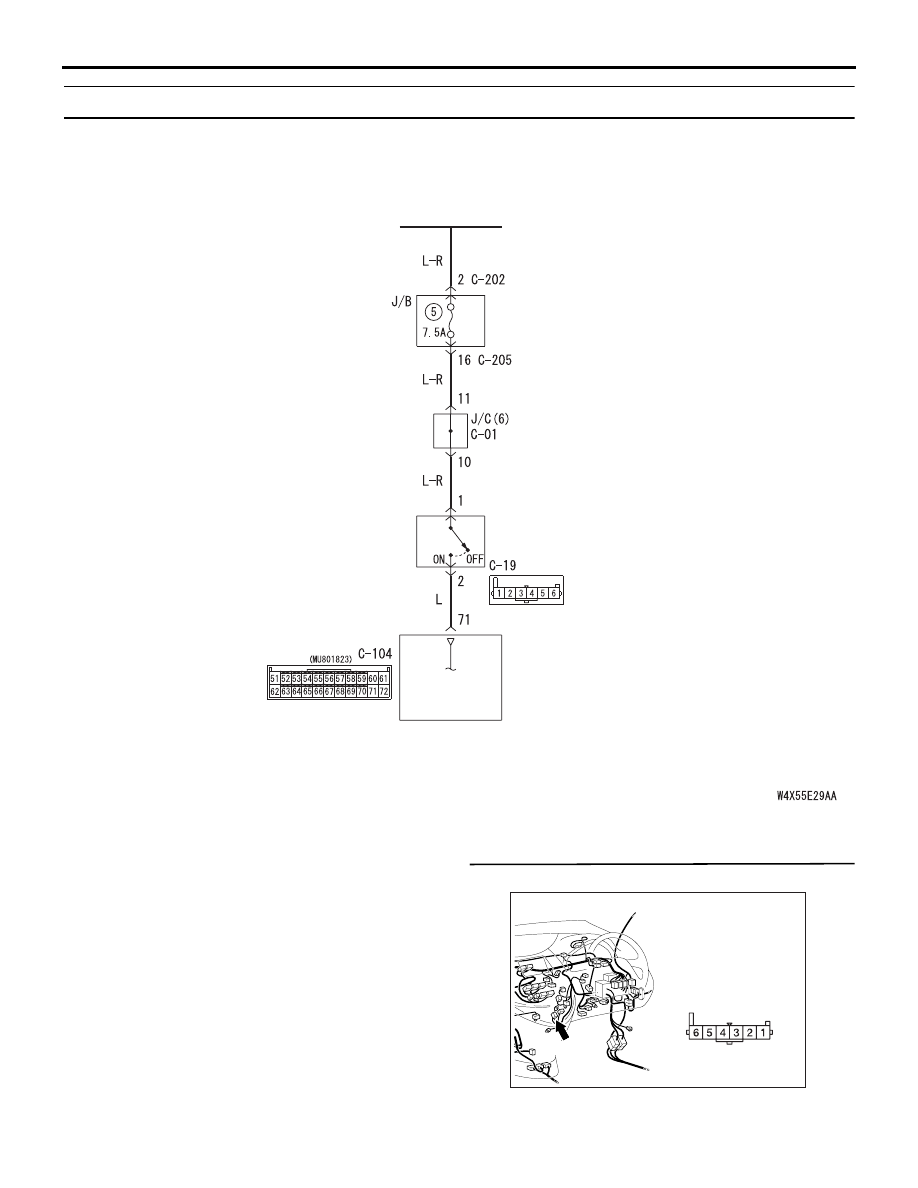

Rear Fan Switch Circuit

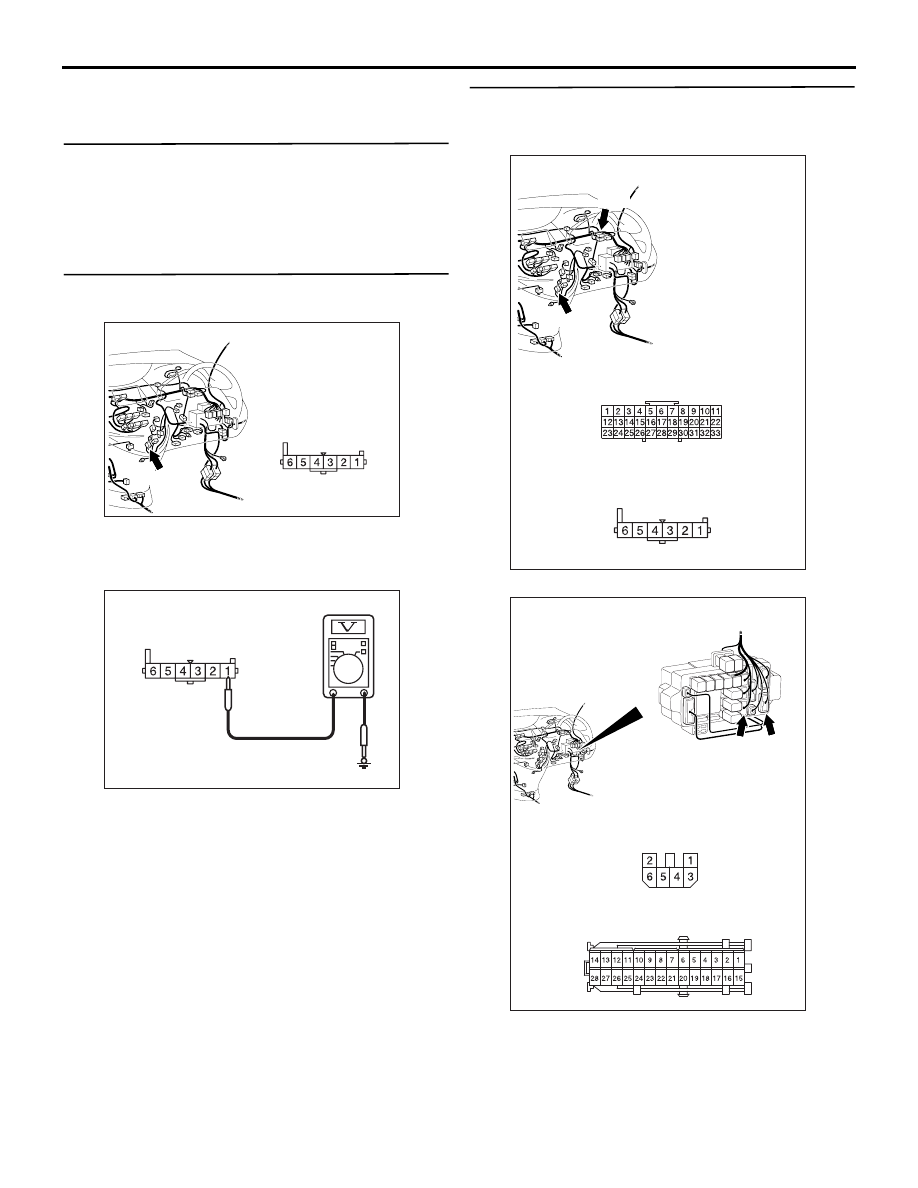

AC310631AI

Connector: C-19 <RHD>

Harness side

C-19 (GR)

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-150

YES :

Go to Step 2.

NO :

Repair the connector.

Step 2. Check the rear fan switch

 Refer to

P.55-199

.

Q:  Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the rear fan switch.

Step 3. Voltage measurement at C-19 rear fan
switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Measure the voltage between terminal 1 and

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness between C-19
rear fan switch connector terminal No.1 and the
ignition switch (IG2).

NOTE:

Prior to the wiring harness inspection, check joint
connector C-01 and junction block connector C-205
and C-202, and repair if necessary.

• Check the rear fan switch power supply line for

open circuit.

Q: Is the check result normal?

AC310631AI

Connector: C-19 <RHD>

Harness side

C-19 (GR)

AC310507

Connector C-19
(Harness side)

BD

AC310632AJ

Connectors: C-01, C-19 <RHD>

C-01

C-19 (GR)

C-01

C-19

Harness side

AC310619

Connectors: C-202, C-205 <RHD>

AF

Junction block (Front view)

C-205

C-202

C-205

Harness side

C-202

Harness side

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-151

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-5

.)

NO :

Repair the wiring harness.

Step 5. Connector check: C-104 A/C-ECU
connector

Q:  Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the connector.

Step 6. Check the wiring harness between C-19
rear fan switch connector terminal No.2 and
C-104 A/C-ECU connector terminal No.71.

• Check the rear fan switch activating lines for

open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

STEP 7. Recheck the trouble symptom

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-5

.)

NO :

Replace the A/C-ECU.

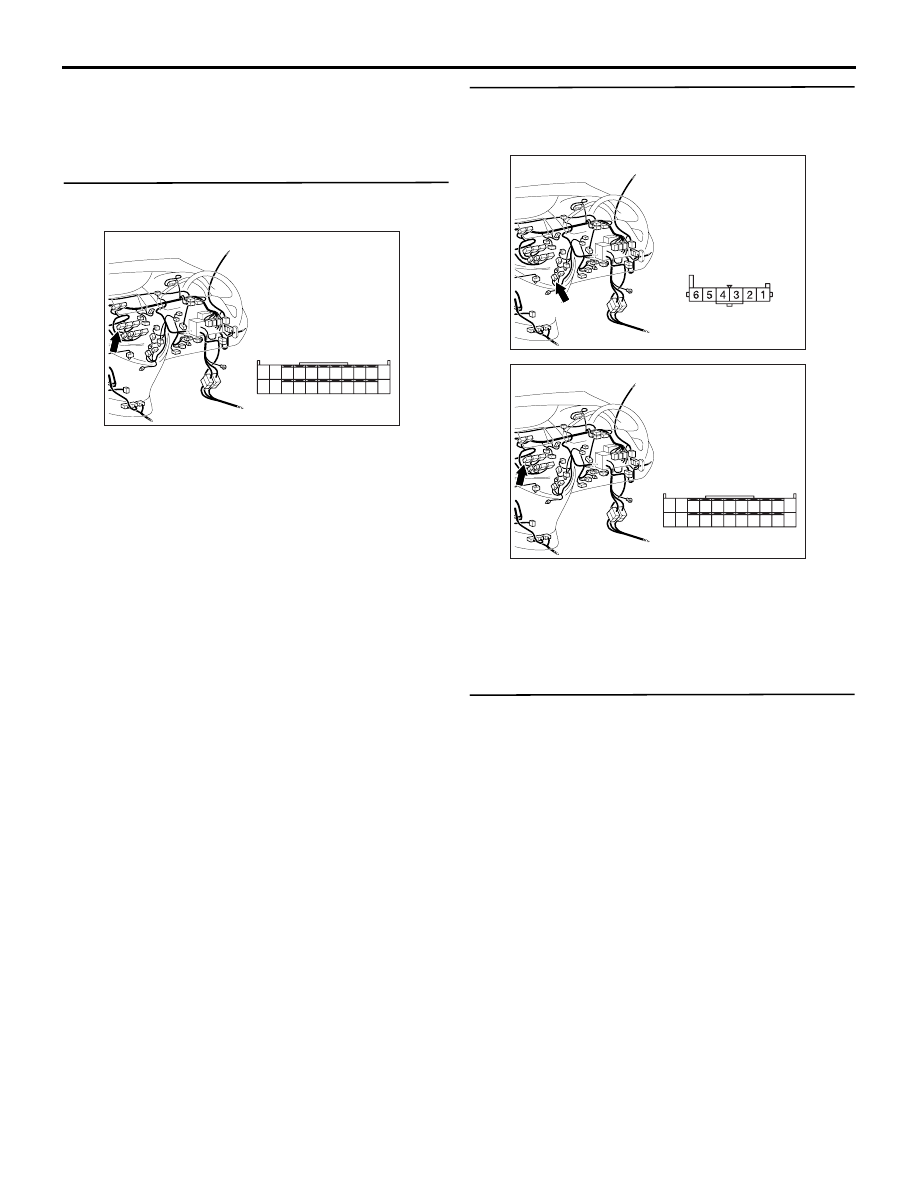

AC310631AH

Connector: C-104 <RHD>

Harness side

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

AC310631AI

Connector: C-19 <RHD>

Harness side

C-19 (GR)

AC310631AH

Connector: C-104 <RHD>

Harness side

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-152

INSPECTION PROCEDURE 22: Rear blower motor power supply system <LHD>

CIRCUIT OPERATION

If the rear blower motor does not operate, the rear
blower motor circuit system may be defective.

POSSIBLE CAUSES

• Malfunction of rear blower relay

• Malfunction of rear blower motor

• Malfunction of rear power transistor

• Malfunction of the A/C-ECU

• Damaged harness wires and connectors

FUSIBLE
LINK

30

IGNITION
SWITCH (IG2)

FUSE BOX

REAR
BLOWER
RELAY

REAR
BLOWER
MOTOR

REAR
POWER
TRANSISTOR

A/C-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

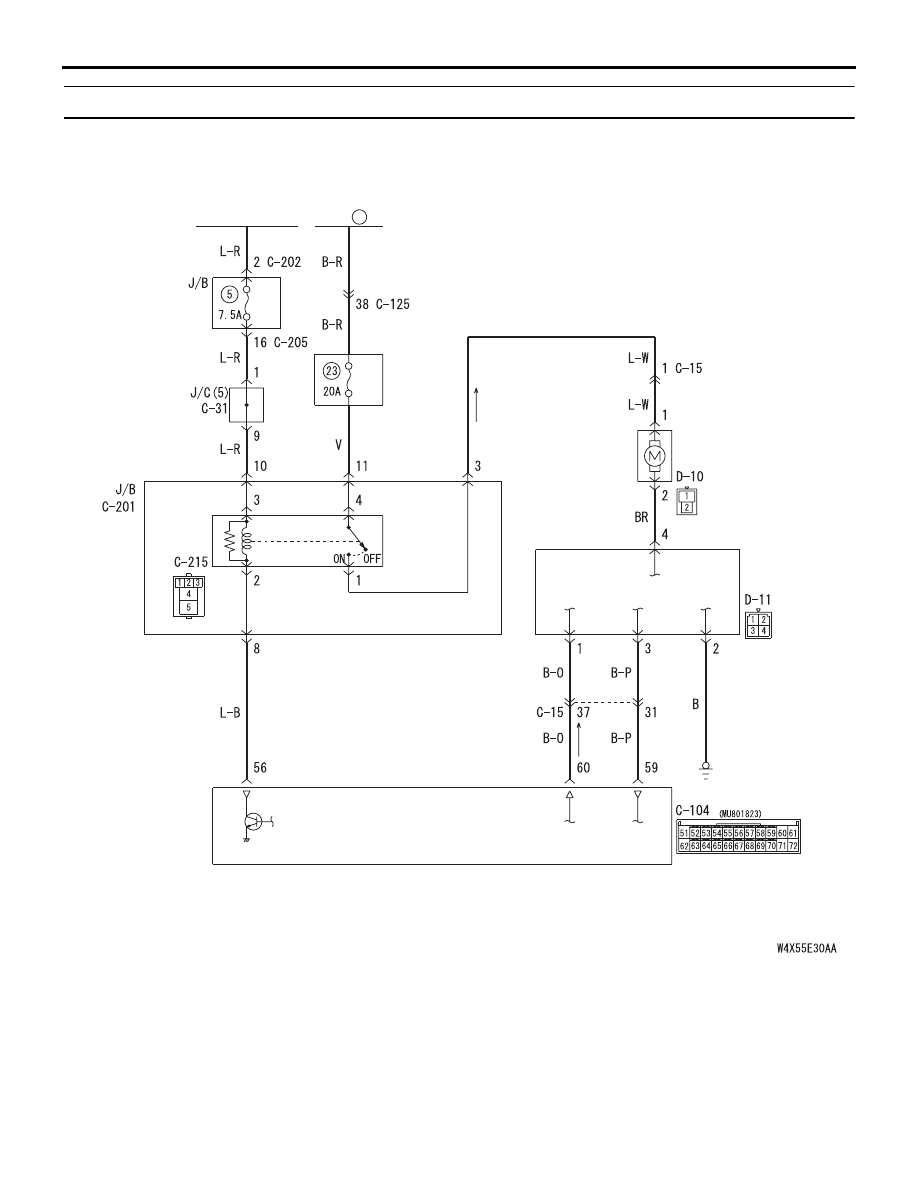

Rear Blower Motor Circuit
