INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-526

Step 2. Check the door key switch.

Refer to GROUP 42

− Door

P.42-38

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the door key switch.

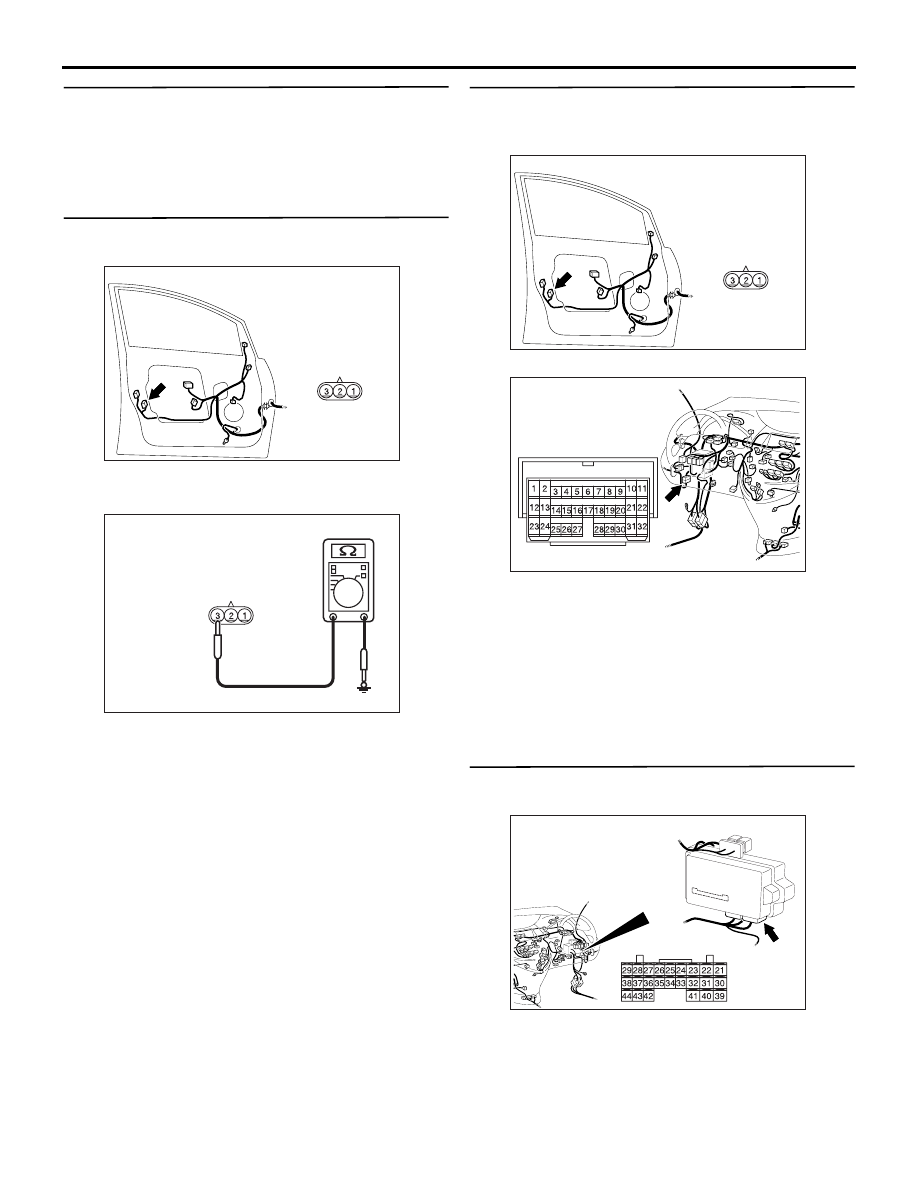

Step 3. Resistance measurement at the F-23 door
key switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between F-23 door key switch

connector terminal No.3 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness between F-23
door key switch connector terminal No.3 and
body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-27, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Intermittent malfunction. (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 5. Connector check: C-220 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC312091

AB

Connector: F-23 <RHD>

Harness side

AC312730AI

Connector F-23
(Harness side)

AC312091

AB

Connector: F-23 <RHD>

Harness side

AC312031

AH

Connector: C-27 <RHD>

AC312047

Connector: C-220

Junction block (Rear view)

AC

<RHD>

Harness side

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-527

Step 6. Check the wiring harness from F-23 door
key switch connector terminal Nos.1 and 2 to
C-220 ETACS-ECU connector terminal Nos.33
and 34.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-27, and repair if necessary.

• Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

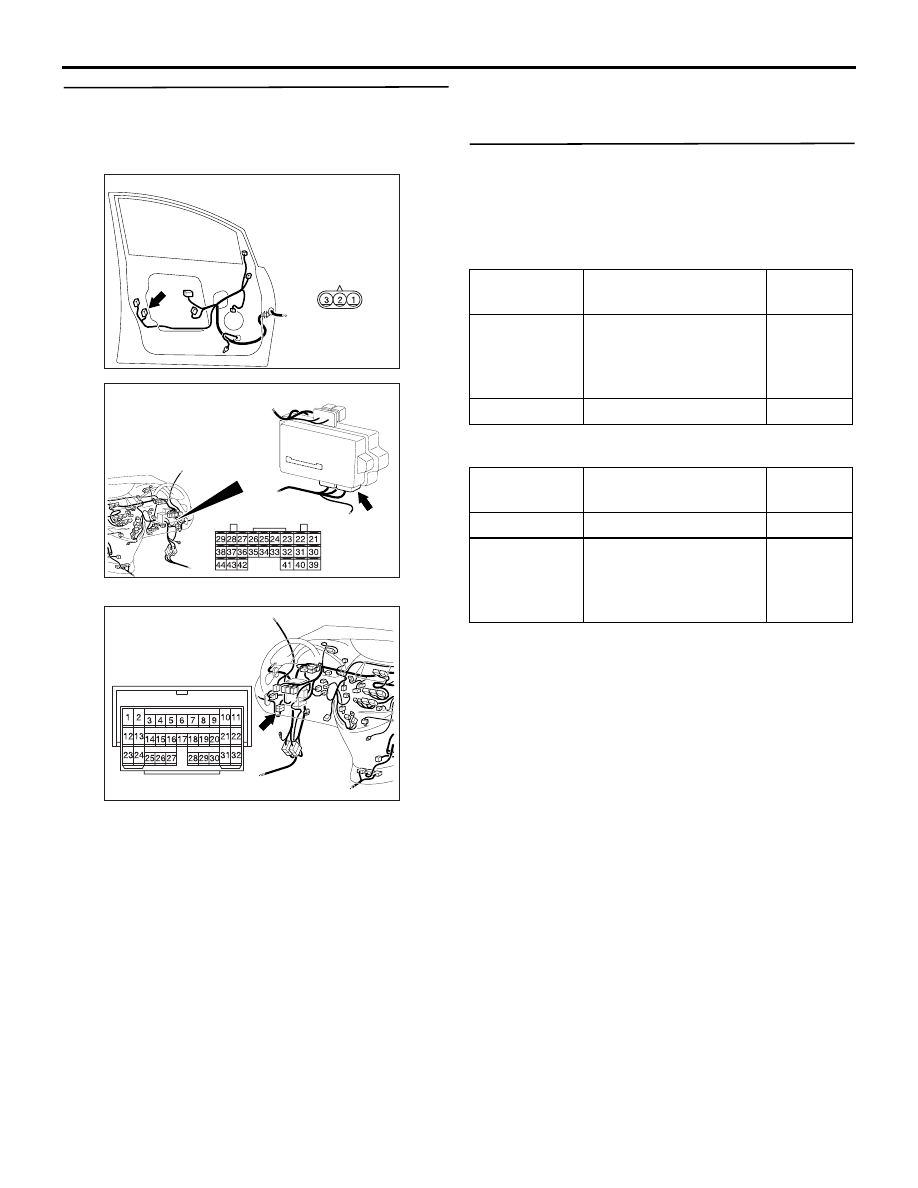

Step 7. ETACS switch data by using the SWS
monitor

Check the input signal from the passenger’s door
lock key switch.

• Passenger’s door lock key cylinder: Neutral to

lock

• Passenger’s door lock key cylinder: Neutral to

unlock

OK: Normal conditions are displayed for all
the items.

Q: Are the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

AC312091

AB

Connector: F-23 <RHD>

Harness side

AC312047

Connector: C-220

Junction block (Rear view)

AC

<RHD>

Harness side

AC312031

AH

Connector: C-27 <RHD>

Item No.

Item name

Normal
condition

Item 26

CNTR DOOR LCK

ON (only
when
operated
to lock)

Item 27

CNTR DOOR ULCK

OFF

Item No.

Item name

Normal
condition

Item 26

CNTR DOOR LCK

OFF

Item 27

CNTR DOOR ULCK

ON (only
when
operated
to unlock)

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-528

Inspection Procedure Q-17: The tailgate key switch signal is not detected.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

Input signal from the tailgate key switch is used to
operate the central door locking function. If the signal
is abnormal, the central door locking function will not
work normally.

POSSIBLE CAUSES

• Malfunction of the tailgate key switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Connector check: G-16 tailgate key
switch connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

TAILGATE
KEY SWITCH

ETACS-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

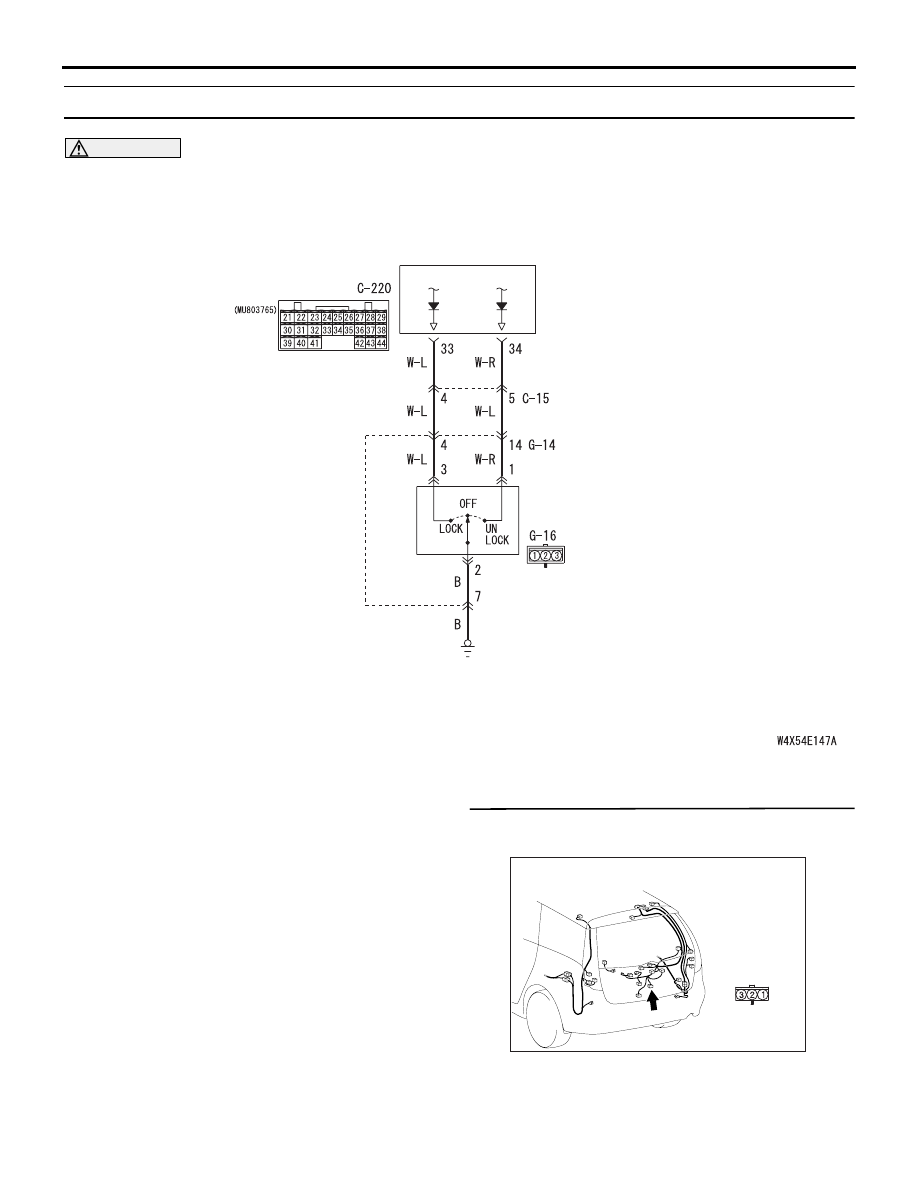

Tailgate Key Switch Input Circuit

AC312078

Connector: G-16

Harness side

AD

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-529

Step 2. Check the tailgate key switch.

Refer to GROUP 42

− Door

P.42-38

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the tailgate lock key switch.

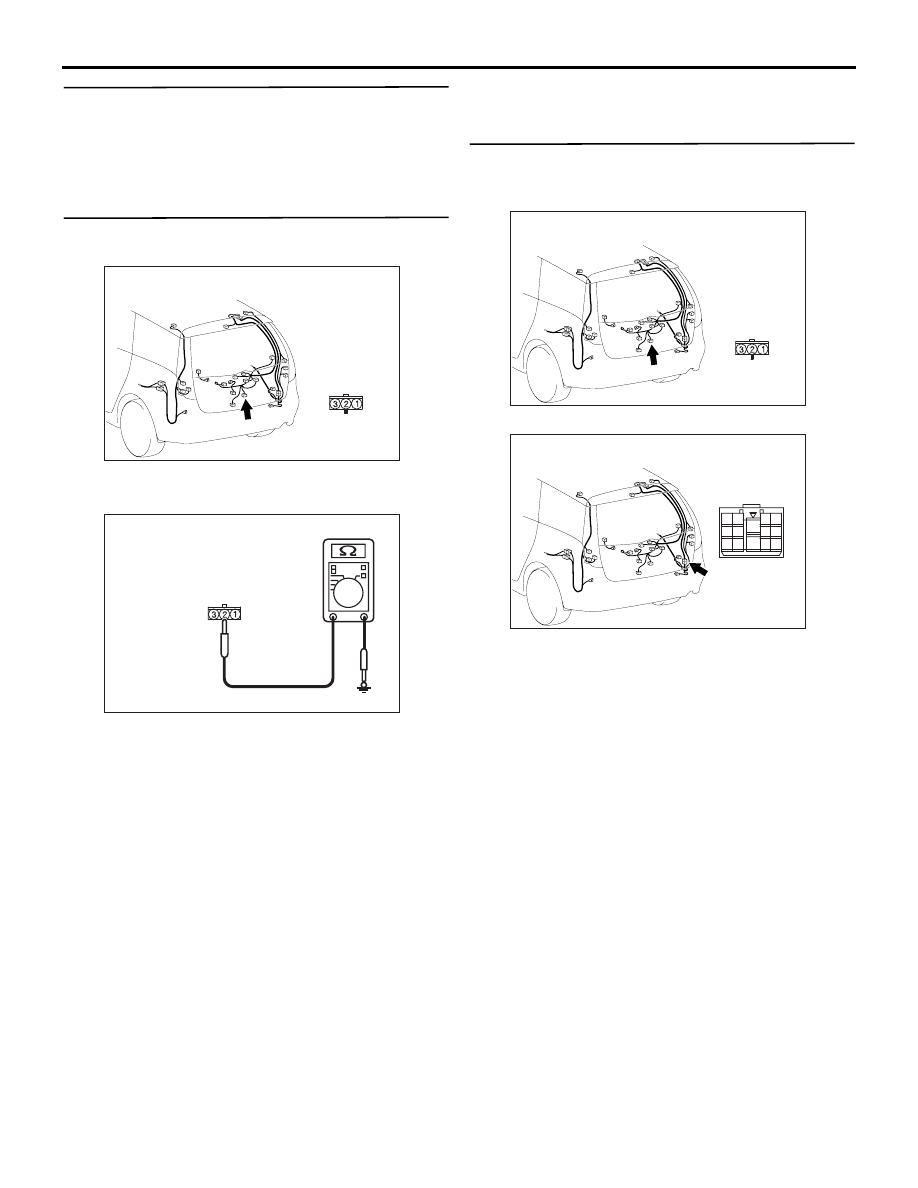

Step 3. Resistance measurement at the G-16
tailgate key switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between G-16 tailgate key switch

connector terminal No.2 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness between G-16
tailgate key switch connector terminal No.2 and
body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector G-14, and repair if
necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Intermittent malfunction. (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

)).

NO :

Repair the wiring harness.

AC312078

Connector: G-16

Harness side

AD

AC312730AK

Connector G-16
(Harness side)

AC312078

Connector: G-16

Harness side

AD

AC312078

Connector: G-14

AC

2

1

4

3

13

8

11

10

5

7

12

6

14
