SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-262

Step 9. Connectors check: F-13 door mirror
assembly (RH) connectors.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the connector.

Step 10. Check the door mirror assembly (RH).

Check that the electric folding outside rear-view
mirror (RH) works normally. Refer to GROUP 51

−

Door mirror

P.51-39

.

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Go to Step 11.

Step 11. Connectors check: F-13-3 retractor
motor (RH) connectors.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the connector.

Step 12. Check the retractor motor (RH).

Check that the electric folding outside rear-view
mirror (RH) works normally. Refer to GROUP 51

−

Door mirror

P.51-39

.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Replace the retractor motor (RH).

Step 13. Check the wiring harness between
F-13-3 retractor motor (RH) connector terminal
Nos.1, 2 and F-13 door mirror assembly (RH)
connector terminal Nos.7, 6.

• Check the input and output signal line for open

circuit.

Q: Is the check result normal?

YES :

Replace the door mirror assembly (RH).

NO :

Repair the wiring harness.

AC311147

AH

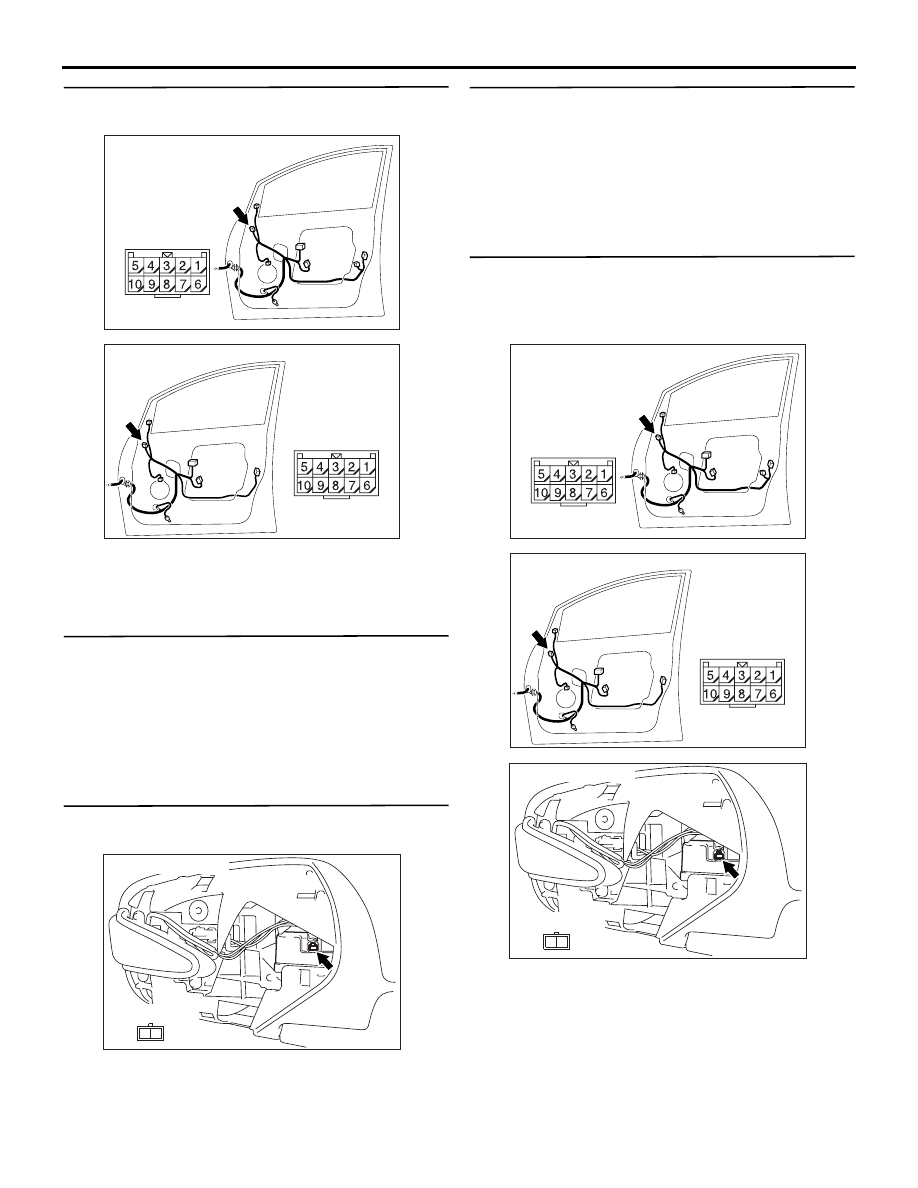

Connector: F-13 <LHD>

Harness side

AC310213

AG

Connector: F-13 <RHD>

Harness side

AC311869AB

Connector: F-13-3

Harness side

2 1

AC311147

AH

Connector: F-13 <LHD>

Harness side

AC310213

AG

Connector: F-13 <RHD>

Harness side

AC311869AB

Connector: F-13-3

Harness side

2 1

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-263

Step 14. Connector check: C-220 ETACS-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the connector.

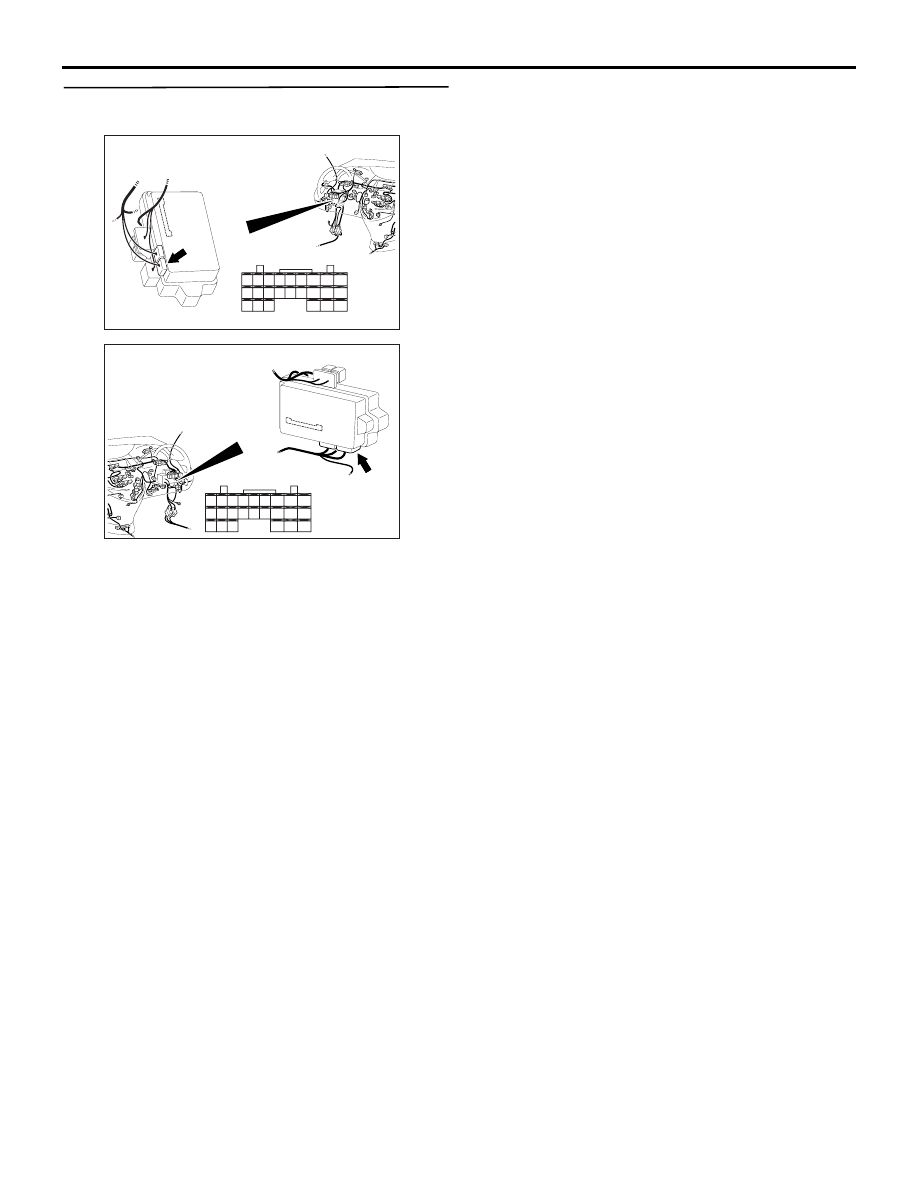

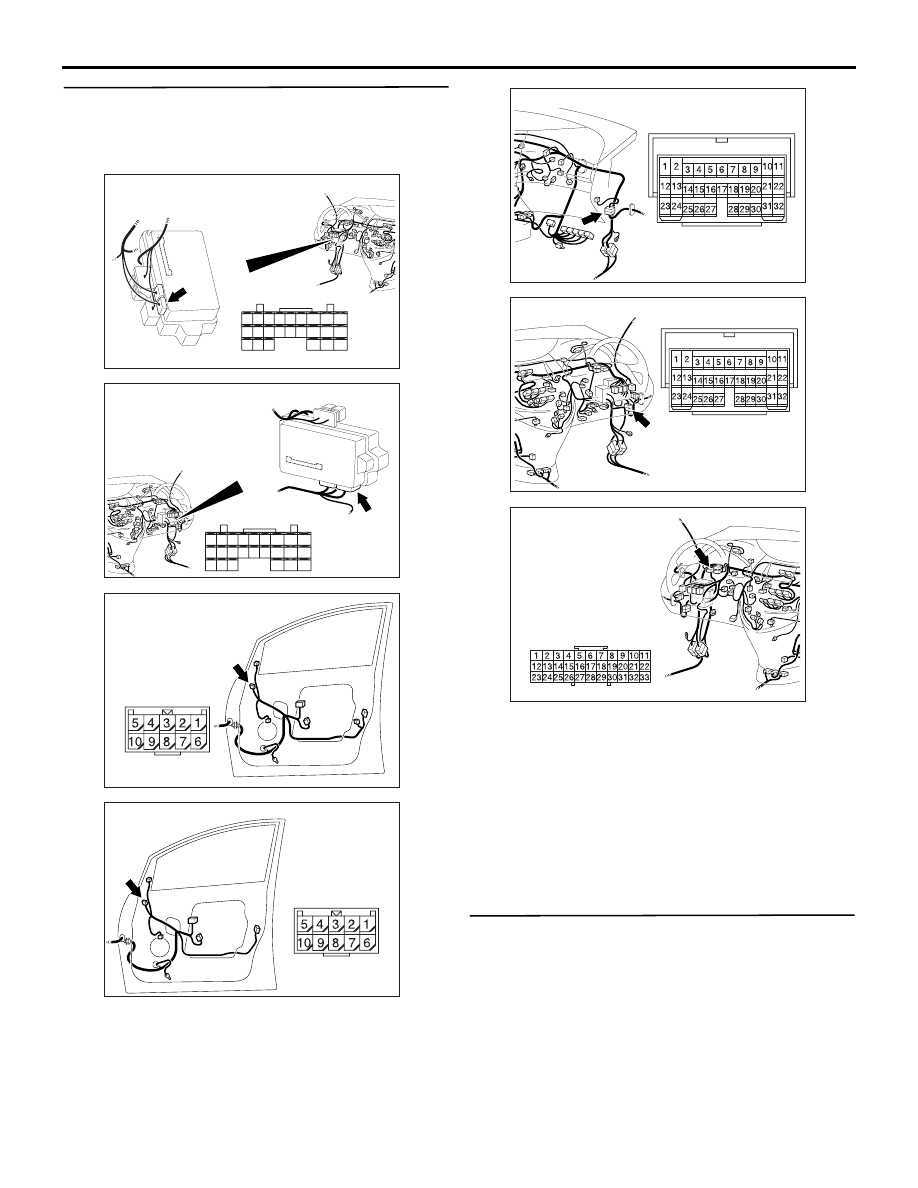

AC310626

Connector: C-220 <LHD>

Junction block (Rear view)

AE

Harness side

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

AC310620

Connector: C-220 <RHD>

Junction block (Rear view)

AD

Harness side

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-264

Step 15. Check the wiring harness between C-220
ETACS-ECU connector terminal Nos.31, 40 and
E-13 door mirror assembly (RH) connector
terminal Nos.7, 6.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-14 and junction block
connector C-32 <L.H drive vehicles>, and repair if
necessary.

• Check the input and output signal line for open

circuit.

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Repair the wiring harness.

Step16. Retest the system.

Check that the electric retractable remote controlled
mirror works normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

AC310626

Connector: C-220 <LHD>

Junction block (Rear view)

AE

Harness side

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

AC310620

Connector: C-220 <RHD>

Junction block (Rear view)

AD

Harness side

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

AC311147

AH

Connector: F-13 <LHD>

Harness side

AC310213

AG

Connector: F-13 <RHD>

Harness side

AC310615

AB

Connector: C-14 <LHD>

AC310631

Connector: C-14 <RHD>

AG

AC310613

AG

Connector: C-32 <LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-265

Inspection Procedure J-3: Electric retractable remote controlled door mirror timer function does not
at all.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the door mirror can be folded and unfolded with the
remote controlled mirror switch (fold/unfold switch),
the ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check the electric retractable door
mirrors operation.

Check that the door mirror is folded and unfolded
with the remote controlled mirror switch when the
ignition switch is at ACC position.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure J-1 "The
electric retractable remote controlled door
mirrors does not work at all

P.54C-250

."

Step 2. ECU check on the SWS monitor.

Check that the power supply and earth lines to the
ETACS-ECU and the SWS communication lines are
normal.

• Ignition switch: OFF

ECU TO BE CHECKED

• ETACS ECU

OK: "OK" is displayed on the "ETACS ECU"
menu.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible

P.54C-63

."

Step 3. SWS monitor data list.

Check the SWS communication signal, which are
related to the electric retractable door mirror timer
function.

<Selected item> ETACS ECU

• Ignition switch: IG1

OK: Normal conditions is displayed.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Refer to inspection procedure Q-2 "The
ignition switch (IG1) signal is not received

P.54C-460

."

Step 4. Retest the system.

Check that the electric retractable door mirror timer
function works normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

Item No.

Item name

Normal
conditions

Item 30

IG SW (IG1)

ON
