SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-190

Step 3. Use the SWS monitor to examine the
keyless entry system for signal reception.

Check the condition of the keyless entry transmitter.

OK: By operating the switch as shown in the
table above, relevant normal conditions are
displayed.

Q: Are the check result normal?

YES :

Go to Step 4.

NO :

Refer to Inspection Procedure Q-23 "Each
switch signal of the keyless entry transmitter
is not received

P.54C-562

."

Step 4. Retest the system.

Check that the encrypted code can be registered.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

INSPECTION PROCEDURE E-4: The Timer Lock Function does not Work after the Doors have been
Unlocked by the Keyless Entry System.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENT ON TROUBLE SYMPTOM

If the keyless entry timer lock does not work
normally, the input signal circuit(s) to the keyless
entry transmitter or the ETACS-ECU may be
defective.

POSSIBLE CAUSES

• Malfunction of the keyless entry transmitter

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the operation of the keyless entry
system.

Check that the keyless entry system works normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure E-1 "Keyless
entry system does not work

P.54C-186

."

Step 2. Customize function by using the SWS
monitor.

"KEYLESS LOCK T" is set to one of the followings by
using SWS monitor customization function. Check
that the timer lock is activated according to the
setting.

• 30s

• 60s

• 120s

• 180s

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

INSPECTION PROCEDURE E-5: Multimode keyless entry system function does not work at all.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the electric-folding door mirrors work normally, the
ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the keyless entry transmitter

• Malfunction of the ETACS-ECU

Operation switch

Normal conditions
(received signal)

LOCK

LOCK

UNLOCK

UNLOCK

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-191

DIAGNOSIS PROCEDURE

Step 1. Check the operation of the electric folding
outside rear-view mirrors.

Check that the electric folding outside rear-view
mirrors operate normally by using the remote
controlled mirror switch (folding/unfolding switch).

Q: Is the check result normal?

YES :

Go to Step 2

NO :

Refer to Inspection Procedure J-1 "Electric
retractable remote controlled door mirror
does not work at all.

P.54C-250

."

Step 2. Check the keyless entry transmitter.

Check that the keyless entry system works normally.

Q: Is the check result normal?

YES :

Go to Step 3

NO :

Refer to Inspection Procedure E-1 "Keyless
Entry System does not Work.

P.54C-186

."

Step 3. ECU check by using the SWS monitor.

Check that the power supply and earth lines to the
ETACS-ECU and the SWS communication lines are
normal.

• Ignition switch: OFF

• Operate the multimode function with the keyless

entry transmitter.

ECU TO BE CHECKED

• ETACS ECU

OK: "OK" is displayed on the "ETACS ECU"
menu.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible

P.54C-63

."

Step 4. Use the SWS monitor to examine the
keyless entry system for signal reception.

Check the condition of the keyless entry transmitter.

OK: By operating the switch as shown in the
table above, relevant normal conditions are
displayed.

Q: Are the check result normal?

YES :

Go to Step 5.

NO :

Refer to inspection procedure Q-23 "Each
switch signal of the keyless entry transmitter
is not received

P.54C-562

."

Step 5. SWS monitor data list.

Check the SWS communication signal, which is
related to the multi-mode keyless entry system.

<Selected item> ETACS

• Ignition switch: OFF

• Operate the multi-mode function with the keyless

entry transmitter.

OK: Normal conditions displayed for all the
items

Q: Are the check result normal?

Normal conditions are displayed for all the items. :

Go to Step 6.

Normal condition is not displayed for item No.30 :

Refer to inspection procedure Q-2 "The
ignition switch (IG1) signal is not received

P.54C-460

."

Normal condition is not displayed for item No.34 :

Replace the ETACS-ECU.

Operation switch

Normal conditions
(received signal)

LOCK (1 second or
more)

LOCK
LCK LNG PUSH

UNLOCK (1 second or
more)

UNLOCK
ULCK LNG PUSH

Item No.

Item name

Normal
conditions

Item 30

IGNITION SW IG1

OFF

Item 34

KEYLESS ENTRY

MULTI
CLOSE,
MULTI OPEN
or MULTI
STOP

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-192

Step 6. Retest the system.

Check that the multi-mode keyless entry system
works normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window main switch.

SUNROOF

Inspection Procedure F-1: The sunroof does not work at all.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the sunroof does not work at all, these power
supply circuit(s), these earth circuit(s), sunroof switch

or the sunroof motor assembly (sunroof ECU) may
be defective.

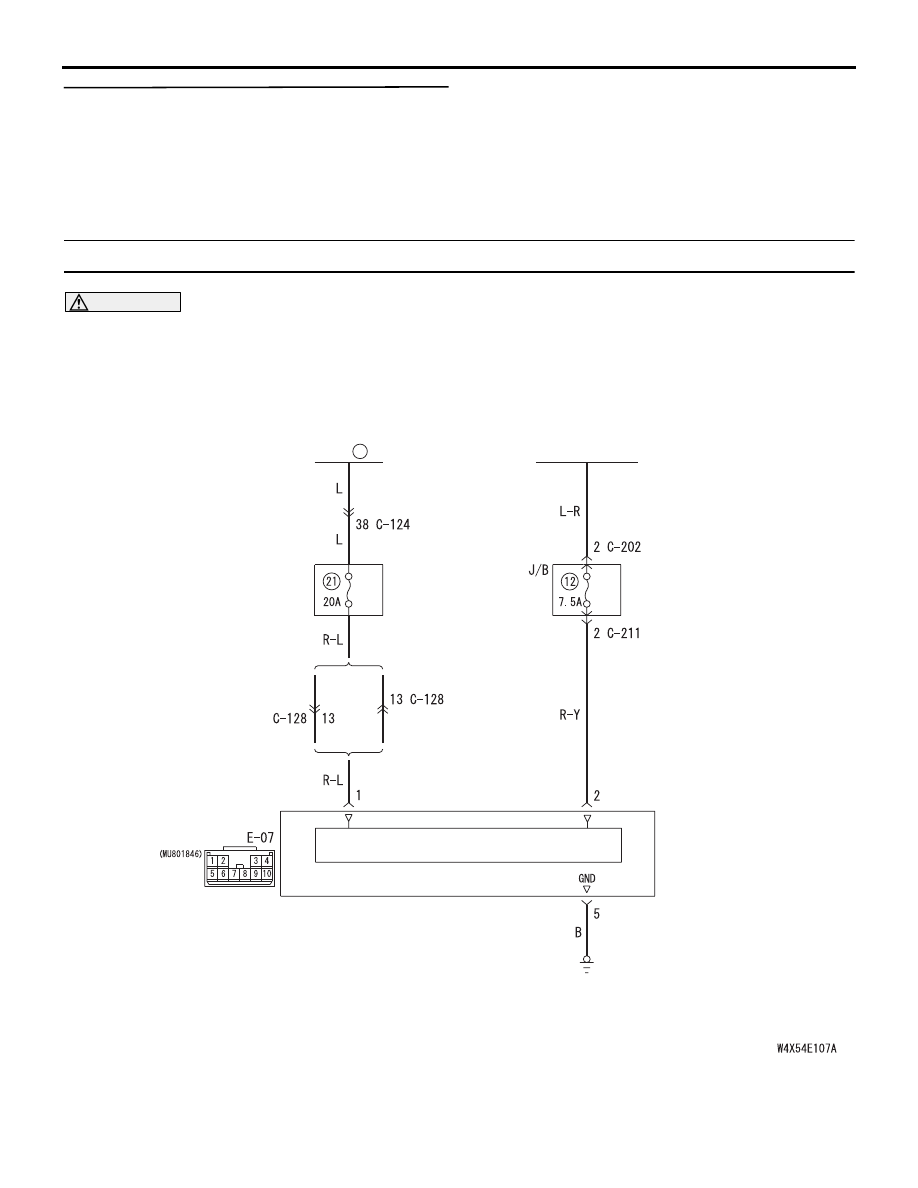

Sunroof Motor Assembly Power Supply Circuit

CONTROL CIRCUIT

IGNITION
SWITCH (IG2)

FUSE
BOX

<LHD>

<RHD>

SUNROOF MOTOR
ASEEMBLY

 5

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

FUSIBLE
LINK

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-193

POSSIBLE CAUSES

• Malfunction of the sunroof switch

• Malfunction of the sunroof motor assembly

(sunroof ECU)

• Malfunction of the power window main switch

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check the power window main switch.

Check that the power window lock switch is turned
off.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Turn off the power window lock switch.

Step 2. ECU check on the SWS monitor.

Check that the power supply and earth lines to the
sunroof motor assembly (sunroof-ECU) and the
ETACS-ECU and the SWS communication lines are
normal.

• Ignition switch: ON

• Operate the sunroof switch.

ECUS TO BE CHECKED

• ETACS ECU

• SUNROOF ECU

OK: "OK" are displayed for all the items.

Q: Are the check result normal?

"OK" are displayed for all the items :

Go to Step 3.

"NG" is displayed on the "ETACS ECU" menu. :

Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible

P.54C-63

."

"NG" is displayed on the "SUNROOF ECU" menu. :

Refer to Inspection Procedure A-6
"Communication with the sunroof motor
assembly (sunroof-ECU) is not possible

P.54C-90

."

Step 3. Check the power window main switch.

Check that all of the front passenger's and rear door
power windows can operate by means of the power
window main switch.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Refer to Inspection Procedure D-1 "Power
windows do not work at all

P.54C-131

."

Step 4. Function diagnosis by using the SWS
monitor

Check the SWS communication signal, which are
related to the sunroof.

<Selected item> SUNROOF OPE

• Ignition switch: ON

OK: Normal conditions are displayed for all
the items.

Q: Are the check result normal?

Normal conditions are displayed for all the items. :

Go to Step 5.

Normal condition is not displayed for item No.30 :

Refer to inspection procedure Q-2 "The
ignition switch (IG1) signal is not received

P.54C-460

."

Normal condition is not displayed for item No.72 :

Refer to inspection procedure Q-10 When
the sunroof switch is operated, the switch
signal are not received

P.54C-488

."

Step 5. Retest the system.

The sunroof assembly should now work normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the sunroof motor assembly.

Item No.

Item name

Normal
conditions

Item 30

IG SW(IG1)

ON

Item 72

S/R ECU ACK

INPUT CHECK
(only
momentarily
when switch is
operated)
