SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-66

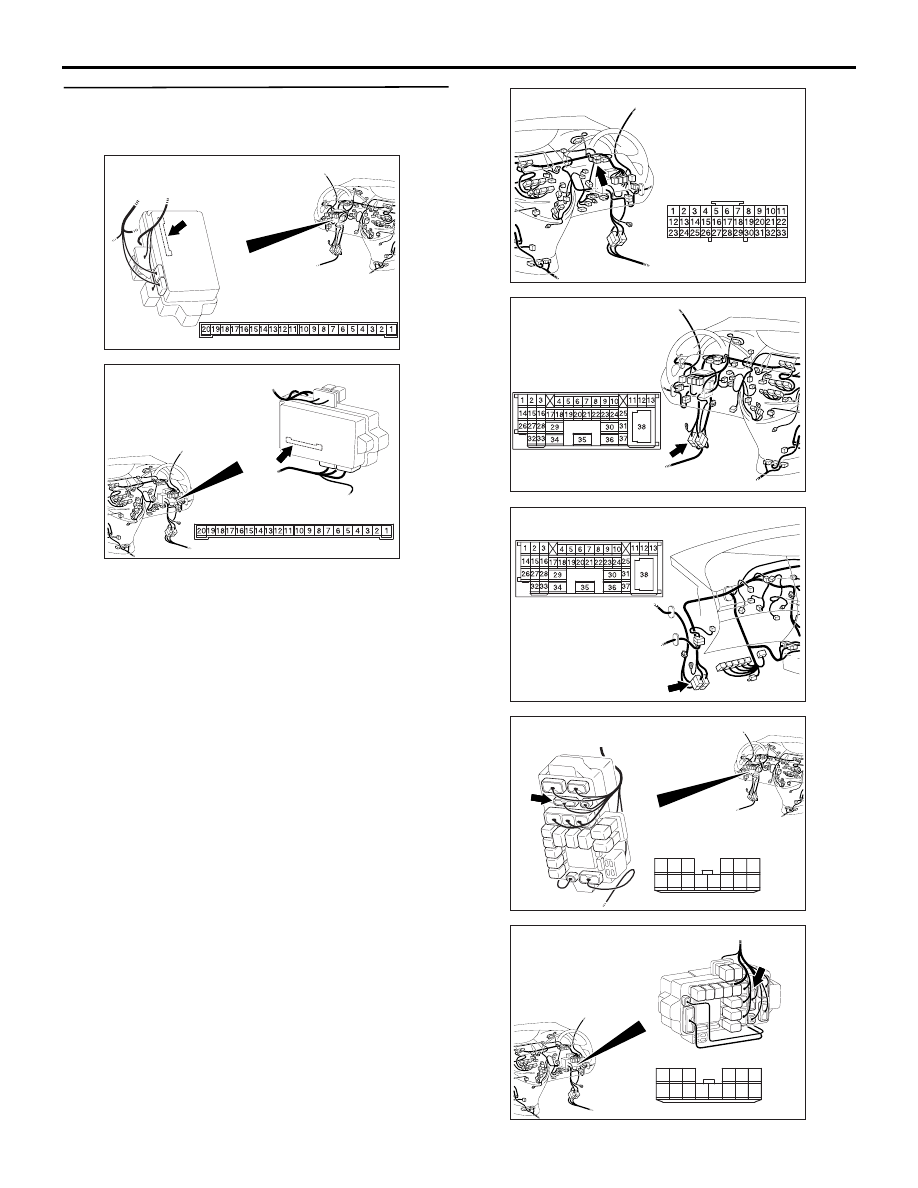

Step 3. Check the wiring harness between C-219
ETACS-ECU connector terminal No.20 and
fusible link (26).

NOTE:

Prior to the wiring harness inspection, check joint

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310631AL

Connector: C-31 <RHD>

AC310613

AD

Connector: C-125 <LHD>

AC310628AB

Connector: C-125 <RHD>

AC310623

Connectors: C-203 <LHD>

AL

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

AC310618

Connectors: C-203 <RHD>

AK

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-67

connector C-31 <RH drive vehicles>, intermediate
connector C-125 and junction block connector
C-203, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

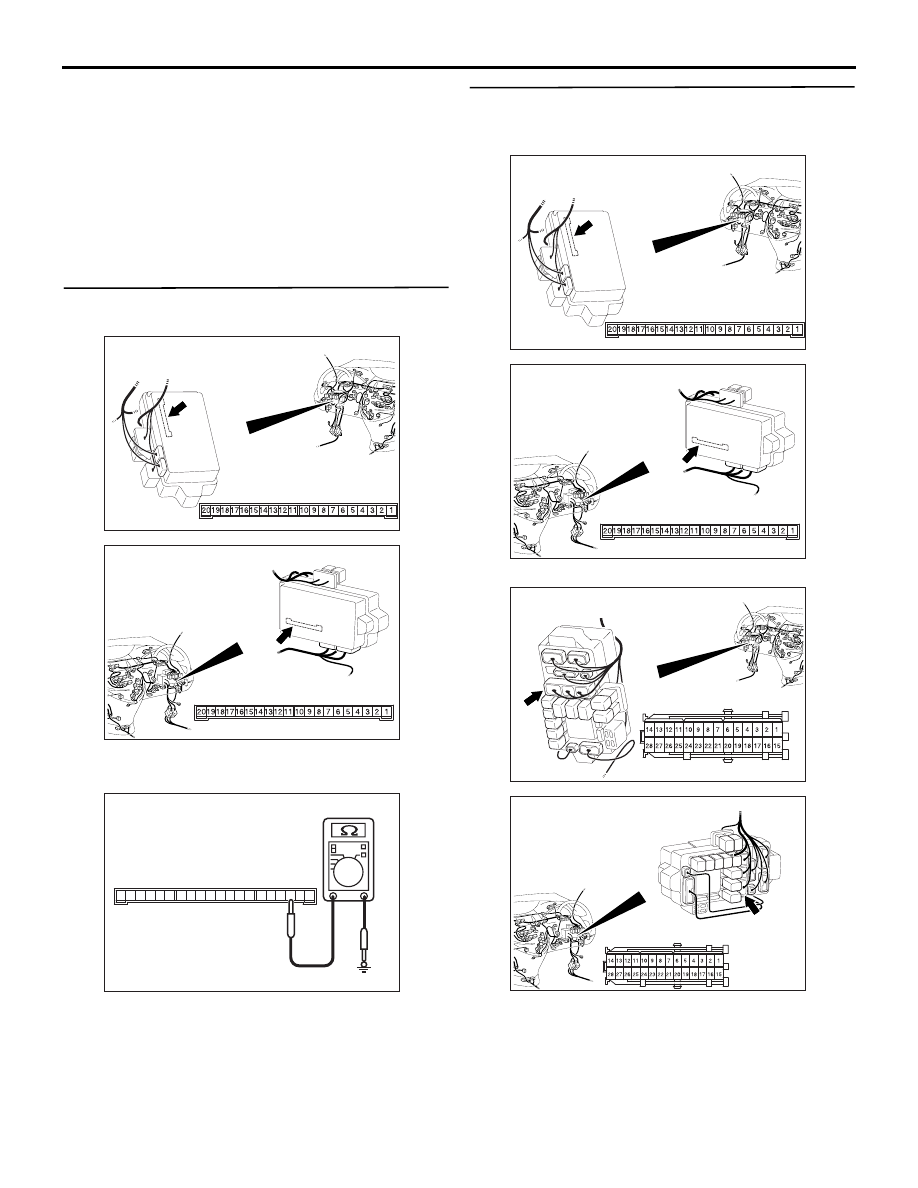

Step 4. Resistance measurement at the C-219
ETACS-ECU connector.

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Resistance between C-219 ETACS-ECU

connector terminal No.3 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

Step 5. Check the wiring harness between C-219
ETACS-ECU connector terminal No.3 and body
earth.

NOTE:

Prior to the wiring harness inspection, check junction
block connector C-205, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310506BE

Connector C-219
(Junction block side)

2019

7

13

17

18

1615 14

10

11

12

9 8

2

6 5

3

4

1

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310623

Connector: C-205 <LHD>

AM

Harness side

Junction block (Front view)

AC310618

Connectors: C-205 <RHD>

AL

Harness side

Junction block (Front view)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-68

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

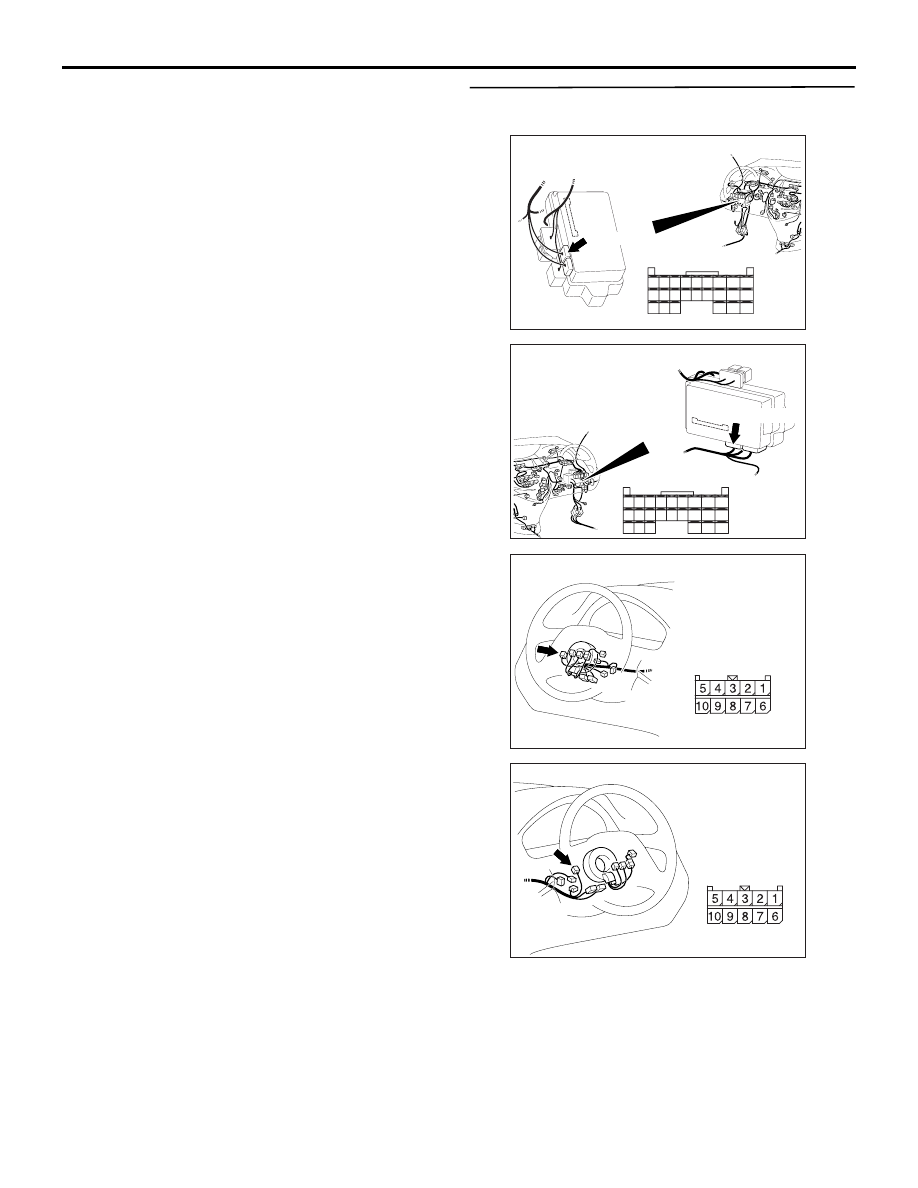

Step 6. Connector check: C-221 ETACS-ECU
connector and C-301 column switch connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the defective connector.

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310153AB

Connector: C-301 <LHD>

Harness side

AC310183

AB

Connector: C-301 <RHD>

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-69

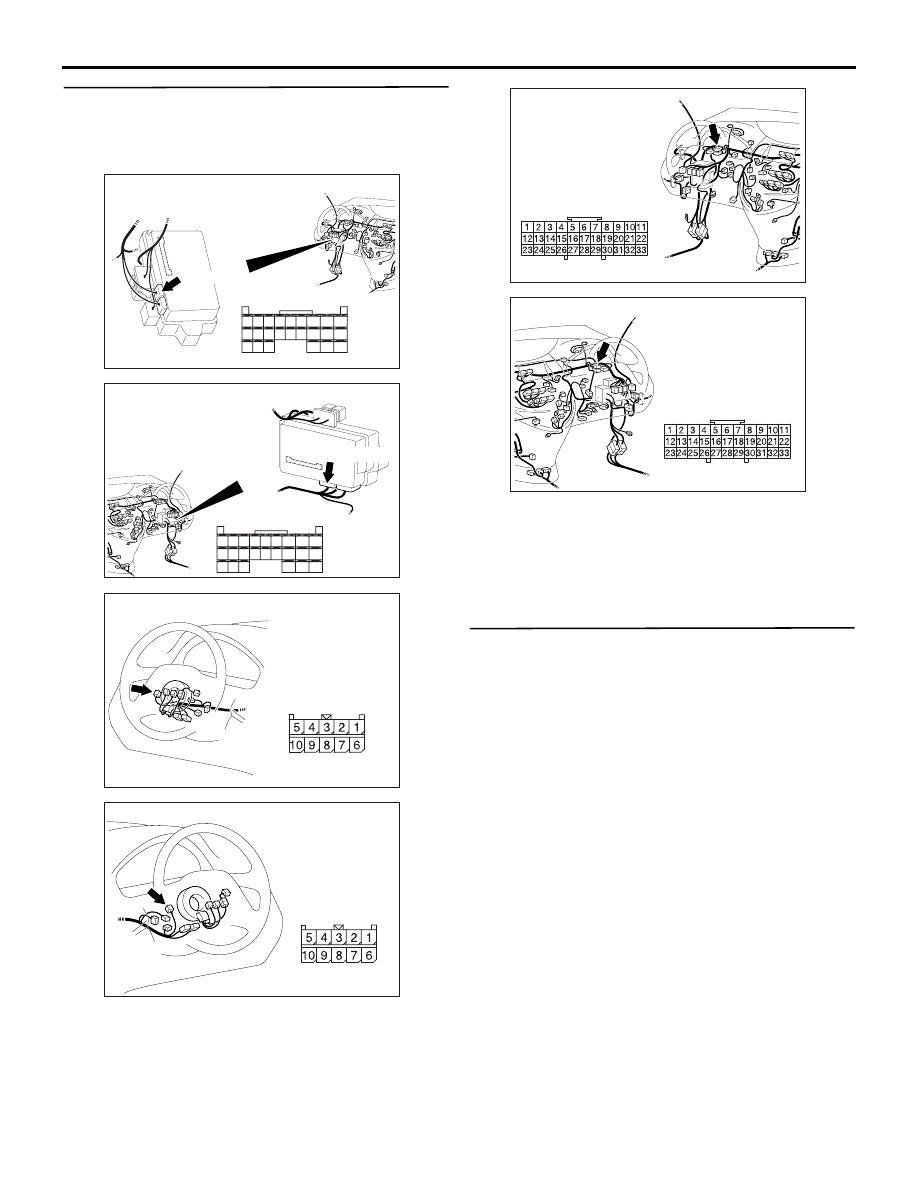

Step 7. Check the wiring harness from C-221
ETACS-ECU connector terminal Nos.59 and 68 to
C-301 column switch connector terminal Nos.3
and 2.

• Check the communication lines for open circuit.

NOTE:

Prior to the wiring harness inspection, check joint
connector C-01, and repair if necessary.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness.

Step 8. ECU check by using the SWS monitor

• Ignition switch: OFF

ECUS TO BE CHECKED

• ETACS ECU

OK: "OK" is displayed on the "ETACS ECU"
menu.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310153AB

Connector: C-301 <LHD>

Harness side

AC310183

AB

Connector: C-301 <RHD>

Harness side

AC310613

AE

Connector: C-01 <LHD>

AC310631AE

Connector: C-01 <RHD>
