Mitsubishi Grandis. Manual - part 149





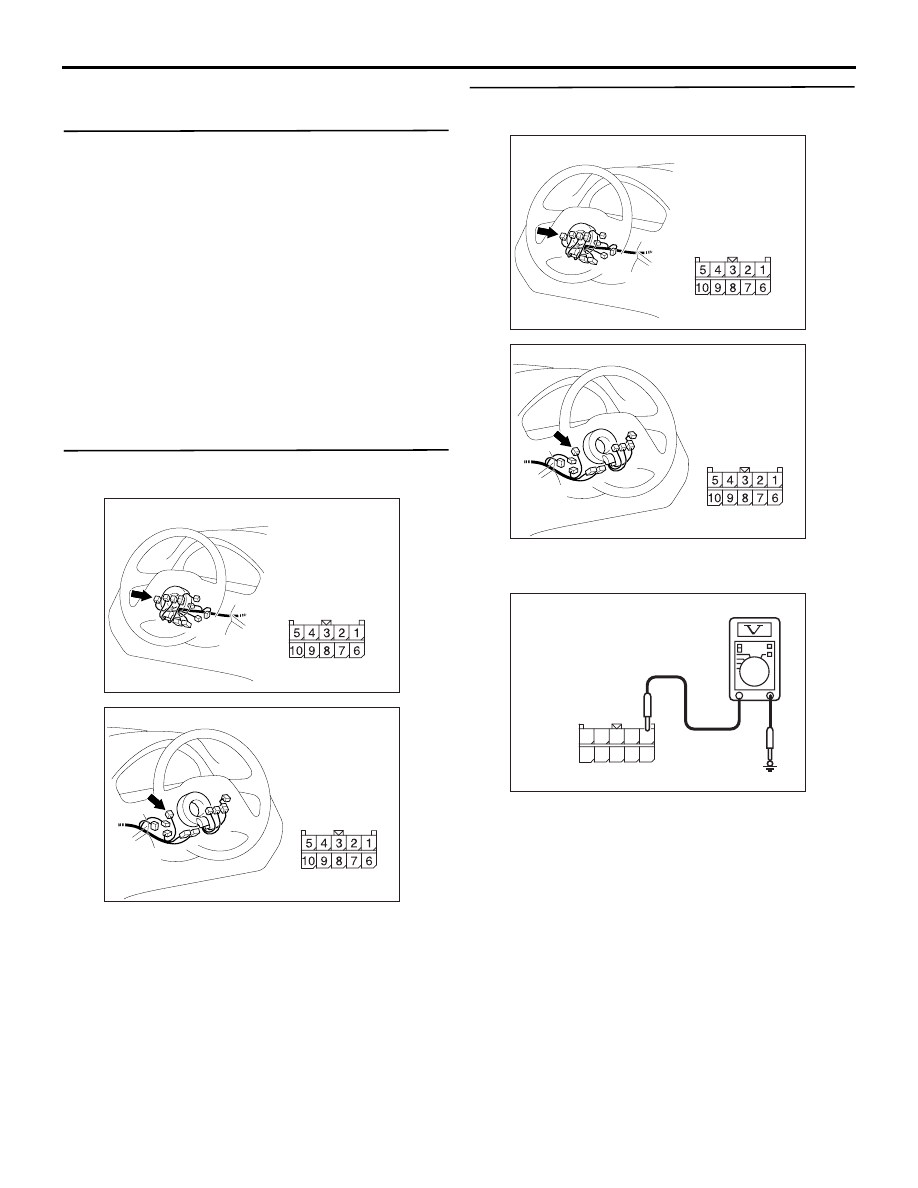

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-58

DIAGNOSIS PROCEDURE

Step 1. ECU check by using the SWS monitor

Check that the power supply and earth lines to the
ETACS-ECU and the SWS communication lines are
normal.

• Ignition switch: OFF

ECUS TO BE CHECKED

• ETACS ECU

OK: "OK" is displayed on the "ETACS ECU"
menu.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible

P.54C-63

."

Step 2. Connector check: C-301 column switch
connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Voltage measurement at C-301 column
switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Voltage between C-301 column switch connector

No.1 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC310153AB

Connector: C-301 <LHD>

Harness side

AC310183

AB

Connector: C-301 <RHD>

Harness side

AC310153AB

Connector: C-301 <LHD>

Harness side

AC310183

AB

Connector: C-301 <RHD>

Harness side

AC310507BO

Connector C-301
(Harness side)

10

5

6

7

9 8

3

4

2 1

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-59

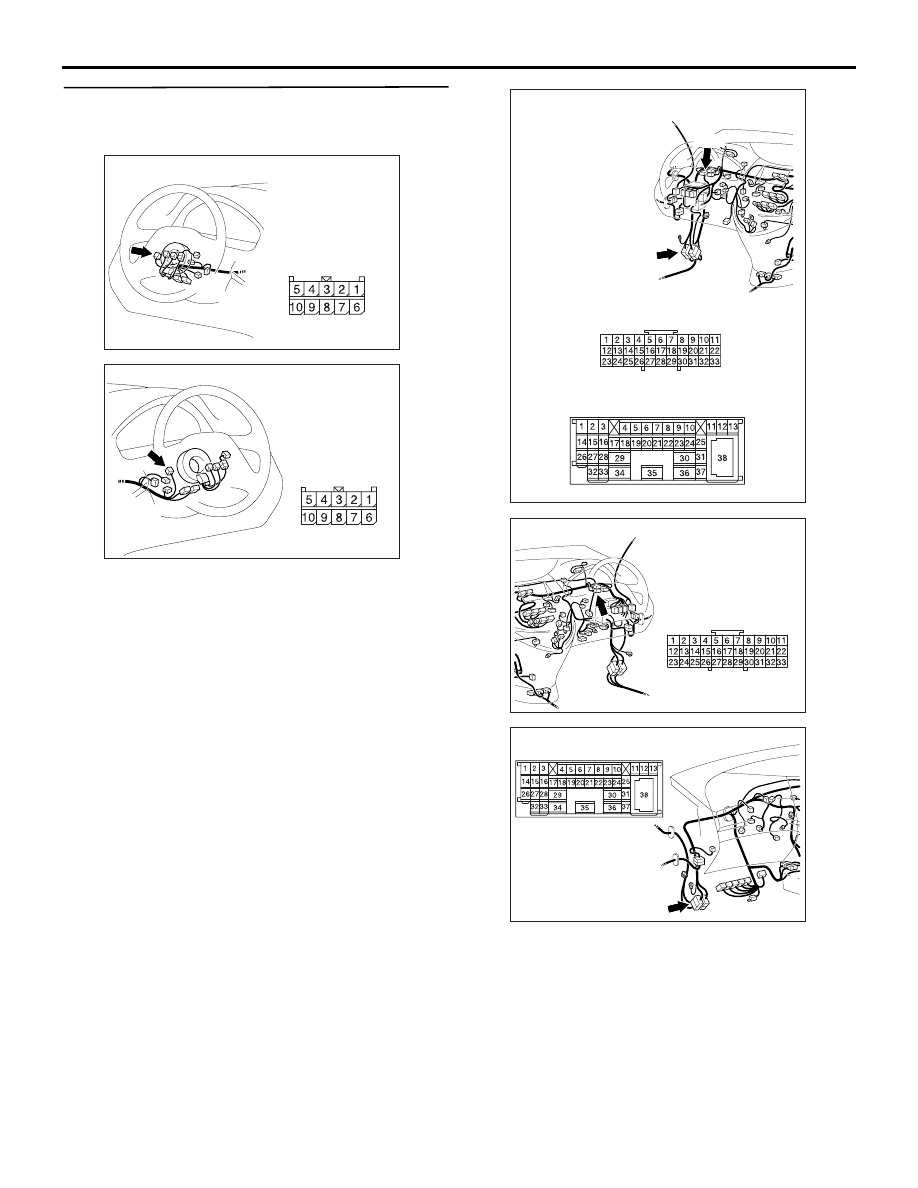

Step 4. Check the wiring harness between C-301
column switch connector terminal No.1 and
fusible link (26).

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-125, joint connectors C-32
<LH drive vehicles> and C-31 <RH drive vehicles>,
and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310153AB

Connector: C-301 <LHD>

Harness side

AC310183

AB

Connector: C-301 <RHD>

Harness side

AC310614

AS

Connectors: C-32, C-125 <LHD>

C-125

C-125

C-32

C-32

AC310631AL

Connector: C-31 <RHD>

AC310628AB

Connector: C-125 <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-60

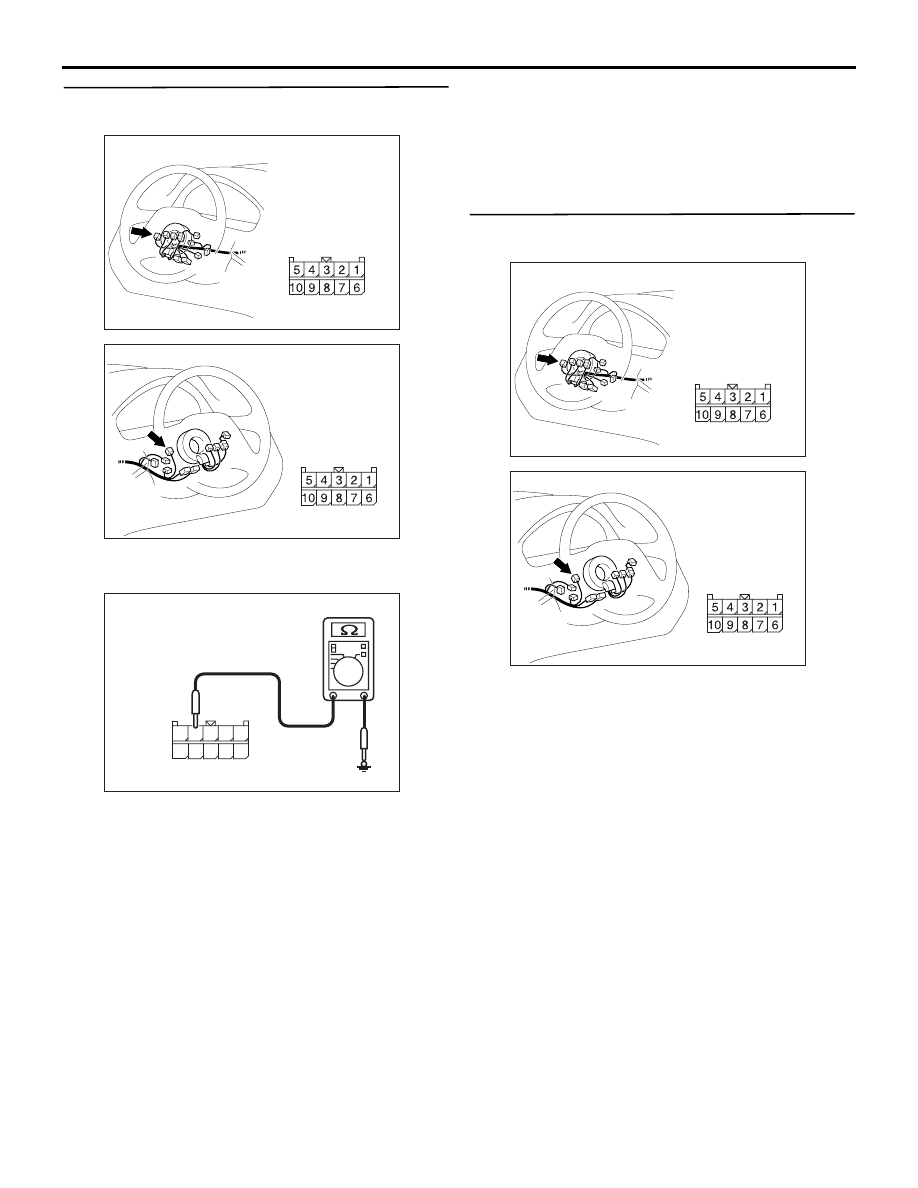

Step 5. Resistance measurement at C-301
column switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Continuity between C-301 column switch

connector No.4 and body earth

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Go to Step 6.

Step 6. Check the wiring harness between C-301
column switch connector No.4 and body earth

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310153AB

Connector: C-301 <LHD>

Harness side

AC310183

AB

Connector: C-301 <RHD>

Harness side

AC310506 BD

Connector C-301
(Harness side)

10

5

6

7

9 8

3

4

2 1

AC310153AB

Connector: C-301 <LHD>

Harness side

AC310183

AB

Connector: C-301 <RHD>

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-61

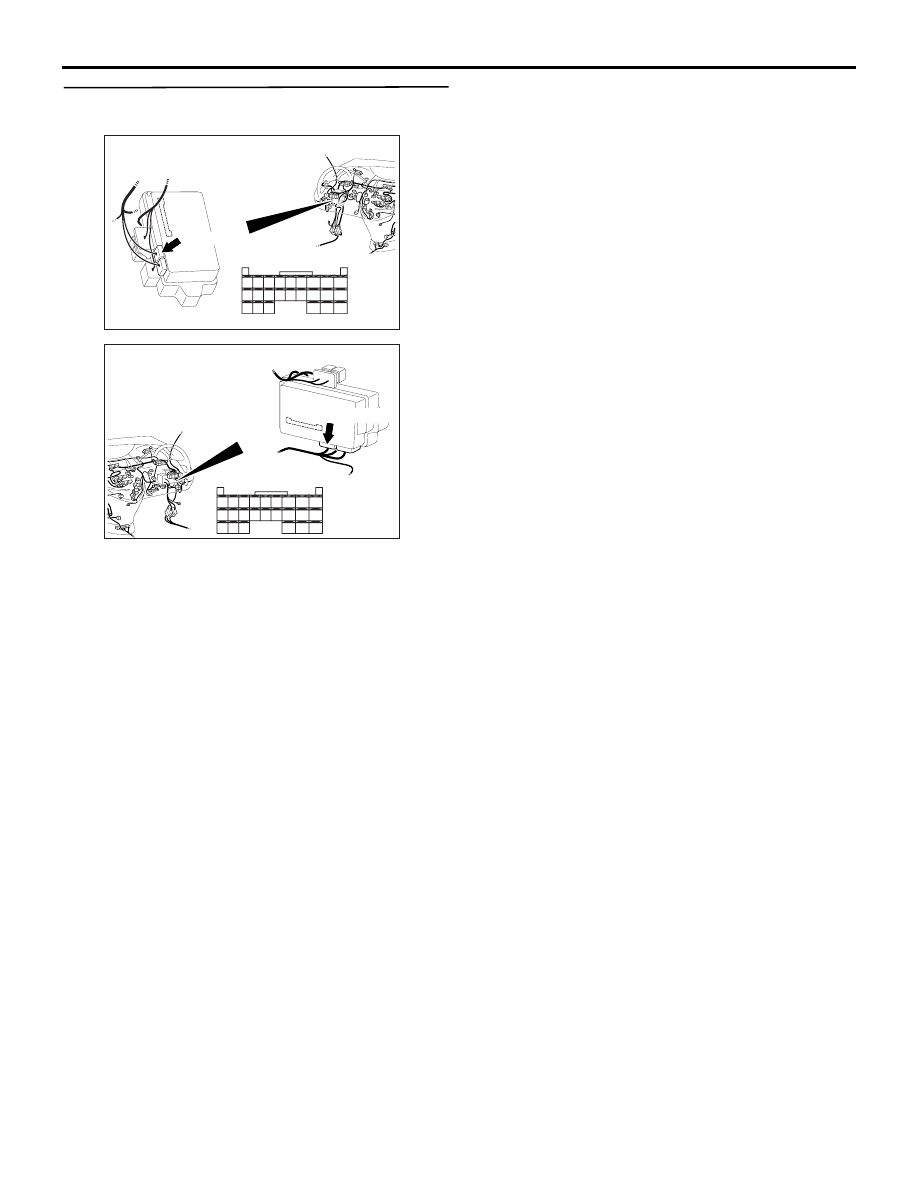

Step 7. Connector check: C-221 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)
