INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-517

Step 4. Check the wiring harness between E-02
interior lamp connector terminal No.5 and body
earth

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-518

NOTE: Prior to the wiring harness inspection, check
intermediate connector E-11, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

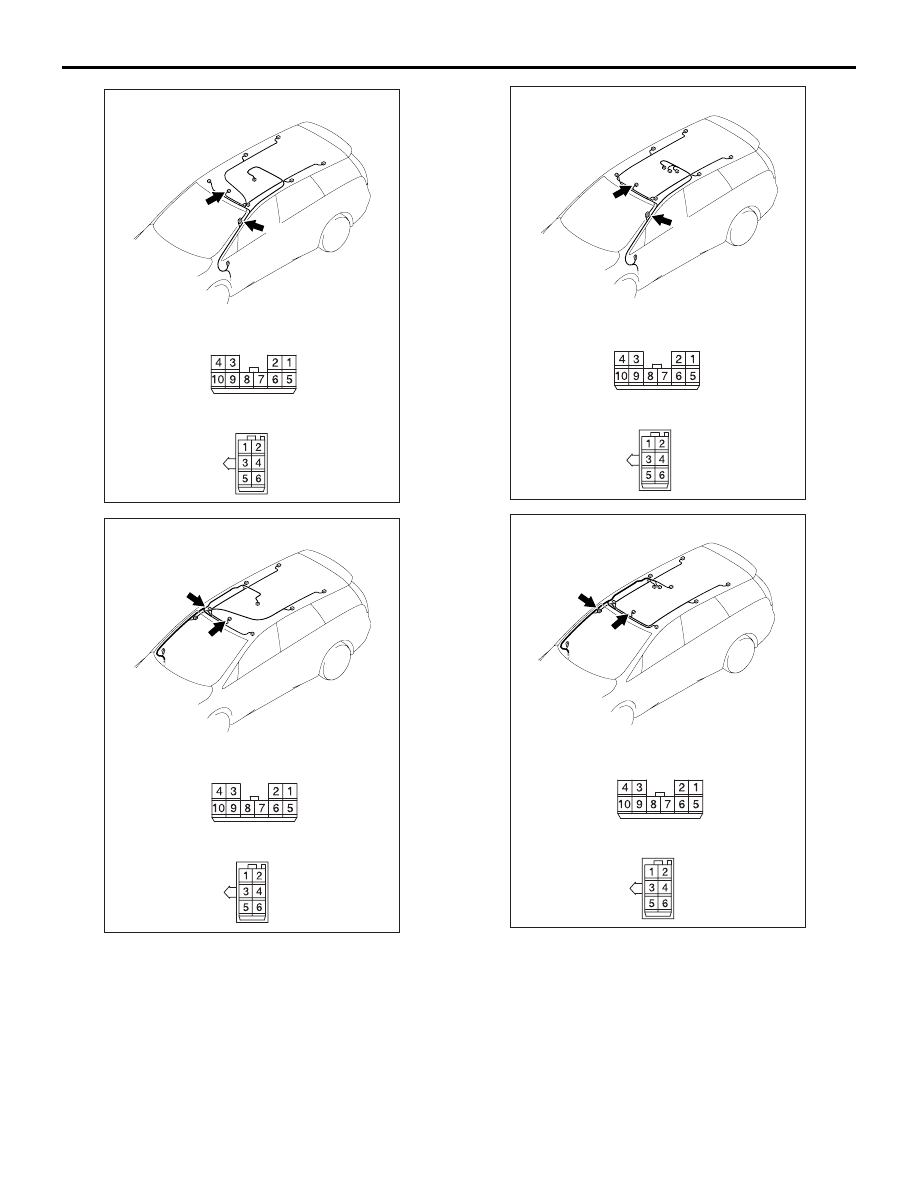

AC310650

AB

Connectors: E-02, E-11

Harness side

E-02

E-11

E-02

E-11

<Vehicles without
sunroof-LHD>

AC310654

AB

Connectors: E-02, E-11

Harness side

E-02

E-11

E-02

E-11

<Vehicles without
sunroof-RHD>

AC310652

AB

Connectors: E-02, E-11

Harness side

E-02

E-11

E-02

E-11

<Vehicles with
sunroof-LHD>

AC310656

AB

Connectors: E-02, E-11

Harness side

E-02

E-11

E-02

E-11

<Vehicles with
sunroof-RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-519

Step 5. Connector check: C-221 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

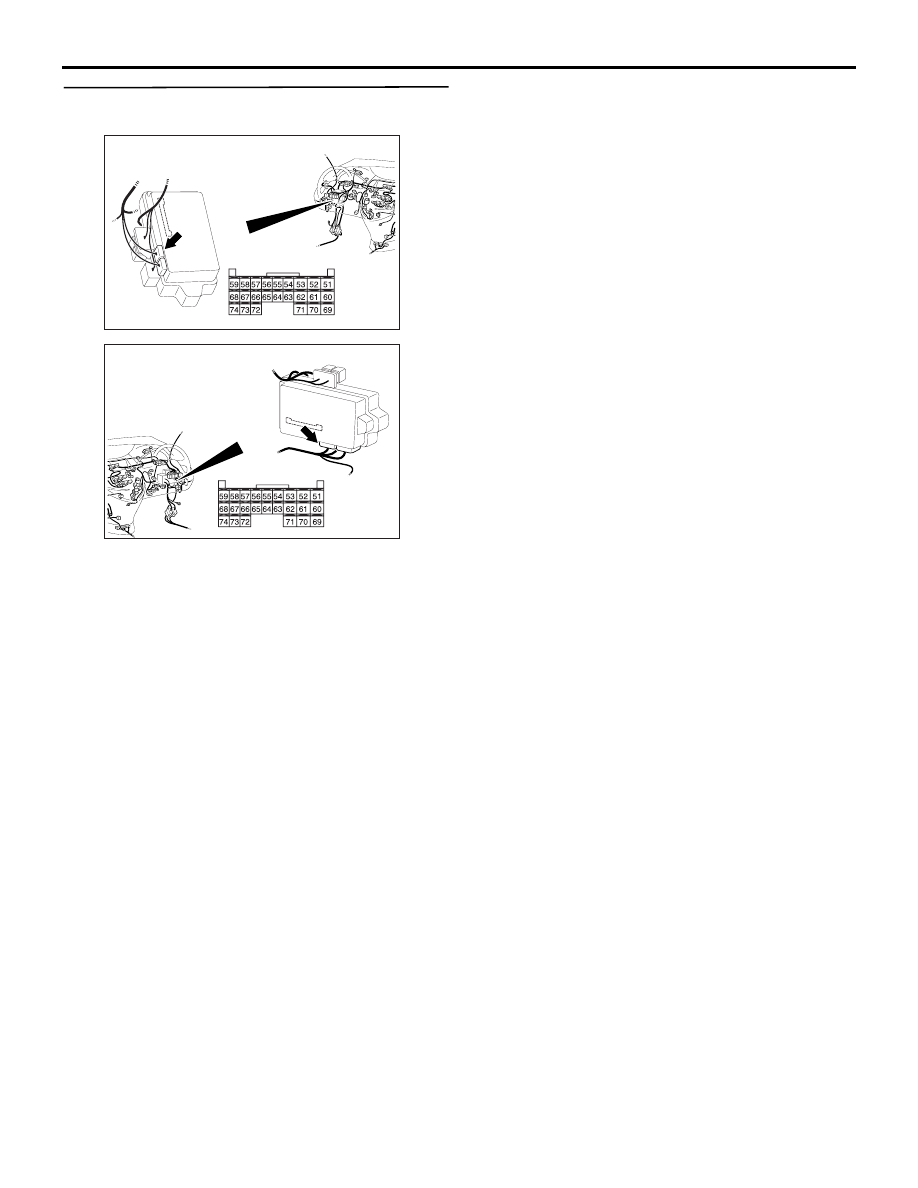

AC312037

Connector: C-221  <LHD>

Junction block (Rear view)

AD

Harness side

AC312047

Connector: C-221  <RHD>

Junction block (Rear view)

AD

Harness side

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-520

Step 6. Check the wiring harness from E-02
interior lamp connector terminal Nos.6 and 7 to
C-221 ETACS-ECU connector terminal Nos.53
and 63.
