PASSENGER AIR BAG CUT OFF SWITCH

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-244

INSPECTION

M1524025400039

WARNING

If a dent, crack, deformation or rust is
detected, replace with a new sensor.

NOTE: For checking of the seat slide sensor other
than described below, refer to the section concerning
SRS diagnosis (Refer to

P.52B-13

).

1. Check the seat slide sensor for dent, cracks or

deformation.

2. Check the connector for damage, and terminals

for deformation.

3. Check that there is no bending or corrosion in the

slide adjuster.

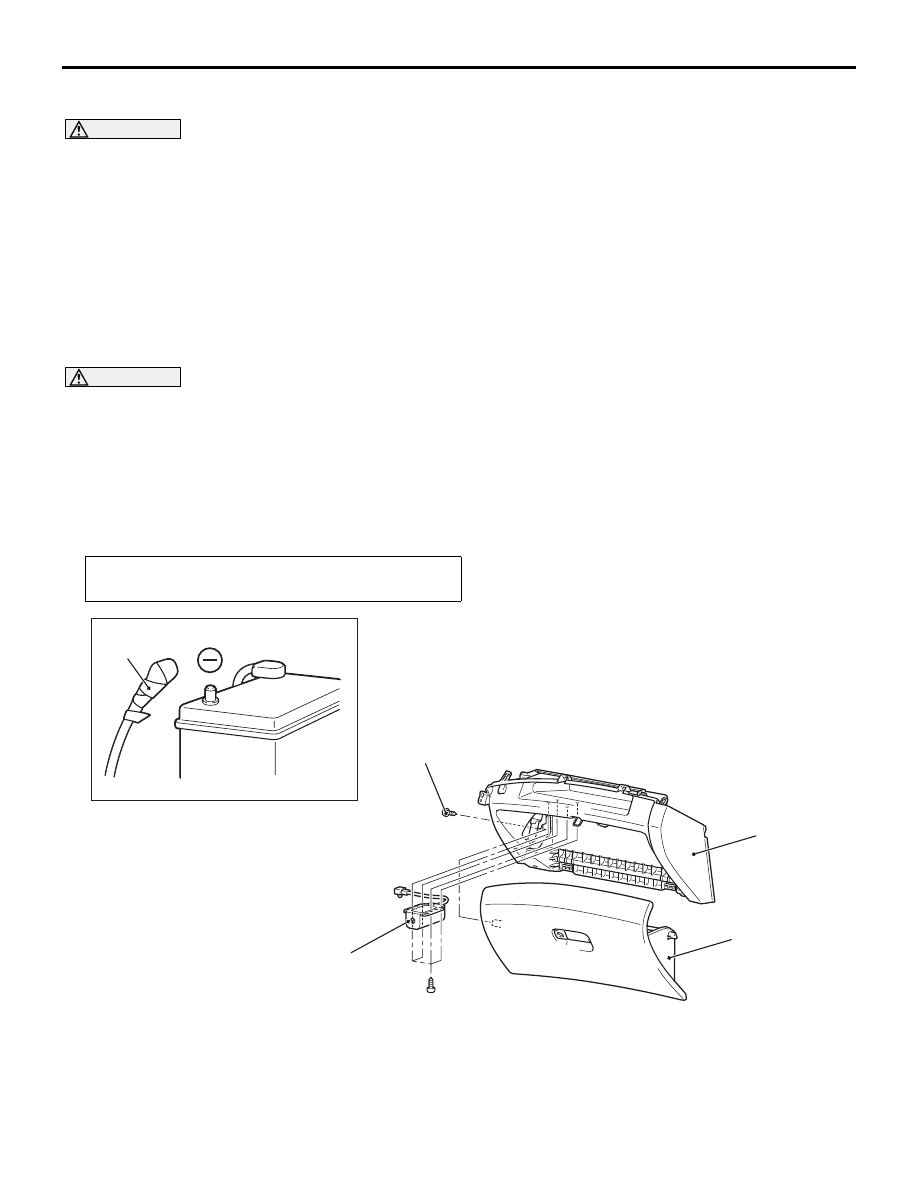

PASSENGER AIR BAG CUT OFF SWITCH

REMOVAL AND INSTALLATION

M1524026700011

WARNING

•

Never attempt to disassemble or repair the passenger’s air bag cut off switch. If faulty,
replace it.

•

Do not drop or subject the passenger’s air bag cut off switch to impact or vibration.
Replace the passenger’s air bag cut off switch, if dents, cracking, deformation, or rust are
present.

•

Replace the passenger's air bag cut off switch with new one after deployment of the air
bags.

Pre-removal Operation
• Turn the ignition key to the "LOCK" (OFF) position.

AC312597

AC312171

2

0.137 ± 0.04 N·m

1

AB

3

4

PASSENGER AIR BAG CUT OFF SWITCH

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-245

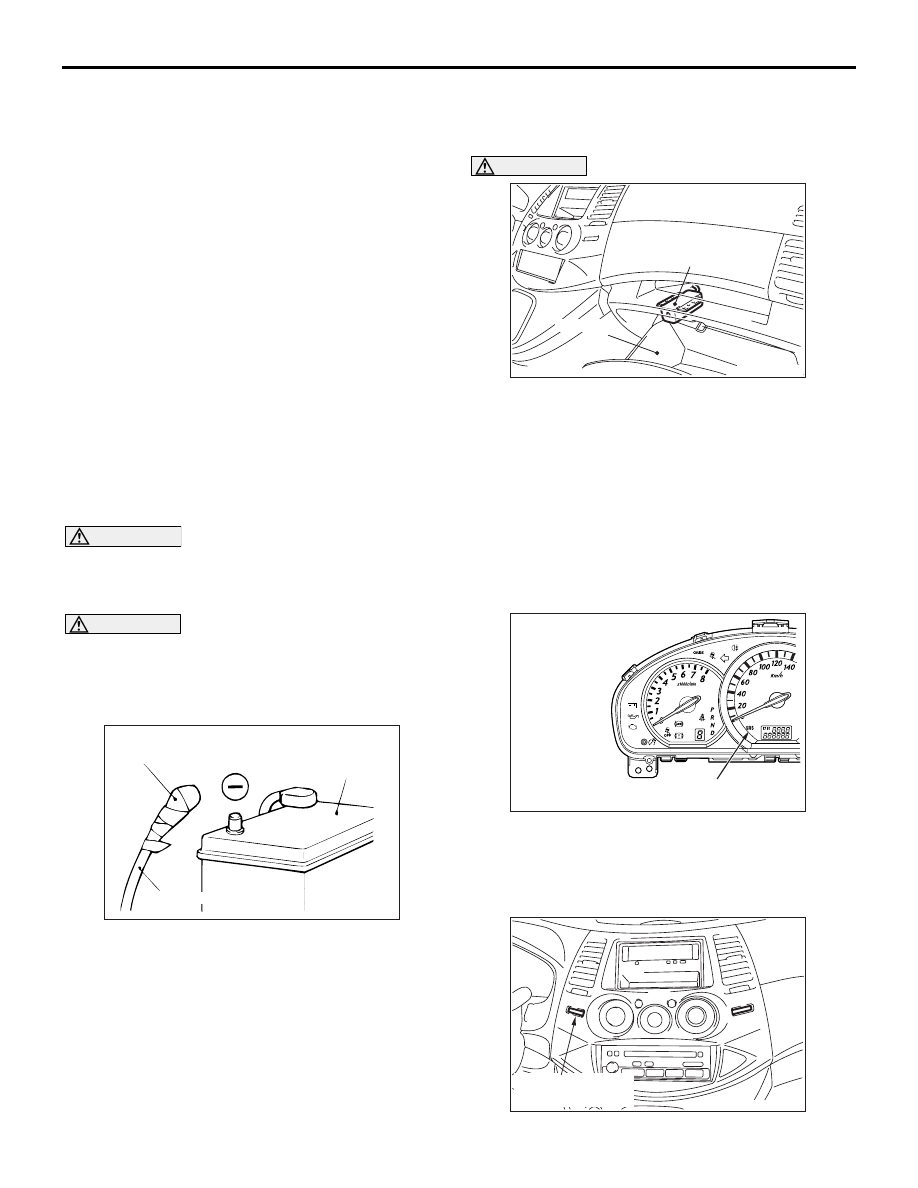

REMOVAL SERVICE POINT
<<A>> NEGATIVE BATTERY CABLE
DISCONNECTION

DANGER

Wait at least 60 seconds after disconnecting
the battery cable before doing any further
work. (Refer to

P.52B-7

).

WARNING

Battery posts, terminals and related
accessories contain lead and lead
compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative battery cable from the
battery and tape the terminal to prevent accidental
connection and air bag deployment.

INSTALLATION SERVICE POINTS
>>A<< PRE-INSTALLATION INSPECTION

Check the passenger’s air bag cut off switch for
dents, breakage and bending and measure the
resistance between the terminals, even when
installing a new passenger’s air bag cut off switch.

>>B<< PASSENGER’S AIR BAG CUT OFF
SWITCH INSTALLATION

WARNING

If the passenger’s air bag cut off switch is
not installed securely and correctly, the
passenger’s (front) air bag may not operate
normally.

Securely connect the connector.

>>C<< POST-INSTALLATION
INSPECTION

1. Reconnect the negative battery cable.
2. Turn the ignition switch to the "ON" position.

3. Does the SRS warning lamp illuminate for about 7

seconds, and go out?

4. If yes, the SRS system is functioning properly. If

not, refer to

P.52B-13

.

Removal steps

<<A>>

1.

Negative battery cable connection

•

Glove box assembly (Refer to
GROUP 52A, Instrument panel
assembly

P.52A-2

).

2.

Glove box

3.

Glove box cover assembly

4.

Passenger’s air bag cut off switch
Installation steps

>>A<<

•

Pre-installation inspection

>>B<<

4.

Passenger’s air bag cut off switch

3.

Glove box cover assembly

2.

Glove box

•

Glove box assembly (Refer to
GROUP 52A, Instrument panel
assembly

P.52A-2

).

1.

Negative battery cable connection

>>C<<

•

Post-installation inspection

ACX00583

Insulating tape

Battery

Battery cable (–)

AC

AC312598AB

Passenger's air bag
cut off switch

Glove box

AC312486

SRS warning lamp

AB

AC311370AB

Passenger's air bag
off indicator lamp

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-246

5. Does the passenger’s air bag off indicator lamp

illuminate for about 7 seconds, and go out?

6. If yes, the SRS system is functioning properly. If

not, refer to

P.52B-13

.

INSPECTION

M1524026800018

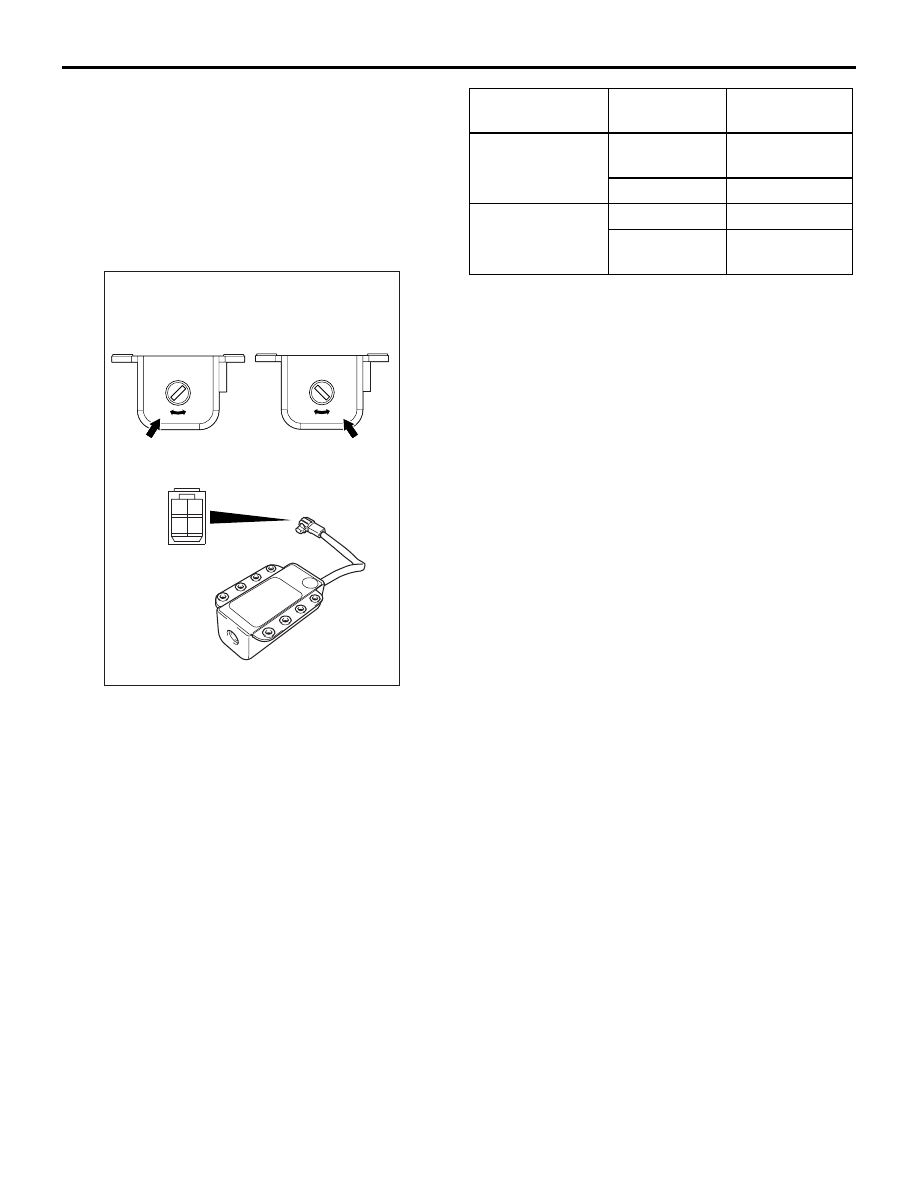

PASSENGER’S AIR BAG CUT OFF
SWITCH CONTINUITY CHECK

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

DISPOSAL PROCEDURES

M1524001200581

Before disposing of an air bag or a vehicle equipped
with an air bag, follow the procedures below to
deploy the air bag.

AC311368

PASSENGER

AIRBAG

ON

OFF

PASSENGER

AIRBAG

ON

OFF

AC312599

2

1

4

3

AB

C-107
Passenger's
air bag cut off
switch connector

Passenger's (front)
air bag ON position

Passenger's (front)
air bag OFF position

Switch position Tester

connection

Specified
condition

Passenger’s
(front) air bag ON
position

1

− 2

Less than 10m
ohms

1

− 4

Open circuit

Passenger’s
(front) air bag
OFF position

1

− 2

Open circuit

1

− 4

Less than 10m
ohms

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-247

UNDEPLOYED AIR BAG MODULE
DISPOSAL

WARNING

•

If the vehicle is to be scrapped or
otherwise disposed of, deploy the air
bags and operate the seat belt
pre-tensioner inside the vehicle. If the
vehicle will continue to be used and only
the air bag modules and seat belt
pre-tensioner are to be disposed of,
deploy the air bags and operate the seat
belt pre-tensioner outside the vehicle.

•

Since a large amount of smoke is
produced when the air bag is deployed
and the seat belt pre-tensioner is
operated, avoid residential areas
whenever possible.

•

Since there is loud noise when the air
bags are deployed and when the seat belt
pre-tensioner are operated, avoid
residential areas whenever possible. If
anyone is nearby, give warning of the
impending noise.

•

Suitable ear protection should be worn by
personnel performing these procedures
or by people in the immediate area.

DEPLOYMENT INSIDE THE VEHICLE
(WHEN DISPOSING OF A VEHICLE) <AIR
BAG MODULE (DRIVER'S SIDE)>

1. Move the vehicle to an isolated spot.

DANGER

Wait at least 60 seconds after the
disconnection of the battery cable before
any further job (Refer to

P.52B-7

).

2. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

3. Remove the column cover lower (Refer to

GROUP 37, Steering shaft

P.37-16

).

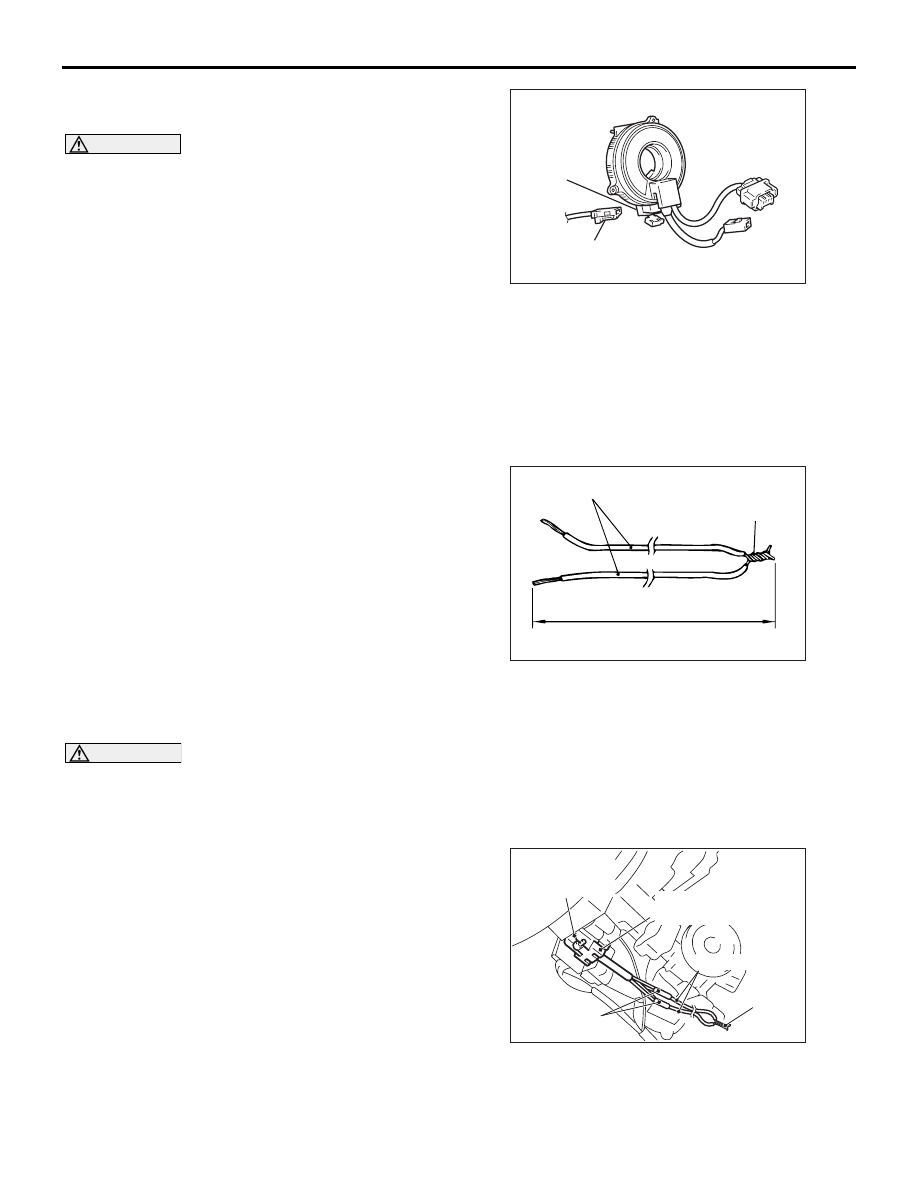

4. Remove the connection between the C-309 clock

spring connector (4-pin) and the harness side
connector (4-pin, yellow).
NOTE: Once disconnected from the instrument
panel wiring harness, both electrodes of the clock
spring connector short automatically. This
prevents the driver's air bag from accidental
deployment caused by static, etc.

5. Obtain two suitable wires, which are 6 meters or

longer, as deployment wires. Then connect the
wires at one end to short.

6. Touch the vehicle's body with bare hands to

discharge static in you.
NOTE: This prevents the air bag from
unintentional deployment caused by static
electricity, etc.

7. Cut with a pliers, etc. the instrument panel wiring

harness shown in the figure of the instructions,
while the C-309 clock spring connector is
disconnected.

AC306757

C-309 Harness side
connector (4-pin, yellow)

C-309
Clock spring
connector
(4-pin)

AD

AC300381AB

Deployment wires

Connector

6m or longer

AC307147

Deployment wire

AC

Insulator tape

C-309
Clock spring
connector (4-pin)

Connection

C-309 Harness side
connector (4-pin, yellow)
