TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-164

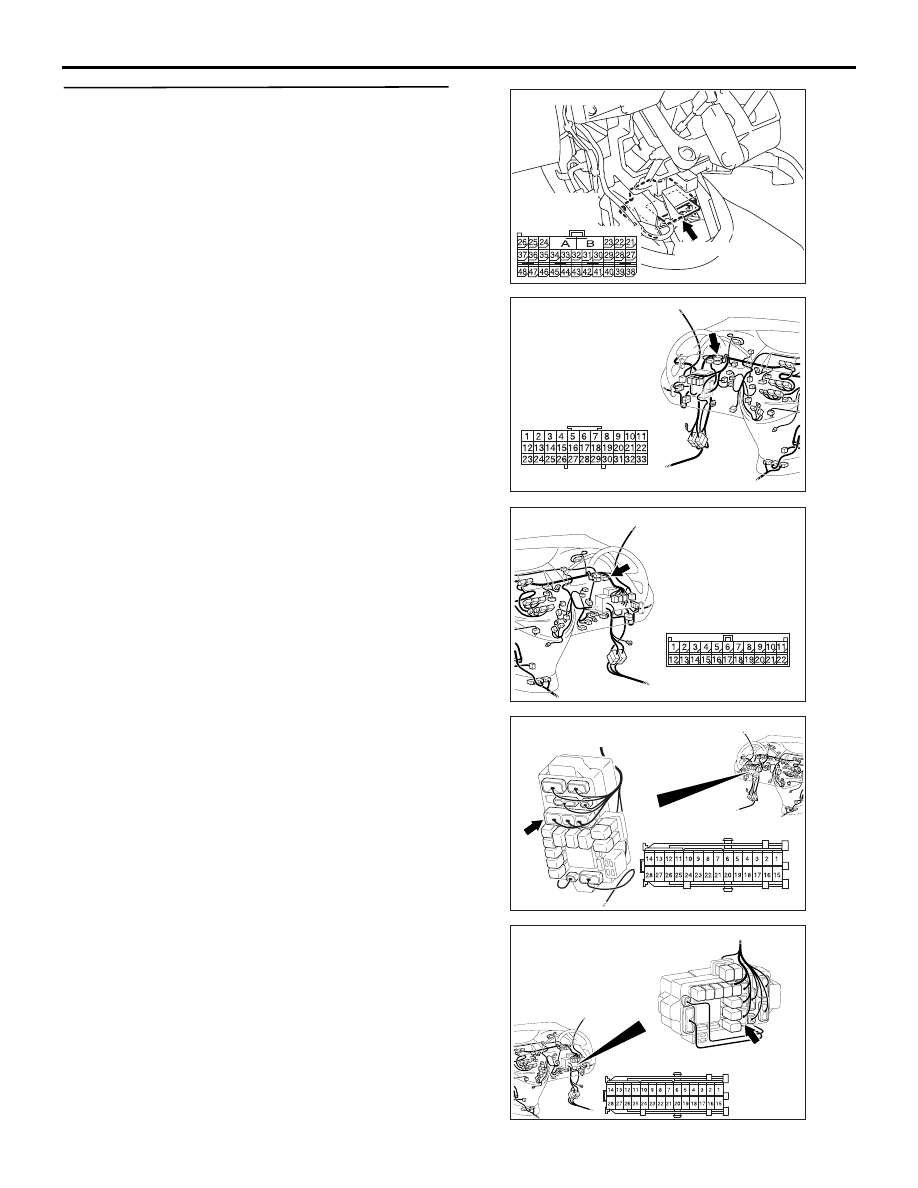

STEP 9. Connector check: SRS-ECU connector
C-119, joint connector C-01 <LHD: B1477>, joint
connector C-33 <RHD: B1477> and junction
block connector C-205.

AC311438 AD

C-119 (Y)

Connector: C-119

Harness side
(front view)

AC310613

AE

Connector: C-01 <LHD>

AC310631BD

Connector: C-33 <RHD>

AC310623

Connector: C-205 <LHD>

AM

Harness side

Junction block (Front view)

AC310618

Connectors: C-205 <RHD>

AL

Harness side

Junction block (Front view)

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-165

Q: Is the check result normal?

YES :

Check the harness wire for short circuit

between SRS-ECU connector C-119
(terminal No.24 <B1476> or terminal No.23
<B1477>) and junction block connector
C-205 (terminal No.24 <B1476> or terminal
No.7 <B1477>), and repair if necessary.
Then go to Step 10.

NO :

Repair or replace it. Then go to Step 10.

STEP 10. Check whether the diagnosis code is
reset.

Q: Is diagnosis code B1476 or B1477 set?

YES :

Return to Step 1.

NO :

The procedure is complete.

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-166

Code No.B1488: Passenger’s Air Bag Off Indicator Lamp Drive Circuit System Fault 2.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

SRS-ECU

IGNITION
SWITCH (IG1)

PASSENGER'S
AIR BAG OFF
INDICATOR LAMP

RELAY
BOX

TAIL LAMP
RELAY

FRONT-ECU

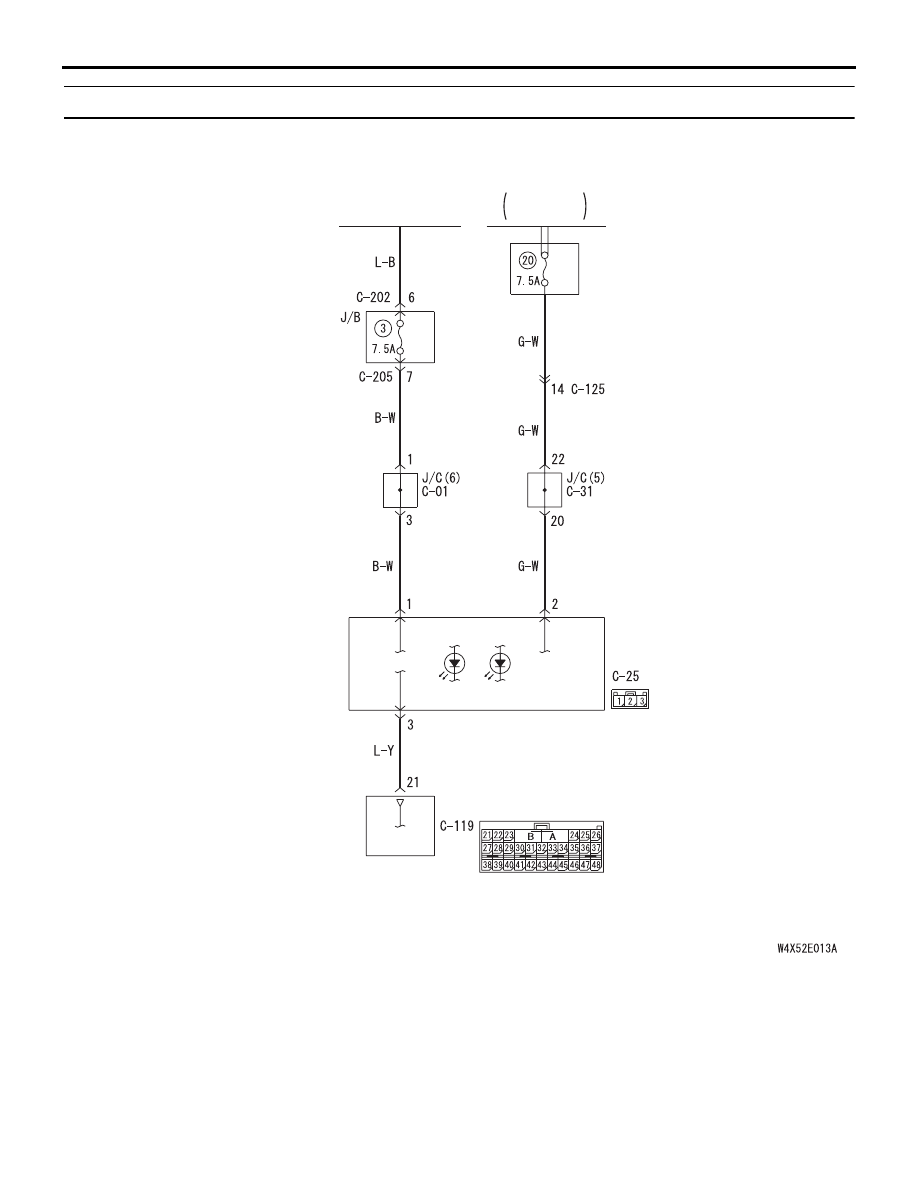

Air Bag Off Indicator Lamp Drive Circuit <LH drive vehicles>

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-167

CAUTION

If diagnosis code B1488 is set in the SRS-ECU,
always diagnose the CAN main bus line.

OPERATION

• Power for the passenger’s air bag OFF indicator

lamp is supplied from the ignition switch (IG1).

• The passenger’s air bag off indicator lamp

illuminates when the ignition switch is turned to
the "ON" position and goes out after
approximately 7 seconds if there is not a
malfunction in the SRS system.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

SRS-ECU

IGNITION
SWITCH (IG1)

PASSENGER'S
AIR BAG OFF
INDICATOR LAMP

RELAY
BOX

TAIL LAMP
RELAY

FRONT-ECU

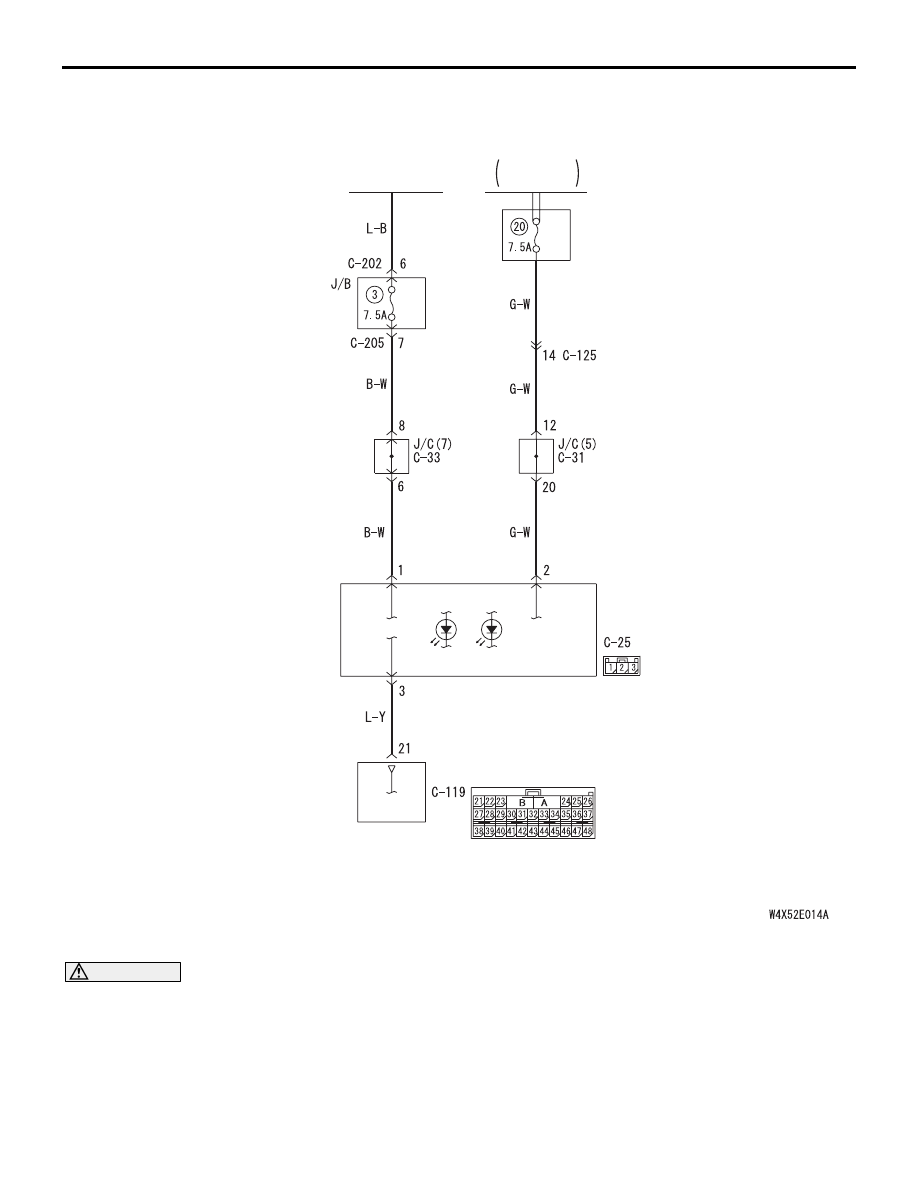

Air Bag Off Indicator Lamp Drive Circuit <RH drive vehicles>
