TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-84

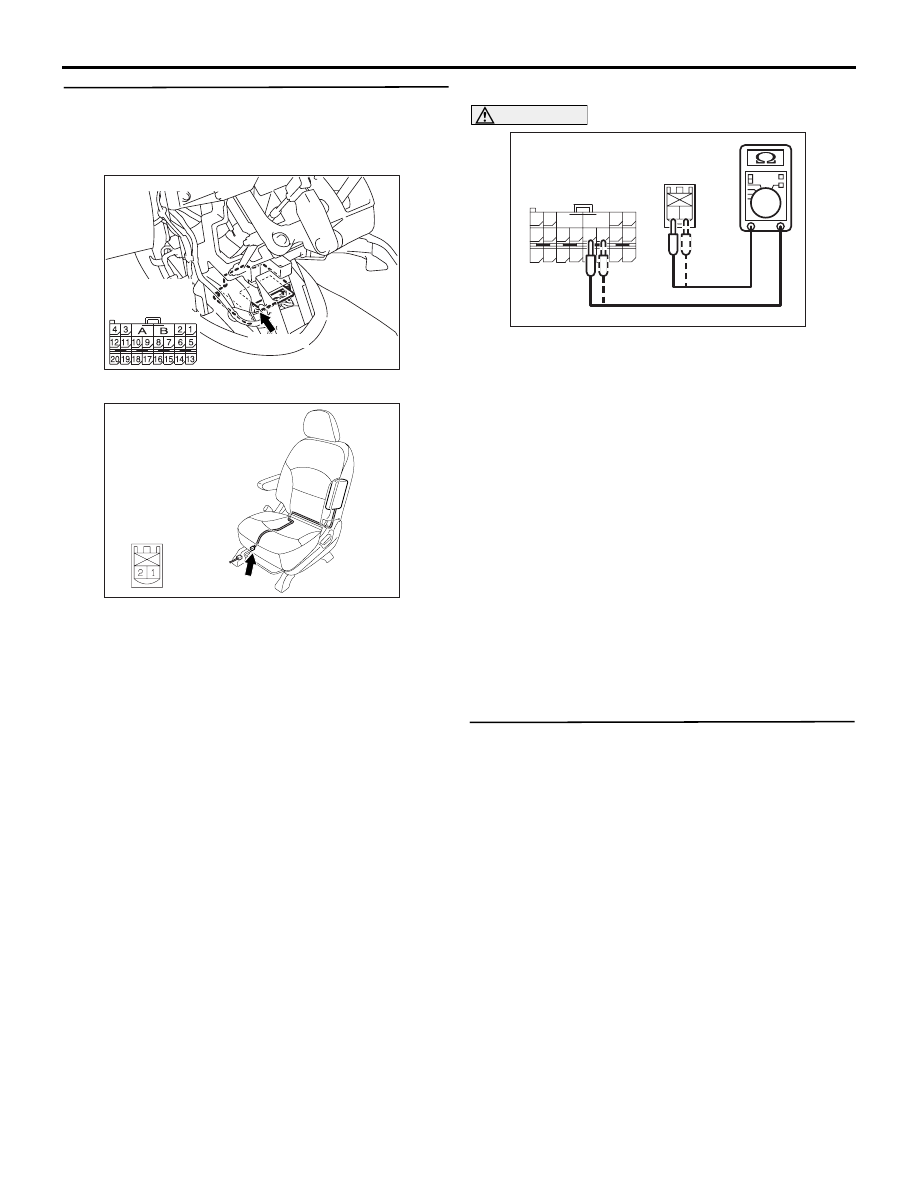

STEP 4. Resistance measurement between the
SRS-ECU connector C-120 (terminal No.9 and 10)
and the side-airbag module (LH) connector D-22
(terminal No.1 and 2).

(1) Disconnect SRS-ECU connector C-120.

(2) Disconnect side-airbag module (LH) connector

D-22.

CAUTION

Do not insert a test probe into the terminal from
its front side directly, as the connector contact
pressure may be weakened.
(3) Check for continuity between the following

terminals.

• SRS-ECU connector C-120 (terminal No.9)

and the side-airbag module (LH) connector
D-22 (terminal No.1)

• SRS-ECU connector C-120 (terminal No.10)

and the side-airbag module (LH) connector
D-22 (terminal No.2)

OK: Less than 2

Ω

Q: Are the check results normal?

YES :

Go to Step 5.

NO :

Repair the harness wires between
SRS-ECU connector C-120 (terminal No.9
and 10) and side-airbag module (LH)
connector D-22 (terminal No.1 and 2).

STEP 5.Check whether the diagnosis code is
reset.

Q: Is diagnosis code B1431 set?

YES :

Replace the SRS-ECU (Refer to

P.52B-223

).

NO :

An intermittent malfunction is suspected
(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-5

).

AC311438 AE

C-120 (Y)

Connector: C-120

Harness side
(front view)

AC303521

AD

D-22 (R)

Connector: D-22

Harness side
(front view)

AC308176

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

1 2

C-120
Harness side
connector
(rear view)

D-22
Harness side
connector
(rear view)

AD

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-85

Code No.B1432: Side-Airbag Module (LH) (Squib) System Fault Earth Circuit (Short-Circuited to
Earth)

CAUTION

If diagnosis code B1432 is set in the combination
meter, always diagnose the CAN bus lines.

OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the left and right side
impact sensors. If the impact is over a
predetermined level, the SRS-ECU sends an
ignition signal. At this time, if the side-airbag
safing G-sensor is on, the SRS side-airbag will
inflate.

• The ignition signal is input to the side-airbag

module to inflate the side-airbag.

DIAGNOSIS CODE SET CONDITIONS

This diagnosis code is set if there is abnormal
resistance between the input terminals of the
side-airbag module (LH) (squib).

PROBABLE CAUSES

• Damaged wiring harnesses or connectors

• Short to earth in the left hand side-airbag module

(squib) harness

• Malfunction of the SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. MUT-III CAN bus diagnostics

Use the MUT-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus lines (Refer to GROUP
54D, Diagnosis-Can Bus Diagnostic Chart

P.54D-16

). .

STEP 2. Check whether the diagnosis code is
reset.

Check again if the diagnosis code is set.
(1) Erase the diagnosis code.
(2) Ignition: LOCK (OFF) position to ON
(3) On completion, check that the diagnosis code is

not reset.

Q: Is the diagnosis code set?

YES :

Go to Step 3.

NO :

There is an intermittent malfunction such as
poor engaged connector(s) or open circuit
(Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-5

).

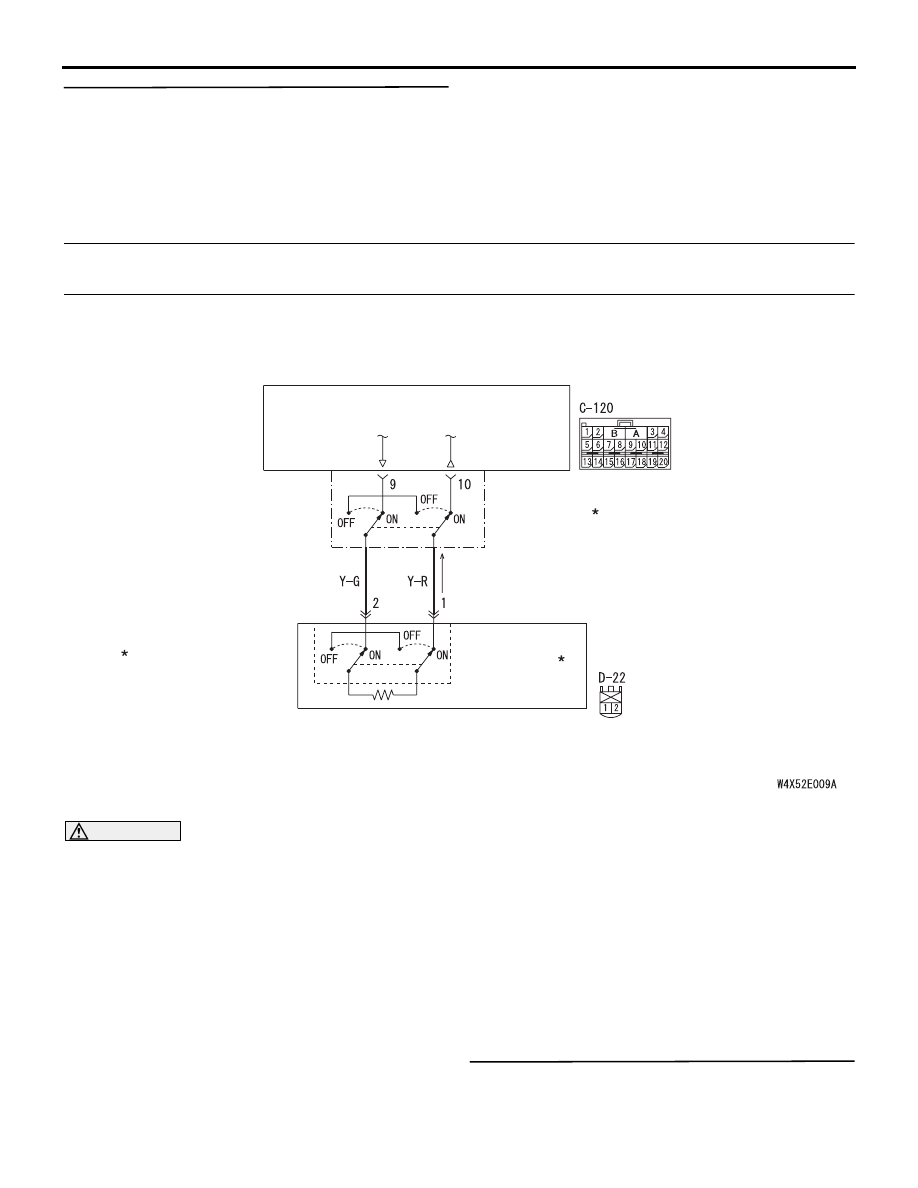

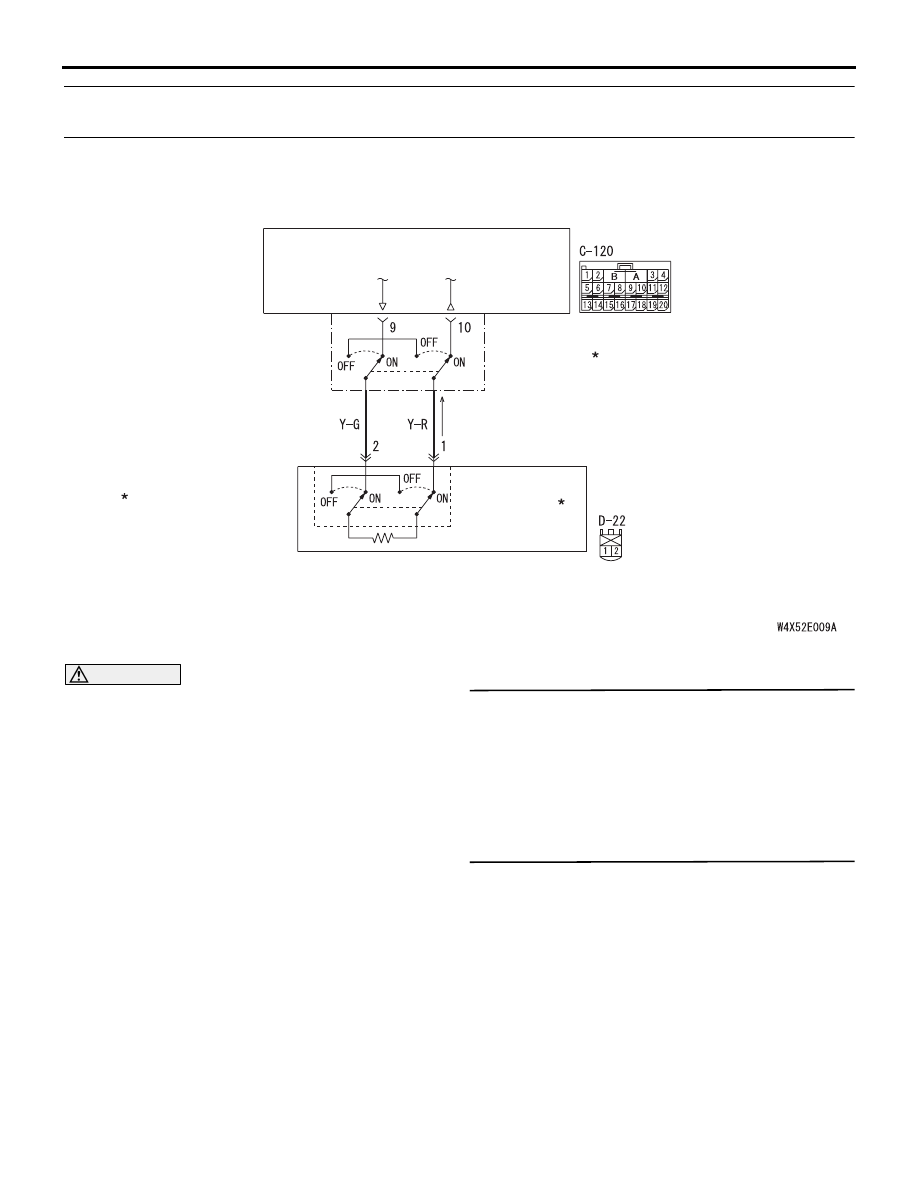

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

SIDE AIR BAG
MODULE
(SQUIB) (LH)

SRS-ECU

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

: CONNECTOR
  CONNECTED: ON
  CONNECTOR
  DISCONNECTED: OFF

NOTE

Side-Airbag Module (LH) (Squib) Circuit

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-86

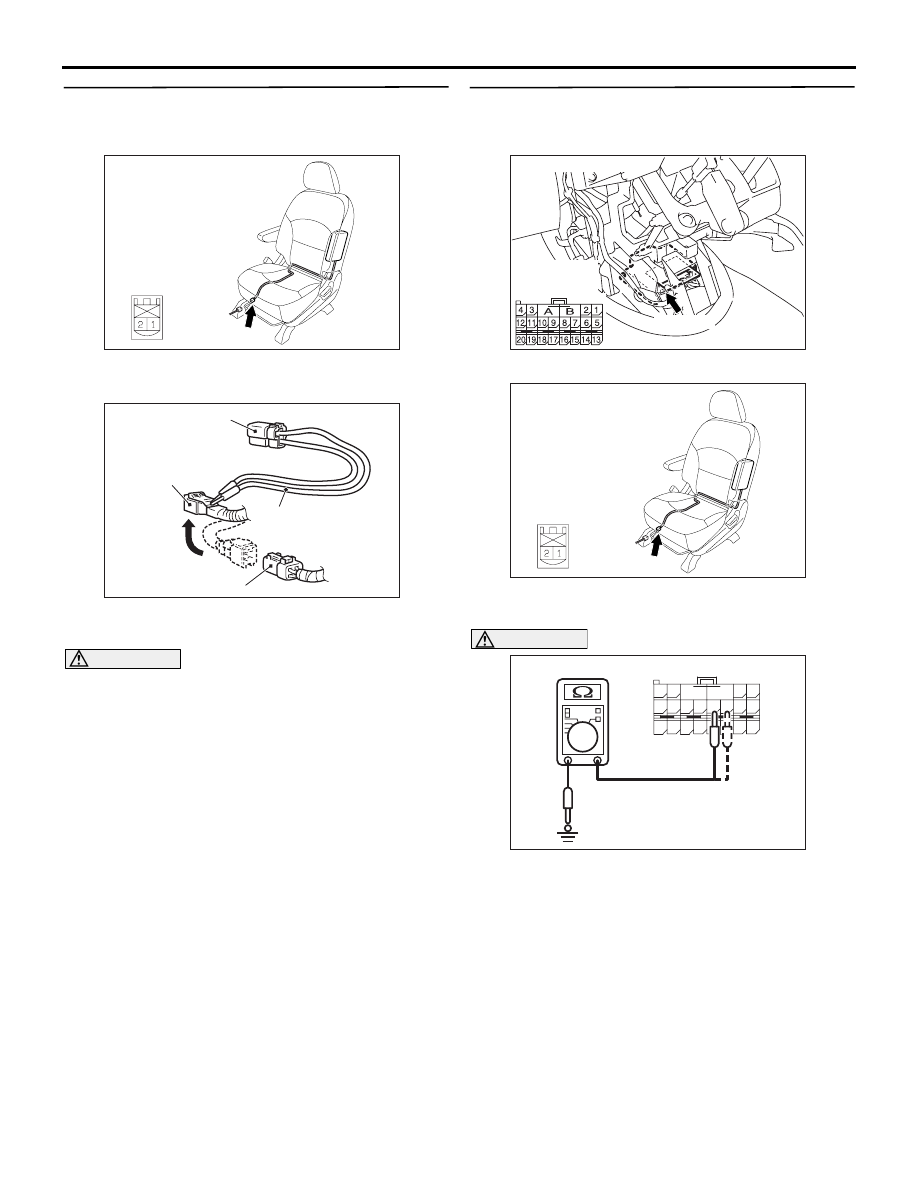

STEP 3. Check the side-airbag module (LH).
(MUT-III diagnosis code.)
(1) Disconnect the negative battery terminal.

(2) Disconnect the side-airbag module (LH)

connector D-22.

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991866).

CAUTION

Do not insert a test probe into the terminal from
its front side directly, as the connector contact
pressure may be weakened.
(4) Insert special tool MB991866 into the D-22

harness side connector by backprobing.

(5) Connect the negative battery terminal.
(6) Erase the diagnosis code memory, and check the

diagnosis code.

Q:  Is diagnosis code B1432 set?

YES :

Go to Step 4.

NO :

Replace the seatback frame of the front
seat (LH). (Refer to GROUP 52A, Front
Seat

P.52A-24

).

STEP 4. Check the side-airbag module (LH)
circuit. Resistance measurement at the SRS-ECU
connector C-120.

(1) Disconnect SRS-ECU connector C-120.

(2) Disconnect side-airbag module (LH) connector

D-22

CAUTION

Do not insert a test probe into the terminal from
its front side directly, as the connector contact
pressure may be weakened.
(3) Check for continuity between C-120 harness side

connector terminals 9, 10 and body earth.

OK: Open circuit

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the harness wires between
SRS-ECU connector C-120 (terminal No.9
and 10) and side-airbag module (LH)
connector D-22 (terminal No.1 and 2).

AC303521

AD

D-22 (R)

Connector: D-22

Harness side
(front view)

AC006042 BY

MB991866
(Resistor harness)

D-22 Harness side
connector

D-22 Side-airbag
module (LH) connector

MB991865 (Dummy
resistor: 3



Ω)

AC311438 AE

C-120 (Y)

Connector: C-120

Harness side
(front view)

AC303521

AD

D-22 (R)

Connector: D-22

Harness side
(front view)

AC308178

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

C-120 Harness side
connector (rear view)

AD

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-87

STEP 5. Check whether the diagnosis code is
reset.

Q: Is diagnosis code B1432 set?

YES :

Replace the SRS-ECU (Refer to

P.52B-223

).

NO :

An intermittent malfunction is suspected
(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-5

).

diagnosis code B1433: Side-Airbag Module (LH) (Squib) System Fault Power Supply Circuit
(Short-Circuited to Power Supply)

CAUTION

If diagnosis code B1433 is set in the combination
meter, always diagnose the CAN bus lines.

OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the left and right side
impact sensors. If the impact is over a
predetermined level, the SRS-ECU sends an
ignition signal. At this time, if the side-airbag
safing G-sensor is on, the SRS side-airbag will
inflate.

• The ignition signal is input to the side-airbag

module to inflate the side-airbag.

DIAGNOSIS CODE SET CONDITIONS

This diagnosis code is set if there is abnormal
resistance between the input terminals of the
side-airbag module (LH) (squib).

PROBABLE CAUSES

• Damaged wiring harnesses or connectors

• Short to the power supply in the side-airbag

module (LH) (squib) harness

• Malfunction of the SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. MUT-III CAN bus diagnostics

Use the MUT-III to diagnose the CAN bus lines.

Q: Is the check result normal?

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

SIDE AIR BAG
MODULE
(SQUIB) (LH)

SRS-ECU

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

: CONNECTOR
  CONNECTED: ON
  CONNECTOR
  DISCONNECTED: OFF

NOTE

Side-Airbag Module (LH) (Squib) Circuit
