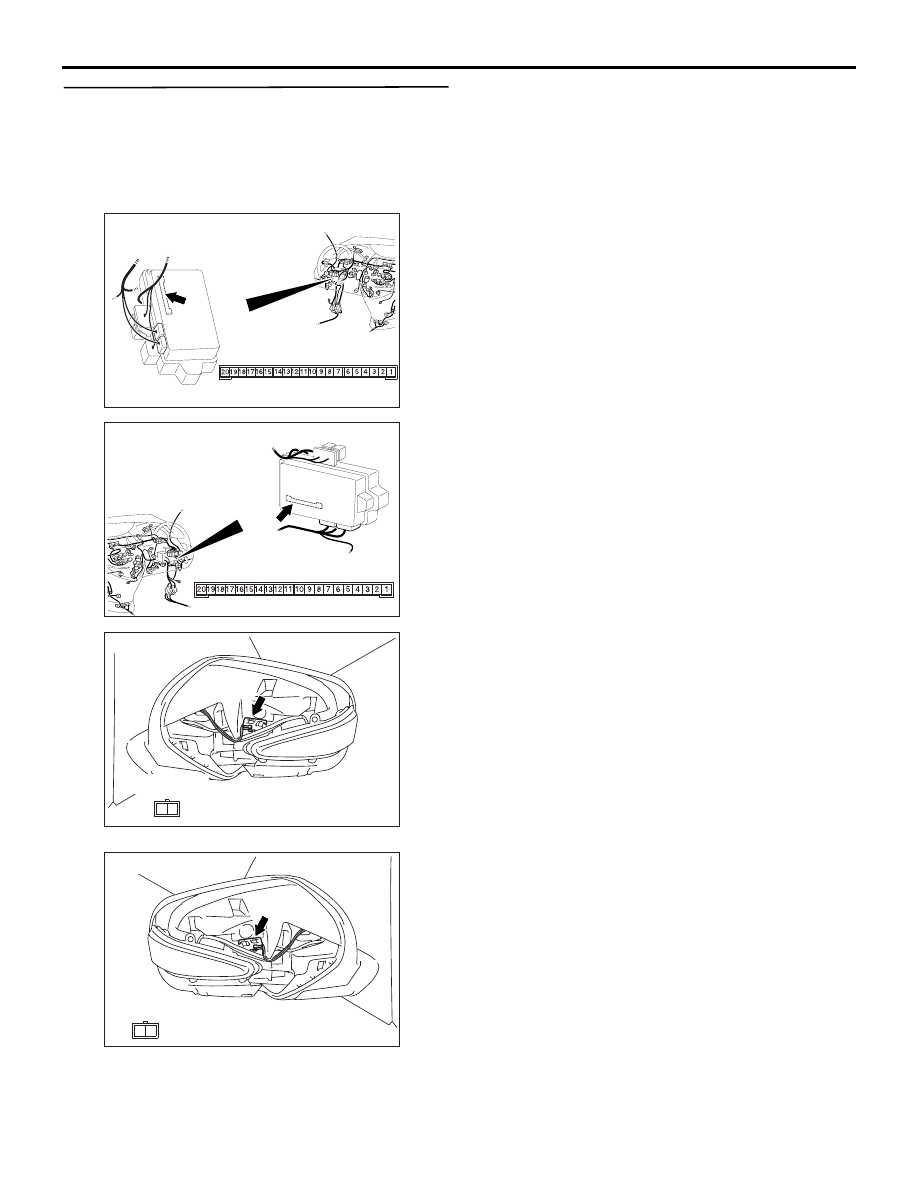

Mitsubishi Grandis. Manual - part 85

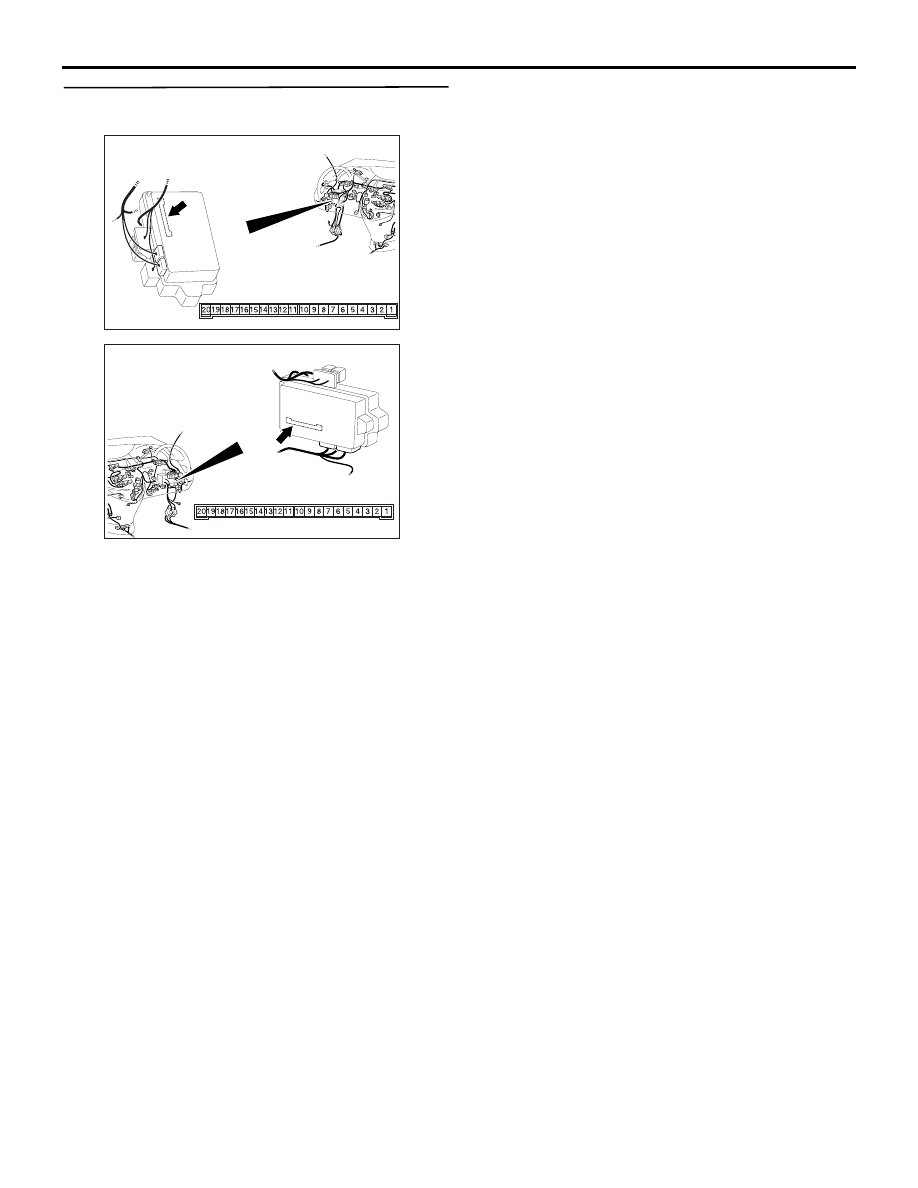

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-337

Step 21. Check the wiring harness from the
F-13-6 side turn-signal lamp (RH) connector
terminal No.1 to C-219 ETACS-ECU connector
terminal No.9 or F-07-6 side turn-signal lamp (LH)
connector terminal No.1 to C-219 ETACS-ECU
connector terminal No.14.

NOTE:

AC310626AD

Connector: C-219 <LHD>
Junction block (Rear view)

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC303049AF

Connector:

 F-07-6

Harness side

1

2

AC303050AC

Connector:

 F-13-6

Harness side

1

2

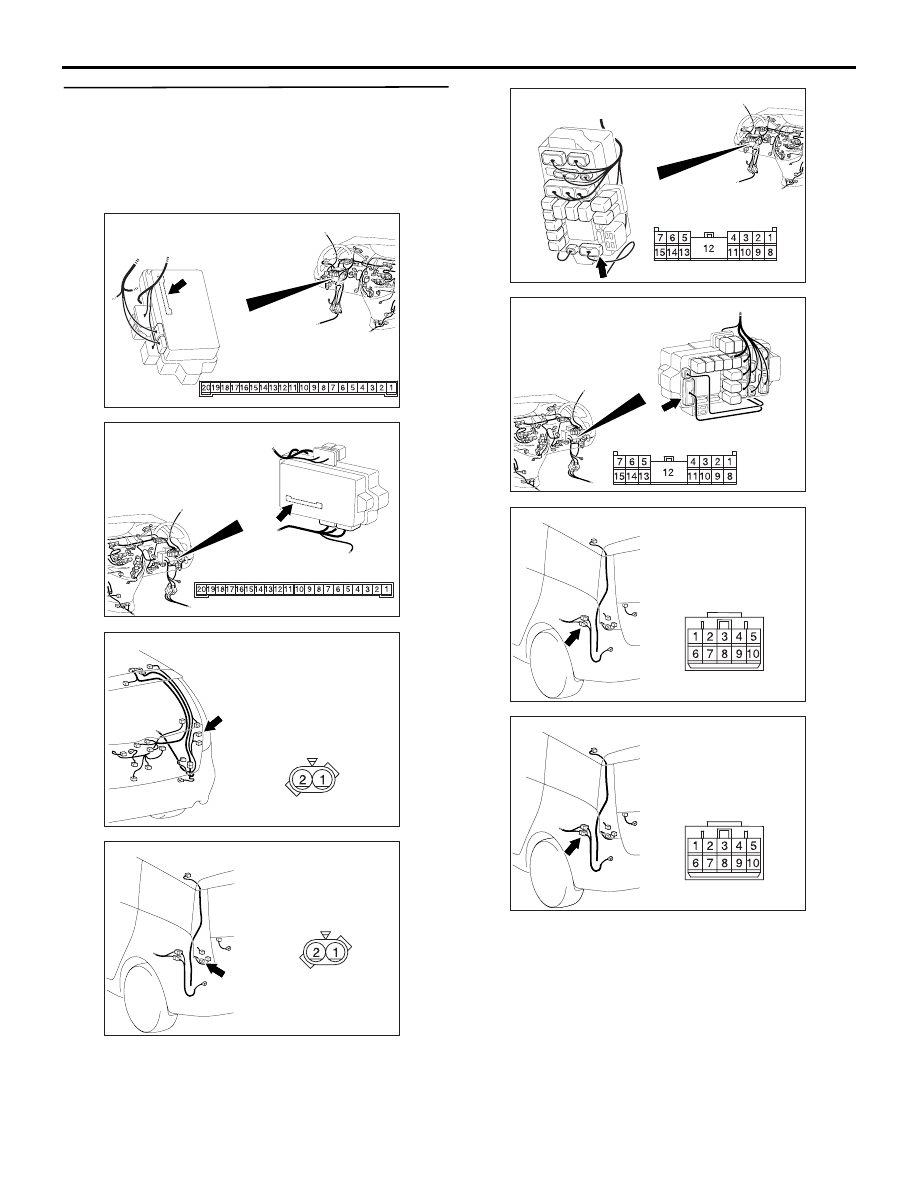

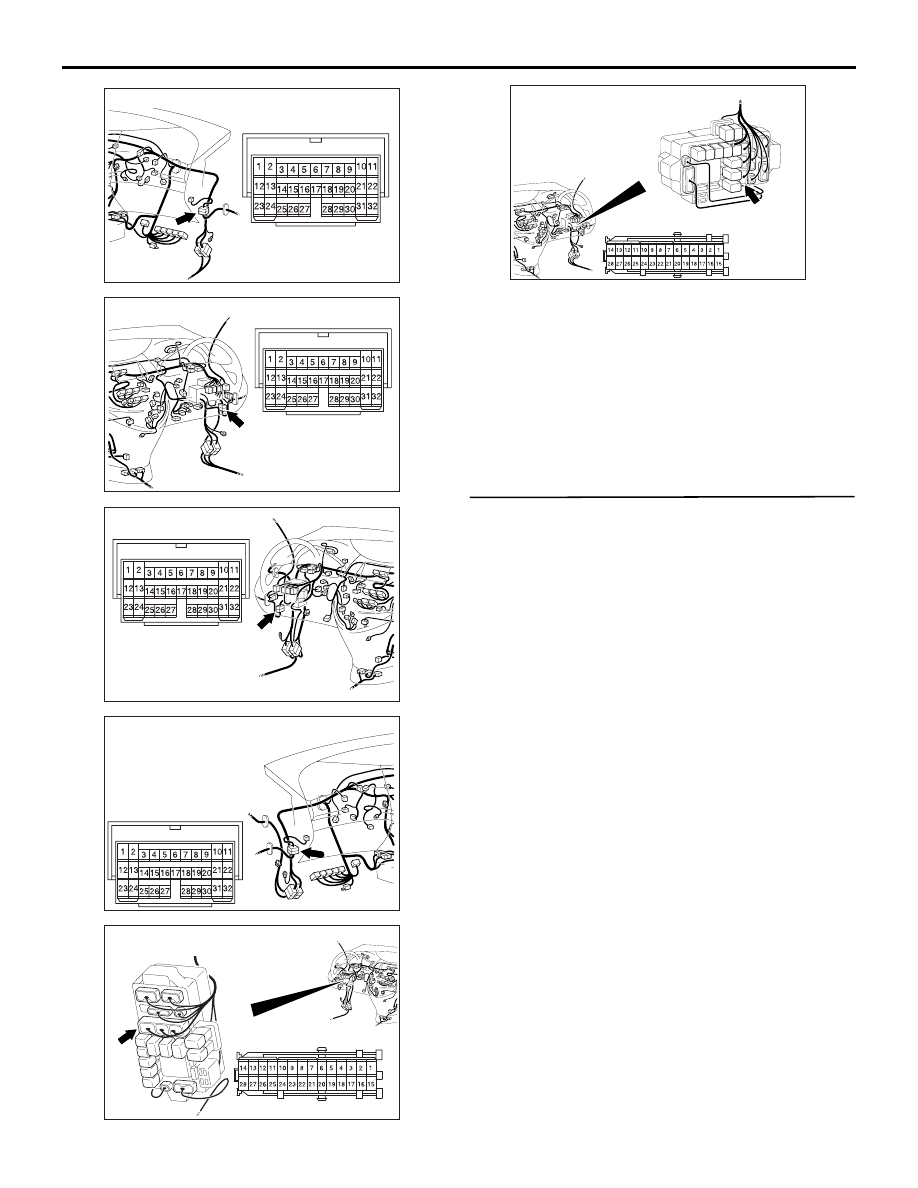

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-338

Prior to the wiring harness inspection, check
intermediate connector C-14 <side turn-signal lamp
(RH)>, C-27 <side turn-signal lamp (LH)> and
junction block connector C-205, and repair if
necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 22.

NO :

Repair the wiring harness.

Step 22. Retest the system.

Check that the side turn-signal lamps illuminate
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the side turn-signal lamp.

AC310615

AB

Connector: C-14 <LHD>

AC310631

Connector: C-14 <RHD>

AG

AC310613

Connector: C-27 <LHD>

AJ

AC310628AN

Connector: C-27 <RHD>

AC310623

Connector: C-205 <LHD>

AM

Harness side

Junction block (Front view)

AC310618

Connectors: C-205 <RHD>

AL

Harness side

Junction block (Front view)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-339

Step 23. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 24.

NO :

Repair the defective connector.

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-340

Step 24. Check the wiring harness from the G-09
rear turn-signal lamp (RH) connector terminal
No.1 to C-219 ETACS-ECU connector terminal
No.9 or G-25 rear turn-signal lamp (LH)
connector terminal No.1 to C-219 ETACS-ECU
connector terminal or No.14.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector G-21 and junction block
connector C-210, and repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 25.

NO :

Repair the wiring harness.

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310222

Connector: G-09

AG

Harness side

G-09 (B)

AC310220

Connector: G-25

AF

G-25 (B)

Harness side

AC310623

Connector: C-210 <LHD>

AS

Harness side

Junction block (Front view)

AC310618

Connector: C-210 <RHD>

AQ

Harness side

Junction block (Front view)

AC310220

Connector: G-21 <LHD>

AC

AC310220

AC310220

Connector: G-21 <RHD>

AG
