SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-329

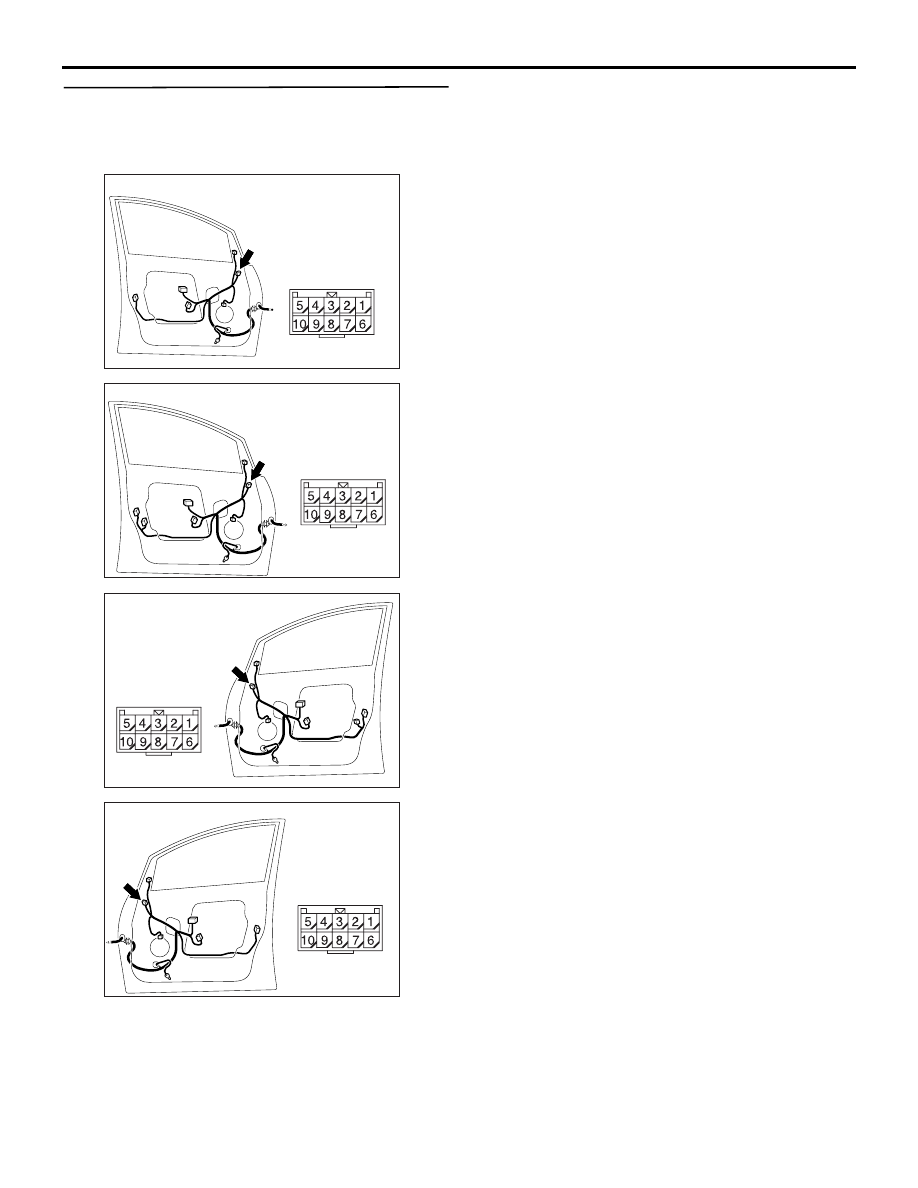

Step 11. Check the wiring harness from F-13 door
mirror assembly (RH) or F-07 door mirror
assembly (LH) connector terminal No.2 and body
earth.

NOTE:

AC311150

AD

Connector: F-07

Harness side

<LHD>

AC310211

AF

Connector: F-07 <RHD>

Harness side

AC311147

AF

Connector: F-13 <LHD>

Harness side

AC310213

AE

Connector: F-13 <RHD>

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-330

Prior to the wiring harness inspection, check
intermediate connector C-14 <side turn-signal lamp
(RH)>, C-27 <side turn-signal lamp (LH)> and
junction block connector C-205, and repair if
necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

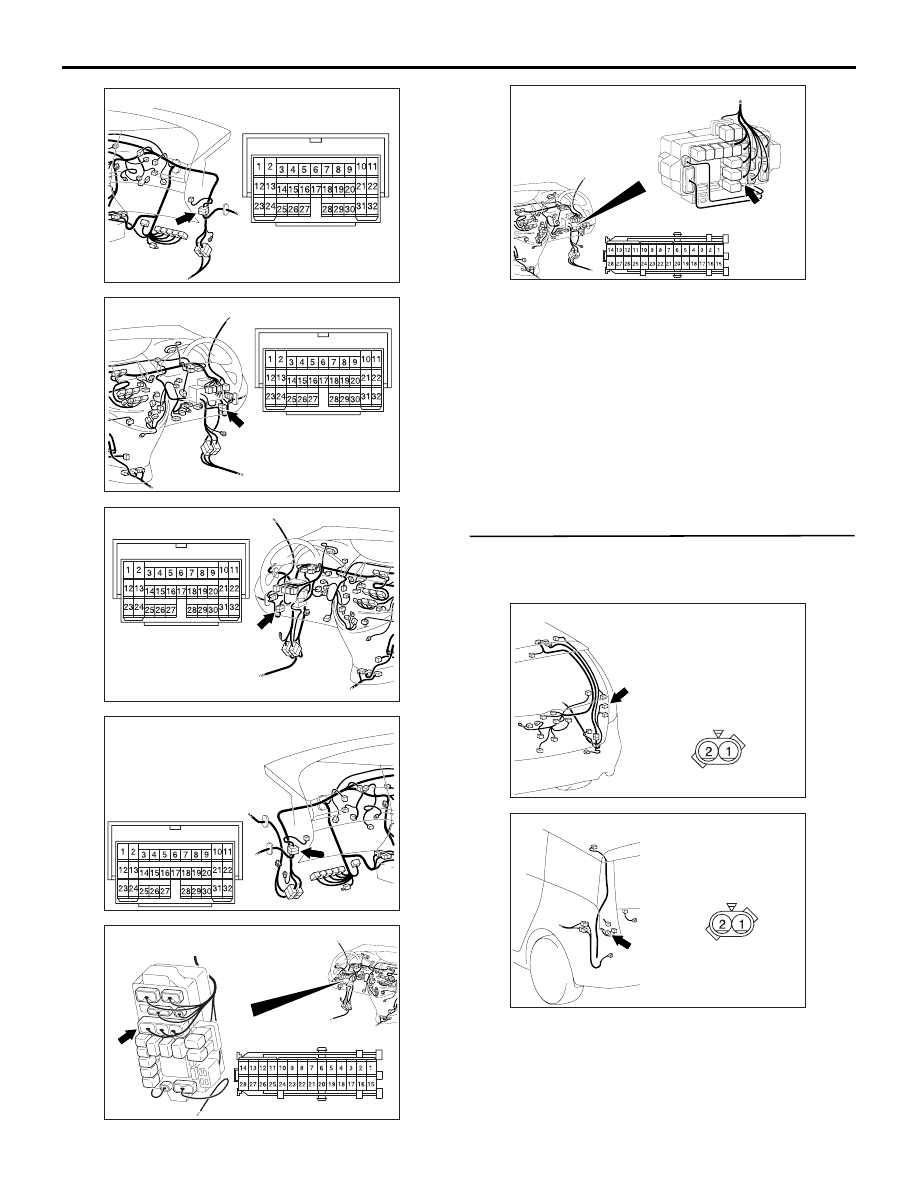

Step 12. Connector check: G-09 rear turn-signal
lamp (RH) or G-25 rear turn-signal lamp (LH)
connector.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the defective connector.

AC310615

AB

Connector: C-14 <LHD>

AC310631

Connector: C-14 <RHD>

AG

AC310613

Connector: C-27 <LHD>

AJ

AC310628AN

Connector: C-27 <RHD>

AC310623

Connector: C-205 <LHD>

AM

Harness side

Junction block (Front view)

AC310618

Connectors: C-205 <RHD>

AL

Harness side

Junction block (Front view)

AC310222

Connector: G-09

AG

Harness side

G-09 (B)

AC310220

Connector: G-25

AF

G-25 (B)

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-331

Step 13. Check the bulb(s) of the turn-signal
lamps.

Check the bulb(s) of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Replace the bulb(s) of the defective lamp.

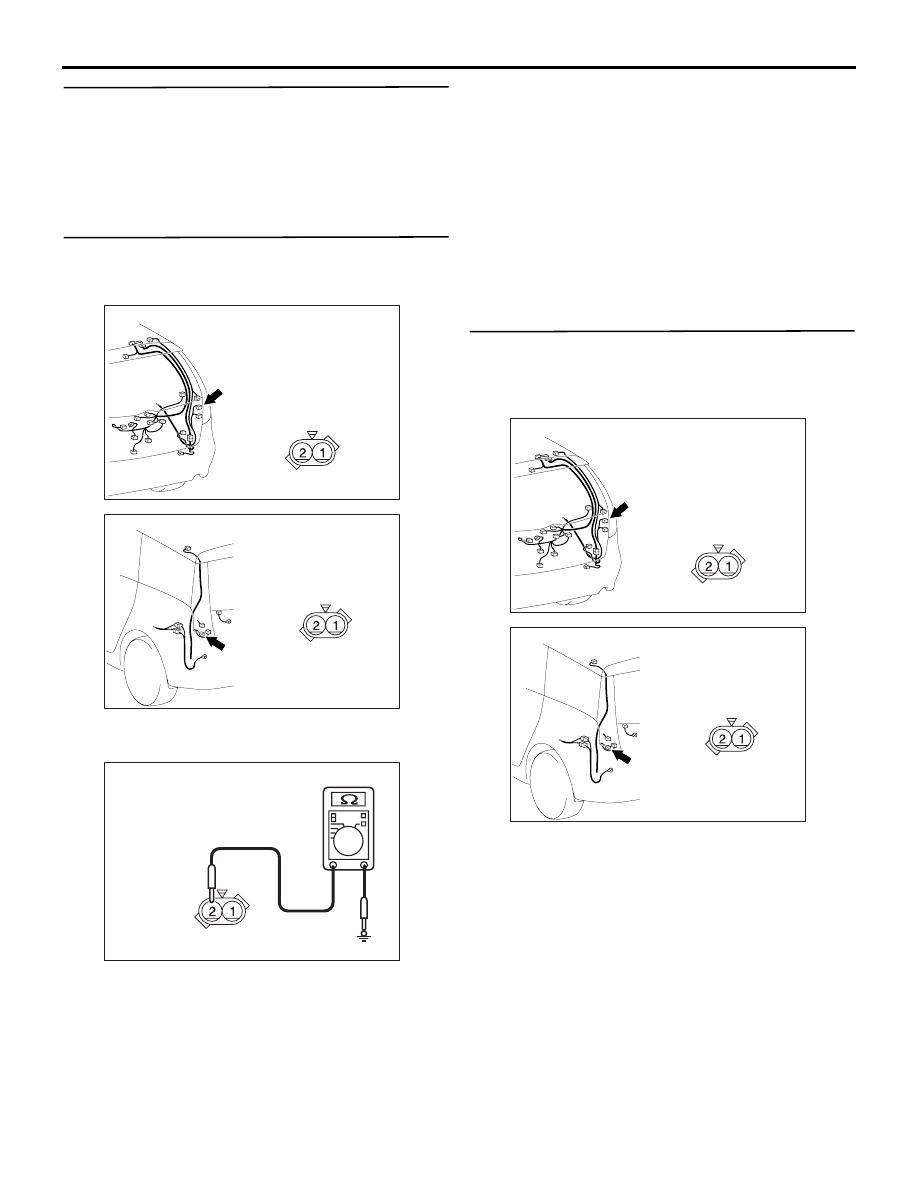

Step 14. Resistance measurement at the G-09
rear turn-signal lamp (RH) or G-25 rear
turn-signal lamp (LH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance measurement between the defective

lamp connector terminal and body earth.

• Resistance between G-09 rear turn-signal

lamp (RH) connector terminal No.2 and body
earth

• Resistance between G-25 rear turn-signal

lamp (LH) connector terminal No.2 and body
earth

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 23.

NO :

Go to Step 15.

Step 15. Check the wiring harness from G-09 rear
turn-signal lamp (RH) or G-25 rear turn-signal
lamp (LH) connector terminal No.2 and body
earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310222

Connector: G-09

AG

Harness side

G-09 (B)

AC310220

Connector: G-25

AF

G-25 (B)

Harness side

AC310506BR

Connectors G-09, G-25
(Harness side)

AC310222

Connector: G-09

AG

Harness side

G-09 (B)

AC310220

Connector: G-25

AF

G-25 (B)

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-332

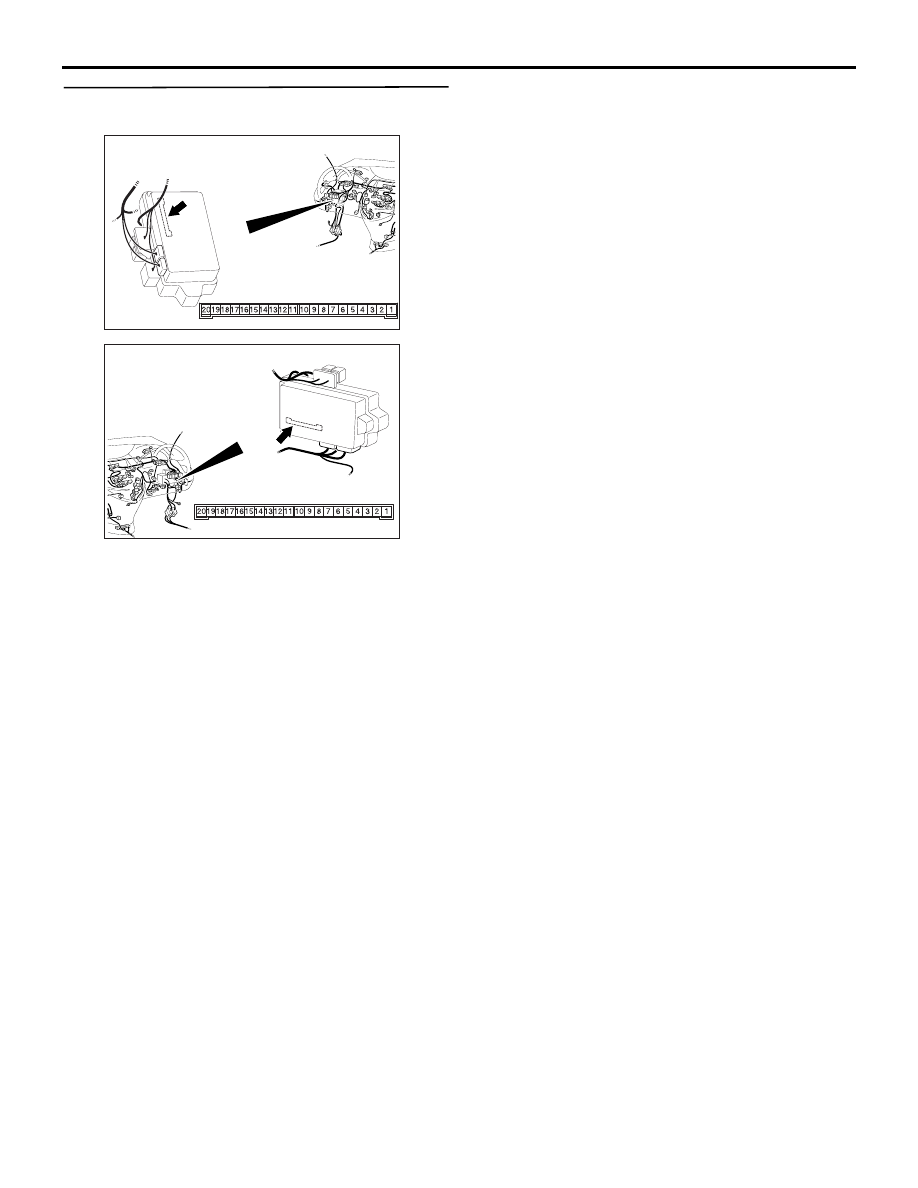

Step 16. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the defective connector.

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side
