SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-89

DIAGNOSTIC PROCEDURE

Step 1. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

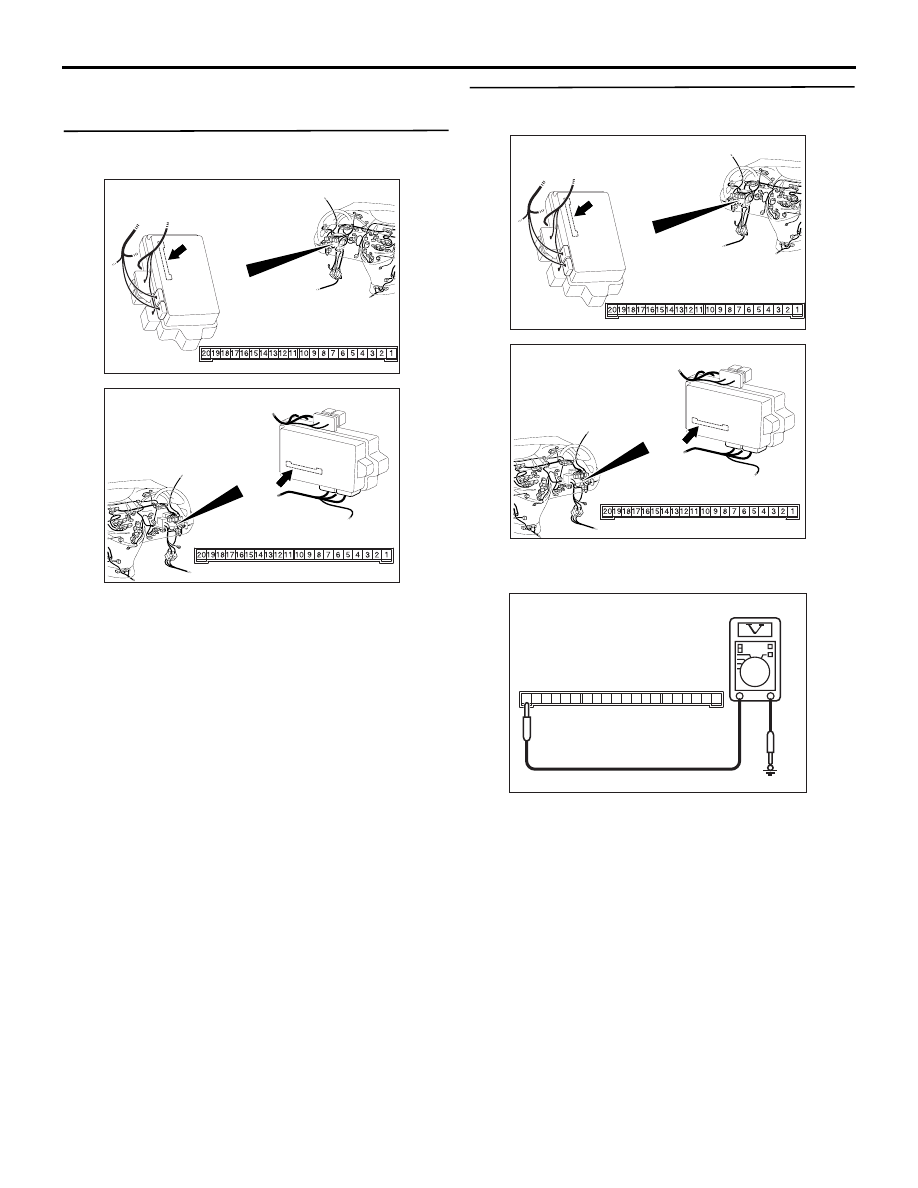

Step 2. Voltage measurement at the C-219
ETACS-ECU connector.

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Voltage between C-219 ETACS-ECU connector

terminal No.20 and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC301541IE

Connector C-219
(Junction block side)

2019

7

13

17

18

1615 14

10

11

12

9 8

2

6 5

3

4

1

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-90

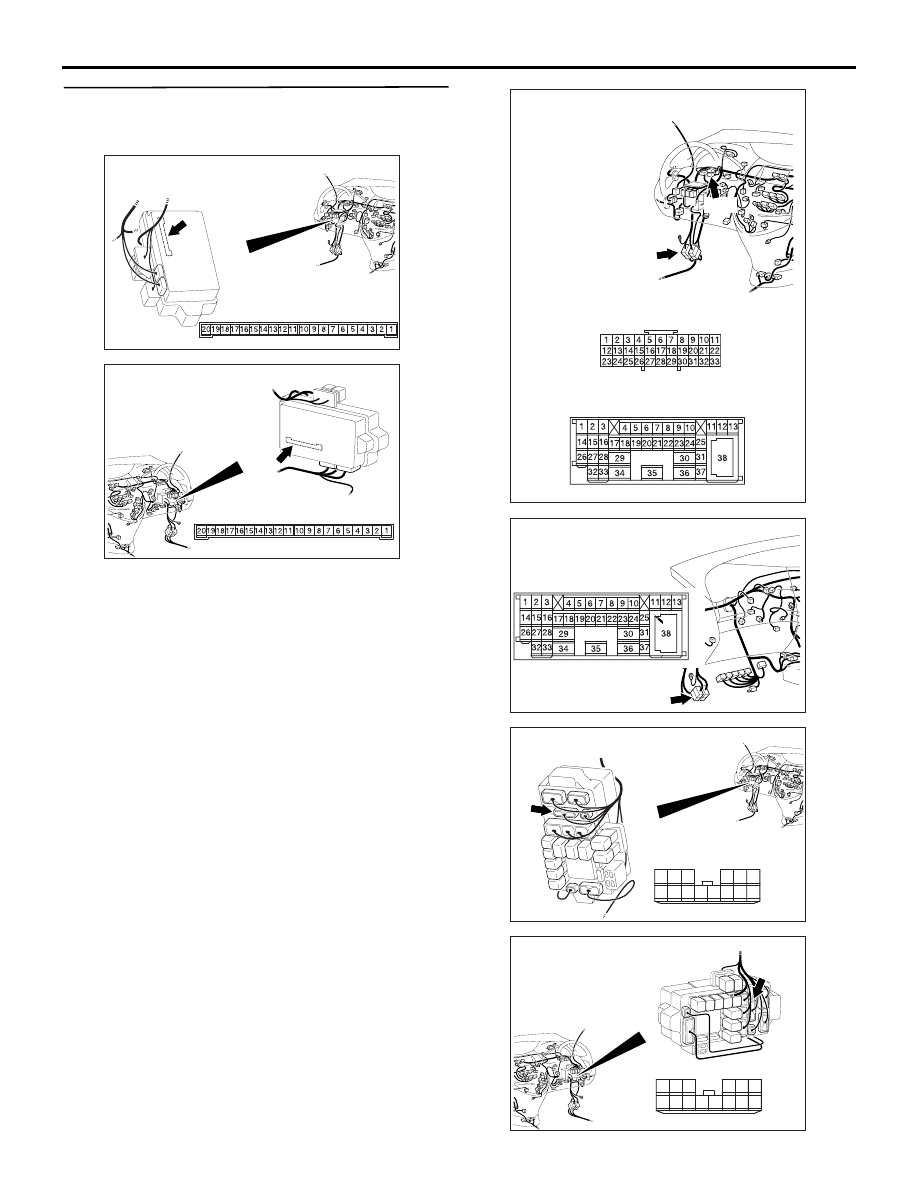

Step 3. Check the wiring harness between C-219
ETACS-ECU connector terminal No.20 and
fusible link (26).

NOTE:

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310614

AZ

Connectors: C-31, C-125 <LHD>

C-125

C-125

C-31

C-31

AC310628

Connector: C-125 <RHD>

AR

AC310623

Connectors: C-203 <LHD>

AL

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

AC310618

Connectors: C-203 <RHD>

AK

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-91

Prior to the wiring harness inspection, check
intermediate connector C-125 and joint connector
C-31 <LH drive vehicles>, junction block connector
C-203, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

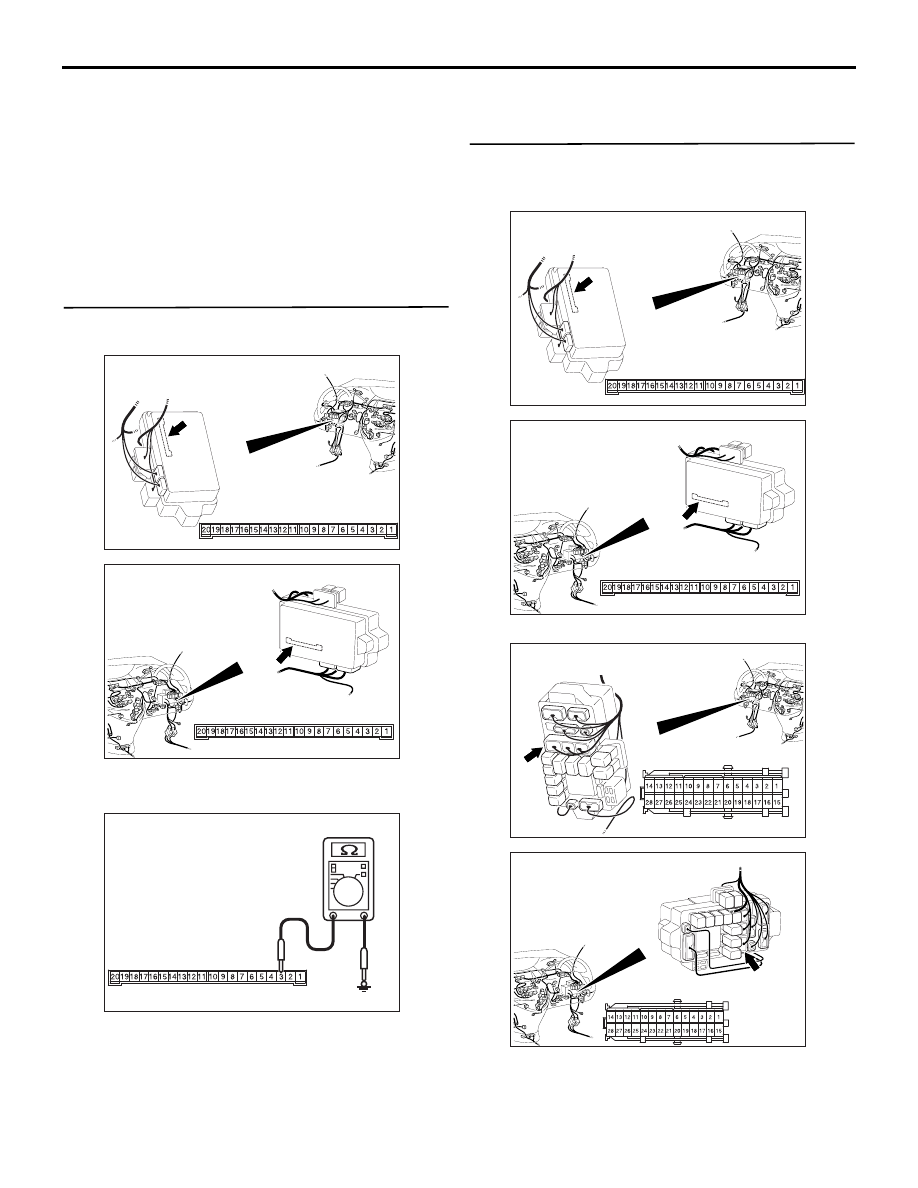

Step 4. Resistance measurement at the C-219
ETACS-ECU connector.

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Continuity between C-219 ETACS-ECU

connector terminal No.3 and body earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

Step 5. Check the wiring harness between C-219
ETACS-ECU connector terminal No.3 and body
earth.

NOTE:

Prior to the wiring harness inspection, check junction
block connector C-205, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310506

Connector C-219
(Junction block side)

AV

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310623

Connector: C-205 <LHD>

AM

Harness side

Junction block (Front view)

AC310618

Connectors: C-205 <RHD>

AL

Harness side

Junction block (Front view)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-92

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 6. Retest the system.

Check that the battery power supply circuit to the
ETACS-ECU is normal.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

TONE ALARM

Inspection Procedure B-1: Lamp reminder buzzer function does not work normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

The ETACS-ECU operates this function in
accordance with the input signals below.

• Ignition switch (IG1)

• Driver's door switch

• Tail lamp switch

• Headlamp switch

If this function does not work normally, these input
signal circuit(s) or the ETACS-ECU may be
defective.

POSSIBLE CAUSES

• Malfunction of the driver's door switch

• Malfunction of the column switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check the power supply circuit.
When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure A-2 "Check
the ETACS-ECU battery power supply
circuit

P.54B-87

."

ETACS-ECU

INPUT SIGNAL

· DRIVER'S DOOR SWITCH

· TAIL LAMP SWITCH

· IGNITION SWITCH (IG1)

· HEADLAMP SWITCH

Lamp Reminder Buzzer Function
