Mitsubishi L200. Manual - part 951

HEATED SEAT

CIRCUIT DIAGRAMS

90-189

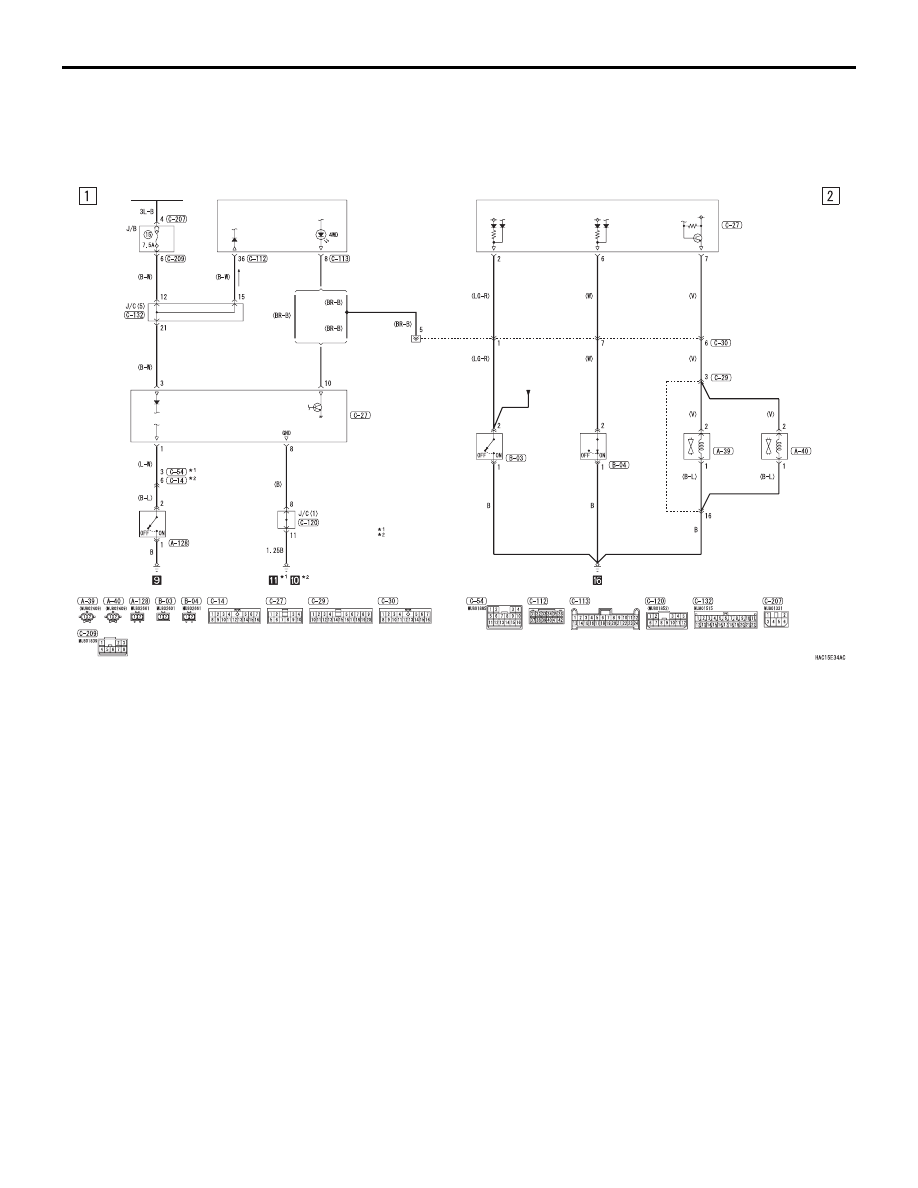

HEATED SEAT <RHD> (CONTINUED)

HEATED SEAT
SWITCH (RH)

HEATED SEAT
SWITCH (LH)

HEATED
SEAT
(RH)

HEATED
SEAT
(LH)

SEAT
CUSHION
HEATER

THERMOSTAT

HEATER

THERMOSTAT

HEATER

SEAT
BACK
HEATER

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple SI : Silver

SUNROOF

CIRCUIT DIAGRAMS

90-190

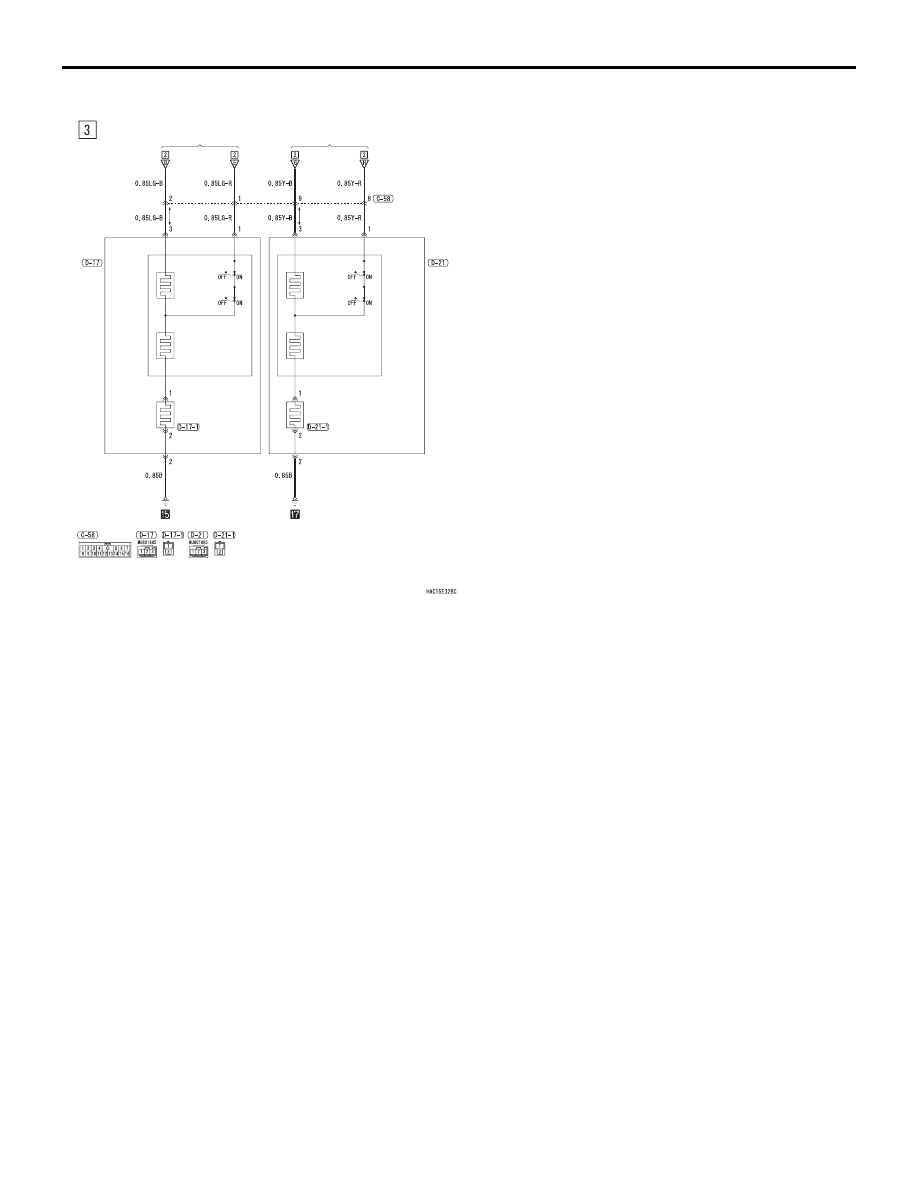

SUNROOF

M1901009903126

HALL IC

MOTOR

SUNROOF
MOTOR
ASSEMBLY

SUNROOF
SWITCH

IGNITION
SWITCH (IG2)

FUSIBLE
LINK

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple SI : Silver

EASY SELECT 4WD SYSTEM

CIRCUIT DIAGRAMS

90-191

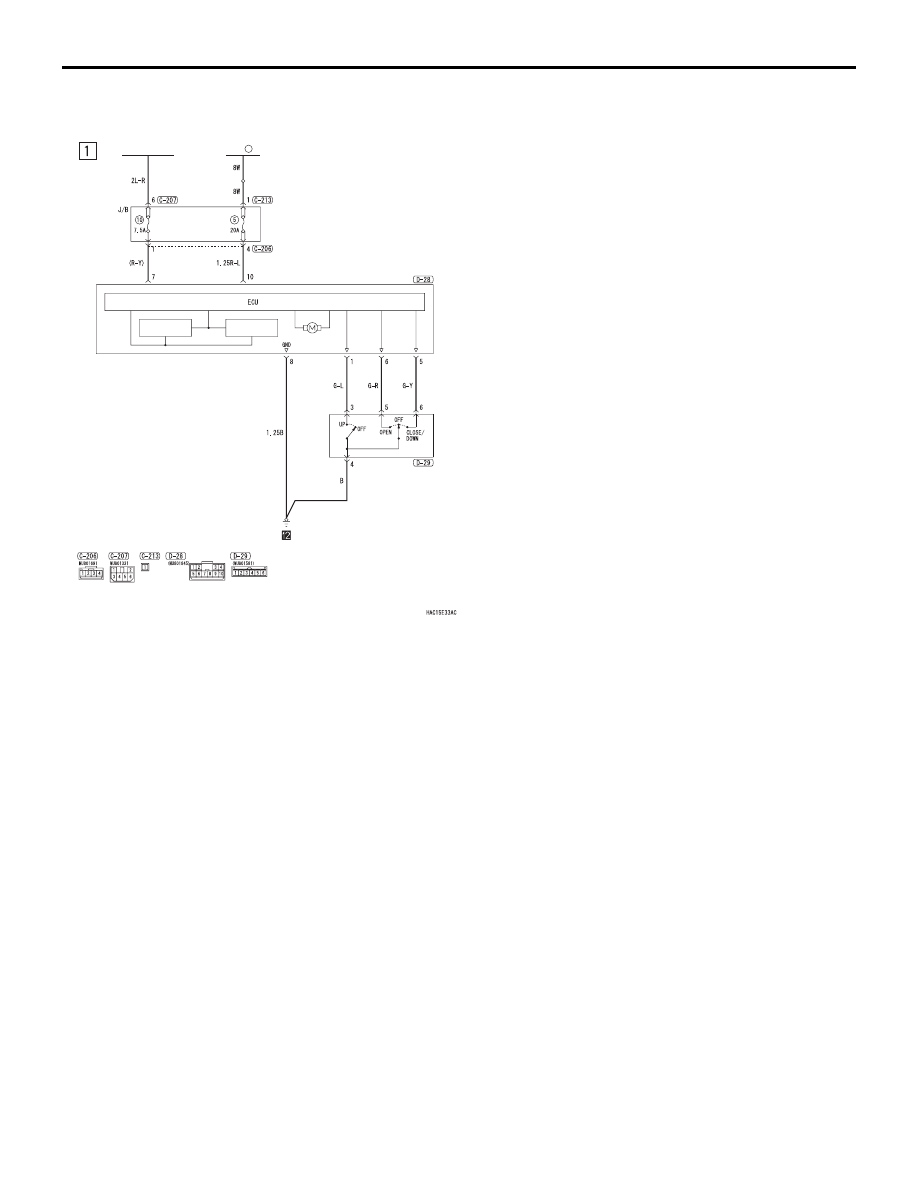

EASY SELECT 4WD SYSTEM

EASY SELECT 4WD SYSTEM <VEHICLES
FOR EUROPE>

M1901024800343

4WD
INDICATOR-
ECU

LHD

RHD

IGNITION
SWITCH (IG1)

COMBINATION
METER

FREE
WHEEL
ENGAGE
SWITCH

4WD
INDICATOR-
ECU

REAR
DIFFERENTIAL
LOCK
SYSTEM

4WD
DETECTION
SWITCH

HIGH RANGE/
LOW RANGE
DETECTION
SWITCH

SOLENOID
VALVE 1

SOLENOID
VALVE 2

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple SI : Silver

LHD
RHD

:
:

NOTE

EASY SELECT 4WD SYSTEM

CIRCUIT DIAGRAMS

90-192

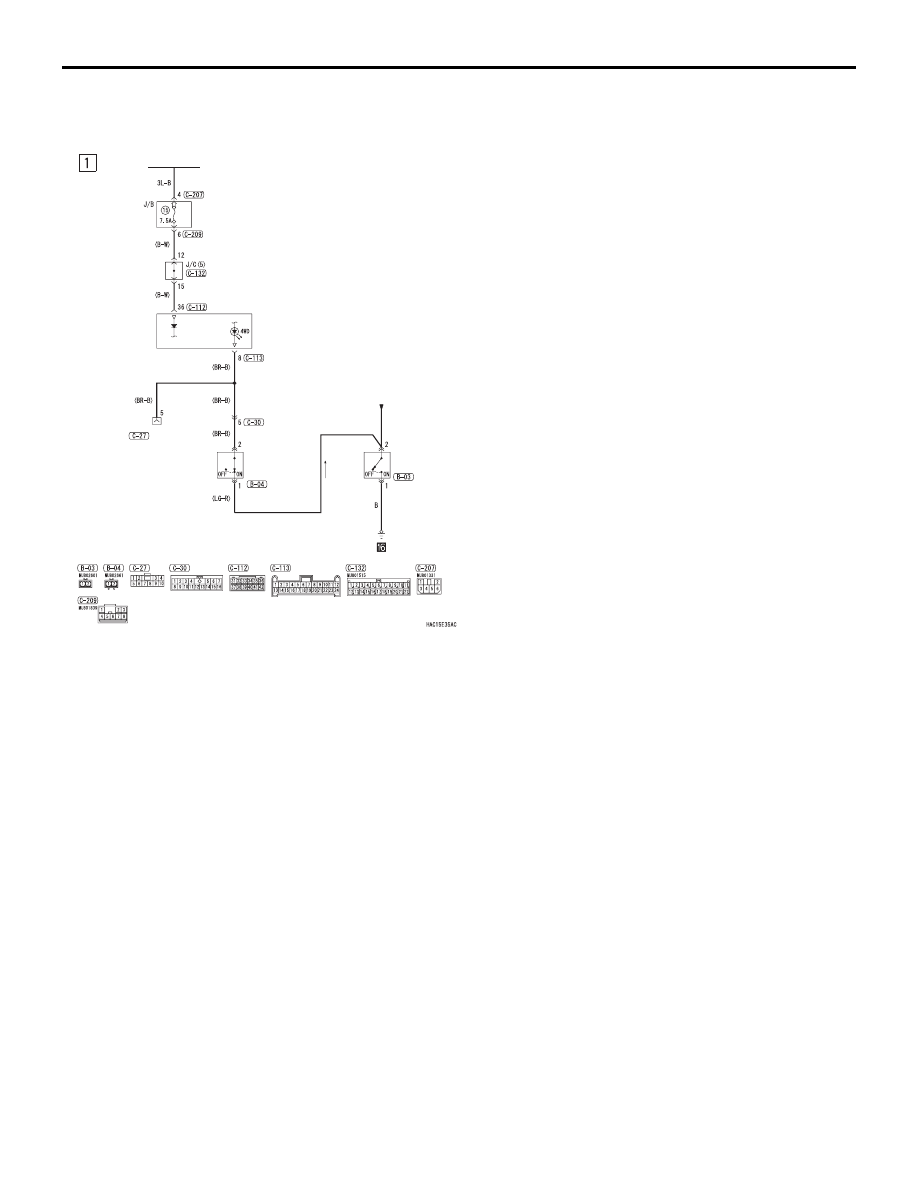

EASY SELECT 4WD SYSTEM <VEHICLES
FOR RUSSIA>

M1901024800354

IGNITION
SWITCH (IG1)

COMBINATION
METER

NO
CONNECTION

4WD
DETECTION
SWITCH

REAR
DIFFERENTIAL
LOCK SYSTEM

HIGH RANGE/
LOW RANGE
DETECTION
SWITCH

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange GR : Grey
R : Red P : Pink V : Violet PU : Purple SI : Silver
