STOP LAMP

CIRCUIT DIAGRAMS

90-85

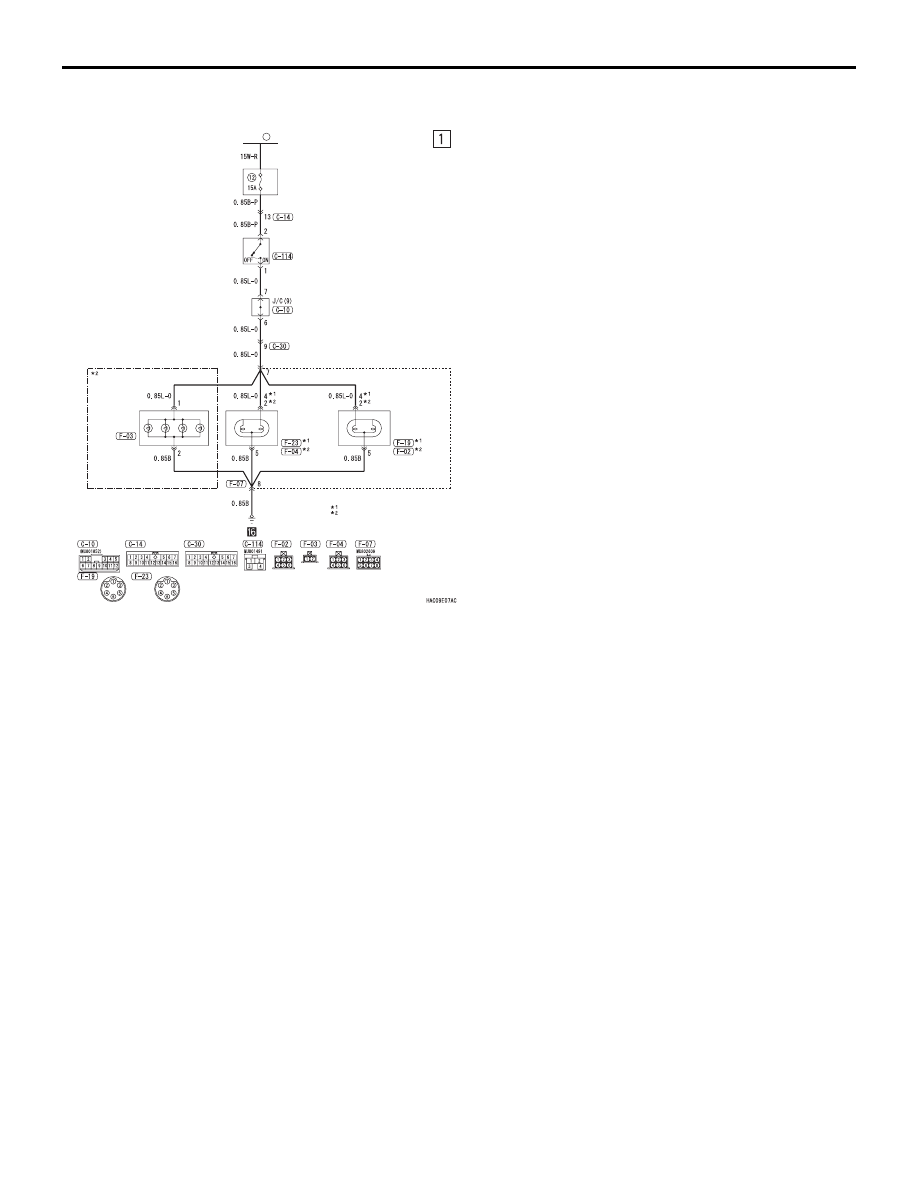

STOP LAMP <RHD>

M1901003004043

FUSIBLE
LINK

23

RELAY
BOX

STOP LAMP
SWITCH

HIGH-
MOUNTED
STOP LAMP

REAR
COMBINATION
LAMP
(STOP: LH)

REAR
COMBINATION
LAMP
(STOP: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White
Y : Yellow     SB : Sky blue     BR : Brown     O : Orange     GR : Grey
R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

NOTE

:
:

VEHICLES WITHOUT REAR BODY
VEHICLES WITH REAR BODY

BACK-UP LAMP

CIRCUIT DIAGRAMS

90-86

BACK-UP LAMP

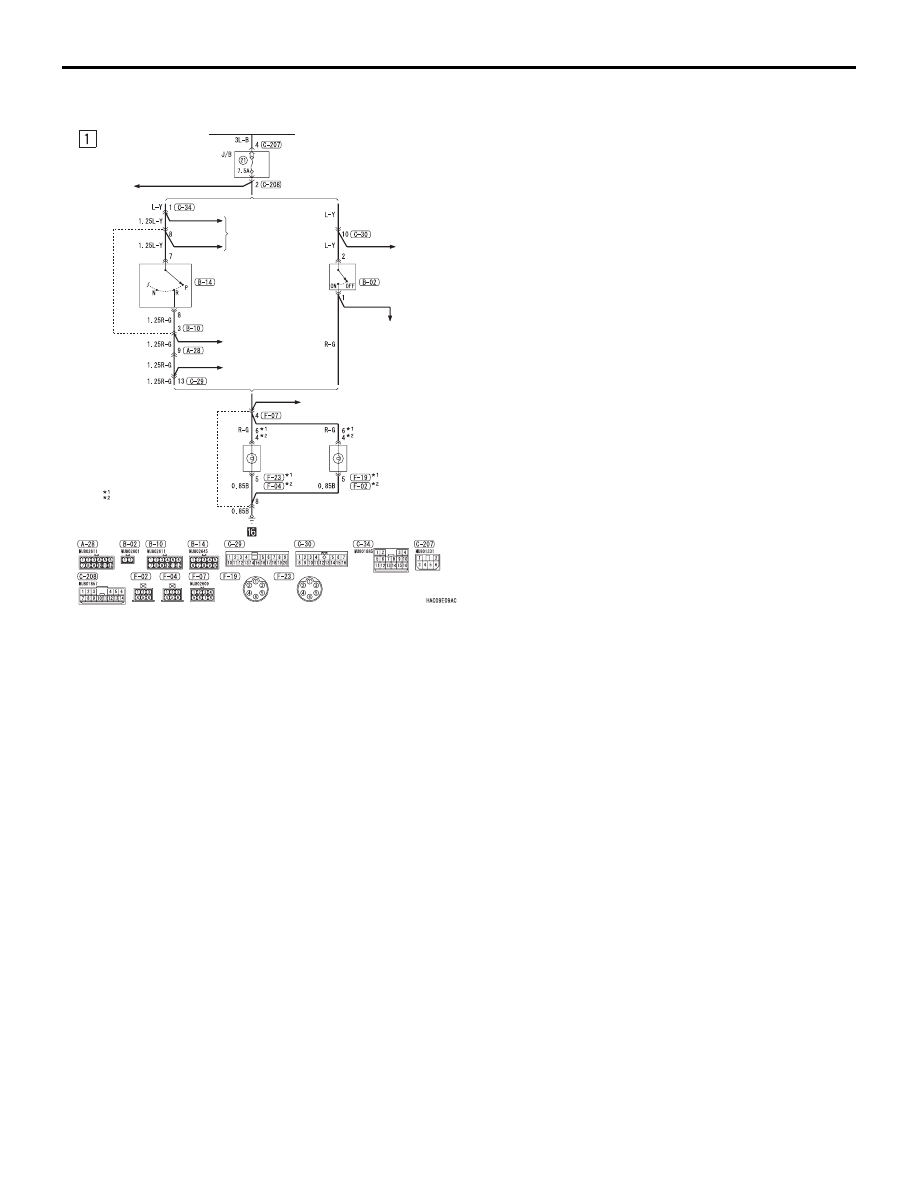

BACK-UP LAMP <LHD>

M1901003104879

REAR
COMBINATION
LAMP
(BACK-UP: LH)

REAR
COMBINATION
LAMP
(BACK-UP: RH)

IGNITION SWITCH (IG1)

INHIBITOR
SWITCH

M/T

A/T

BACK-UP
LAMP SWITCH

·ABS AND ASTC
·ENGINE
 CONTROL
 SYSTEM

ENGINE
CONTROL
SYSTEM

ABS AND ASTC

NOTE

:
:

VEHICLES WITHOUT REAR BODY
VEHICLES WITH REAR BODY

MMCS

·ELC-4A/T
·ELC-5A/T

·ELC-4A/T
·ELC-5A/T
·ENGINE
 CONTROL
 SYSTEM

·ELC-4A/T
·ELC-5A/T

BACK-UP LAMP

CIRCUIT DIAGRAMS

90-87

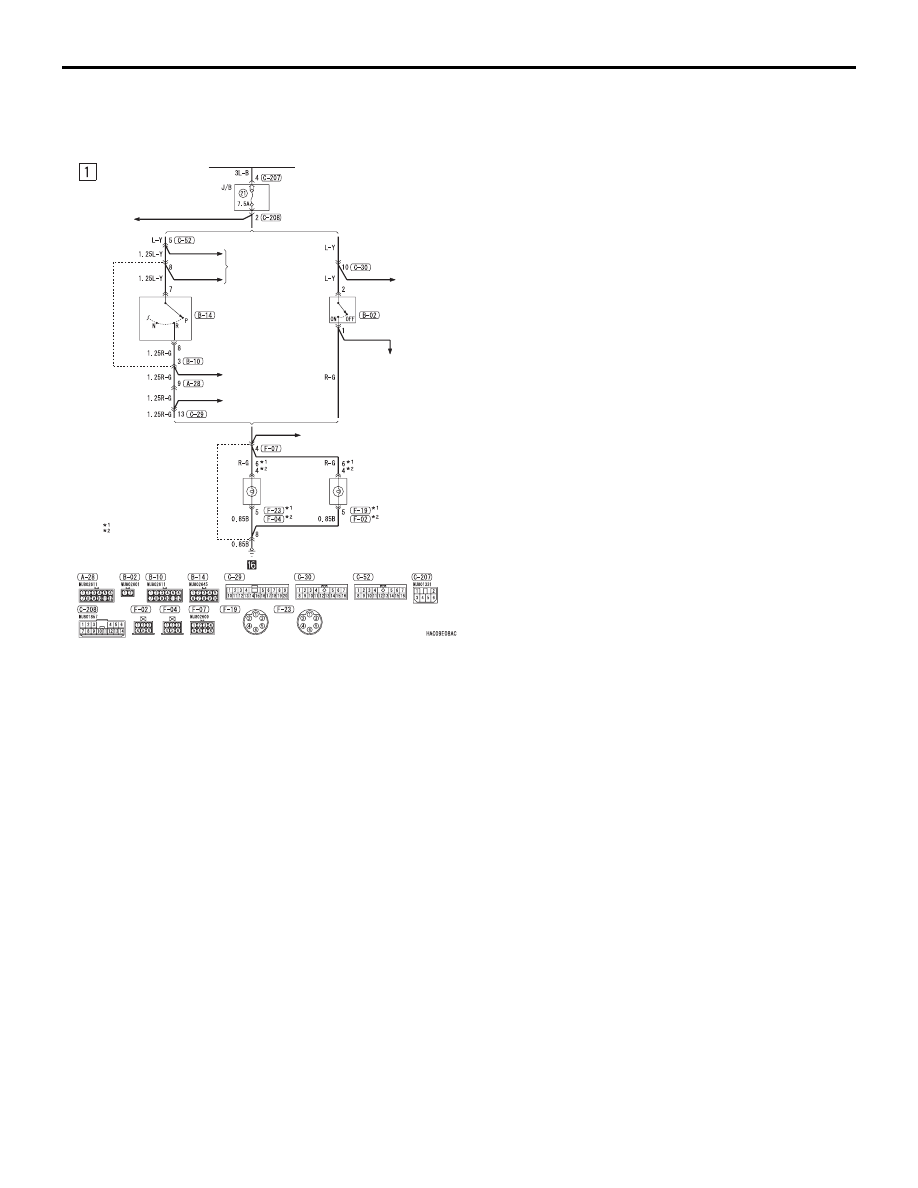

BACK-UP LAMP <RHD>

M1901003104880

REAR
COMBINATION
LAMP
(BACK-UP: LH)

REAR
COMBINATION
LAMP
(BACK-UP: RH)

IGNITION SWITCH (IG1)

INHIBITOR
SWITCH

M/T

A/T

BACK-UP
LAMP SWITCH

·ABS AND ASTC
·ENGINE
 CONTROL
 SYSTEM

ENGINE
CONTROL
SYSTEM

ABS AND ASTC

NOTE

:
:

VEHICLES WITHOUT REAR BODY
VEHICLES WITH REAR BODY

MMCS

·ELC-4A/T
·ELC-5A/T

·ELC-4A/T
·ELC-5A/T
·ENGINE
 CONTROL
 SYSTEM

·ELC-4A/T
·ELC-5A/T

METER AND GAUGE

CIRCUIT DIAGRAMS

90-88

METER AND GAUGE

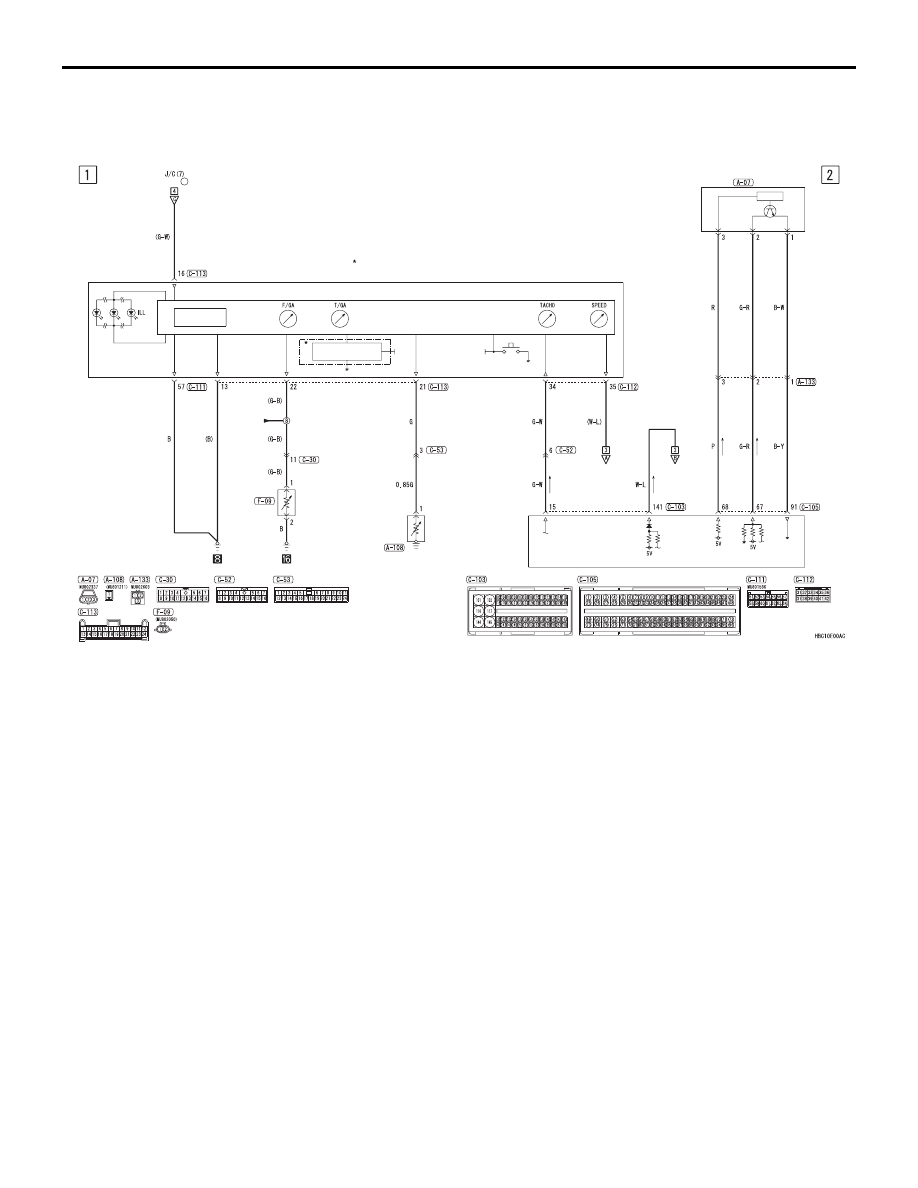

METER AND GAUGE <LHD>

M1901003506475

CRANK ANGLE
SENSOR

ENGINE
COOLANT
TEMPERATURE
GAUGE UNIT

ENGINE-
ECU

COMBINATION
METER

LCD ODO/TRIP

FUEL GAUGE
UNIT

(FUSE     )

7

RV METER

TRIP RESET
SWITCH

ILLUMINATION
CONTROL CIRCUIT

: VEHICLES WITH RHEOSTAT

NOTE
