HEATER UNIT AND COOLING UNIT

HEATER, AIR CONDITIONER AND VENTILATION

55A-76

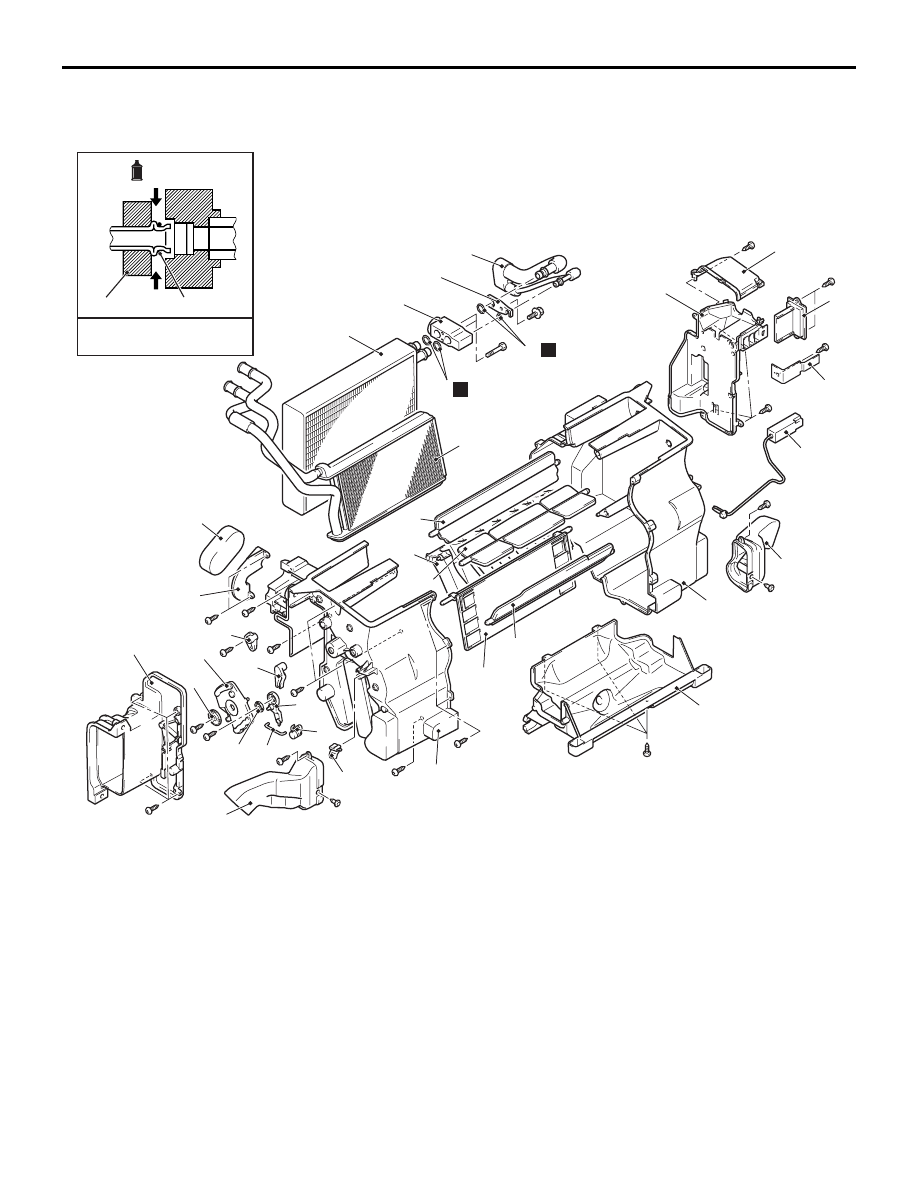

DISASSEMBLY AND REASSEMBLY
<RHD>

M1551005401250

AC508119AF

3

4

5

6

7

9

10

8

N

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

1

2

8

N

27

4, 7

8

-Pipe coupling

A/C compressor oil:
ZXL 100PG

Disassembly steps

1.

A/C temperature control resistor

2.

Side cover upper

3.

Side cover lower

4.

A/C pipe

5.

A/C plate

6.

A/C expansion valve

7.

A/C evaporator

8.

A/C pipe O-ring

9.

A/C evaporator air outlet thermistor

10. A/C bracket
11. A/C washer
12. Heater air control damper link
13. Rod
14. A/C washer
15. Foot lever A
16. Foot lever B

17. Cable clip
18. Vent lever
19. Defroster lever
20. Heater dash lining
21. Heater dash cover
22. Heater core
23. Duct
24. Foot duct LH
25. Foot duct RH
26. Lower case
27. Case
28. Heater defroster air distribution

damper

29. Air guide
30. Heater ventilation air distribution

damper

Disassembly steps (Continued)

EVAPORATOR ASSEMBLY

HEATER, AIR CONDITIONER AND VENTILATION

55A-77

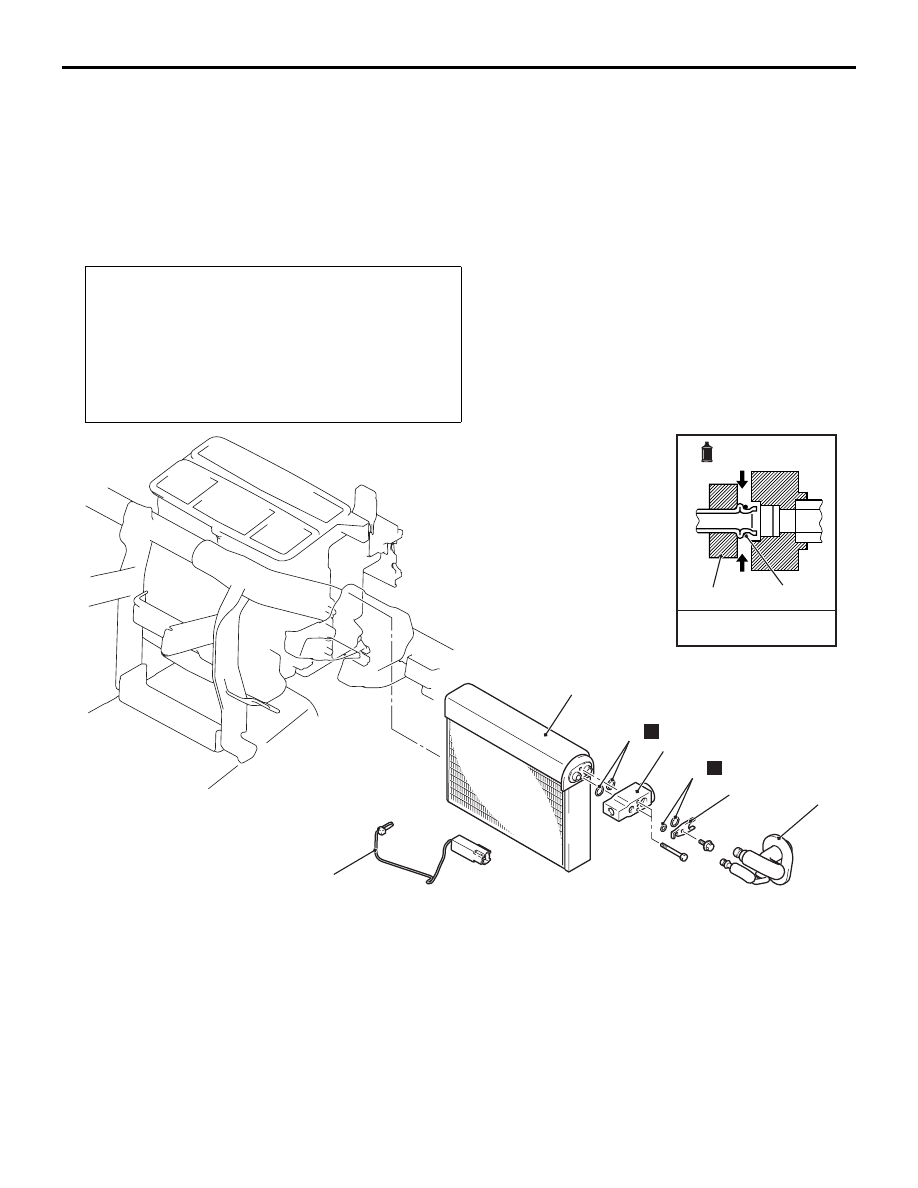

EVAPORATOR ASSEMBLY

REMOVAL AND INSTALLATION

M1552003600827

Pre-removal and Post-installation Operation
• Refrigerant draining and Refilling (Refer to

P.55A-63

.)

• Instrument Panel Removal and Installation (Refer to .)
• Steering column shaft assembly Removal and Installation

(Refer to GROUP 37, Steering shaft ).

• Clutch pedal assembly Removal and Installation (Refer to

GROUP 21A, Clutch pedal ).

• A/C compressor suction pipe and A/C condenser outlet

pipe connection (Refer to

P.55A-85

).

AC504134

1

2

3

4

4

5

6

N

N

AB

1, 5

4

-Pipe coupling

A/C compressor oil:
ZXL 100PG

 Removal steps

•

Heater blower assembly  (Refer to

P.55A-73

.)

1.

A/C pipe

2.

A/C plate

3.

A/C expansion valve

4.

A/C pipe O-ring

<<

A

>>

5.

A/C evaporator

6.

A/C evaporator air outlet thermistor

31. Mode selection damper
32. Heater foot air distribution damper

Disassembly steps (Continued)

 Removal steps (Continued)

BLOWER ASSEMBLY AND RESISTOR

HEATER, AIR CONDITIONER AND VENTILATION

55A-78

REMOVAL SERVICE POINT

<<A>> A/C EVAPORATOR REMOVAL

AC504035

AB

A/C evaporator

To remove the A/C evaporator, remove it while tilting
to the direction of the arrow.

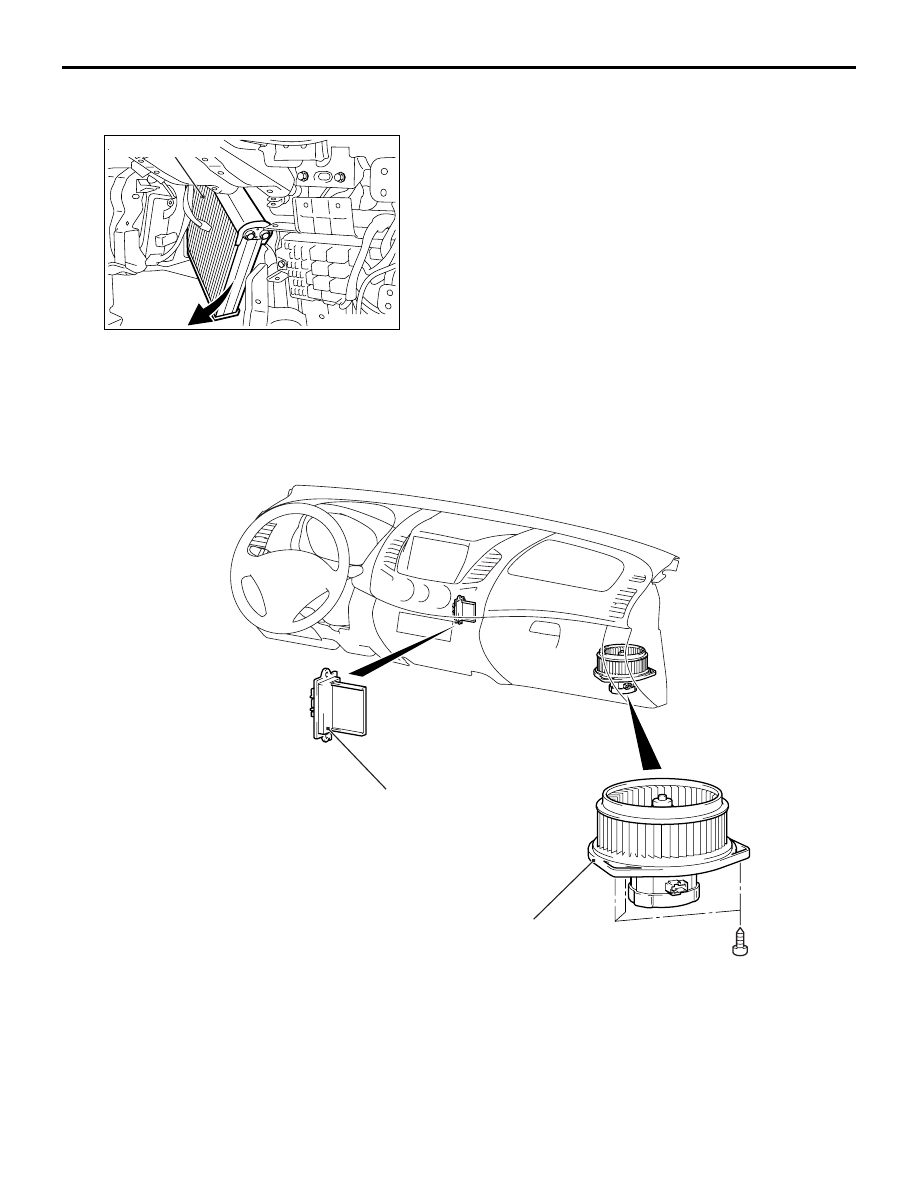

BLOWER ASSEMBLY AND RESISTOR

REMOVAL AND INSTALLATION

M1551002800717

AC500320AB

1

2

Resistor removal step

1.

A/C temperature control resistor

Blower motor removal step

2.

Blower motor

BLOWER ASSEMBLY AND RESISTOR

HEATER, AIR CONDITIONER AND VENTILATION

55A-79

INSPECTION

M1551006300866

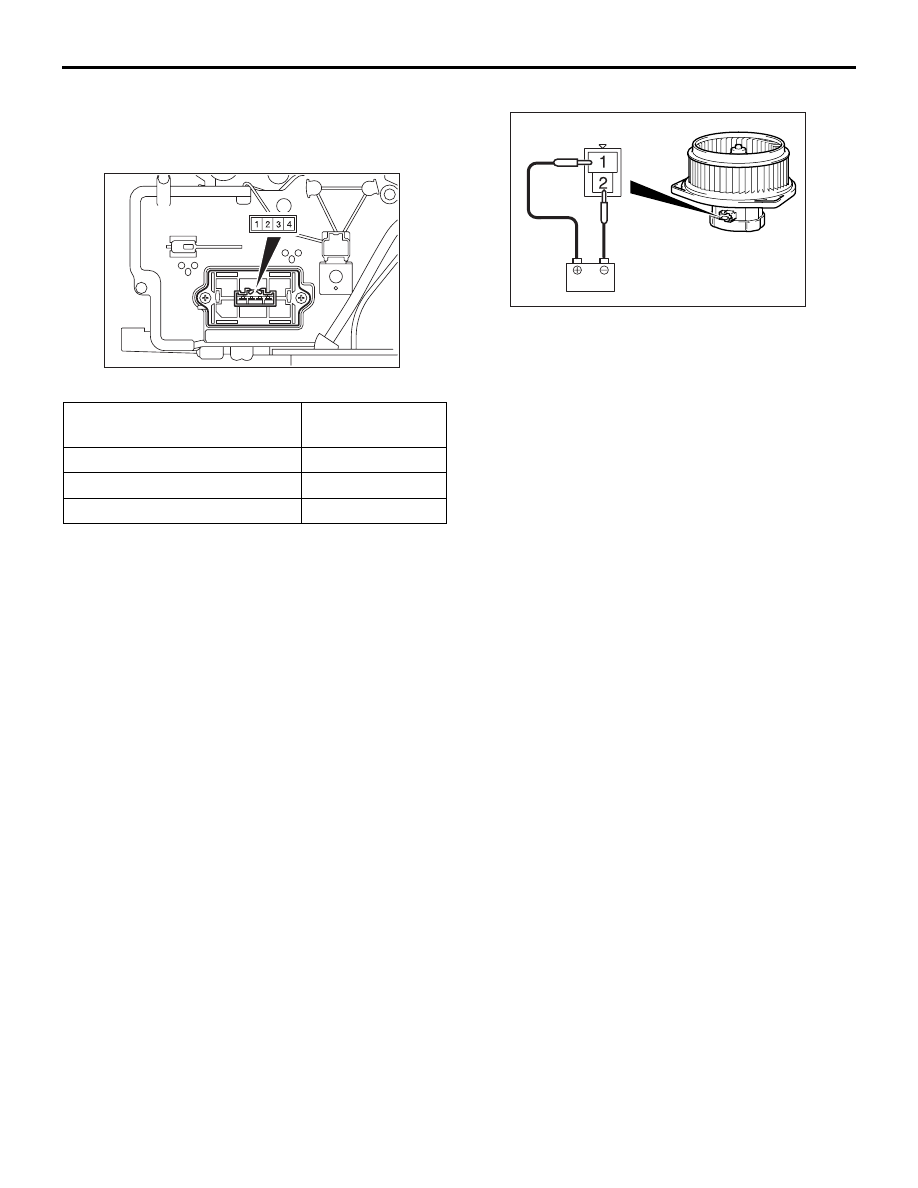

A/C TEMPERATURE CONTROL RESIS-
TOR CHECK

AC503151

STANDARD VALUE:

Measurement terminal

Standard value
(

Ω)

Between terminal Nos. 1 and 4 2.54
Between terminal Nos. 1 and 3 1.24
Between terminal Nos. 1 and 2 0.60

BLOWER FAN AND MOTOR CHECK

AC504223

Check that the motor turns when applying battery
power between the connector terminals. Also check
to see that there is no abnormal sound emitted from
the motor at this time.
