Battery voltage Tester

connection

Specified
condition

Not applied

3

− 4

Open circuit

• Connect

terminal 1 to
the positive
battery
terminal

• Connect

terminal 2 to
the negative
battery
terminal

3

− 4

Continuity (Less
than 2

Ω)

ON-VEHICLE SERVICE

HEATER, AIR CONDITIONER AND VENTILATION

55A-68

IDLE-UP OPERATION CHECK

M1552001601846

1. Before inspection and adjustment, set vehicle in

the following condition:

• Engine coolant temperature: 80 − 90 °C

• Lamps, electric cooling fan and accessories: Set

to OFF

• Transmission: Neutral ("N" or "P" for vehicles with

A/T)

• Steering wheel: Straightforward

2. Check whether or not the idle speed is the

standard value.
Refer to GROUP 11A, On-vehicle Service

− Idle

Speed Adjustment .

Standard value:

650

± 50 r/min <High power engine>

700

± 50 r/min <Except high power engine>

3. When the A/C is running after turning the A/C

switch to ON, and the blower switch to the 3(MH)
or 4(HI) position, check to be sure that the idle
speed is at the standard value.

Standard value: 900

± 100 r/min

NOTE: It is not necessary to make an adjustment,
because the idling speed is automatically
adjusted by the ISC system. If, however, a devia-
tion from the standard value occurs for some rea-
son, check the ISC system.

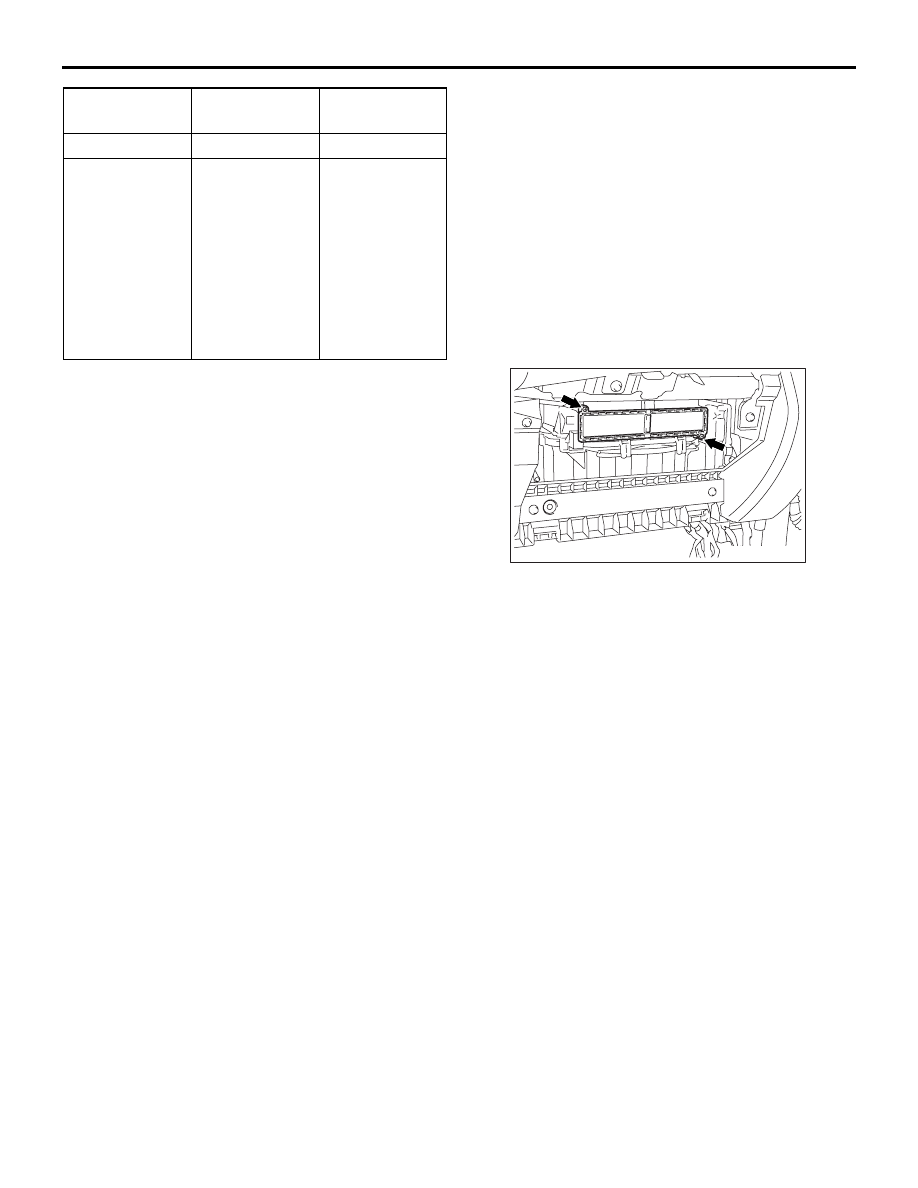

REPLACE THE CLEAN AIR FILTER
<Vehicles with Clean air filter>

M1552020600466

AC904006

AB

1. Remove the glove box (Refer to GROUP 52A

−

Instrumental Panel, ).

2. Loosen the two screws as shown to replace the

clean air filter.

3. Install the glove box.

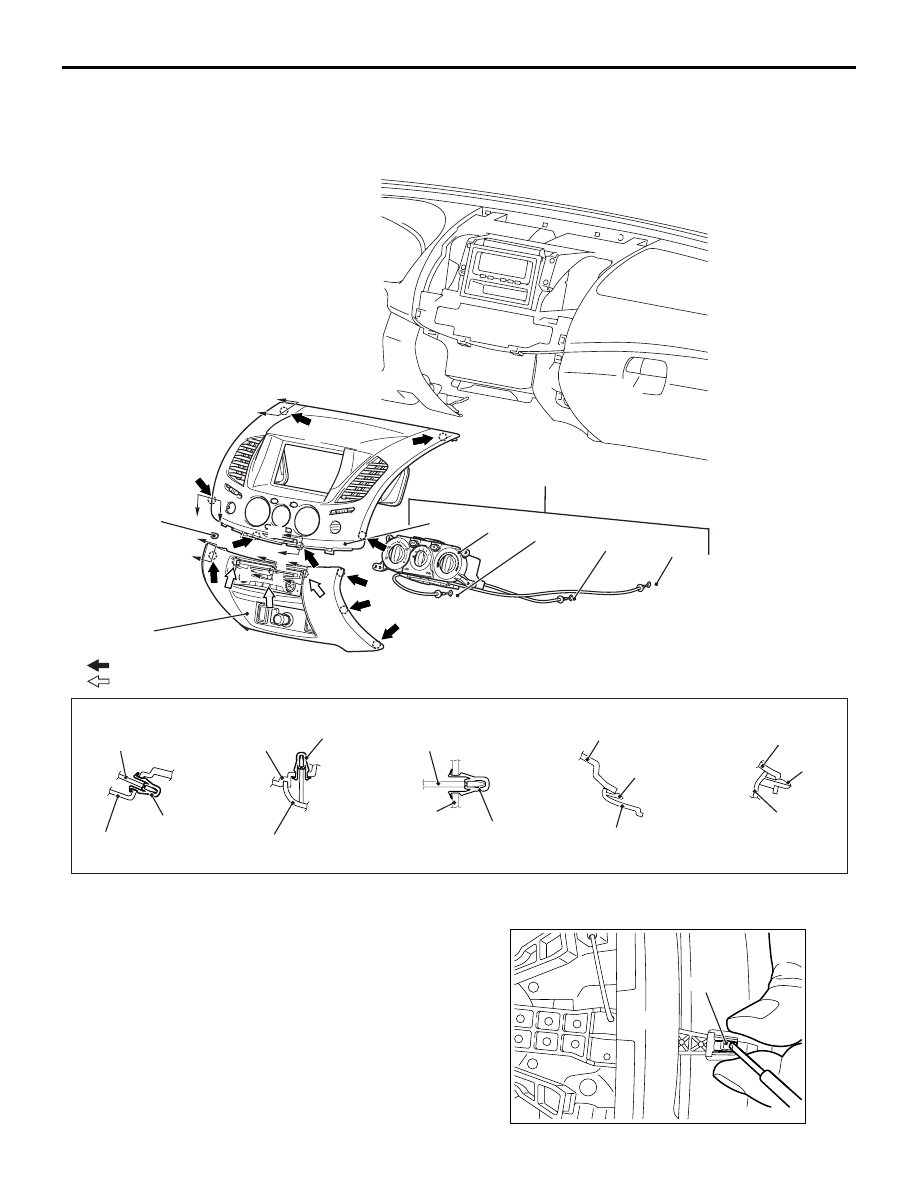

HEATER CONTROL ASSEMBLY AND A/C SWITCH

HEATER, AIR CONDITIONER AND VENTILATION

55A-69

HEATER CONTROL ASSEMBLY AND A/C SWITCH

REMOVAL AND INSTALLATION

M1552002400950

AC809536

3

4

5

6

8

7

1

2

AC

A

A

A

A

B B

C

C

D

D

E

E

Note
         : Clip positions
         : Claw positions

AC509709

Section A - A

Section B - B

Section E - E

Section D - D

Section C - C

AC

Clip

Instrument panel

7

Clip

Instrument panel

Clip

Instrument panel

Claw

Claw

7

1

7

1

1

7

Removal steps

1.

Centre lower panel

<<

A

>>

2.

Air selection lever knob

<<

B

>>

>>

C

<<

3.

Outside/Inside air selection damper
control cable connection

<<

B

>>

>>

B

<<

4.

Mode selection damper control
cable connection

<<

B

>>

>>

A

<<

5.

Air mixing damper control cable
connection

6.

Centre upper panel assembly

7.

Centre upper panel

8.

Heater control panel assembly

REMOVAL SERVICE POINTS

<<A>> AIR SELECTION LEVER KNOB REMOVAL

AC504107

AB

Claw

HEATER CONTROL ASSEMBLY AND A/C SWITCH

HEATER, AIR CONDITIONER AND VENTILATION

55A-70

Lift the claw, and remove the air selection lever knob.

<<B>> OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL CABLE CONNECTION, AIR
MIXING DAMPER CONTROL CABLE
CONNECTION AND MODE SELECTION DAMPER
CONTROL CABLE CONNECTION REMOVAL

AC500229 AC

Sleeve

Clip

Cable

AC500239AC

Clip

Sleeve

Cable

AC

Sleeve

Clip

Cable

Always remove the cable by pressing the clip.
NOTE: When removing the cable, make sure that the
sleeve does not become misaligned.

INSTALLATION SERVICE POINTS

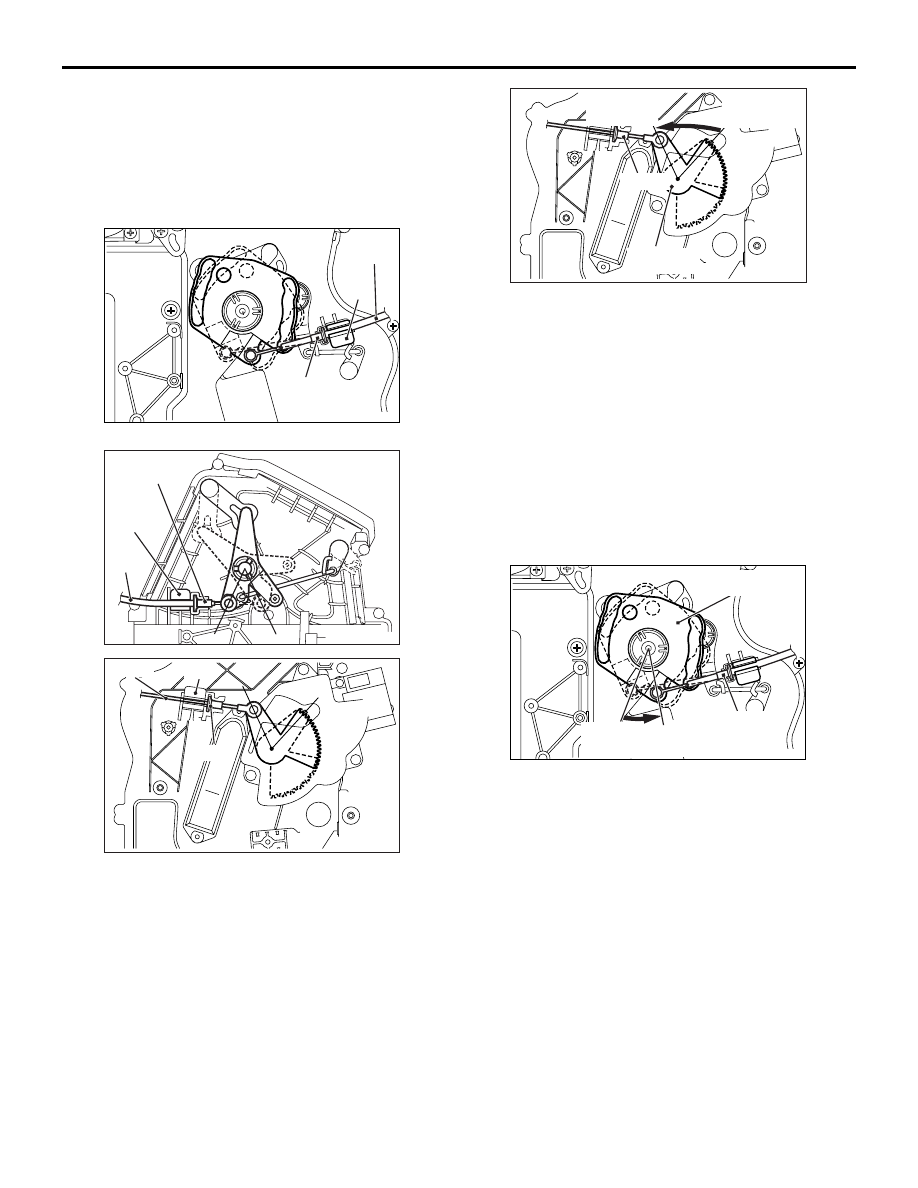

>>A<< AIR MIXING DAMPER CONTROL CABLE
CONNECTION
1. Set the Temperature control dial of the heater

control assembly to MAX HOT position.

Air mixing
damper lever

MAX HOT
position

MAX COOL
position

AB

Sleeve

2. Turn the air mixing damper lever of heater unit to

the MAX HOT position (Turn the damper lever to
the left until it stops.) and then install the cable.

3. Install the cable to the clip and fix it while aligning

the case.
NOTE: When installing the cable to the case,
make sure that the sleeve does not become mis-
aligned.

>>B<< MODE SELECTION DAMPER CONTROL
CABLE CONNECTION
1. Set the mode selection dial of the heater control

assembly to FOOT position.

AC500229

Air outlet changeover
damper lever

FACE
position

FOOT
position

AB

Sleeve

2. Turn the air outlet changeover damper lever of

heater unit to the DEF position (Turn the damper
lever to the left until it stops.) and then install the
cable.

3. Install the cable to the clip and fix it while aligning

the case.
NOTE: When installing the cable to the case,
make sure that the sleeve does not become mis-
aligned.

>>C<< OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL CABLE CONNECTION
1. Set the air selection lever on the heater control

panel assembly to the inside recirculation.

AC500239

Inside

Outside

AB

Outside/Inside air
selection damper lever

Cable

Sleeve

HEATER CONTROL ASSEMBLY AND A/C SWITCH

HEATER, AIR CONDITIONER AND VENTILATION

55A-71

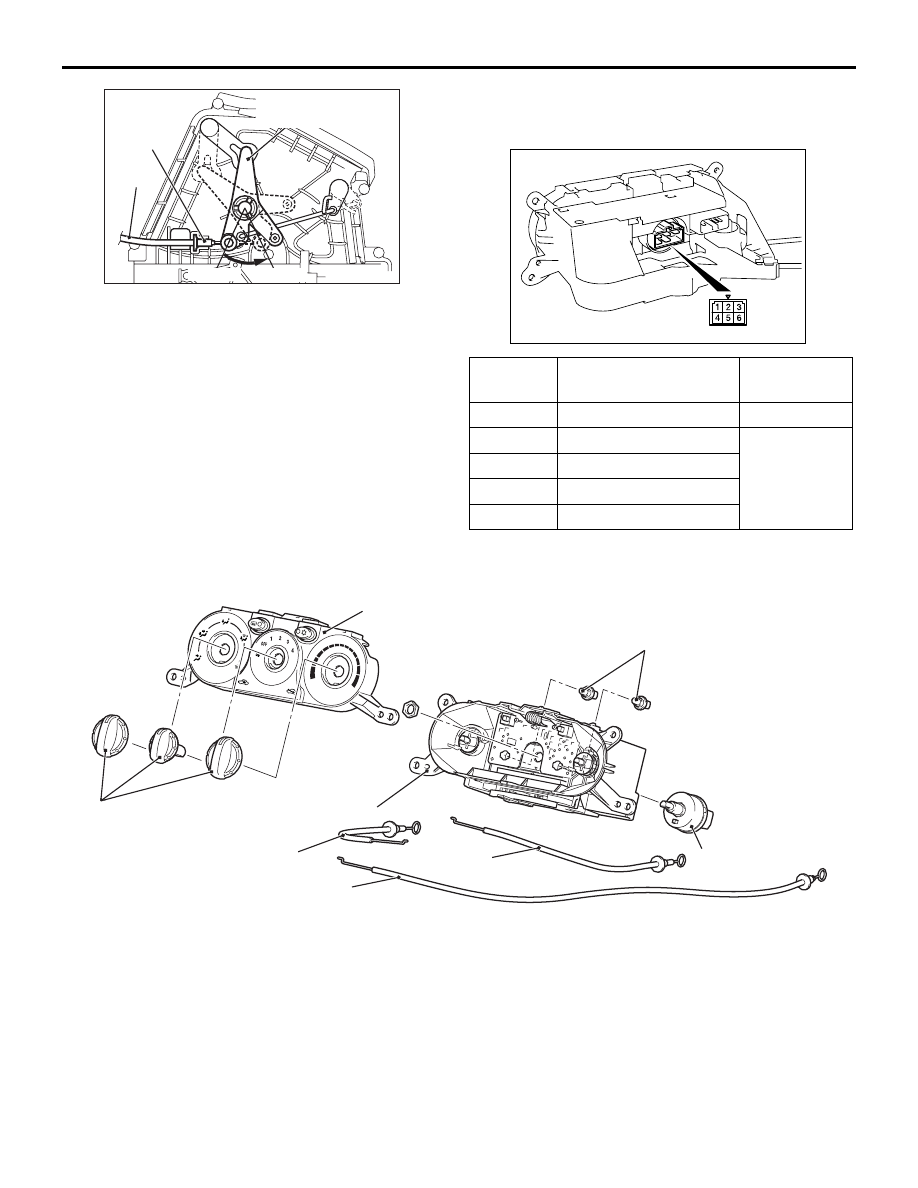

2. Set the outside/Inside air selection damper lever

of the heater blower assembly to the inside
position as shown in the illustration, and then
connect the cable to the link pin.

3. Install the cable to the clip and fix it while aligning

the case.
NOTE: When installing the cable to the case,
make sure that the sleeve does not become mis-
aligned.

INSPECTION

M1552002500355

BLOWER SWITCH CONTINUITY CHECK

AC500651

Switch
position

Tester connection

Specified
condition

OFF

1

− 3, 2 − 3, 3 − 4, 3 - 5 Open circuit

1

2

− 3

Continuity
(Less than
2

Ω)

2

1

− 3

3

3

− 4

4

3

− 5

DISASSEMBLY AND REASSEMBLY

M1552014200566

AC509725AB

3

4

1

2

8

6

5

7

Disassembly steps

1.

Knob

2.

Panel

3.

Blower switch

4.

Bulb

<<

A

>>

5.

Outside/inside air selection damper
control cable

<<

A

>>

6.

Mode selection damper control
cable

<<

A

>>

7.

Air mixing damper control cable

8.

Heater control

Disassembly steps (Continued)
