TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-44

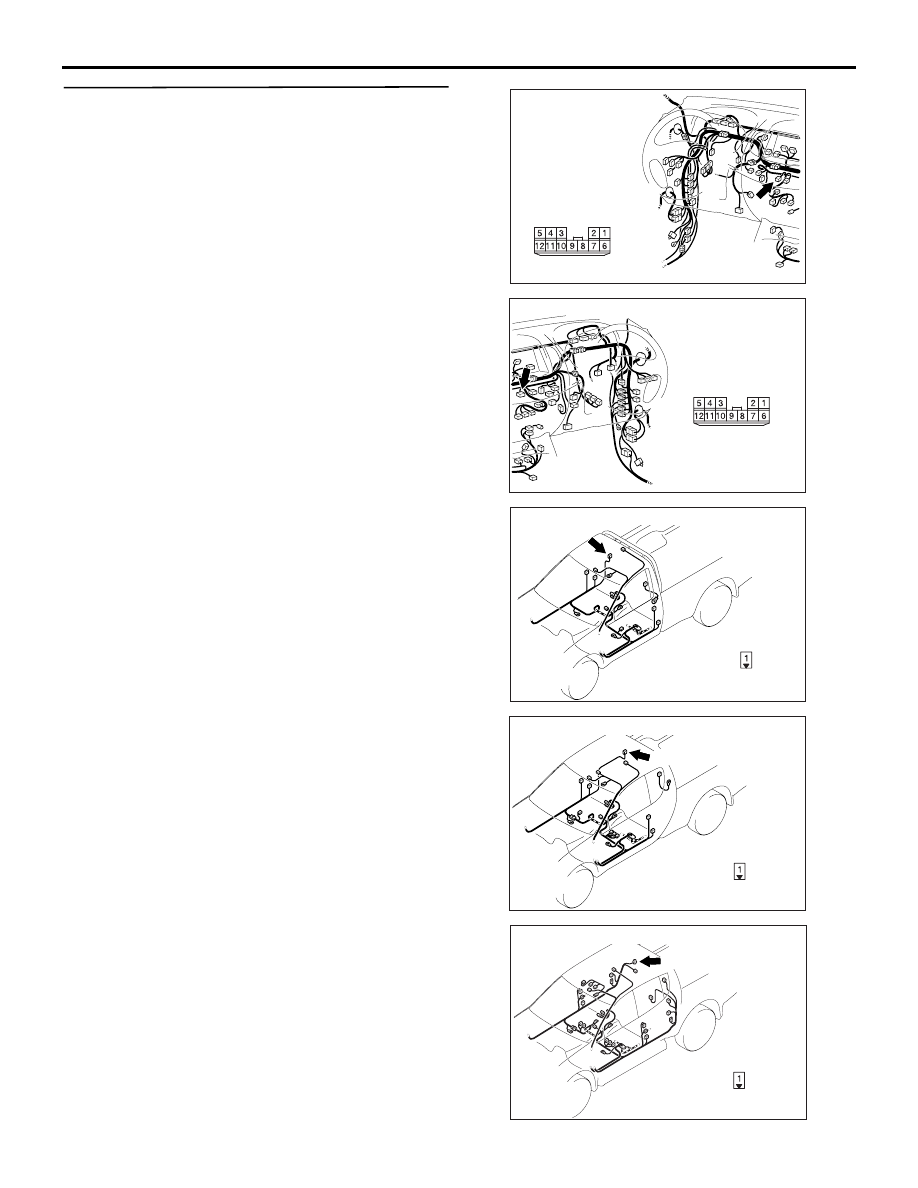

STEP 2. Connector check: C-05 A/C switch
module connector and D-07 rear window
defogger connector

AC509611AV

Connector: C-05 <LHD>

Harness side

AC509932 BA

Harness side

Connector: C-05 <RHD>

AC509961AE

Harness side

Connector: D-07 <Single cab>

D-07 (B)

AC509965AD

Harness side

Connector: D-07 <Club cab>

D-07 (B)

AC509967AO

Harness side

Connector: D-07 <Double cab>

D-07 (B)

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-45

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the connector.

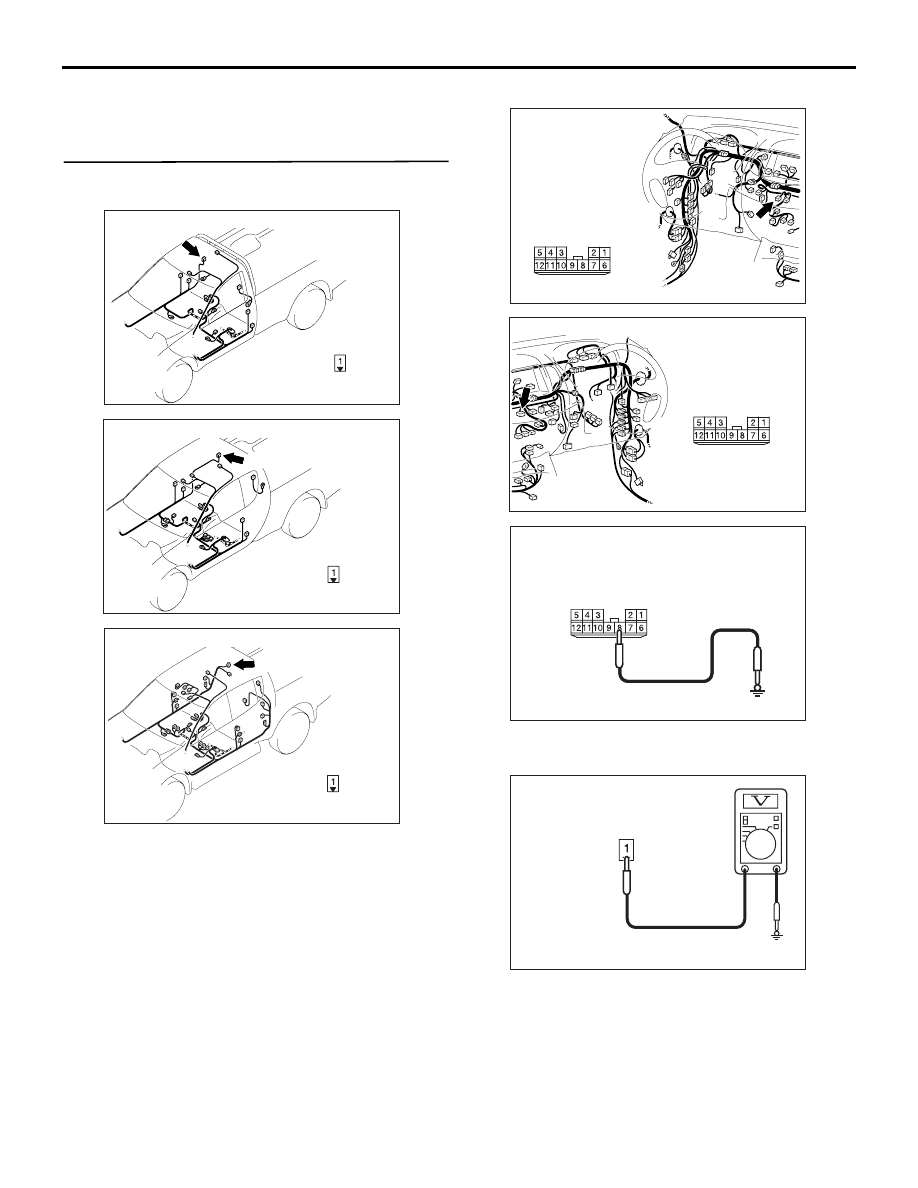

STEP 3. Voltage measurement at D-07 rear
window defogger connector.

AC509961AE

Harness side

Connector: D-07 <Single cab>

D-07 (B)

AC509965AD

Harness side

Connector: D-07 <Club cab>

D-07 (B)

AC509967AO

Harness side

Connector: D-07 <Double cab>

D-07 (B)

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the "ON" position.

AC509611AV

Connector: C-05 <LHD>

Harness side

AC509932 BA

Harness side

Connector: C-05 <RHD>

AC402768

AC402768

Connector C-05
(Harness side)

AE

(3) Disconnect A/C switch module connector C-05

and earth terminal 8.

AC402679

Connector D-07
(Harness side)

CB

(4) Measure the voltage between terminal 1 and

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

 Go to Step 12.

NO :

 Go to Step 4.

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-46

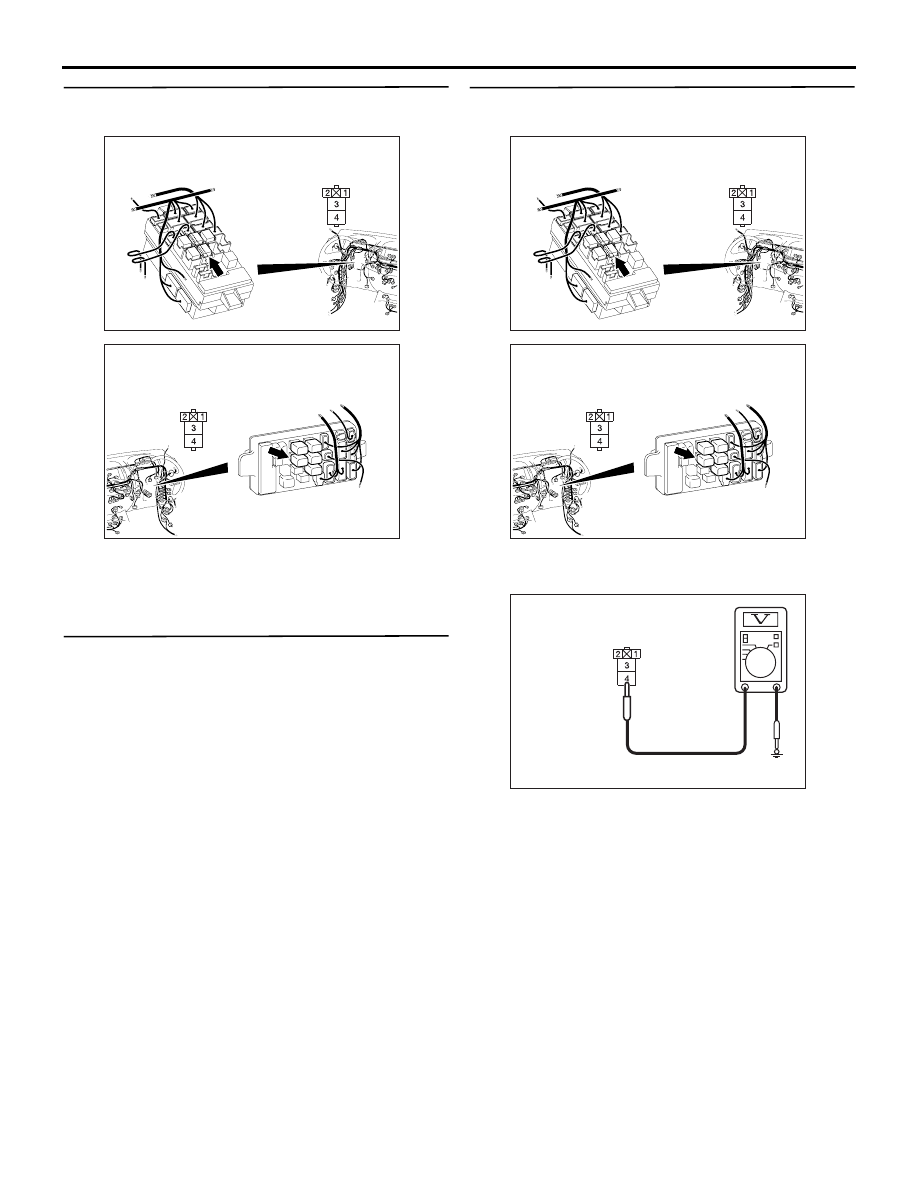

STEP 4. Connector check: C-217 rear window
defogger relay connector

AC509934AY

Connector: C-217 <LHD>

Junction block side

Junction block (Front view)

AC509936AV

Connector: C-217 <RHD>

Junction block side

Junction block (Front view)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the connector.

STEP 5. Check the rear window defogger relay
continuity.
 Refer to .

Q: Is the rear window defogger relay in good

condition?
YES :

Go to Step 6.

NO :

Replace the rear window defogger relay.

STEP 6. Voltage measurement at C-217 rear
window defogger relay connector.

AC509934AY

Connector: C-217 <LHD>

Junction block side

Junction block (Front view)

AC509936AV

Connector: C-217 <RHD>

Junction block side

Junction block (Front view)

(1) Remove the relay, and measure at the junction

block side.

AC402679

Connector C-217
(Harness side)

CC

(2) Measure the voltage between terminal 4 and

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

 Go to Step 8.

NO :

 Go to Step 7.

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-47

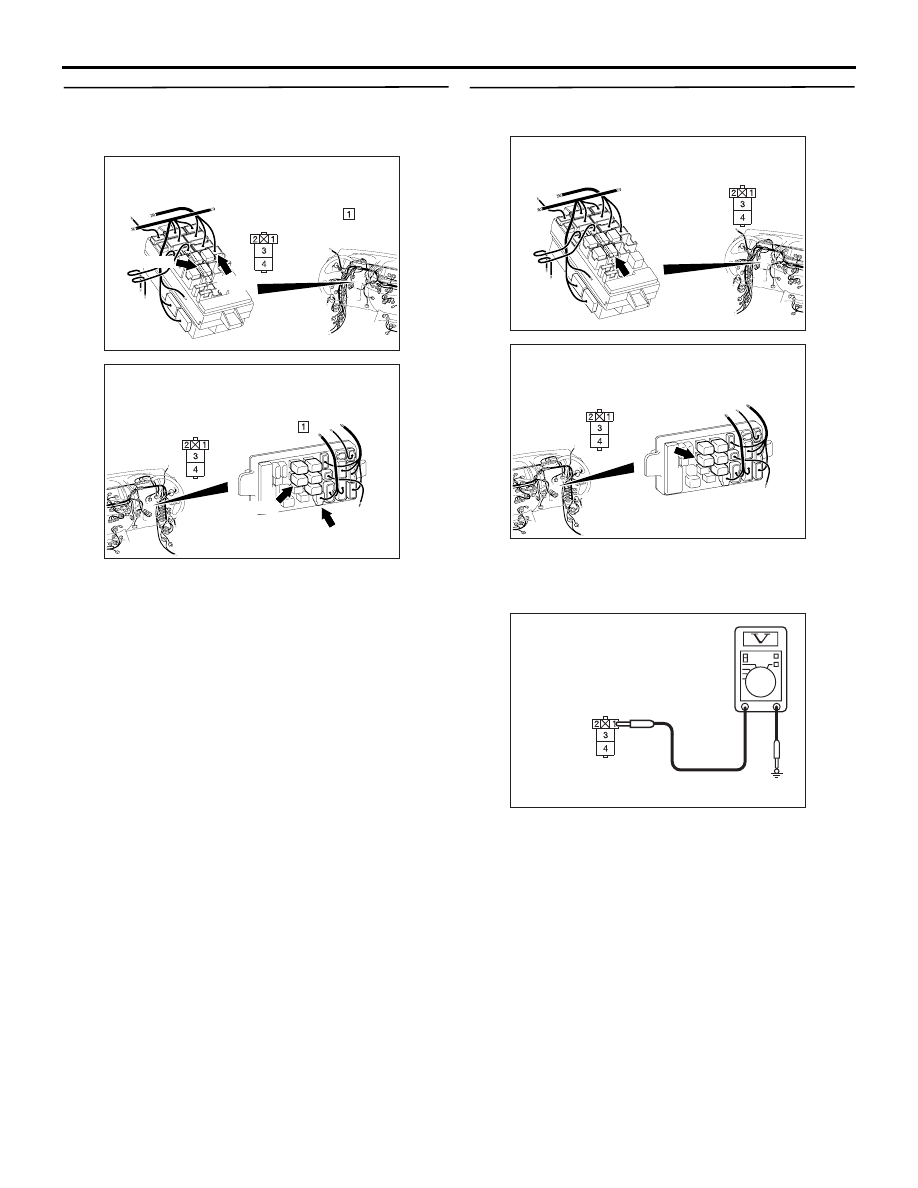

STEP 7. Check the wiring harness between C-217
rear window defogger relay connector terminal
No.4 and the fusible link (20).

AC509934AZ

Connectors: C-213, C-217 <LHD>

Harness side

C-213

C-217

Junction block side

C-217

Junction block (Front view)

C-213

AC509936AW

Connectors: C-213, C-217 <RHD>

Harness side

C-213

C-217

Junction block side

C-217

Junction block (Front view)

C-213

NOTE: Prior to the wiring harness inspection, check
junction block connector C-213, and repair if neces-
sary.

• Check the rear window defogger relay power

supply line for open and short circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

NO :

Repair the wiring harness.

STEP 8. Voltage measurement at C-217 rear
window defogger relay connector.

AC509934AY

Connector: C-217 <LHD>

Junction block side

Junction block (Front view)

AC509936AV

Connector: C-217 <RHD>

Junction block side

Junction block (Front view)

(1) Remove the relay, and measure at the junction

block side.

(2) Turn the ignition switch to the "ON" earth position.

AC402679

Connector C-217
(Harness side)

CD

(3) Voltage between terminal 1 and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

 Go to Step 10.

NO :

 Go to Step 9.
