TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-40

STEP 9. Connector check: A-120 A/C condenser
fan motor connector

AC509975AK

Harness side

Connector: A-120

A-120 (B)

Q:  Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the connector.

STEP 10. Resistance measurement at the A-120
A/C condenser fan motor connector.

AC509975AK

Harness side

Connector: A-120

A-120 (B)

(1) Disconnect the connector, and measure at the

wiring harness side.

AC403234

Connector A-120
(Harness side)

CH

(2) Measure the resistance between terminal 1 and

body earth.

OK: Continuity (Less than 2

Ω)

Q: Is the check result normal?

YES :

 Go to Step 12.

NO :

Go to Step 11.

STEP 11. Check the wiring harness between A-
120 A/C condenser fan motor connector terminal
No.1 and body earth.

AC509975AK

Harness side

Connector: A-120

A-120 (B)

• Check the condenser fan motor earth line for

open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

NO :

Repair the wiring harness.

STEP 12. Check the wiring harness between A-
14X A/C condenser fan relay connector terminal
No.3 and A-120 A/C condenser fan motor
connector terminal No.2.

AC502574

AB

Connector: A-14X

Harness side

AC509975AK

Harness side

Connector: A-120

A-120 (B)

• Check the condenser fan motor power supply line

for open circuit.

Q: Is the check result normal?

YES :

 Go to Step 13.

NO :

Repair the wiring harness.

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-41

STEP 13. Check the wiring harness between A-
14X A/C condenser fan relay connector terminal
No.2 and C-105 engine-ECU connector terminal
No.39.

AC502574

AB

Connector: A-14X

Harness side

AC509613 CD

Harness side

C-105 (B)

Connector: C-105 <LHD>

35

40

41

42

1817

38

39

15

16

14

3736

12

13

11

32

8

3433

9

10

30

31

7 6

29

5

4

28

3

27

2

26

1

25

19
43

2120

22

23

46

47

4544

24
48

76

52

86

62

63

64

65

66

67

68

69

70

71

72

92

95

96

93

94

89

90

91

8887

53

54

55

56

57

58

59

60

61

83

8584

8281

78

79

80

77

49

50

51

74

75

73

AC509930 CA

C-105 (B)

Connector: C-105 <RHD>

Harness side

35

40

41

42

1817

38

39

15

16

14

3736

12

13

11

32

8

3433

9

10

30

31

7 6

29

5

4

28

3

27

2

26

1

25

19
43

2120

22

23

46

47

4544

24
48

76

52

86

62

63

64

65

66

67

68

69

70

71

72

92

95

96

93

94

89

90

91

8887

53

54

55

56

57

58

59

60

61

83

8584

8281

78

79

80

77

49

50

51

74

75

73

NOTE:

AC501938AO

Connectors: C-207, C-210

Harness side

C-207

C-207

C-210

C-210

Junction block (Front view)

Harness side

AC509975AI

Connector: A-115

Prior to the wiring harness inspection, check junction
block connectors A-115, and repair if necessary.

• Check the condenser fan motor power supply line

for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

NO :

Repair the wiring harness.

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-42

Inspection Procedure 6: The Rear Window Defogger does not work

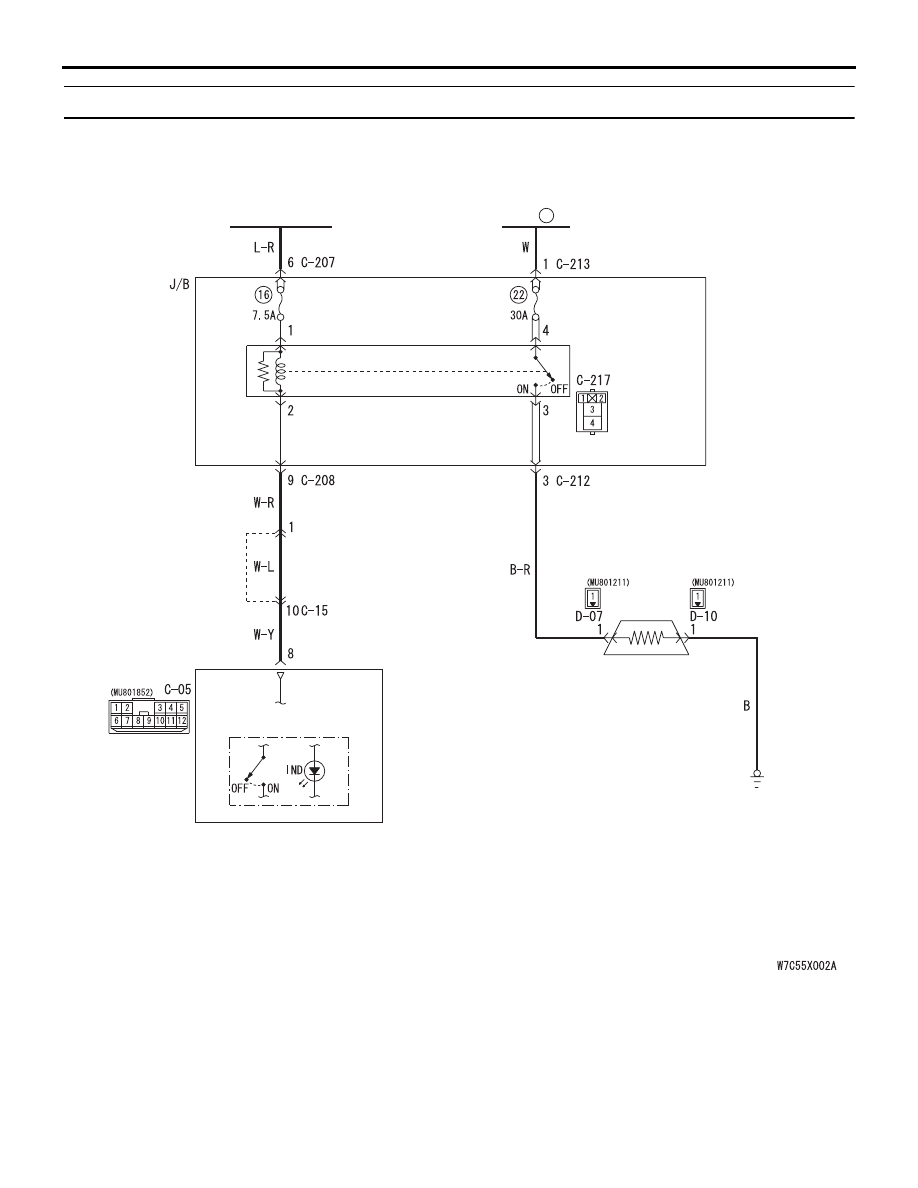

Rear Window Defogger Circuit

REAR WINDOW
DEFOGGER RELAY

REAR WINDOW
DEFOGGER SWITCH

REAR WINDOW
DEFOGGER

A/C-SWITCH
MODULE

FUSIBLE
LINK

IGNITION
SWITCH (IG2)

20

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

AC900619

CIRCUIT OPERATION
If the rear window defogger does not operate when
the rear window defogger switch is turned on, the
rear window defogger relay system may be defec-
tive.

PROBABLE CAUSES

• Malfunction of the A/C switch module

• Malfunction of the rear window defogger relay

• Damaged the wiring harness or connectors

• Malfunction of the rear window defogger

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-43

DIAGNOSIS PROCEDURE

STEP 1. Check the A/C operation.

Q: Do the A/C work normally?

YES :

Go to Step 2.

NO :

Refer to Inspection procedure 1 "Cool air
does not come

P.55A-6

."
