TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-131

Diagnosis Item 12: Diagnose when the M.U.T.-III cannot receive the data sent by A/T-ECU. <A/T>

CAUTION

When servicing a CAN bus line, earth yourself by touching a metal object such as an unpainted water
pipe. If you fail to do, a component connected to the CAN bus line may be broken.

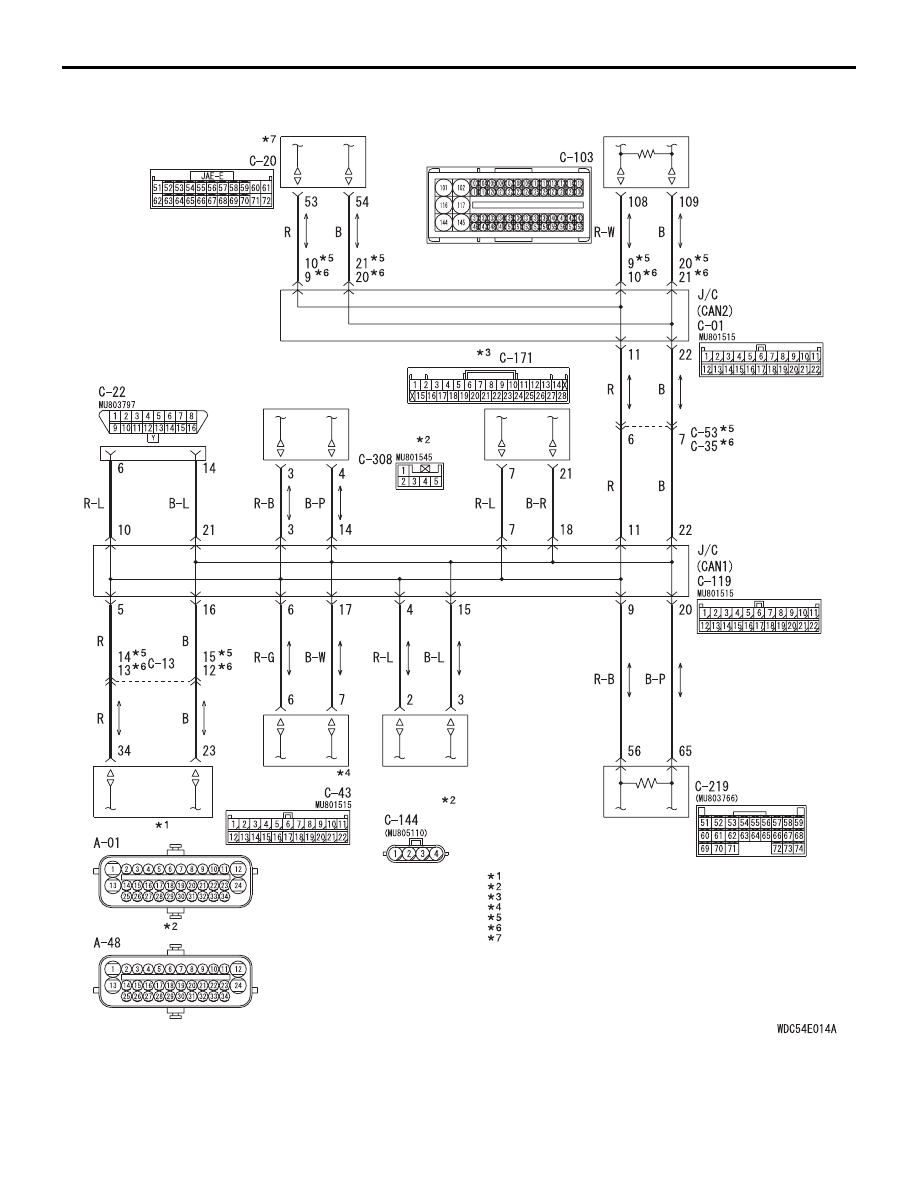

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White
Y : Yellow     SB : Sky blue     BR : Brown     O : Orange     GR : Grey
R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

A/T-ECU

DIAGNOSIS
CONNECTOR

ENGINE-ECU

STEERING
WHEEL
SENSOR

G AND
YAW RATE
SENSOR

A/C-ECU

ABS-ECU

ASTC-ECU

ETACS-ECU

RV METER

NOTE

:VEHICLES WITH ABS
:VEHICLES WITH ASTC
:VEHICLES WITH RV METER
:VEHICLES WITH AUTOMATIC-A/C
:LHD
:RHD
:A/T

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-132

FUNCTION
The diagnostic result demonstrates that "the M.U.T.-
III cannot receive the sent data from the A/T-ECU"
when the M.U.T.-III checks the periodically sent data
from each ECU.

TROUBLE JUDGEMENT CONDITIONS
M.U.T.-III judges the trouble when the periodically
sent data from A/T-ECU cannot be received.

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-133

PROBABLE CAUSES

• Damaged harness wires and connectors

• Power supply circuit malfunction of the A/T-ECU

• Malfunction of the A/T-ECU

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-134

DIAGNOSIS PROCEDURE

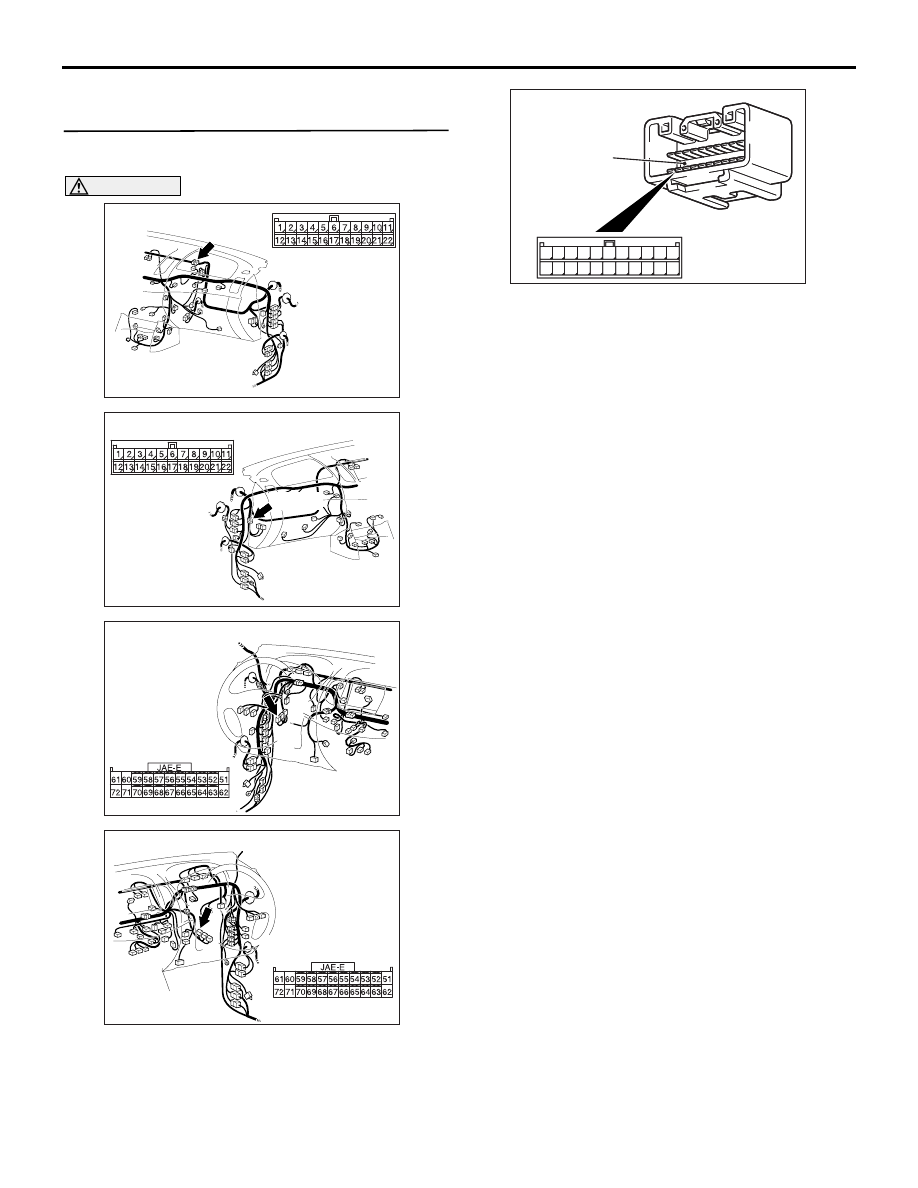

STEP 1. Connector check: C-01 joint connector
(CAN2) and C-20 A/T-ECU connector

AC903853

BL

Connector: C-01 <LHD>

C-01 (L)

AC903865AU

Connector: C-01 <RHD>

C-01 (L)

AC903856BR

Connector: C-20 <LHD>

Harness side

AC903868

CL

Connector: C-20 <RHD>

Harness side

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54C-7

.

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC

Short pin

When checking the joint connector, ensure that its
wiring harness side and its short pins are not dam-
aged.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector. Replace the
joint connector as necessary.
