ETACS

CHASSIS ELECTRICAL

54A-547

wiring harness side.

(2) Check the resistance between the seat belt

switch connector and body earth.

• Resistance between D-25 seat belt switch

(LH) connector terminal No.2 and body earth

• Resistance between D-26 seat belt switch

(RH) connector terminal No.2 and body earth

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC310506IC

Connectors D-25, D-26

(Harness side)

ETACS

CHASSIS ELECTRICAL

54A-548

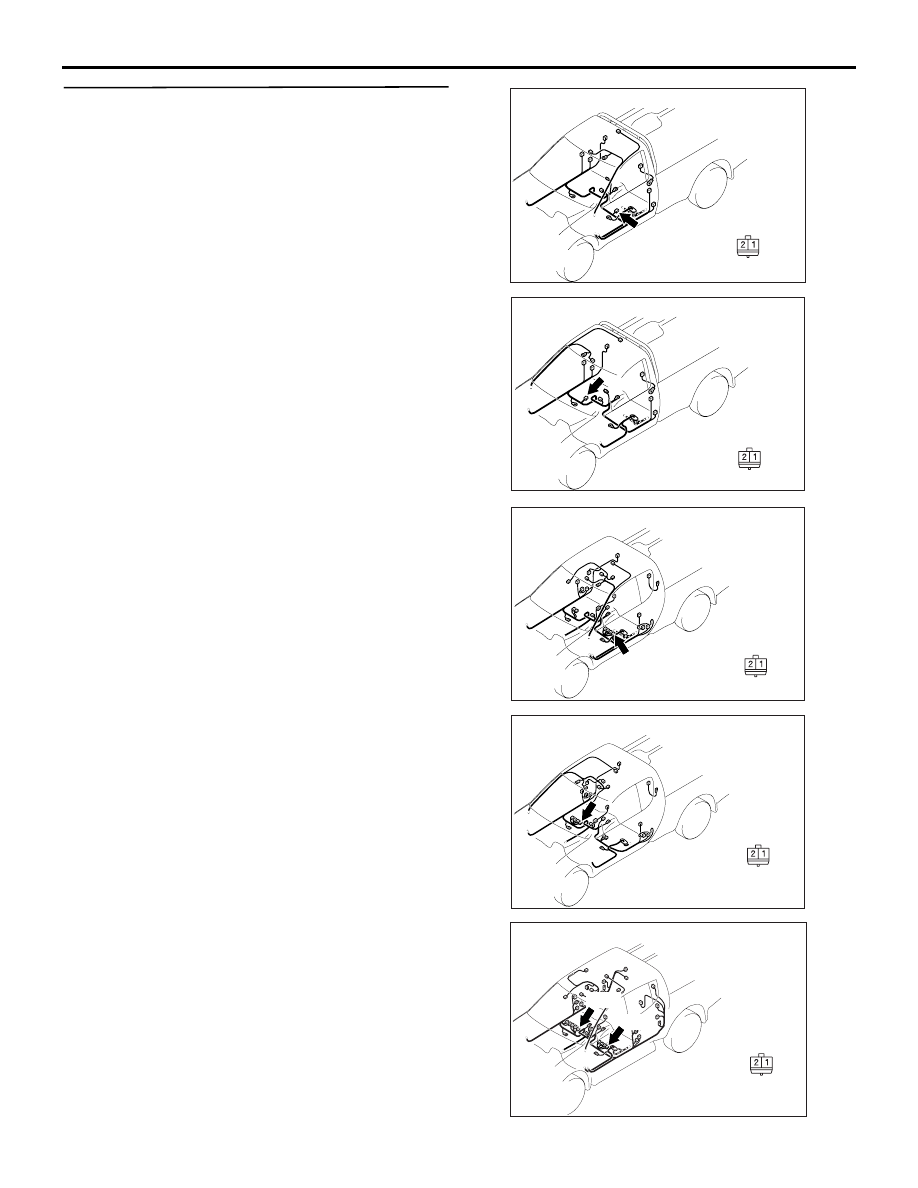

STEP 4. Check the wiring harness between D-25
seat belt switch (LH) connector or D-26 seat belt
switch (RH) connector terminal No.2 and the
body earth.

• Check the earth wires for open circuit.

AC901130AE

Harness side

Connector: D-25 <SINGLE CAB-LHD>

AC903963AB

Harness side

Connector: D-26 <SINGLE CAB-RHD>

AC903877AE

Harness side

Connector: D-25 <CLUB CAB-LHD>

AC903879AC

Harness side

Connector: D-26 <CLUB CAB-RHD>

AC903885 AL

Harness side

D-25, D-26

D-25

D-26

Connectors: D-25, D-26 <DOUBLE CAB>

ETACS

CHASSIS ELECTRICAL

54A-549

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

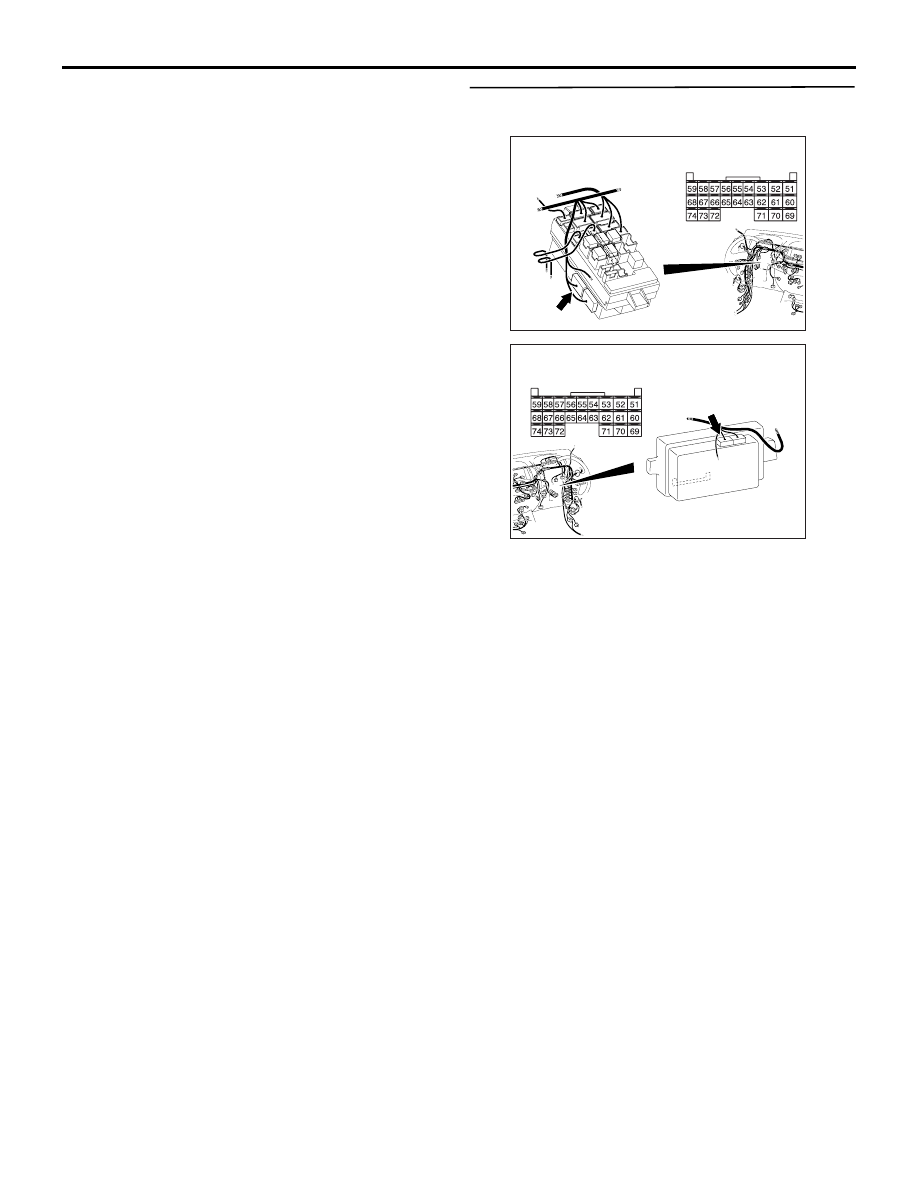

STEP 5. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC509934

Connector: C-219 <LHD>

AD

C-219 (GR)

Harness side

Junction block

AC509943

Connector: C-219 <RHD>

AB

C-219 (GR)

Harness side

Junction block
 (Rear view)

ETACS

CHASSIS ELECTRICAL

54A-550

STEP 6. Check the wiring harness between C-219
ETACS-ECU connector terminal No.60 <seat belt
switch (RH-LHD) or (LH-RHD)> or No.66 <seat
belt switch (LH-LHD) or (RH-RHD)> and D-26 seat
belt switch (RH) connector or D-25 seat belt
switch (LH) connector terminal No.1.
