ETACS

CHASSIS ELECTRICAL

54A-539

Inspection procedure C-5: One of the door switch signals is not received.

CAUTION

Whenever the ECU is replaced, ensure that the input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signals from the door switches are used to
operate the functions below. If the signal is abnormal,
these functions will not work normally.

• Lamp reminder function

• Door ajar warning buzzer function

• Headlamp automatic-shutdown function

• Room lamps

PROBABLE CAUSES

• Malfunction of the door switch (front: RH)

• Malfunction of the door switch (front: LH)

• Malfunction of the door switch (rear: RH) <Double

cab>

• Malfunction of the door switch (rear: LH) <Double

cab>

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the installation condition.
Check the installation state to the body of the door
switches that do not receive signals.

Q: Is the check result normal?

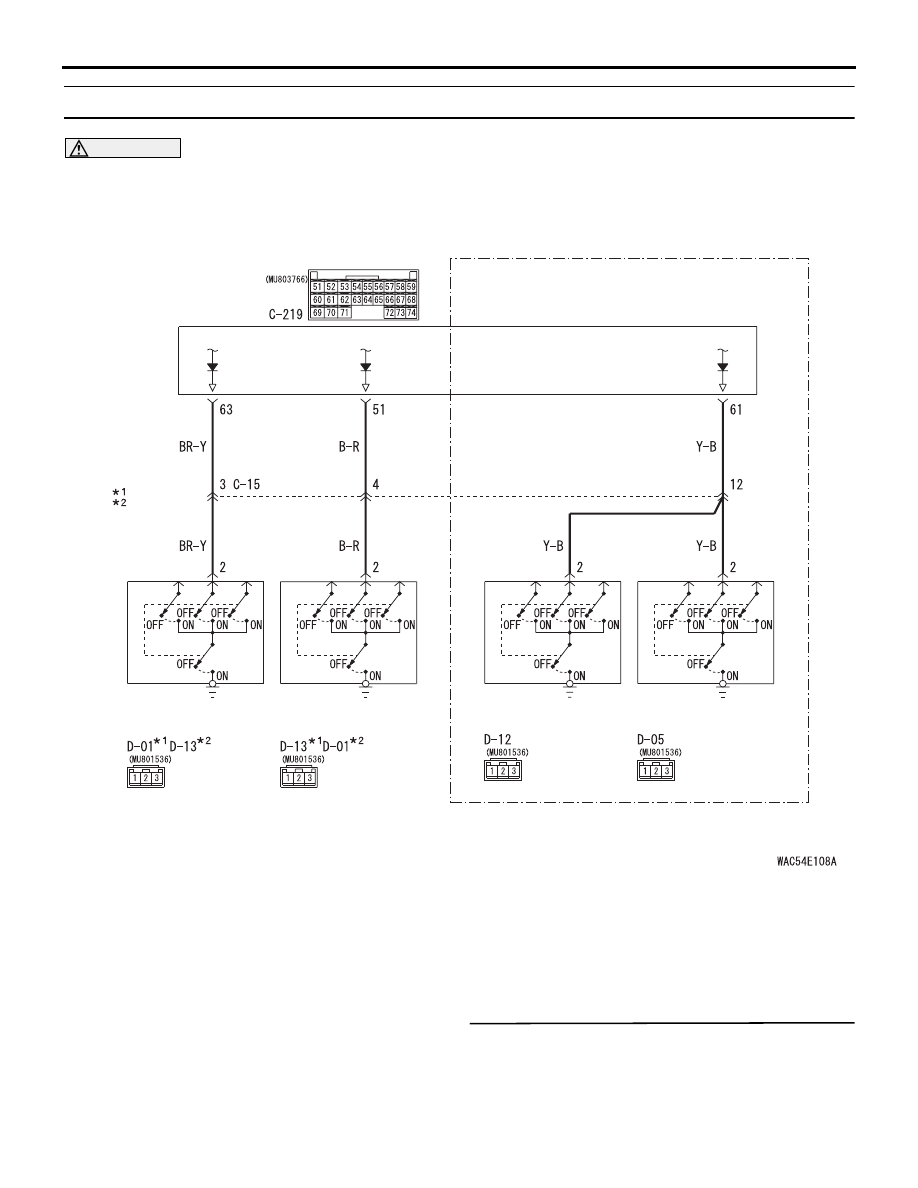

Door Switches Input Circuit

DOOR SWITCH
(FRONT:RH)

DOOR SWITCH
(REAR:LH)

DOOR SWITCH
(REAR:RH)

ETACS-ECU

<DOUBLE CAB>

DOOR SWITCH
(FRONT:LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

NOTE

:LHD
:RHD

ETACS

CHASSIS ELECTRICAL

54A-540

YES :

Go to Step 2.

NO :

Correct the installation condition.

STEP 2. Connector check: D-01 <LHD> or D-13
<RHD> door switch (front: RH) connector, D-13
<LHD> or D-01 <RHD> door switch (front: LH)
connector, D-05 door switch (rear: RH)
connector, D-12 door switch (rear: LH) connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

STEP 3. Check of the door switches that do not
receive signals.
Refer to GROUP 42

− Door .

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the door switch.

STEP 4. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

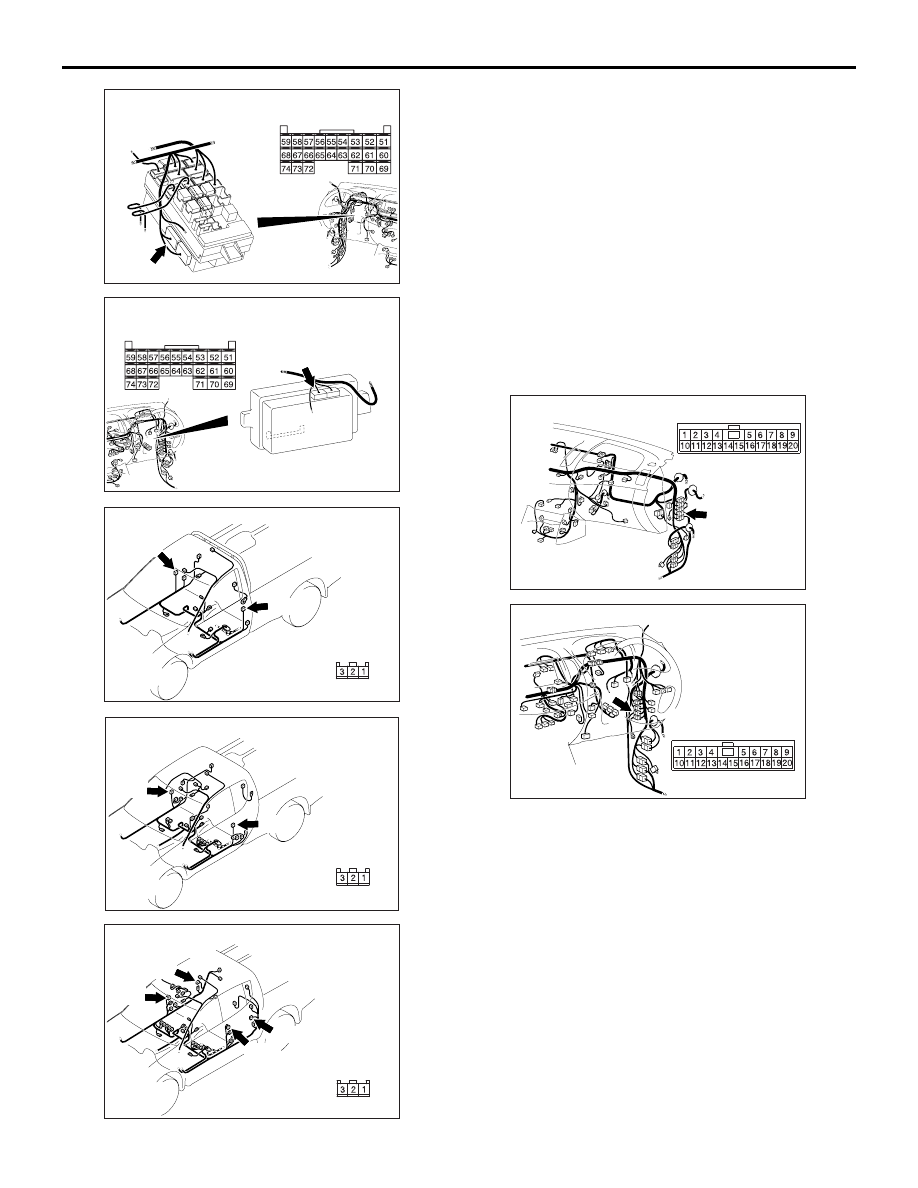

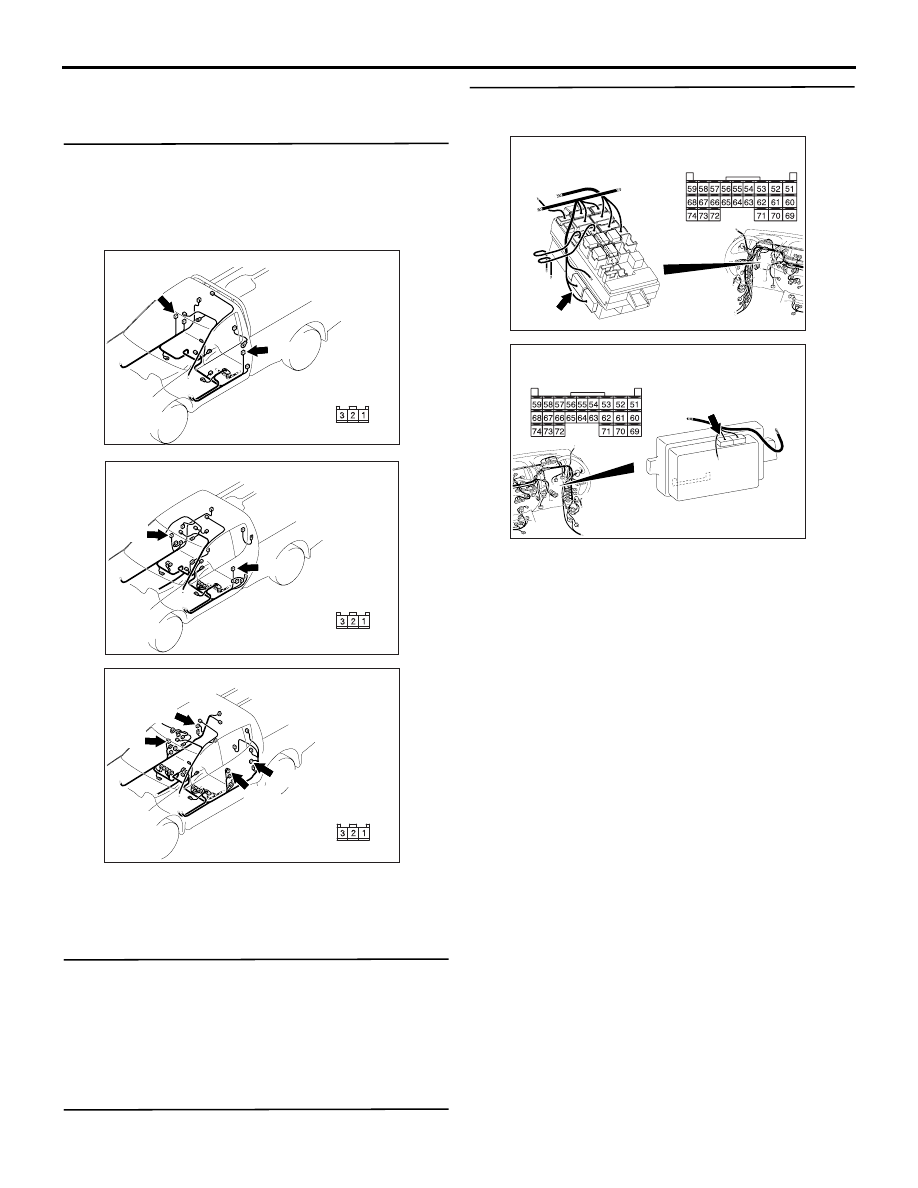

STEP 5. Check the following wiring harness.

AC901130 AC

Connectors: D-01, D-13 <SINGLE CAB>

Harness side

D-01, D-13

D-13

D-01

AC903877AD

Harness side

D-01, D-13

D-13

D-01

Connectors: D-01, D-13 <CLUB CAB>

AC901129 AL

Harness side

D-01, D-05,
D-12, D-13

D-12

D-13

D-01

D-05

Connectors: D-01, D-05, D-12, D-13
<DOUBLE CAB>

AC509934

Connector: C-219 <LHD>

AD

C-219 (GR)

Harness side

Junction block

AC509943

Connector: C-219 <RHD>

AB

C-219 (GR)

Harness side

Junction block
 (Rear view)

ETACS

CHASSIS ELECTRICAL

54A-541

Check the wiring harness for open circuit between

the following connectors:

• Wiring harness from C-219 ETACS-ECU connec-

tor terminal No.63 to D-01 <LHD> or D-13 <
RHD> door switch (front: RH) connector terminal
No.2.

• Wiring harness from C-219 ETACS-ECU connec-

tor terminal No.51 to D-13 <LHD> or D-01
<RHD> door switch (front: LH) connector terminal
No.2.

• Wiring harness from C-219 ETACS-ECU connec-

tor terminal No.61 to D-12 door switch (rear: LH)
connector terminal No.2.

• Wiring harness from C-219 ETACS-ECU connec-

tor terminal No.61 to D-05 door switch (rear:
RH)connector terminal No.2.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-15, and repair if necessary.

• Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

AC509934

Connector: C-219 <LHD>

AD

C-219 (GR)

Harness side

Junction block

AC509943

Connector: C-219 <RHD>

AB

C-219 (GR)

Harness side

Junction block
 (Rear view)

AC901130 AC

Connectors: D-01, D-13 <SINGLE CAB>

Harness side

D-01, D-13

D-13

D-01

AC903877AD

Harness side

D-01, D-13

D-13

D-01

Connectors: D-01, D-13 <CLUB CAB>

AC901129 AL

Harness side

D-01, D-05,
D-12, D-13

D-12

D-13

D-01

D-05

Connectors: D-01, D-05, D-12, D-13
<DOUBLE CAB>

AC903853

AT

Connector: C-15 <LHD>

AC903868

Connector: C-15 <RHD>

BO

ETACS

CHASSIS ELECTRICAL

54A-542

STEP 6. M.U.T.-III data list
Check the input signals to the door switch.

• Open any door.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU and register the
ID codes (Refer to

P.54A-39

).

Inspection Procedure C-6: The seat belt switch signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signal from the seat belt switch is used to oper-
ate the functions below. If the signal is abnormal,
these functions will not work normally.

• Seat belt warning buzzer function

• Seat belt indicator

PROBABLE CAUSES

• Malfunction of the seat belt switch (LH)

Item
No.

Item name

Normal condition

19

Drive’s door switch

Any of them becomes
ON.

48

Passenger’s door
switch

49

Rear door switch

(LH)

(RH)

SEAT BELT
SWITCH

NOTE

:LHD
:RHD

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

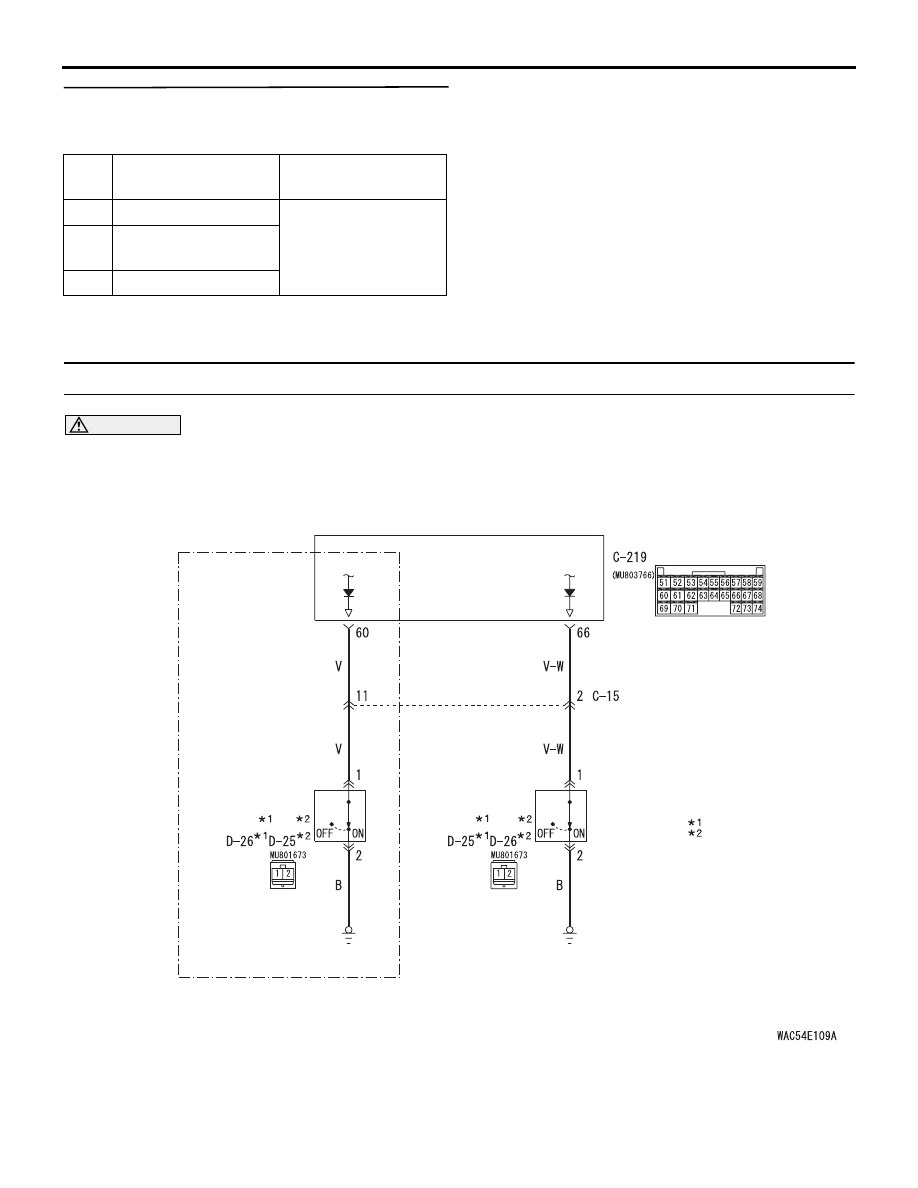

Seat Belt Switch Input Circuit

ETACS-ECU

<DOUBLE CAB>

(RH) (LH)

SEAT BELT
SWITCH
