HANDS FREE-ECU

CHASSIS ELECTRICAL

54A-427

1. Display the pairing list screen, and select "New

Device."
NOTE: When the vehicle is being driven, or when
the vehicle is driven during the pairing operation,
"This function is disabled while driving." is dis-
played for 4 seconds, and the display returns to
the pairing list screen.

2. Enter the 4-digit code on the Pin code screen, and

select "Enter."

3. "Begin Pairing procedure on device. See device's

manual for instructions." is displayed on the
screen.

4. Refer to the owner’s manual for your device and

enter into the device the pin code.

NOTE: When "Cancel" is selected or the pairing is
failed, the display returns to the pairing list screen.

5. When the pairing is completed, the display returns

to the pairing list screen.

NOTE: When 7 Bluetooth

®

 devices are already

paired to the hands free ECU, "Maximum device
paired. Please delete a paired device before pairing
a new device." is displayed.

DELETE OPERATION OF BLUETOOTH

®

DEVICE

1. Display the pairing list screen, and select the

"Bluetooth

® device" to be deleted.

2. Select "Delete."

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Empty

Registered Device Name 1

10:00

Pairing

AC904199

Enter

Back

Clear

3

10:00

Pin Code

2

1

1 2 3 4

6

5

4

9

8

0

7

Please enter the Pin Code  (4 Digits)

AC904203

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Registered Device Name 5

Registered Device Name 1

10:00

Pairing

AC904204

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Registered Device Name 5

Registered Device Name 1

10:00

Pairing

AC904204

Back

10:00

Pairing

Name

Device ID

Connection

Delete

Voice Tag

Hands Free

Bluetooth Audio

Registered Device Name 3

ID-00000003

AC904205

10:00

Pairing

Delete this paired device ?

Yes

No

AC904207

Back

New Device

Registered Device Name 2

Empty

Registered Device Name 4

Empty

Registered Device Name 1

10:00

Pairing

AC904208

HANDS FREE-ECU

CHASSIS ELECTRICAL

54A-428

3. When "Yes" is selected, the Bluetooth

® device is

deleted and the display returns to the pairing list
screen.

ERASE THE PASSWORD

M1544403800482

The 4-digit password set by security function can be
erased by the diagnosis mode. Perform the
"UNLOCK" operation of the diagnosis mode. (Refer
to

P.54A-406

.)

ENGLISH SELECTION USING AUDIO
SYSTEM <VEHICLES WITH RADIO AND
CD PLAYER (TYPE 2)>

M1544406600023

The language can be switched between Australian
English and British English by using the MENU mode
of the radio and CD player when the user has
selected English as the voice recognition language
of the hands free system. The initial setting of the
radio and CD player is set to British English. If the
language setting of the radio and CD player is
changed, the setting will be held until the radio and
CD player is reset.
NOTE: When the radio and CD player defaults to the
initial setting by replacing the radio and CD player or
by removing the battery, set the radio and CD player
again.

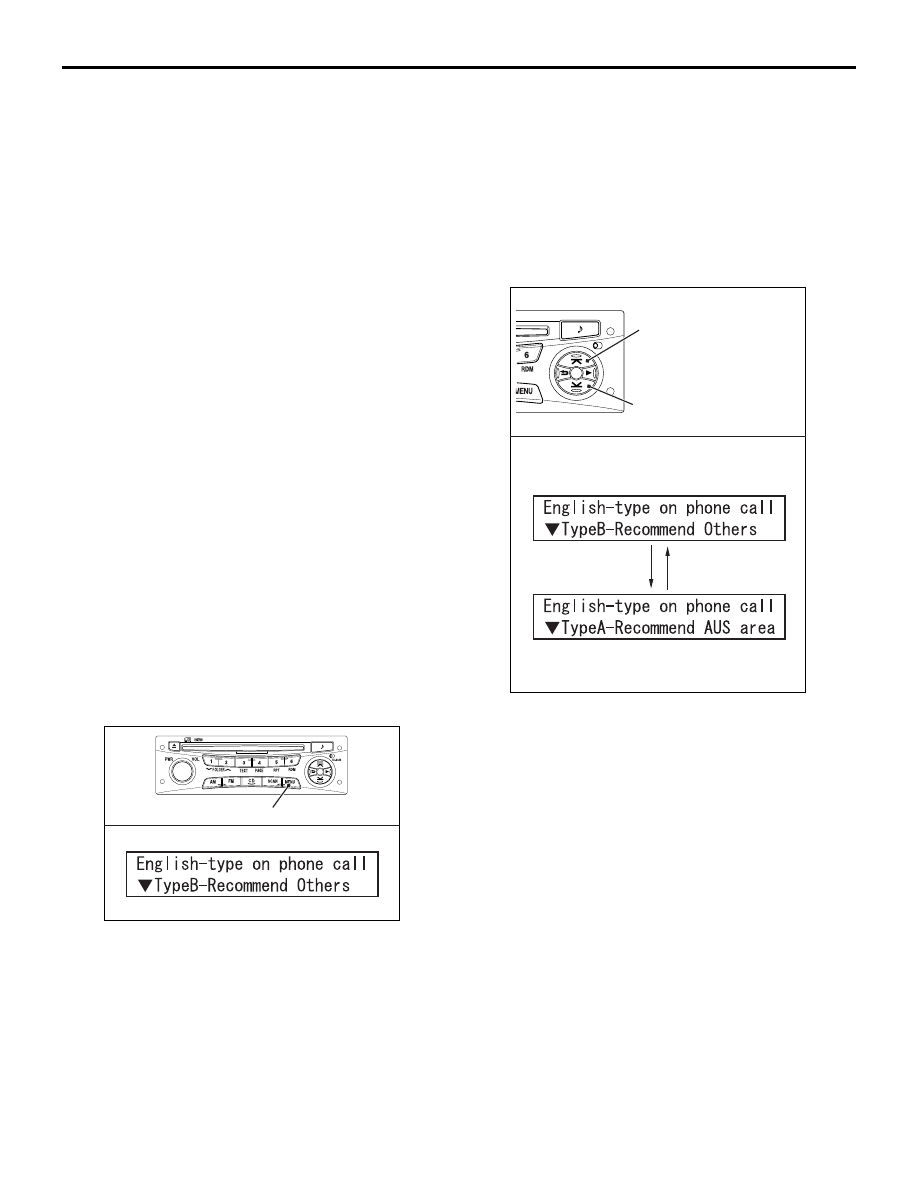

Procedure for selecting voice recognition
language between Australian English and British
English
1. Turn the ignition switch to the ACC position.

2. Press the "MENU" button of the radio and CD

player shortly to switch to the MENU mode.

3. Repeat pressing the "MENU" button of the radio

and CD player shortly until the "English-type on
phone call" menu is displayed on the MENU mode
screen.

4. By pressing the "TUNE/SEEK (Up-step/Up-seek)"

button or the "TUNE/SEEK (Down-step/Down-
seek)" button of the radio and CD player while the
"English-type on phone call" menu is displayed,
the display will switch between Australian English
and British English.

5. After selecting the language, shortly press the

"MENU" button of the radio and CD player to exit
the MENU mode.

6. Turn the ignition switch to the "LOCK" (OFF)

position, and after approximately 30 seconds, turn
it to the ON position again. The language will be
switched.

ACB00893

"MENU" button

"English-type on phone call" MENU screen

AB

AC703229

RELEASE

"English-type on phone call" MENU screen

AB

"TUNE/SEEK
(Up-step/Up-seek)"
button

"TUNE/SEEK
(Down-step/Down-seek)"
button

Press the "TUNE/SEEK
(Up-step/Up-seek)"
button.

Press the "TUNE/SEEK
(Down-step/Down-seek)"
button.

British English screen

Australian English screen

HANDS FREE-ECU

CHASSIS ELECTRICAL

54A-429

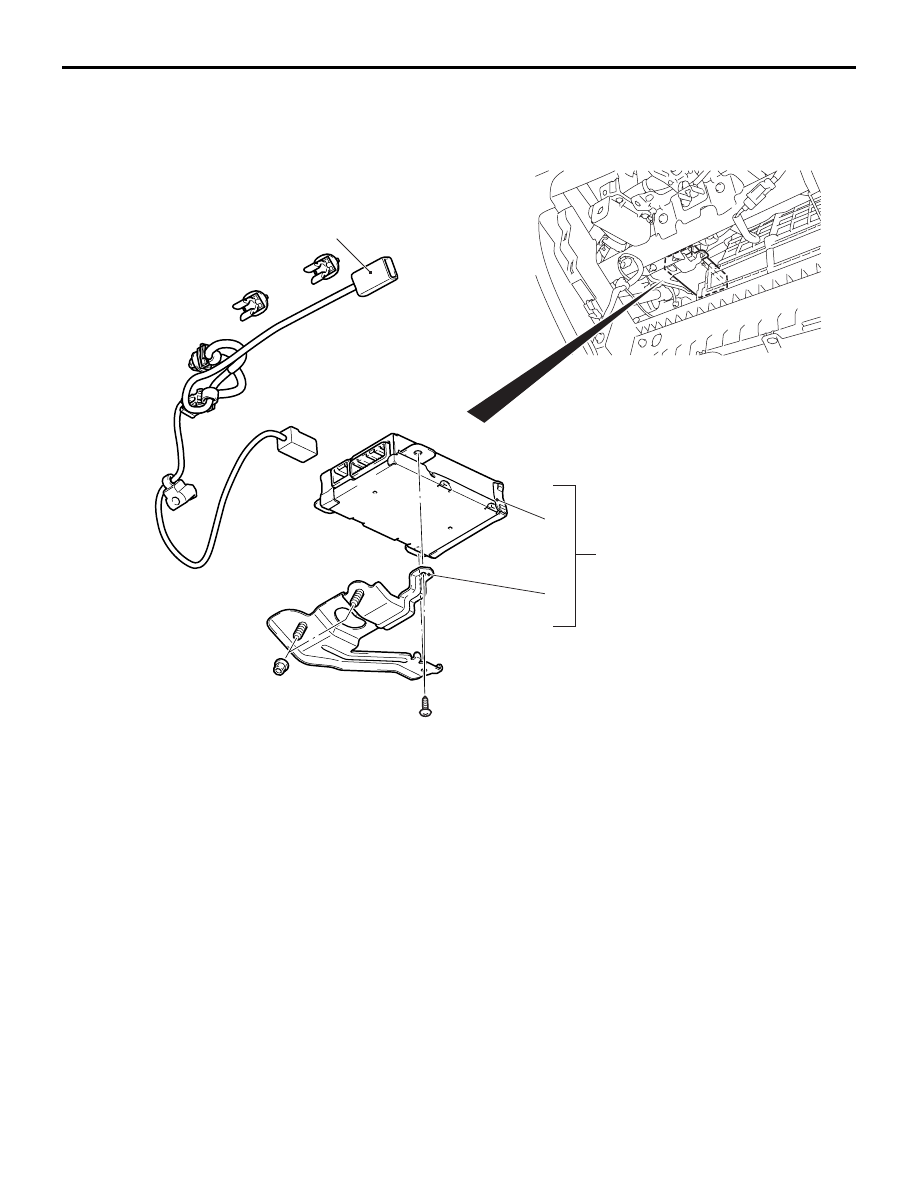

HANDS FREE ECU REMOVAL AND INSTALLATION

M1544405400286

ACB00884 AB

1

4

3

2

Removal steps

•

Glove box, glove box cover (Refer
to GROUP 52A, Instrument panel
assembly )

1.

Hands free ECU and bracket

•

Harness connector connection

2.

USB cable

3.

Bracket

4.

Hands free ECU

Removal steps (Continued)

HANDS FREE-ECU

CHASSIS ELECTRICAL

54A-430

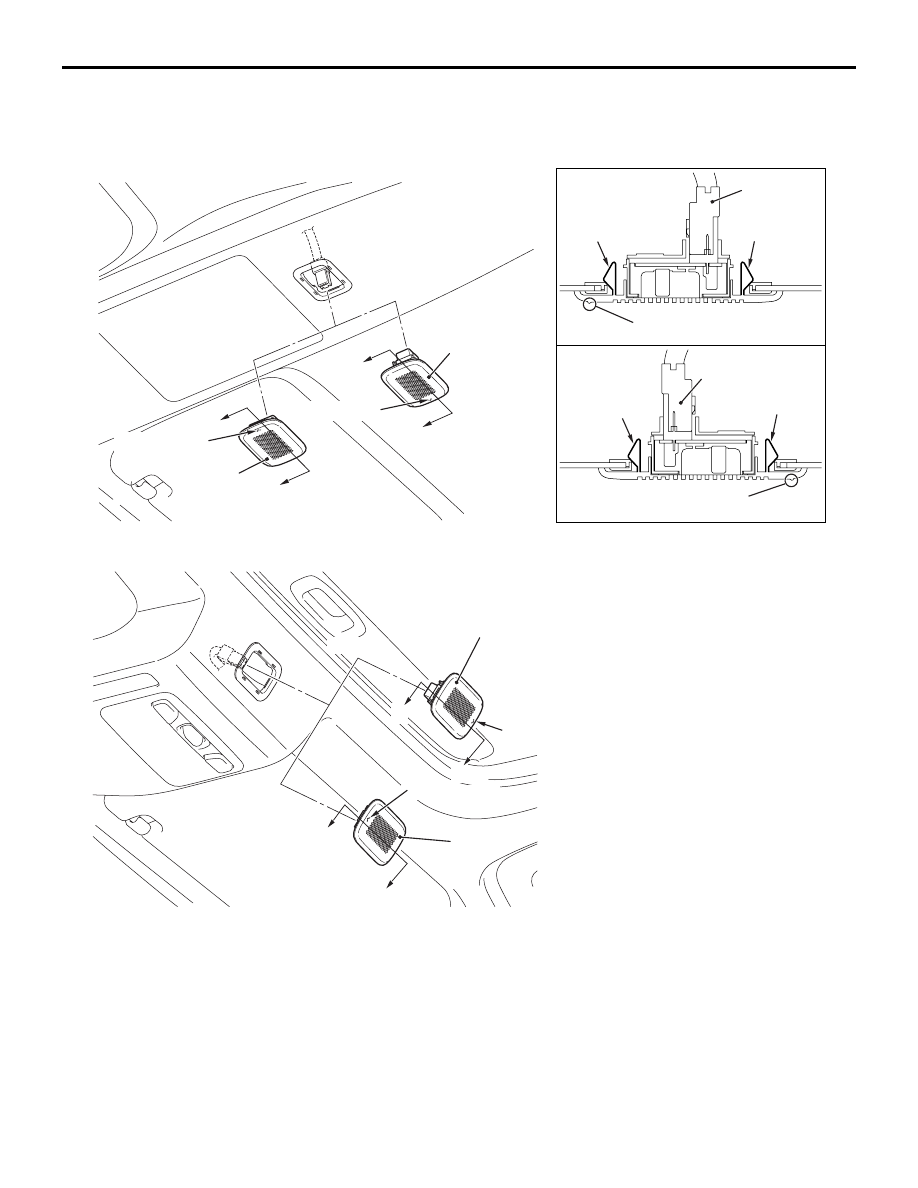

MICROPHONE UNIT REMOVAL AND
INSTALLATION

M1546023300294

ACB01722

<Vehicles without sunroof>

<LHD>

<RHD>

<RHD>

<LHD>

<LHD>

<Vehicles with sunroof>

<RHD>

AB

1

A

A

1

Direction mark

Direction mark

1

1

Direction mark

1

Claw

Claw

Direction mark

Direction mark

Section A - A

1

Claw

Claw

Section A - A

A

A

A

A

A

A

Direction mark

Removal Step

>>

A

<<

1.

Microphone unit
