MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-379

REMOVAL AND INSTALLATION

M1546001000574

MULTIVISION DISPLAY

15

SPEAKER FR (+)

When the sound is output

0 - System voltage (AC)

16

SPEAKER RR (+)

When the sound is output

0 - System voltage (AC)

17

BATTERY (+)

Always

System voltage (DC)

Terminal
No.

Signal symbol

Check condition

Terminal voltage

AC900849

2

3

2

1

4

3.0 ± 1.0 N·m

3.0 ± 1.0 N·m

AB

1.5 ± 0.5 N·m

1.5 ± 0.5 N·m

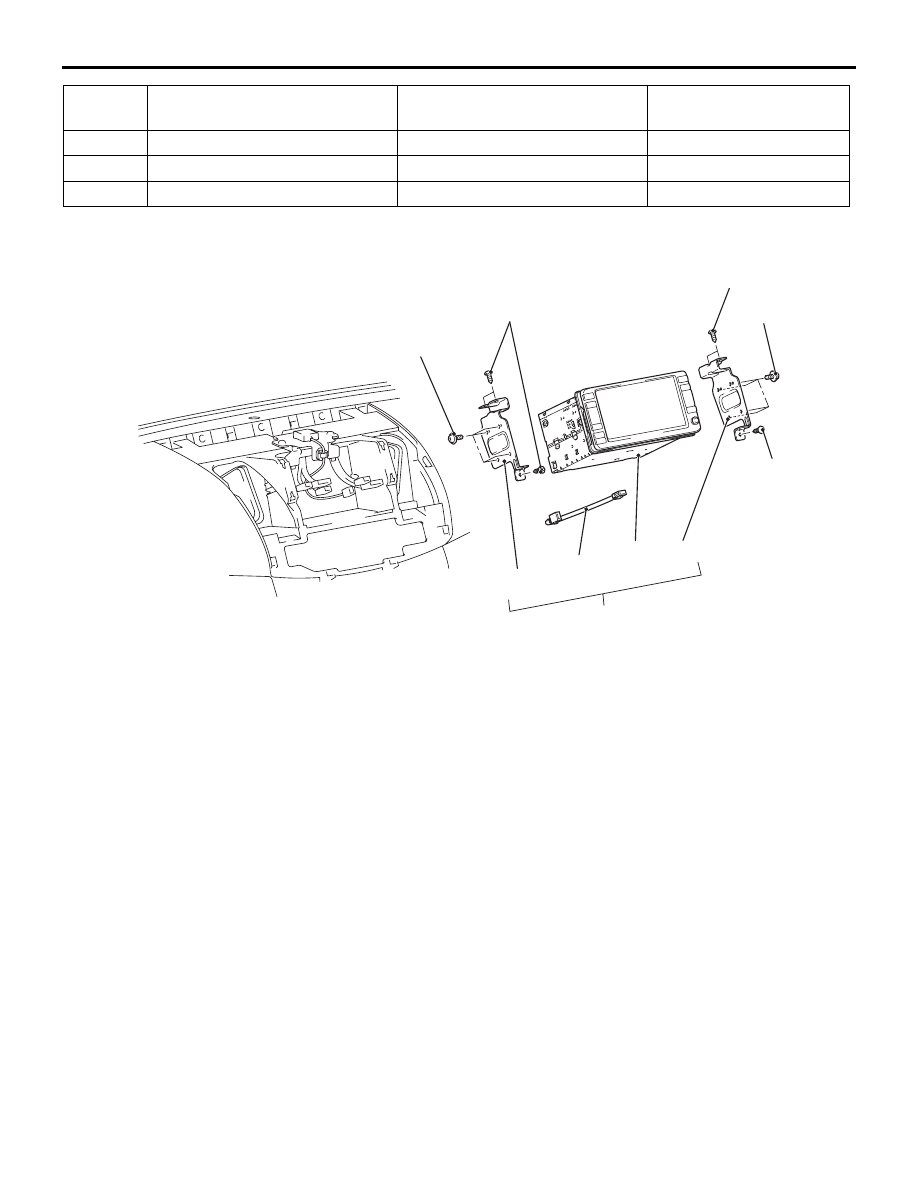

Removal Steps

•

Centre upper panel assembly and
meter hood  (Refer to GROUP 52A,
Instrument Panel Assembly ).

1.

Multivision display assembly

2.

Bracket (LH/RH)

3.

TMC cable

>>

A

<<

4.

Multivision display

Removal Steps (Continued)

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-380

GPS ANTENNA

INSTALLATION SERVICE POINT

>>A<< MULTIVISION DISPLAY

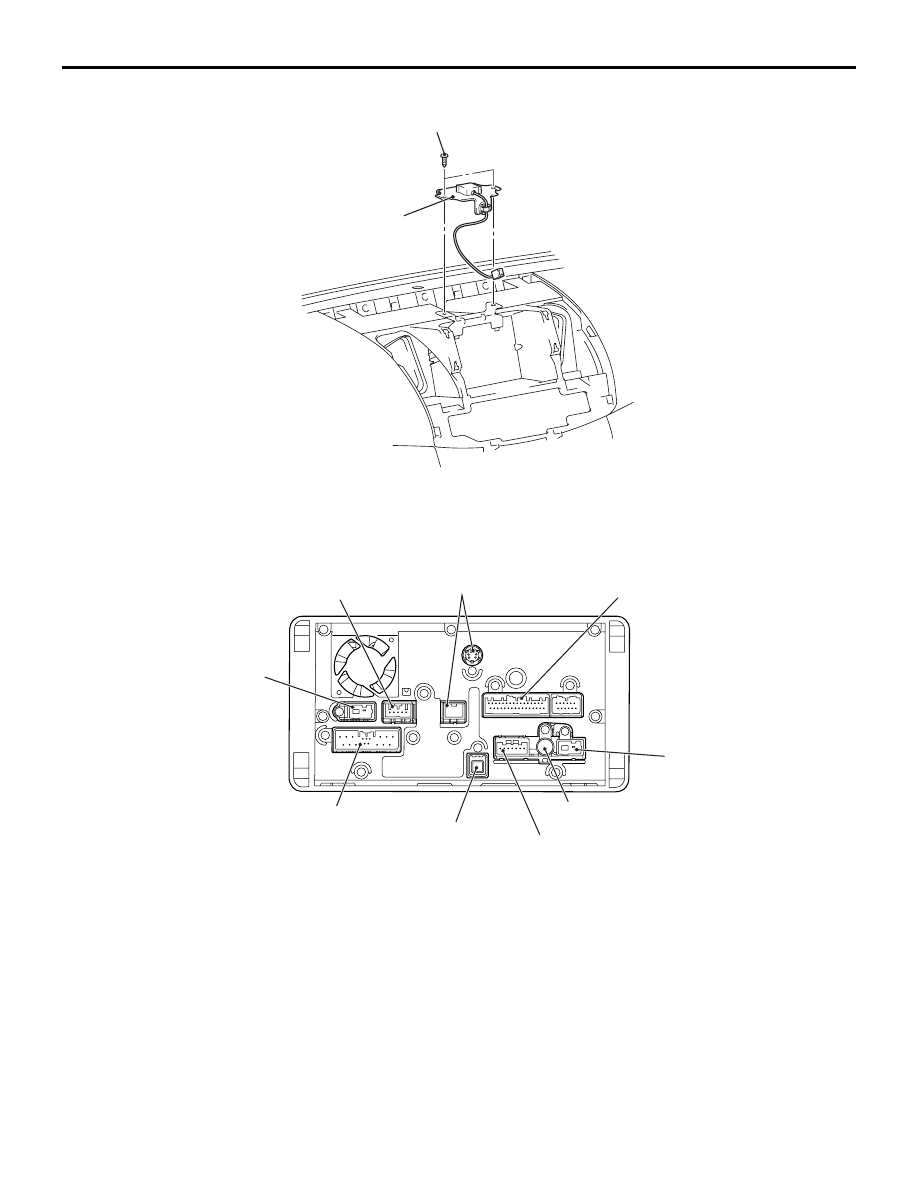

The connectors, antenna and cables connected to
the multivision display are shown in the figure.

AC900595

1.5 ± 0.5 N·m

AB

1

Removal Steps

•

Multivision display assembly

1.

GPS antenna

AC802116

Connector: C-168

Connector: C-170

Connector: C-167

Antenna feeder(Radio antenna)

No connection

GPS antenna

TMC cable

TMC cable

Connector: C-169

AH

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-381

REMOVAL AND INSTALLATION

M1546023400086

INSPECTION

AUDIO AND VIDEO ADAPTER
INSPECTION

M1546312900141

1. Remove the audio and video adapter.(Refer to

P.54A-379

.)

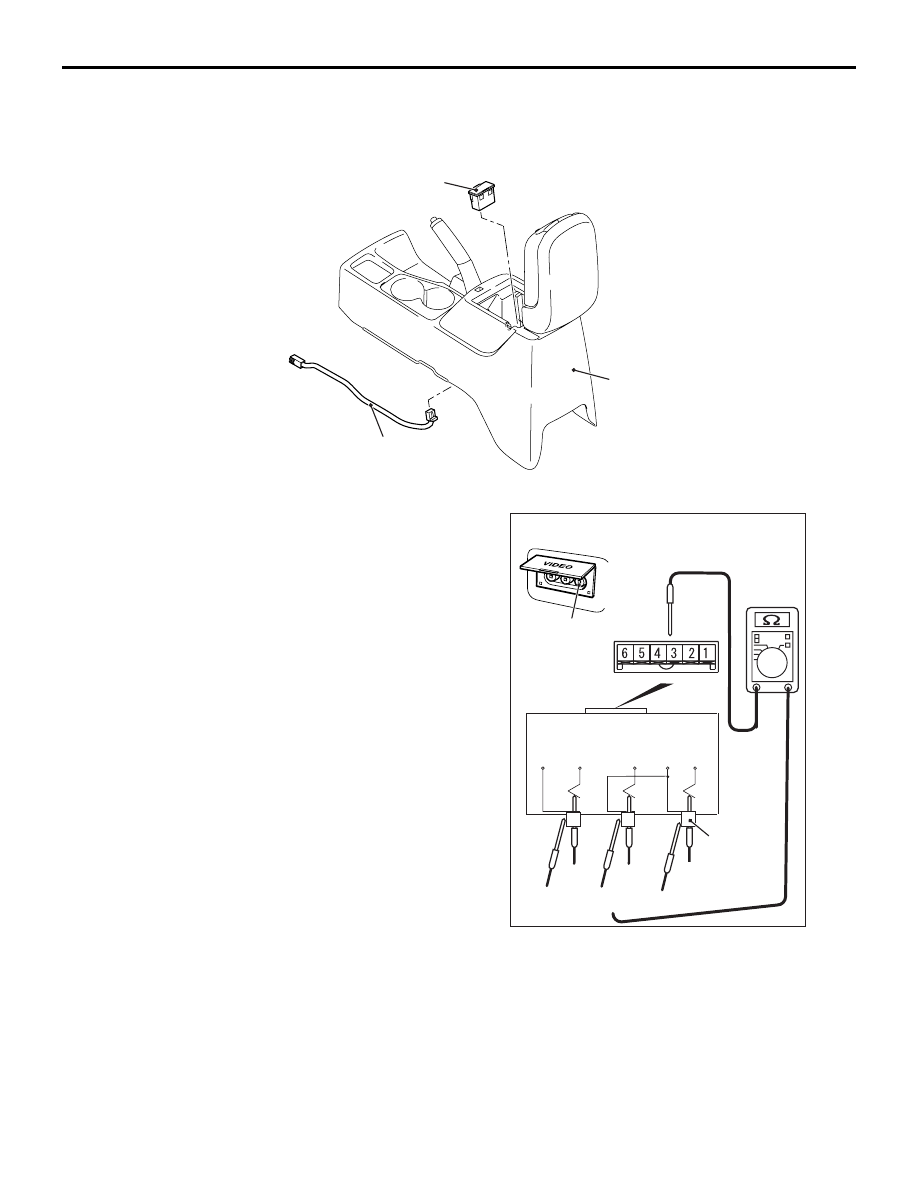

2. Check that continuity exists between the terminal

and the pin jack of audio and video adapter.

AC809004

AB

1

2

Rear floor console assembly

Removal Steps

•

Rear floor console assembly (Refer
to GROUP 52A, floor console
assembly ).

1.

Front console harness

2.

Video and audio adapter

AC707484

AUDIO

L (MONO)

AUDIO

R

VIDEO

IN

Yellow

1

2

3

4

5

AB

6

Pin Jack

Pin Jack

Red

White

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

CHASSIS ELECTRICAL

54A-382

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

GENERAL INFORMATION

M1544000101122

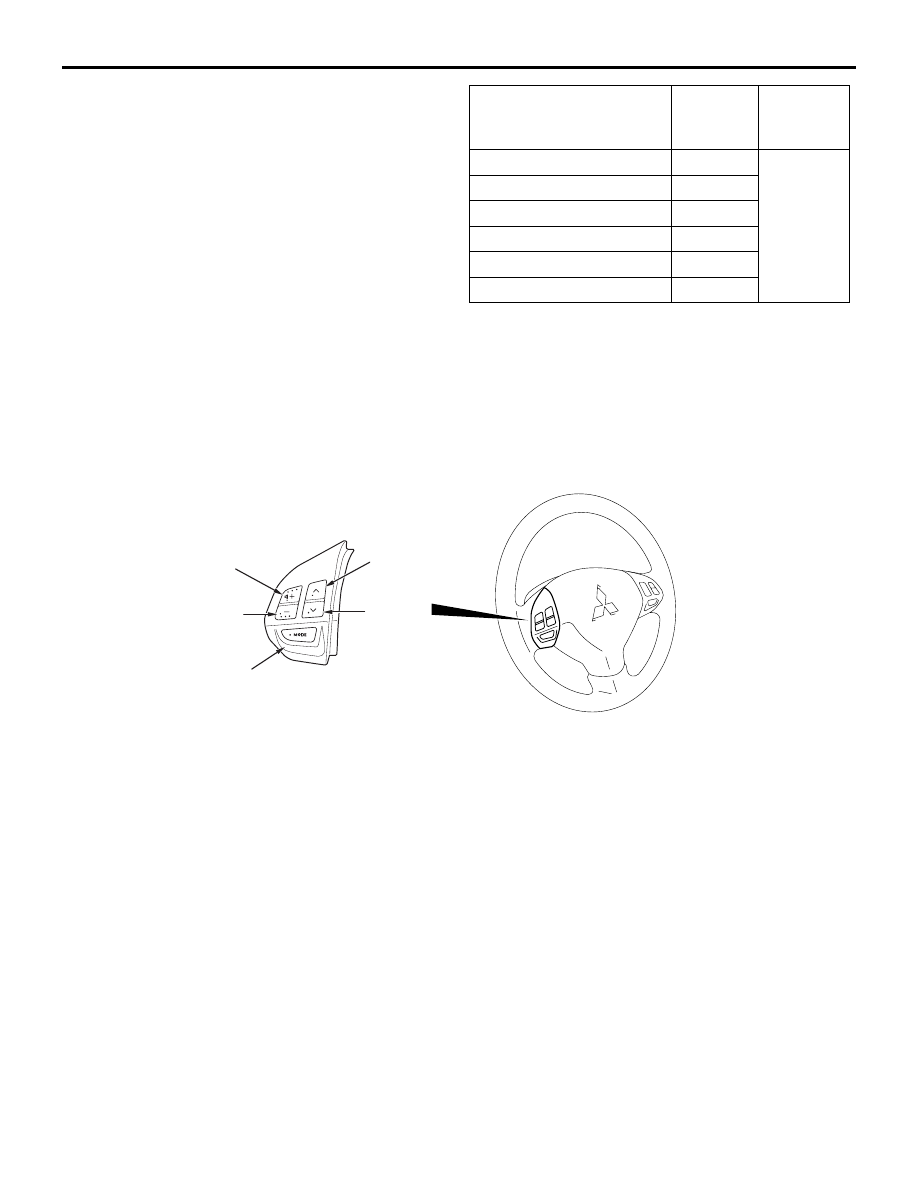

On the spoke of steering wheel, the steering wheel audio remote control switch which can operate the radio
and CD player or multivision display have been installed.

STEERING WHEEL AUDIO REMOTE CONTROL
SWITCH
Using the steering wheel audio remote control
switch, the volume adjustment of the radio and CD
player or the multivision display, mode changeover,
CD track up/down, and others can be performed.

The connection position
of pin jack side circuit
tester

Terminal
number

Measurem
ent value

1

2

Continuity
exists (2

Ω

or less)

2

1

3

5

4

4

5

5

6

6

AC800143

"VOL up" switch





AB

"Mode" switch

"VOL down"
switch

"CH up" switch

"CH down"
switch
