MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-347

<Front door speaker (RH)> Check the wire harness

between E-11 front door speaker (RH) connector
terminal No.1, 2 and C-170 multivision display
connector terminal No.15, 7.

NOTE: Prior to the wiring harness inspection, check

intermediate connectors C-122, C-58 and C-15,
and repair if necessary.

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-348

AC903939

AE

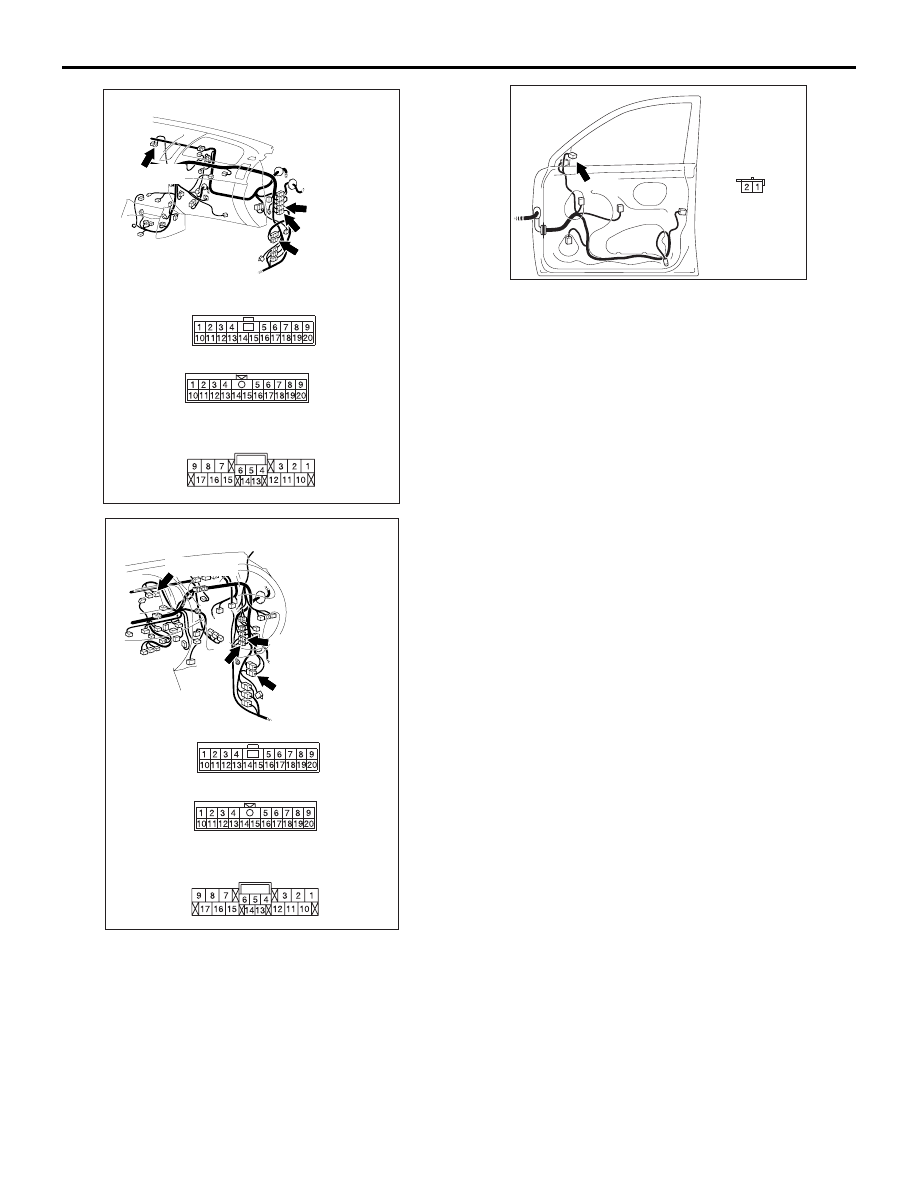

Connectors: C-15, C-16, C-121, C-170 <LHD>

C-16

C-16

C-15

C-15, C-121

C-121

C-170

C-170 (GR)

Harness side

AC903891

Connectors: C-15, C-16, C-121, C-170 <RHD>

AF

C-15

C-15, C-121

C-170

C-170 (GR)

Harness side

C-16

C-16

C-121

AC509954AC

Connector: E-25

Harness side

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-349

<Tweeter (RH)> Check the wire harness between E-

25 tweeter (RH) connector terminal No.2, 1 and
C-170 multivision display connector terminal
No.15, 7.

NOTE: Prior to the wiring harness inspection, check

intermediate connectors C-121, C-16 and C-15
and repair if necessary.

<Rear speaker (LH)> Check the wire harness

between E-22 rear door speaker (LH) connector
terminal No.1, 2 and C-170 multivision display
connector terminal No.11, 12.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connectors D-14 and C-59, and repair if
necessary.

<Rear speaker (RH)> Check the wire harness

between E-09 rear door speaker (RH) connector
terminal No.1, 2 and C-170 multivision display
connector terminal No.16, 8.

NOTE:

AC903853

BB

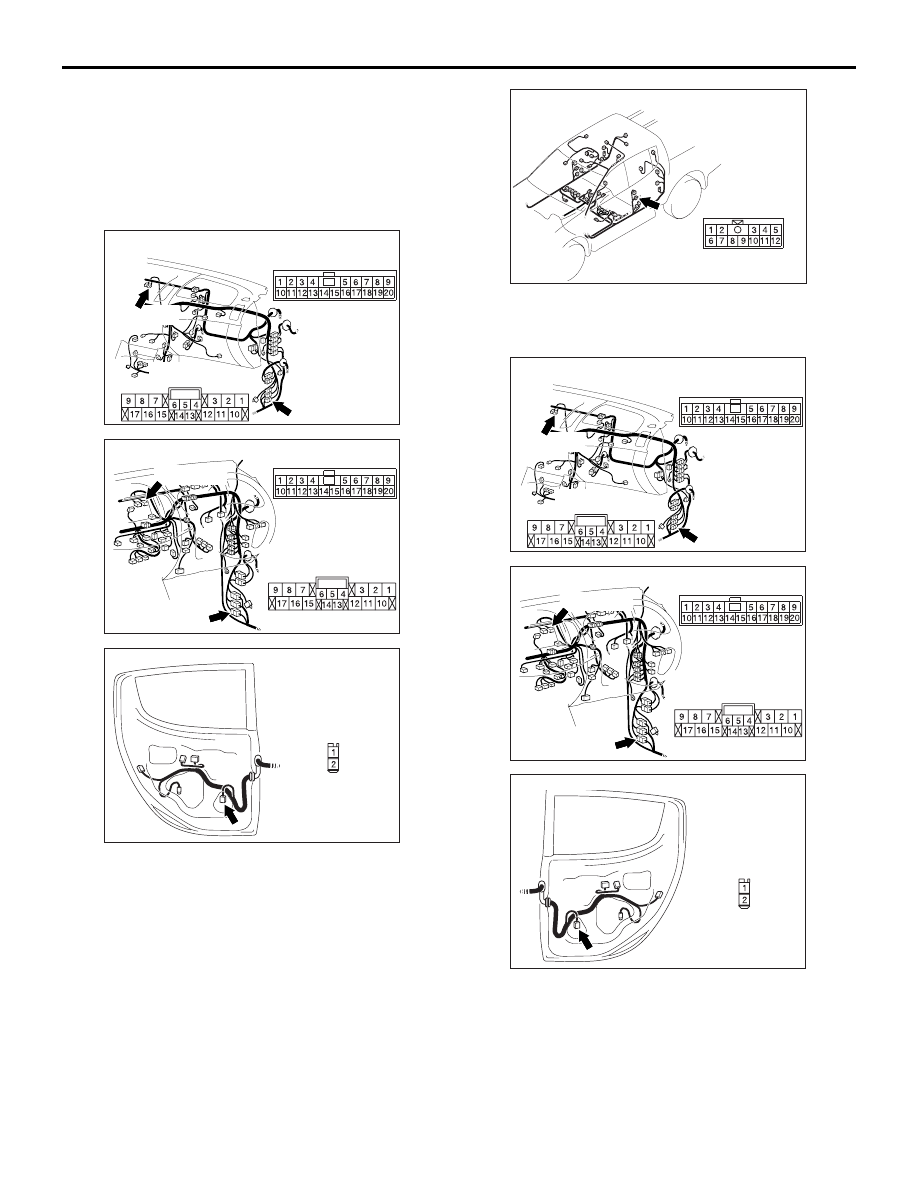

Connectors: C-59, C-170 <LHD>

C-59

C-59

C-170 (GR)

Harness side

C-170

AC903868

BK

Connectors: C-59, C-170 <RHD>

C-59

C-170

C-59

C-170 (GR)

Harness side

AC502333AB

Connector: E-22

Harness side

AC903885

Connector: D-14

AE

AC903853

BB

Connectors: C-59, C-170 <LHD>

C-59

C-59

C-170 (GR)

Harness side

C-170

AC903868

BK

Connectors: C-59, C-170 <RHD>

C-59

C-170

C-59

C-170 (GR)

Harness side

AC502334AB

Harness side

Connector: E-09

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-350

Prior to the wiring harness inspection, check interme-

diate connectors D-24, C-59 and repair if neces-
sary.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

STEP 6. Retest the system
 Check if the sound is output from all the speakers.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Go to Step 7.

STEP 7. Retest the system
Temporarily replace the multivision display, and
check if the sound is output from all the speakers.

Q: Is the check result normal?

YES :

Replace the multivision display.

NO :

Replace the speaker which does not output
the sound.

AC903885

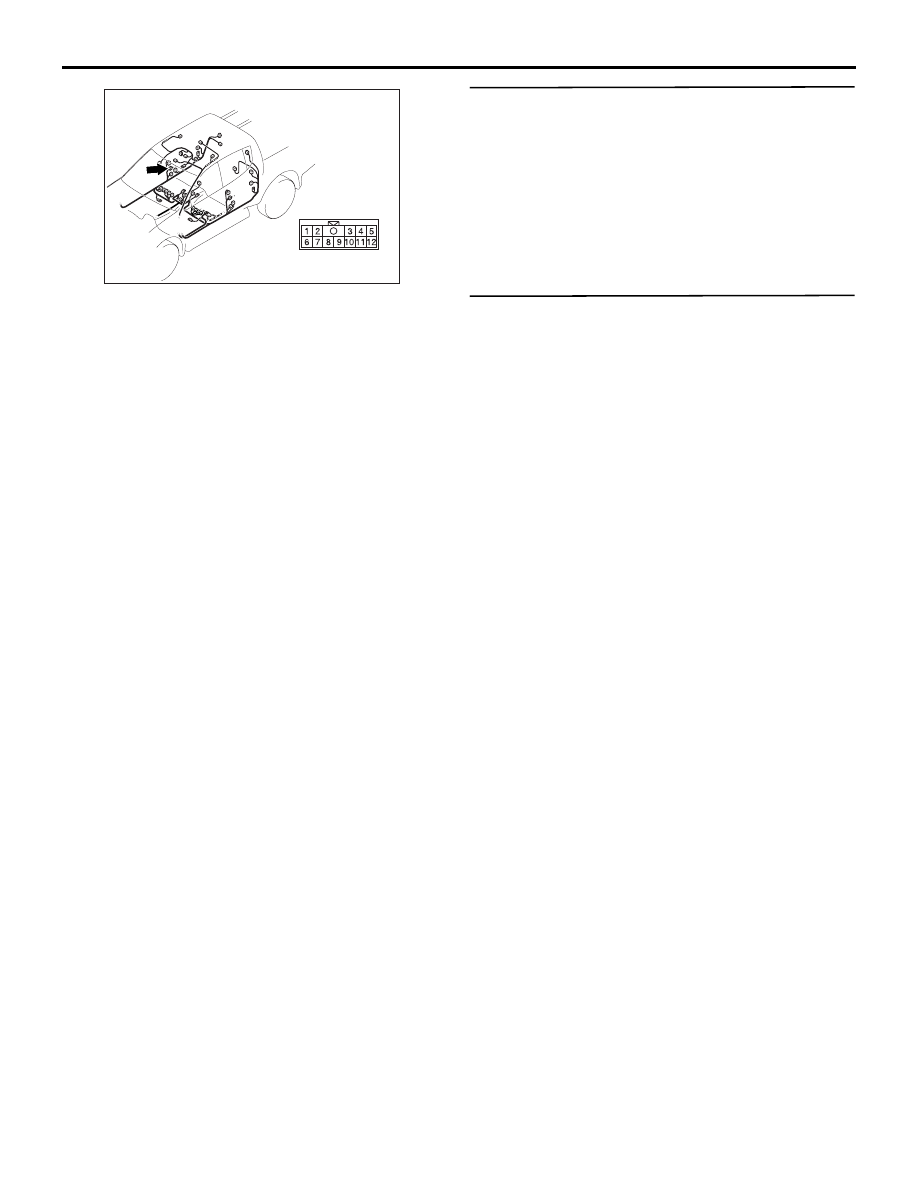

Connector: D-24

AF
