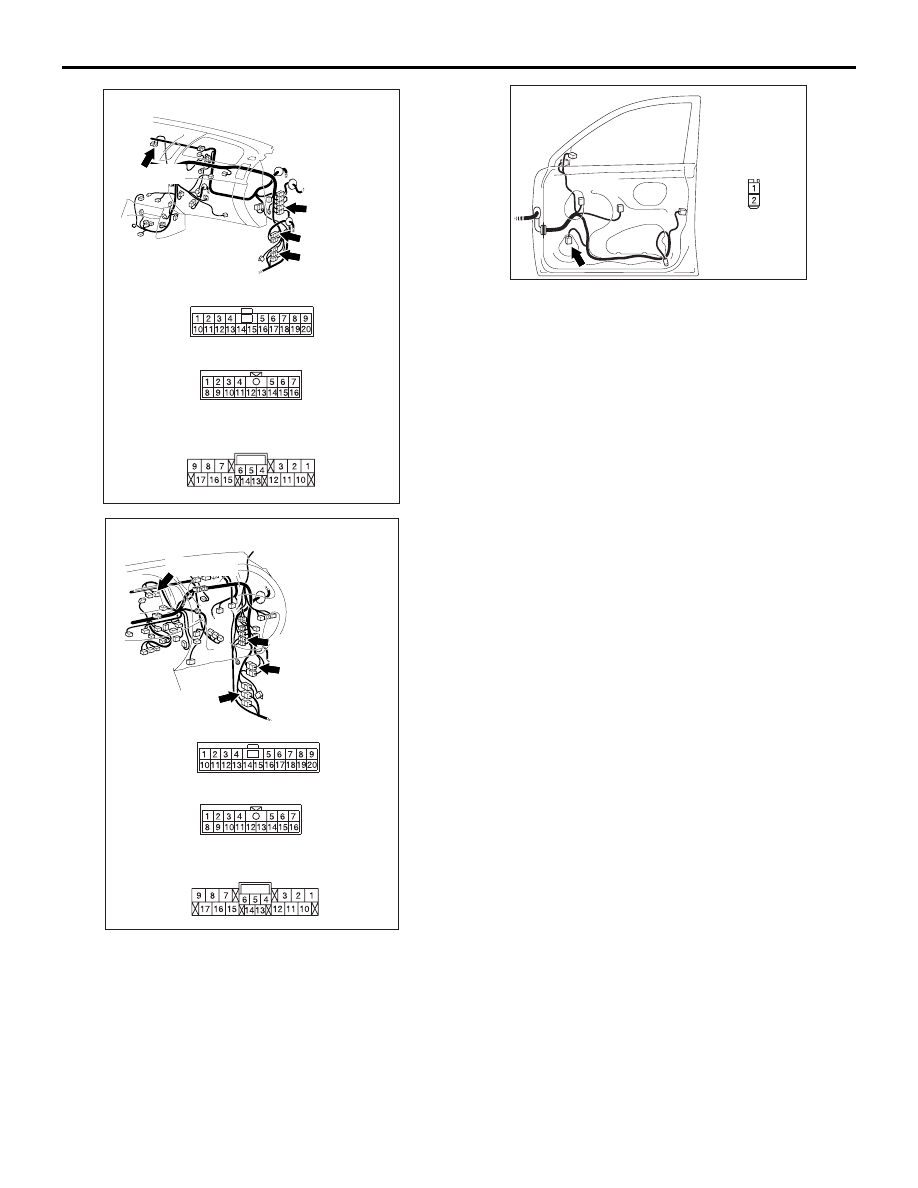

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-343

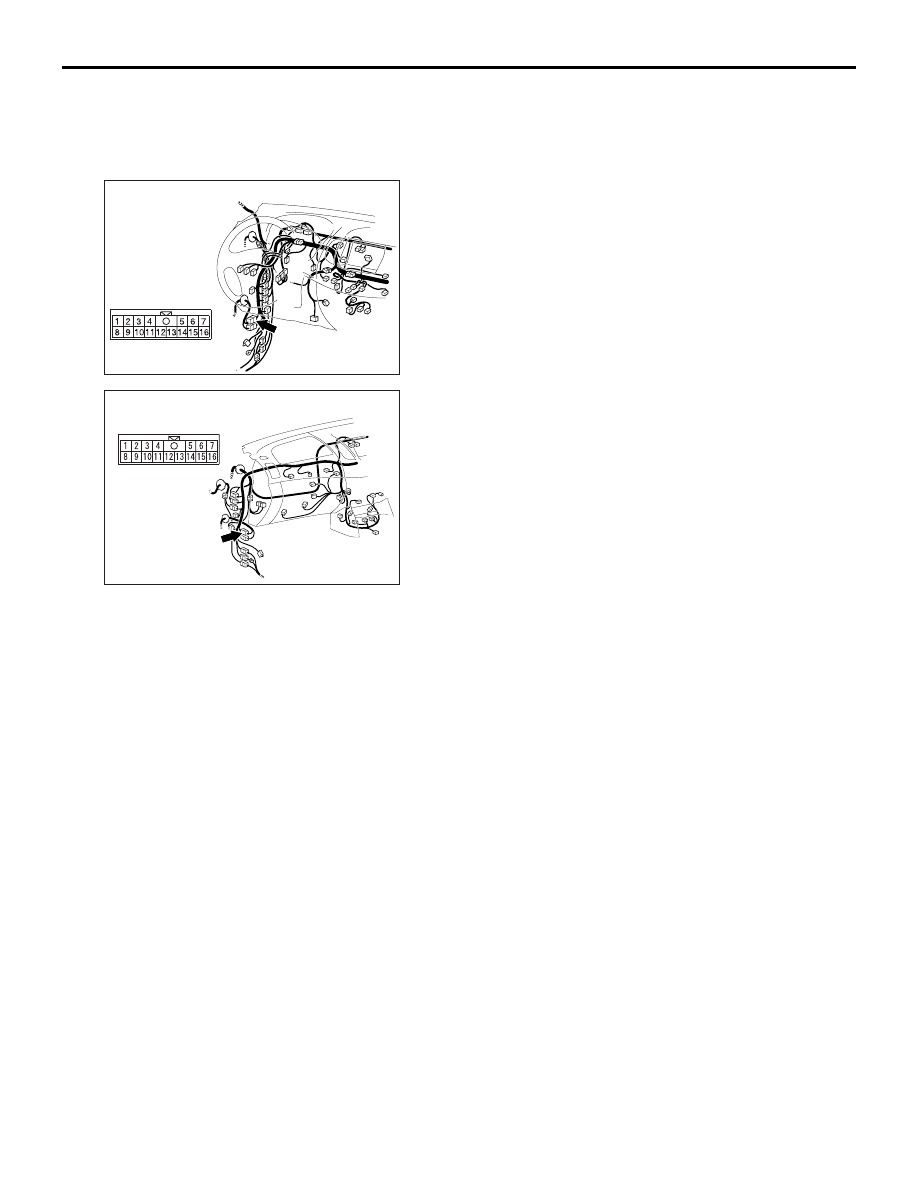

<Front door speaker (LH)> Check the wire harness

between E-19 front door speaker (LH) connector
terminal No.1, 2 and C-170 multivision display
connector terminal No.12, 3.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connectors C-134, C-58 and C-15, and
repair if necessary.

AC903856AG

Connector: C-134 <LHD>

Harness side

AC903865

Connector: C-134 <RHD>

AF

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-344

•

AC903939

AC

Connectors: C-15, C-16, C-170 <LHD>

C-16

C-16

C-15

C-15

C-170

C-170 (GR)

Harness side

AC903891

Connectors: C-15, C-16, C-170 <RHD>

AD

C-15

C-15

C-170

C-170 (GR)

Harness side

C-16

C-16

AC509952

Connector: E-24

AC

Harness side

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-345

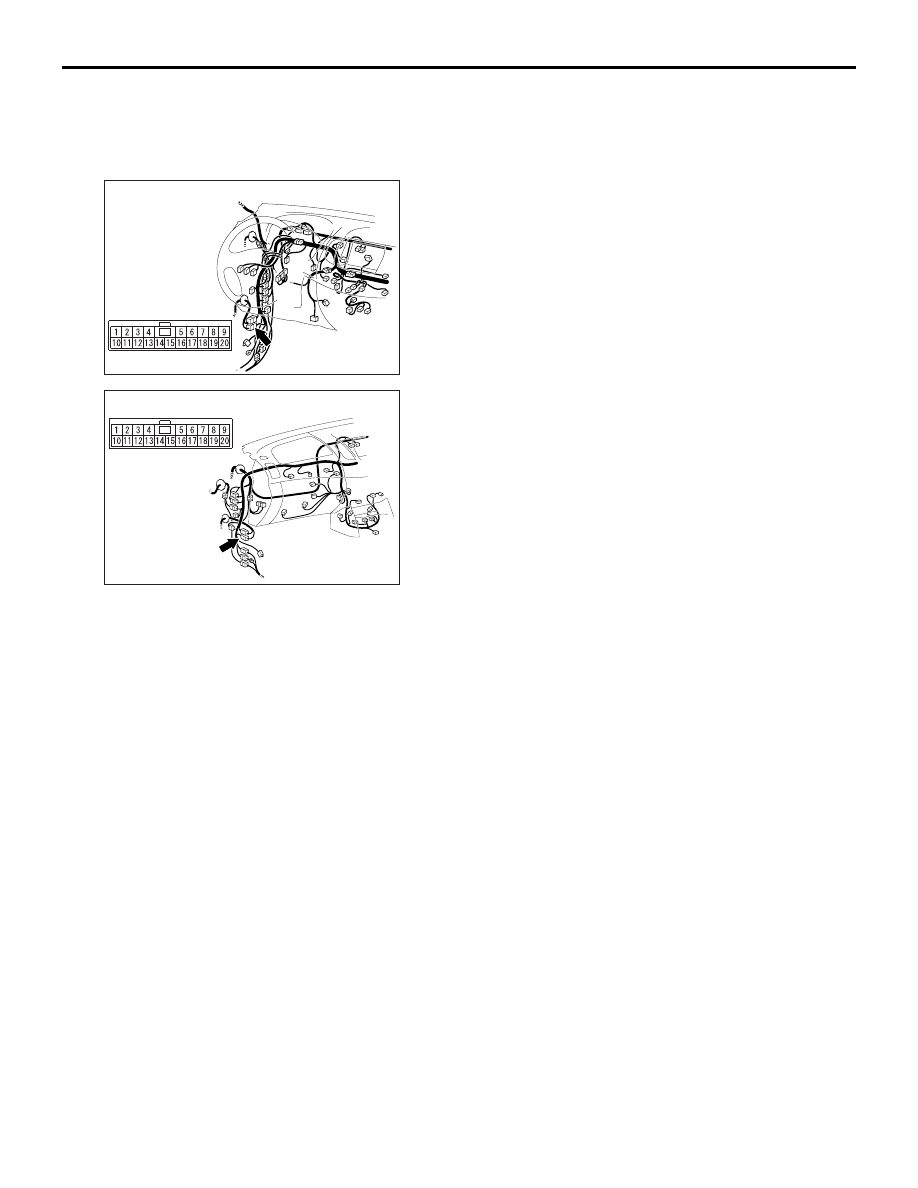

<Tweeter (LH)> Check the wire harness between E-

24 tweeter (LH) connector terminal No.2, 1 and
C-170 multivision display connector terminal
No.12, 3.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connectors C-133, C-16 and C-15, and
repair if necessary.

AC903856

Connector: C-133 <LHD>

AN

AC903865

Connector: C-133 <RHD>

AL

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-346

•

AC903939

Connectors: C-15, C-58, C-122, C-170 <LHD>

AD

C-58

C-15

C-15

C-58, C-122

C-122

C-170

C-170 (GR)

Harness side

AC903891

Connectors: C-15, C-58, C-122, C-170 <RHD>

AE

C-58

C-15

C-15

C-58, C-122

C-170

C-170 (GR)

Harness side

C-122

AC509954AB

Connector: E-11

Harness side
