Mitsubishi L200. Manual - part 736

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-311

1. Select "Handle Setting" on "Service" screen.

2. Select the currently-set handle to display.
3. To change the handle setting, select the handle to

be changed to, and then select "Set."
NOTE: Even when the handle is selected, the
selected handle will not be set if "Back" is
selected.

MEMORY INITIALIZATION

1. Select "Memory Initialization" on "Service" screen.

2. If you select "Start" on "Memory Initialization"

screen, the settings such as registered locations
and music server will be erased (initialized) from
the memory.
NOTE: If the ignition switch is turned to "LOCK"
(OFF) position during the initialization, the initiali-
zation will be suspended. If the ignition switch is
turned to "ACC" or "ON" position, the initialization
will be resumed.

3. After the memory initialization is complete, the

navigation system will restart automatically.

TMC SENSITIVITY

1. Select "TMC sensitivity" on "Service" screen.

ACB01771

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Car Type Setting

Versions Indication

1/2

Sensor Check

Hands Free Module/USB BOX

Handle Setting

Back

Next

Previous

AC7070627

Handle Setting

Back

Set

RHD

LHD

Service

Memory Initialization

TMC Sensitivity

Versions Log Information

2/2

Back

Next

Previous

ACB00873

Touch Switch Confirmation

AC703748

Back

Start

Memory Initialization

You can erase all of the back up data.

After erasing the data, the system will reboot.

If you push Start, the data will be deleted.

AC703748

ln Early Period Of Memory

Please do not switch off until rebooting is completed.

Service

Memory Initialization

TMC Sensitivity

Versions Log Information

2/2

Back

Next

Previous

ACB00873

Touch Switch Confirmation

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-312

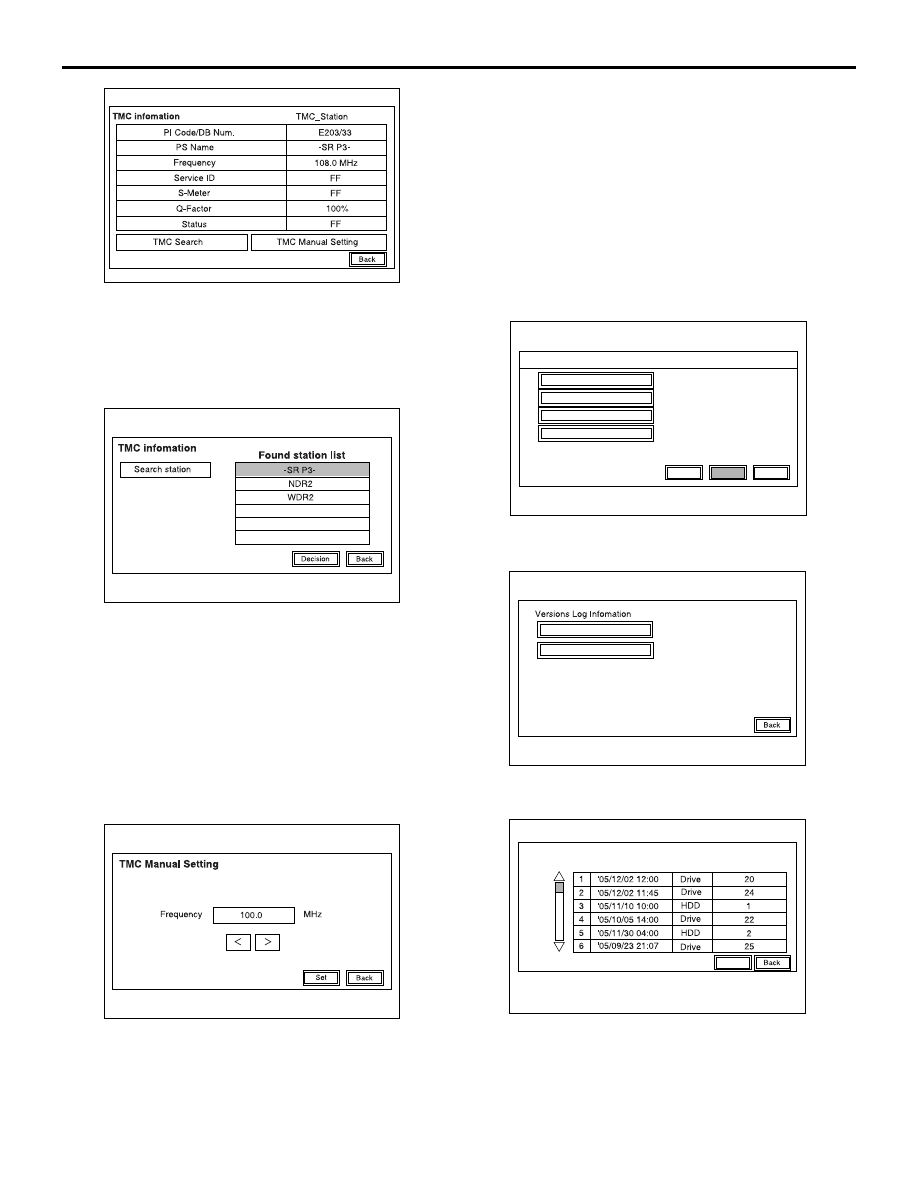

2. The information of TMC station is displayed.

NOTE: When the now-received information is
from selected TMC station, "TMC_station" is dis-
played on the upper right of the screen. "

−

" is dis-

played when the information is not received.

3. Select "TMC Search" on the "TMC information"

screen to search the TMC station that can be
received, and update and display the contents of
"Found station list".

4. Select "TMC station" displayed on the "Found

station list" and press "decision" switch to update
the received TMC station and return to the "TMC
information" screen. The information of selected
TMC station is displayed on the TMC information
screen.

5. Select "TMC Manual Search" on the "TMC

information" screen to set the frequency by "<" or
">" switch.

6. Update the received TMC station by "Set" switch

and return to the "TMC information" screen. The
information of selected TMC station is displayed
on the TMC information screen.

VERSIONS LOG INFORMATION
Displays logs for drive and HDD.

Service Data Log

Select "Versions Log Information" on "Service"

screen.

Select "Service Data Log" on the "Versions Log Infor-

mation" screen.

The logs are displayed from the latest one.

4. The log data is erased by pressing "Delete."

AC611547

AC611548

AC611549

Service

Memory Initialization

TMC Sensitivity

Versions Log Information

2/2

Back

Next

Previous

ACB00873

Touch Switch Confirmation

AC611719

Service Data Log

Time Adjustment Log

AC707631

Service Data Log

Time

Item

Factor

Delete

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-313

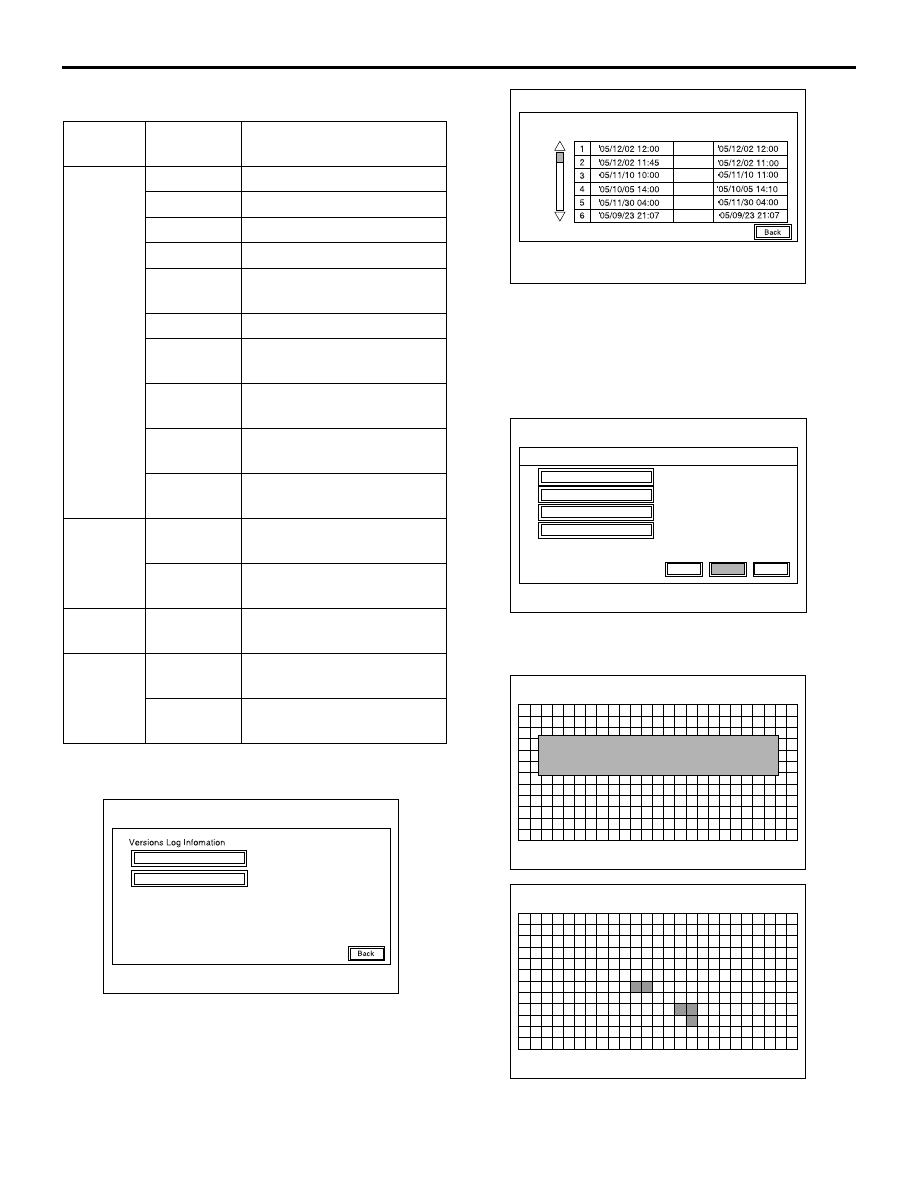

EACH LOG INFORMATION: FACTOR CODE
TABLE

Time Adjustment Log

Select "Time Adjustment Log" on the "Versions Log

Information" screen.

The time adjustment logs are displayed.
As for Factor, the following two types are displayed.
CT: Automatic adjustment
MAN: Manual adjustment

TOUCH SWITCH CONFIRMATION

1. Select "Touch Switch Confirmation" on "Service"

screen.

2. If you touch the screen, the colour of the dotted

coordinate at the touched area will be changed.

Item

Factor
number

Produced log

Drive

Log concerning focus

Log concerning disc type

Log concerning disc

Log concerning SEEK

Log concerning servo
start-up

Log concerning power-On

Log concerning loading /
eject operation

Log concerning pick-up
operation

Log concerning state of
mechanism

Log concerning TOC
reading

HDD

Log concerning high
temperature

Log concerning low
temperature

Monitor

Log concerning high
temperature

AMP

Log concerning
connection

Log concerning
communication

AC611719

Service Data Log

Time Adjustment Log

AC611720

Time Adjustment Information

After

Factor

Before

Service

Memory Initialization

TMC Sensitivity

Versions Log Information

2/2

Back

Next

Previous

ACB00873

Touch Switch Confirmation

If you complete the touch switch confirmation.

please push [MENU]

AC606337

AC611394

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-314

TROUBLE SYMPTOM CHART

M1546001801250

Inspection
procedure
No.

Trouble symptom

Reference
page

No navigation screen is displayed.

P.54A-315

No sound is heard.

P.54A-327

P.54A-331

No sound is heard from one of the
speakers.

P.54A-337

P.54A-351

The navigation system can be operated while the vehicle is driven.

P.54A-361

The screen is not normal in the
navigation mode. (The own vehicle mark
is dislocated.)

P.54A-363

P.54A-366

The radio broadcasting can not be received.

P.54A-368

GPS signal can not be received.

P.54A-370

P.54A-370

CD/DVD cannot be played.

P.54A-371

Image of a DVD is played, but no sound is played.

P.54A-373

Sound of a DVD can be played, but no image is played.

P.54A-374

The picture and sound of external input are not played.

P.54A-375
